Toucan Tvdp05gr Wireless Video Doorbell Pro User Manual

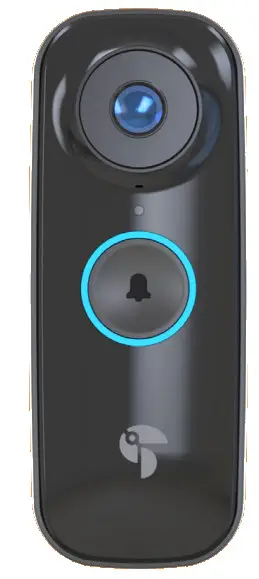

TVDP05GR Wireless Video Doorbell PRO
User Manual

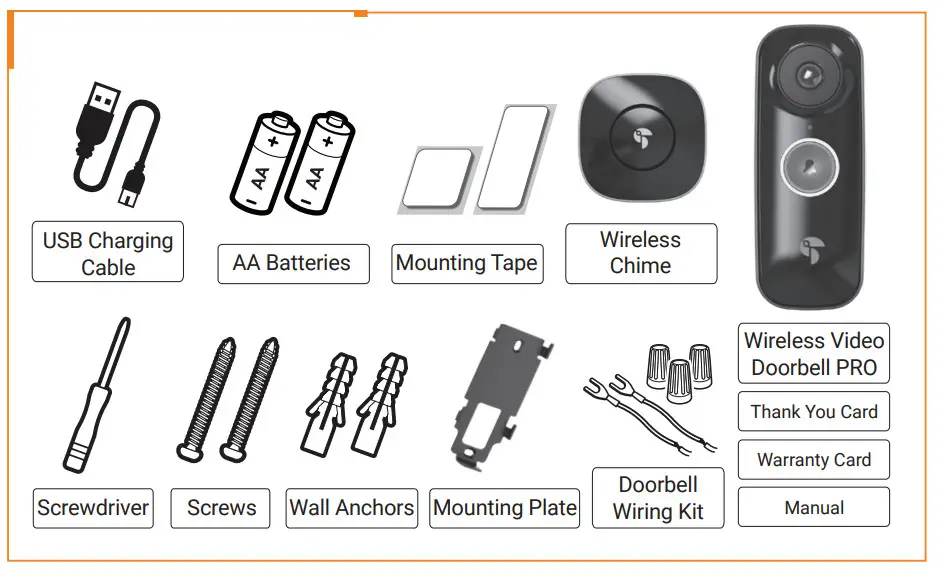

Items Included

Get to know your video doorbell and chime

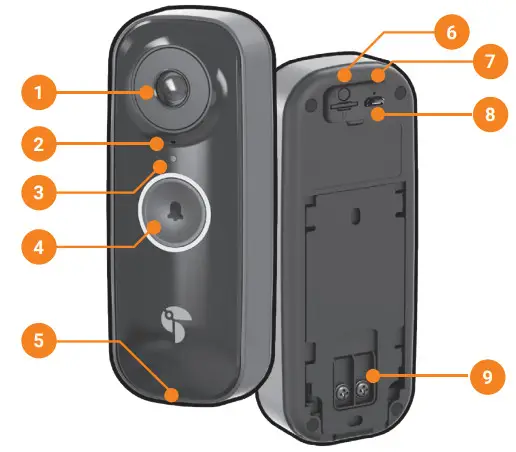

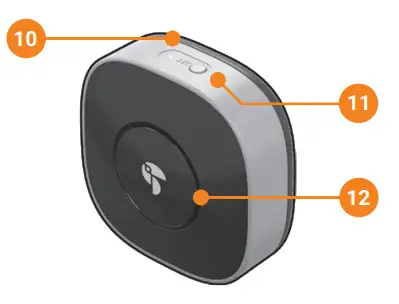

Doorbell 1. Camera lens 2. Microphone 3. Light sensor 4. Doorbell button 5. Speaker 6. SET / Power ON button 7. RST / Power OFF pinhole button 8. Charging port 9. (Optional) Power Terminals	Chime 10. LED indicator 11. SET button 12. Speaker

Charge your video doorbell

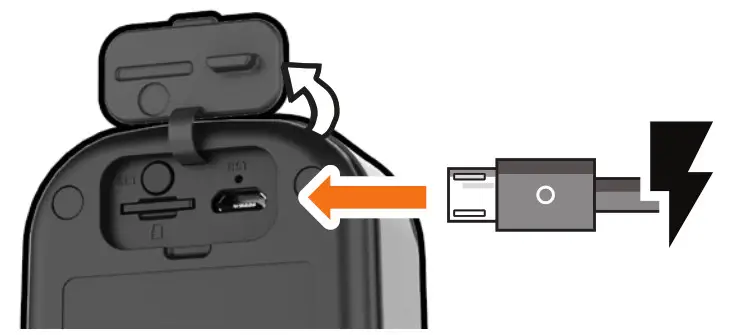

Open the back cover, plug in micro usb cable to charge the video doorbell.
Recommend to fully charge the device before 1st use.

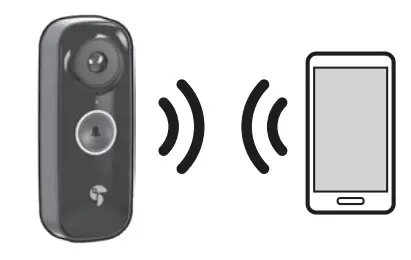

Setup your video doorbell

1. Download the Toucan App for Android or IOS
   Scan QR code or visit www.toucansolution.com/pages/toucan-smart-home-app
2. Open the app and create a free account

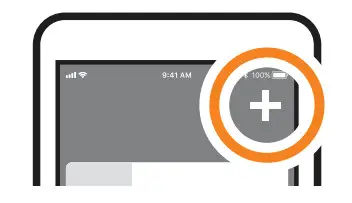

3. Tap the ‘+’ in the upper right to add a device

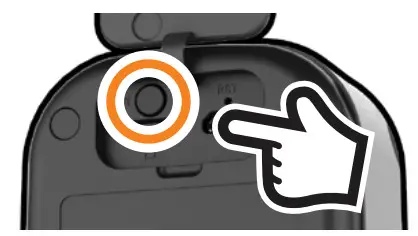

4. Press and hold the SET button until LED light blinks to enter the setup mode

5. Follow the instructions on the Toucan App to complete the setup


	Flashing BLUE	Setup Mode	LED Description
	Flashing PURPLE	Connecting to cloud server
	Flashing RED	Connection Failed

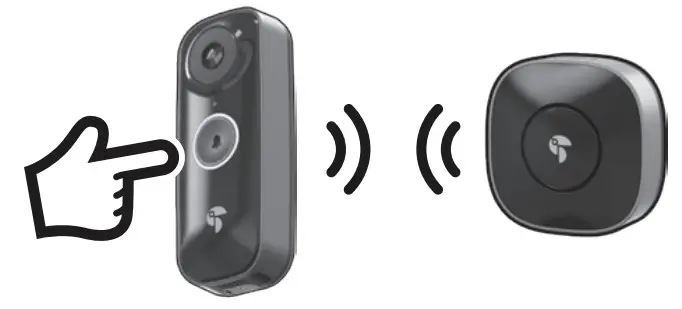

Pairing your chime with your video doorbell

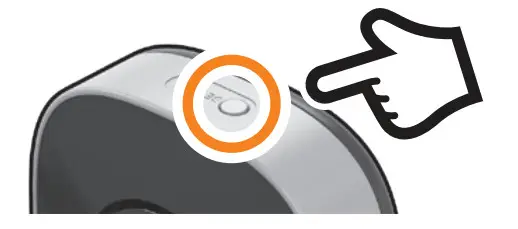

The chime and doorbell come pre-paired, but if you need to pair it again, follow the instructions in this section.Press and hold the SET button on the Chime until the LED blinks, about 3 secondsPress and hold the doorbell button for about 3 seconds to complete pairing with the chime
Chime LED Description

Install your video doorbell and chime

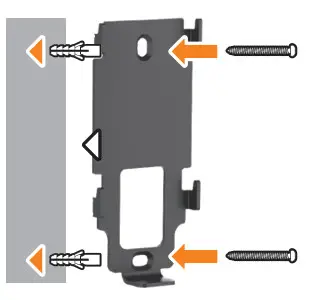

1. Drill holes for wall anchor placement. If installing to use existing doorbell wiring, the hole in the center of the mounting plate should be over the old doorbell wiring hole.
2. Insert wall anchors
3. Attach the mounting plate with included screws
   If connecting the Wireless Video Doorbell Pro to your existing doorbell wiring, proceed to the “(Optional) Wiring your video doorbell” section on the next page. Otherwise, continue with step 4

4. Place the doorbell on mounting plate

5. Tighten the securing screw by turning it clockwise
6. If using the “(Optional) Wiring your video doorbell”, you may now turn the power back on for the doorbell wiring.

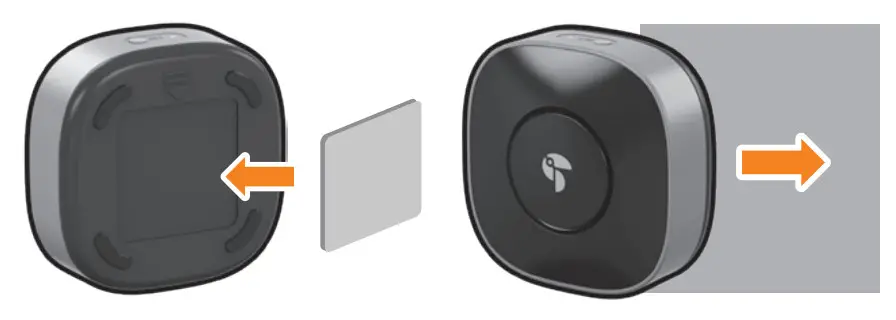

7. Place the adhesive tape on the back of the chime and stick it to the wall in a suitable location inside your home.

* If using the adhesive to mount the doorbell, please adhere to the surface and wait 24-48 hours to enable maximum bond strength before adding the doorbell. Apply 3M adhesive to dry surfaces only.
** You can mount the doorbell using just the adhesive on UPVC, wooden or smooth surface door frames (not suitable for brick or stone)
*** The Chime can be placed up to 50m from the doorbell

(Optional) Wiring your video doorbell

This section should be followed ONLY if you are using existing doorbell wiring, and only after completing steps 1through 1 in the “Install your video doorbell and chime”  section

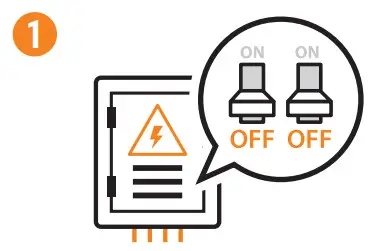

ENSURE THAT YOU HAVE TURNED OFF ALL POWER TO DOORBELL WIRING AT YOUR BREAKER BOX

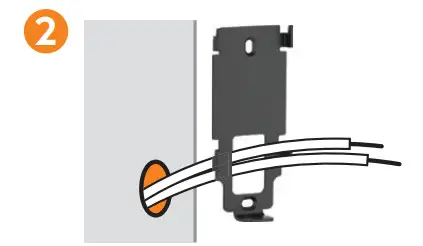

Pull a few inches of doorbell wiring through mounting plate

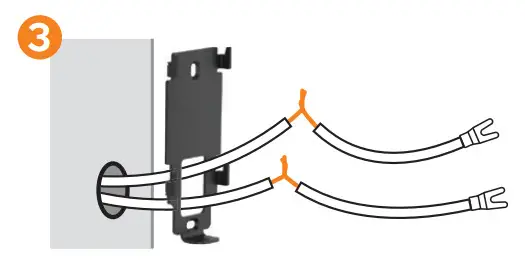

Twist ends of each doorbell wire together with the wire end of a connector

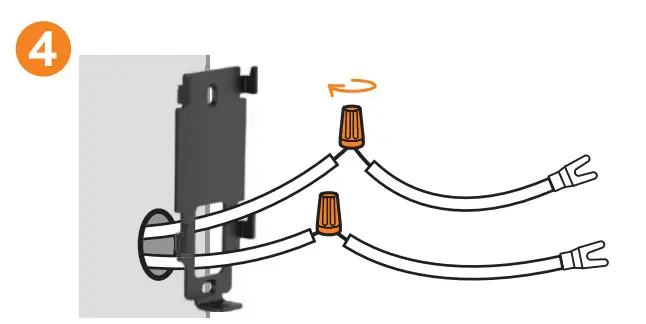

Place a wire nut over each pair of twisted wires, turn nut clockwise to tighten

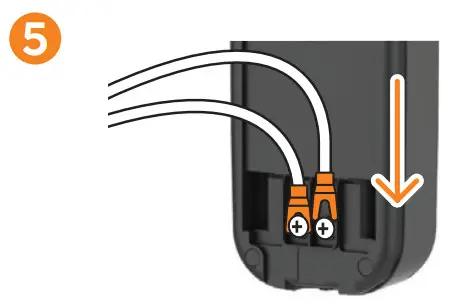

Slide the U-shaped ends of the connectors under the screws in the back of the doorbell. Tighten screws so that connectors do not slip out.

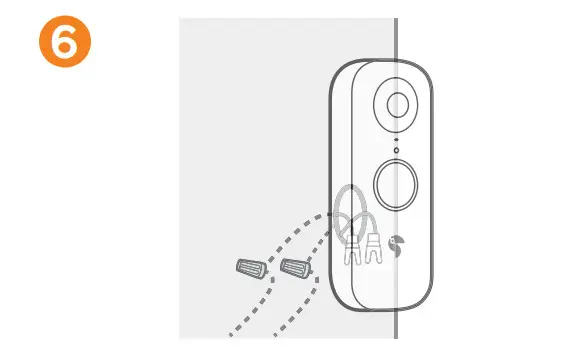

Push excess wires back into the wall
Return to Step 4 For detailed setup procedure, please refer to Toucan website www.ToucanSolution.com
4 in the section “Install your video doorbell and chime”

Regulations & Compliance
Fcc Statement
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to  provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,  which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device  must accept any interference received, including interference that may cause undesired operation.
ISED Regulatory Compliance
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

RF Exposure Compliance
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum  distance 20cm between the radiator and your body.

For additional info, visit our website at ToucanSolution.com
