Wallys Dr4029 Access Point Wireless Module Instructions

WALLYS DR4029 Access Point Wireless Module Instructions

Features

• Featuring with industrial-grade IPQ4029 chipset
• Integrated with 2x 2 5G high power Radio module and 2×2 2.4G high power Radio module
• Support 5150~5250MHz and 5725~5850MHz Frequency Range;
• Support 2412~2462MHz
• Support 2 x 5G MMCX Connectors and 2×2.4G MMCX
• 5G WiFi support 20MHz/40MHz/80MHz Bandwidth
• Support 802.11b/g/n/a/ac
• RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Applications

• Security Surveillance
• Commercial radio coverage
• Hotel Wireless application
• Country coverage
• Forest fire protection engineering
• Some special scene application

Product Description

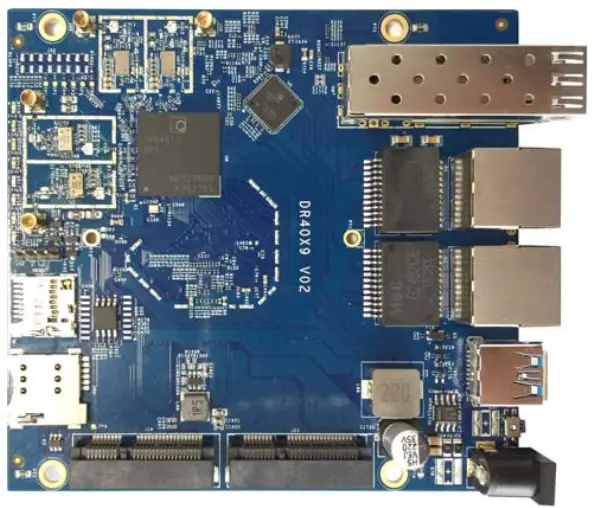

DR4029 based on IPQ4029 chipset is an enterprise wireless module integrated with 2×2 5G high power Radio module and 2×2 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.

Absolute Maximum Rating

Hardware Specifications

Radio TX Specifications(5180MHz-5825MHz)

Radio RX Specifications(5180MHz-5825MHz)

Radio TX Specifications(2412MHz-2462MHz)

Radio RX Specifications(2412MHz-2462MHz)

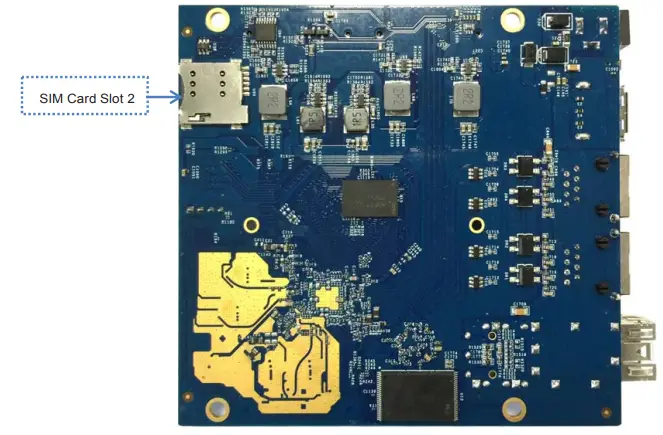

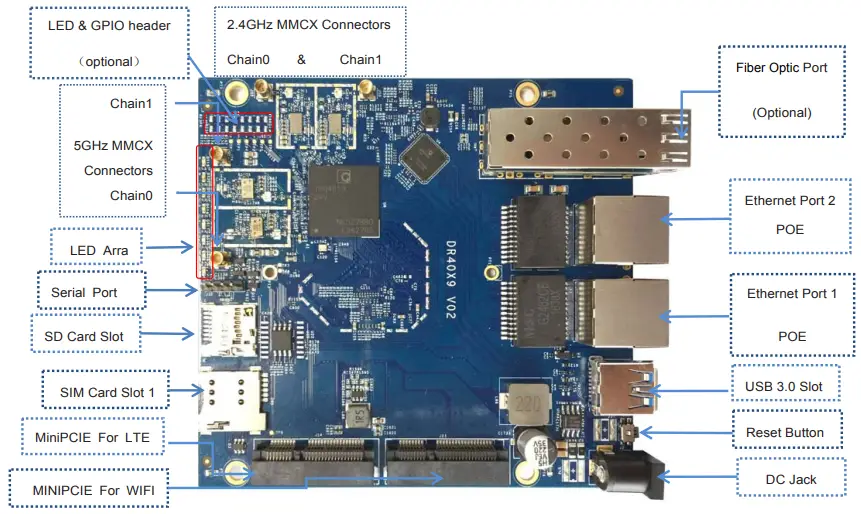

Interface MAP

Version

LED & GPIO header

FCC Statement

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 30cm between the radiator& your body.

References

• Wallys 802.11ax, wifi 6, IPQ4029,IPQ4019,IPQ6018,IPQ6000.Router board, wireless card.Access Point.
