sewoo MB-1200 Melody Box

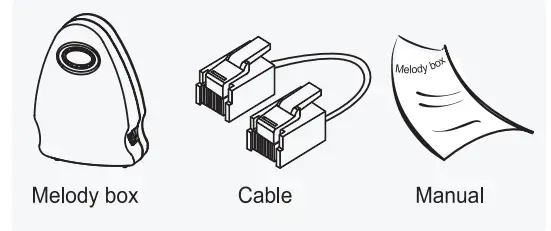

Unpacking

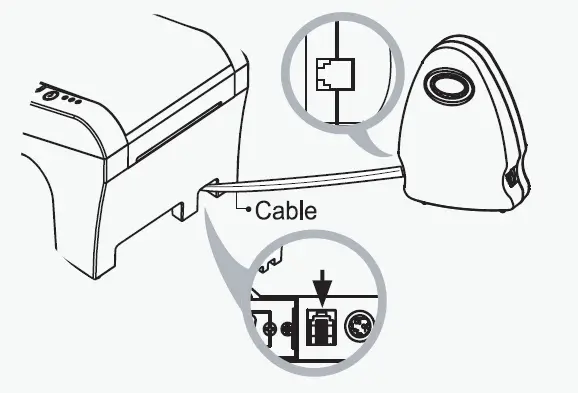

How to connect

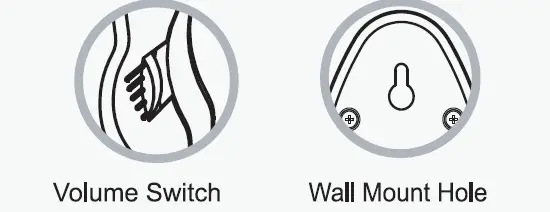

Function
Action
- Connect the cash drawer connector with the Melody box.
- Operate(Activate) the melody by using the cash, drawer command (like the following)
OESC/POS EMULATION
- ESC p m n1 n2 (<1B>H <70>H mn1 n2)
- m=1: Cash Drawer Connector Pin 5
- n1, n2: n1=on time/ n2=off time
- O<n1sn2s255
- Citizen iDP-3540
- SUB (1A>H)
- Star sp200
- SUB (1A>H)
The melody box will make a melody for 6-7 seconds.
