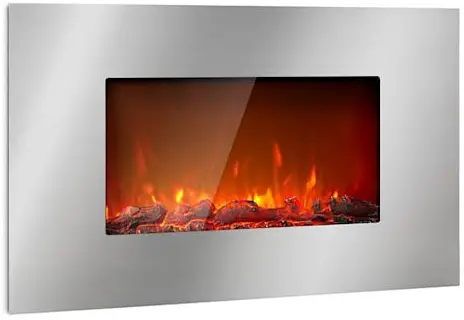

Klarstein 10034252 Lausanne Fireplace Heater Instruction Manual

KLARSTEIN 10034252 Lausanne Fireplace Heater Instruction Manual

Note: The device is not suitable for use as a primary heat source.

Dear Customer,
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

TECHNICAL DATA

PRODUCT DATA SHEET

SAFETY INSTRUCTIONS

• Do not use the appliance until it is securely fixed as described in this manual.
• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• If the supply cord is damaged, it must be replaced by a qualifi ed engineer in order to avoid a hazard.
• The fireplace heater must not be positioned directly under the power socket.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Keep out of reach of children and do not allow them to operate this appliance.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not operate this appliance after a malfunction or after being damaged in any way.
• Repairs to electrical appliances should only be performed by a qualifi ed electrician.
• Improper repairs may place user at serious risk.
• Do not run the mains cable under carpets, rugs, etc.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• In order to avoid overheating, do not cover the heater.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fi re risk exists if the heater is covered or positioned incorrectly.
• Never immerse the product in water or any other liquid for any reasons.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Do not operate with a damaged cord.
• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer.
  It could cause danger to the user or damage to the appliance.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children should be supervised to ensure that they do not play with the appliance.

CAUTION
Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

BEFORE INSTALLATION

• This device is designed to be mounted on a wall at a height of at least 300 mm. The minimum distance from the top of the heater to the ceiling should be at least 1000 mm. The wall bracket must be mounted horizontally and the cable must be routed along the bottom right of the heater.

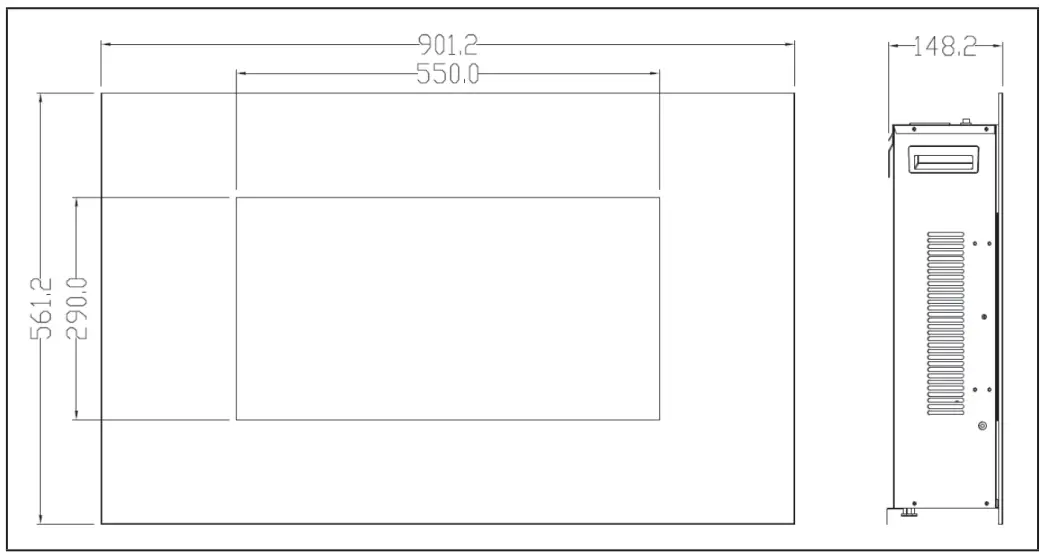

• For an optimum view of the control panel, we recommend a distance of 600 mm from the underside of the heater to the floor. The exact dimensions are as follows:

• The mounting bracket is attached to the rear of the heater. Loosen the 2 screws and remove the bracket before installation.

INSTALLATION

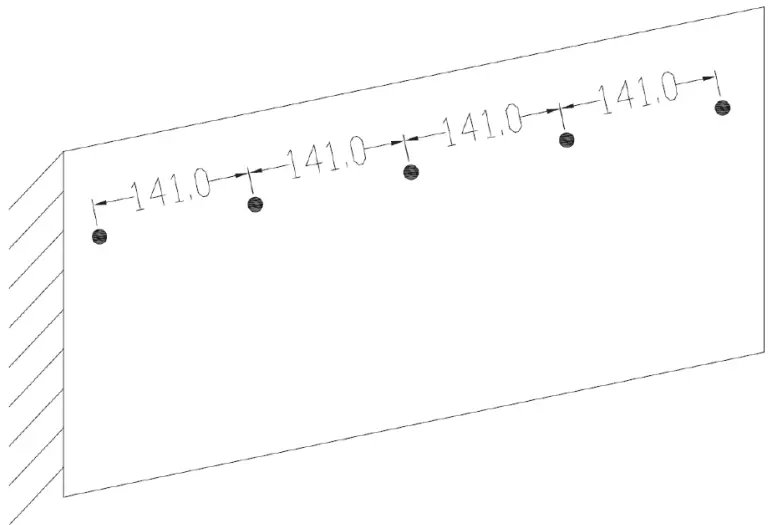

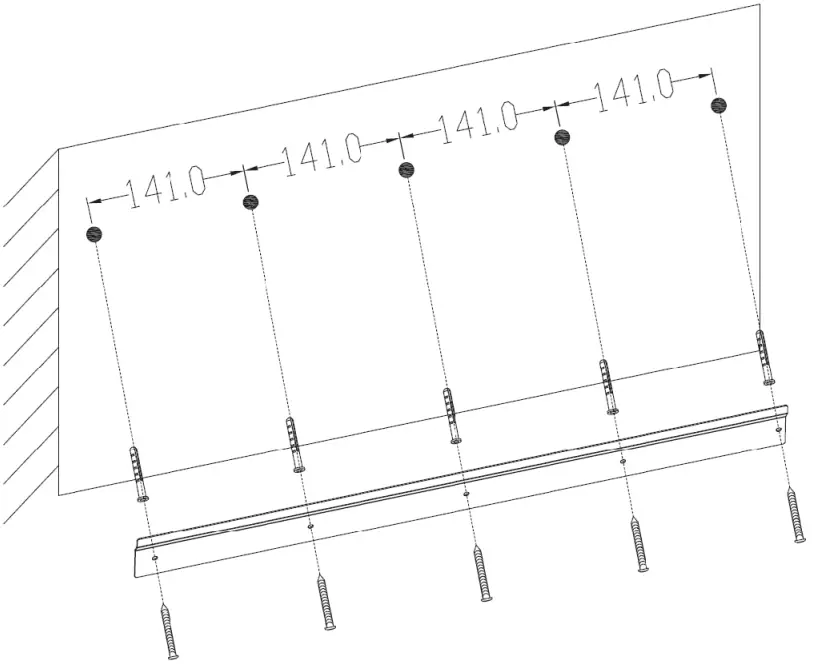

1. Choose a wall on which you want to hang your electric heater. Draw a horizontal line with a spirit level and mark 5 drill holes 141.0 mm apart for the fixing screws. The holes are intended for mounting the fireplace and must be level so that the fireplace can be properly mounted and levelled.

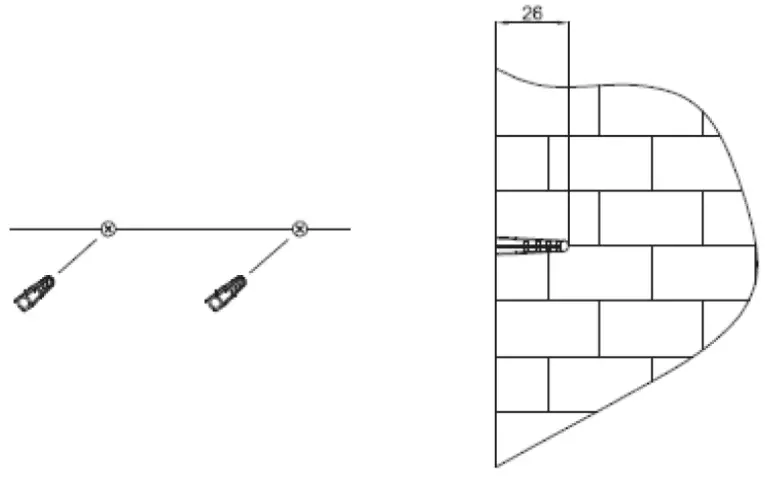

2. Drill 4 holes with a diameter of 8 mm (0.3 in) and a depth of 26 mm (1.02 in) at the markings. Insert the supplied dowels and carefully hammer them into the wall until the end is flush with the wall surface.

3. Fasten the mounting bracket to the dowels using the 5 fastening screws.

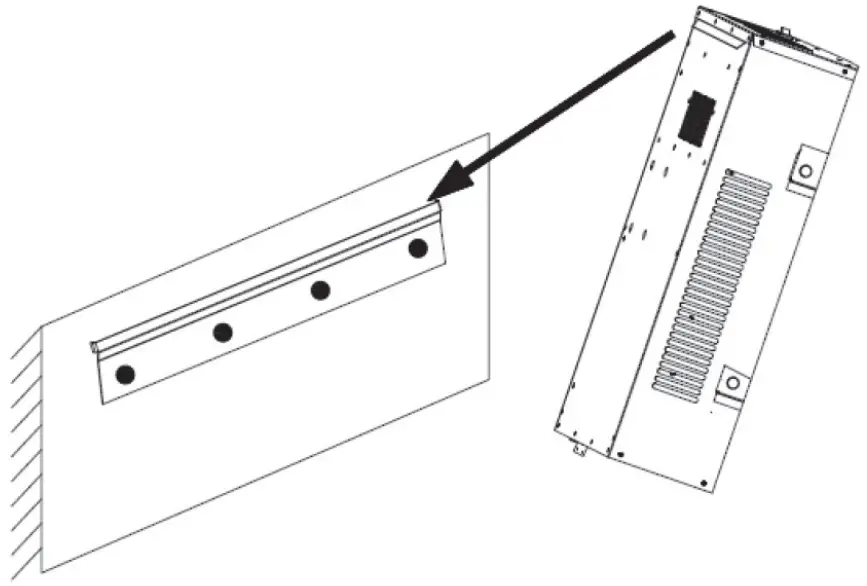

4. Place the metal brackets on the back of the fireplace on the bracket. Make sure that the mounting bracket is fully engaged in the metal brackets on the back of the unit.

5. Fasten the mounting bracket to the chimney with 2 fastening screws.

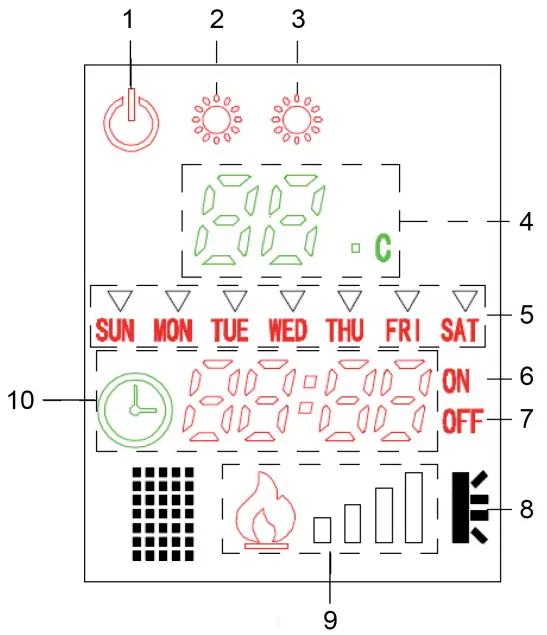

DISPLAY INDICATORS

Note: The unit switches off automatically if the temperature suddenly drops by
5-10°C (by opening a window). In this case, the window detection indicator (8)
lights up.

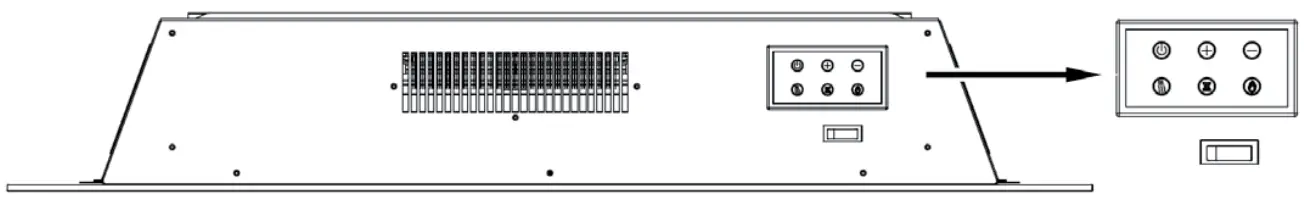

CONTROL PANEL AND KEY FUNCTIONS

	Power: Press this button once. The unit and fiame are turned on and you can select any of the following functions. Press this button again to turn off the unit.
	Time: Press this button and Flame+ or Flame- to set the current time (weekday, hour, minute).
	Flame: Setting 4 is the brightest setting. Each time the button is pressed, the brightness is reduced (4-3-2-1).
	Flammet: Setting 1 is the darkest level. Each time the button is pressed, the brightness is increased (1-2-3-4).
	Heating: Two settings. Press the button once for a low heat output. Press the button twice for a high heating output. Press the button again to turn off the heater. The fan will continue to operate for 10 seconds and then turn off.

REMOTE CONTROL AND KEY FUNCTIONS

	Power: Press this button once. The unit and fiame are turned on and you can select any of the following functions. Press this button again to turn off the unit.
	Set the current day of the week. Press the DAY button to set the current day of the week before entering the settings for the week. Press the DAY button, then press the [+] or [-] button to set the day of the week. Press the HOUR button, then press the [+] or [-] button to set the hours. Press the MIN button and then the [+] or [-] button to set the minutes.
	Set hours
	Set minutes
	Set weekly timer: Press this button to set a timer for each day of the week. Then press SET UP to select the week timer ON/OFF. Use the [+] or [-] button to set the start time from Monday to Sunday. Press the HOUR button, then press the [+] or [-] button to set the hours. Press the MIN button and then the [+] or [-] button to set the minutes.
	Press the button after pressing WEEK to turn the weekly timer ON or OFF.
	Press the button to adjust the brightness.
	Heating: Two settings. Press the button once for a low heat output. Press the button twice for high heat output. Press the button again to turn off the heater. The fan will continue to operate for 10 seconds and then turn off. Use the [+] or [-] button to set the temperature between 15-30°C. The fan will continue to work for 10 seconds and then turn off.

CLEANING AND CARE

Note: Turn off the unit and unplug it from the power outlet. Wait until the unit has completely cooled down before cleaning it.

• Use a vacuum cleaner to clean the ventilation slots and grilles.
• Remove dust on the outside surfaces with a damp (not wet) cloth.
• Do not use strong cleaning agents or abrasives.
• Do not spray the device with liquids or immerse it in water or other liquids.
• Never open the heater housing.

Storage

Keep the unit in a dust-free place during the low season. Pack it in the original carton. Wind the heater cable cleanly to avoid damaging the cable.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
