Velux Vcs 2234 Wire Extension Kit For Curb Mounted Skylight Vcs Instruction Manual

ZZZ 241CM

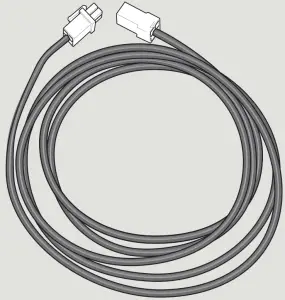

Wire Extension Kit for Curb Mounted Skylight VCS

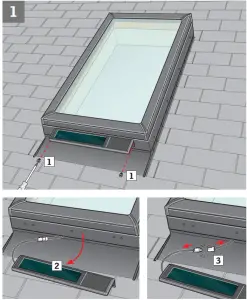

Remove solar panel:

1. Remove screws (retain for re-installation).
2. Lift off.
3. Unplug.

Temporarily remove skylight:

1. Remove screws.
2. Lift off the skylight and rotate upside down on a scratch-free surface.

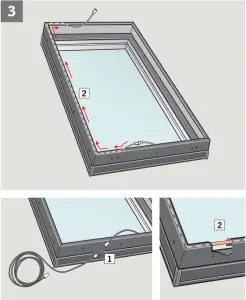

Install wire:

1. Connect wires.
2. Route wire into the “J” channel along the bottom and side of the skylight as shown.

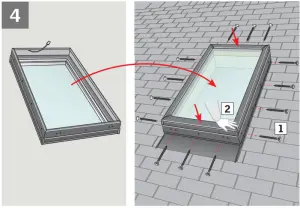

Replace skylight:

1. Secure screw.
2. Apply downward pressure to the top of the skylight frame while securing the screws.

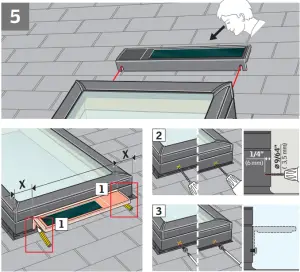

Mount original screws at top of skylight:

1. Place solar panel as shown and mark holes.
2. Drill holes Ø 9/64″ (3.5 mm) and only ¼” (6 mm) deep. Do not penetrate the flashing!
3. Insert original screws leaving room for installation of solar panel.

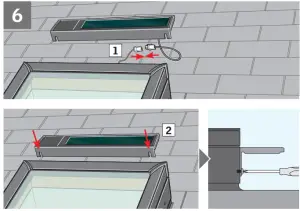

Plug, install, and secure solar panel:

1. Connect plug connectors.
2. Install solar panel over screws and tighten screws.

AU: VELUX Australia Pty. Ltd.
1300 859 856
www.velux.com.au
CA: VELUX Canada Inc.
1 800 88-VELUX (888-3589)
www.velux.ca
NZ: VELUX New Zealand Ltd.
0800 650 445
www.velux.co.nz
US: VELUX America LLC
1-800-88-VELUX
www.veluxusa.com

INSTALLATION INSTRUCTIONS FOR ZZZ 241CM. ©2017, 2021 VELUX GROUP ®VELUX, VELUX INTEGRA, AND THE VELUX LOGO ARE REGISTERED TRADEMARKS USED UNDER LICENSE BY THE VELUX GROUP
