Home2link Motorized Curtain Track Smart Curtain Motor User Manual

Home2Link Motorized Curtain Track Smart Curtain Motor

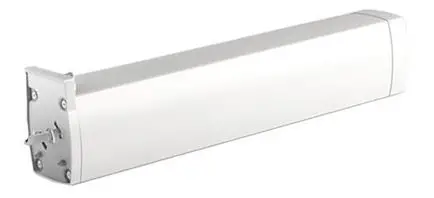

Curtain Motor

FEATURES

Intelligent curtain motor for every common home Manual Operation: When powered on, the curtain could be pull by hand with 10cm. Then the curtain open or close automatically Manual operation without power: Without power, the curtain could be controlled by hand Obstacle stop function: the motor could stop when it meets obstacle ,in order to protect the system Automatical position: motor could remember the close and open position, users do not need to reset. Multi-control: users can choose different ways to control, such as emitter or swtich. Freely assembling: DIY design and customized tracks.

MOTOR PARAMETER

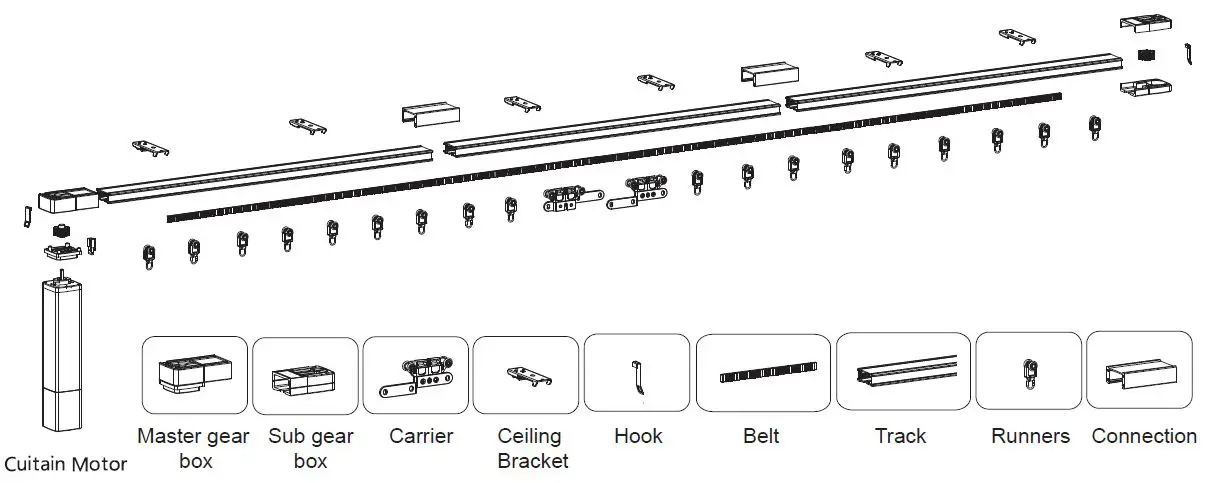

EXPLODED VIEW

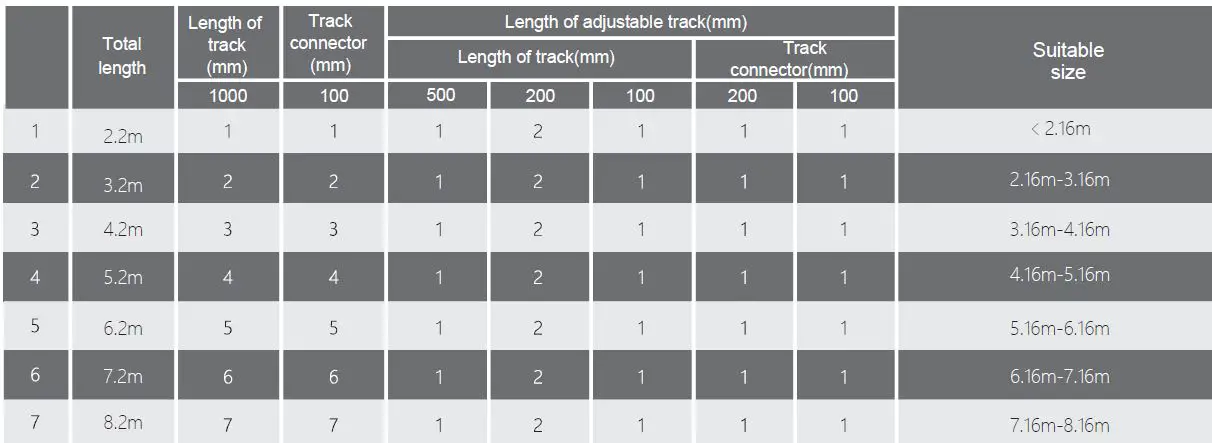

The solutions of the intelligent curtain model

Remarks

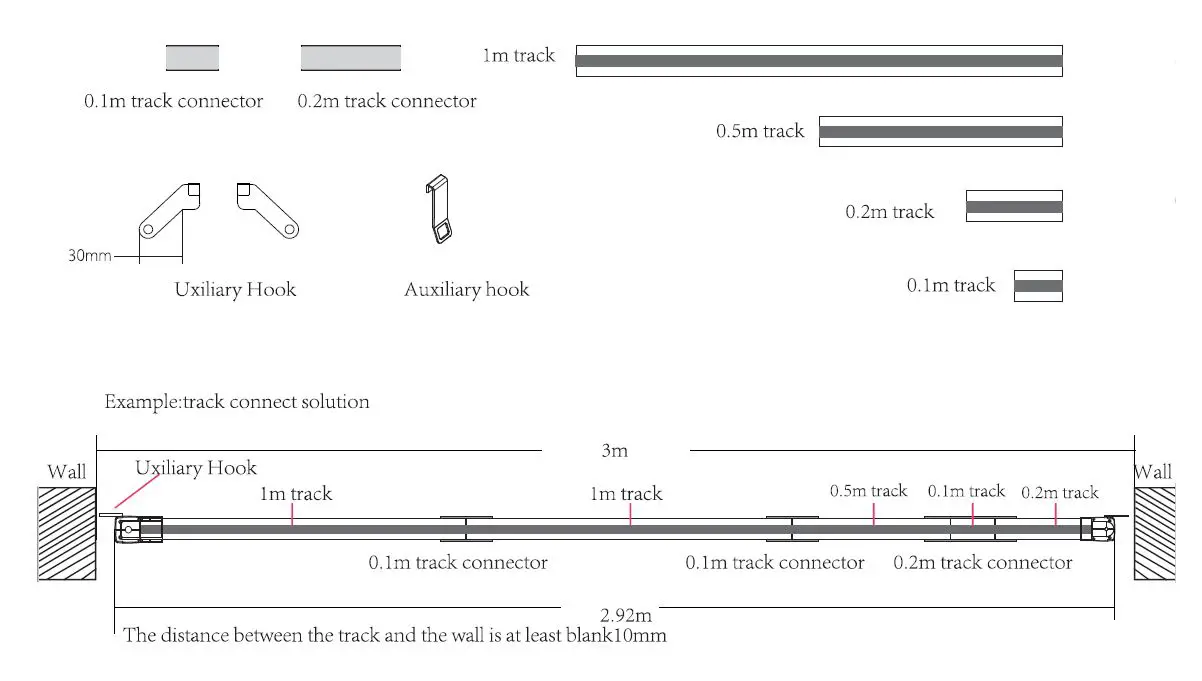

1. The tracks with lengths of 500mm 200mm 100mm are adjustable tracks, 200mm 100mm track connectors are connecting pieces for adjustable track, please take notice that the shortest track should be mounted on the head of the curtain tracks notice the closest position to the wall.
2. Optional accessories: Side mounting bracket, 90-degree angle

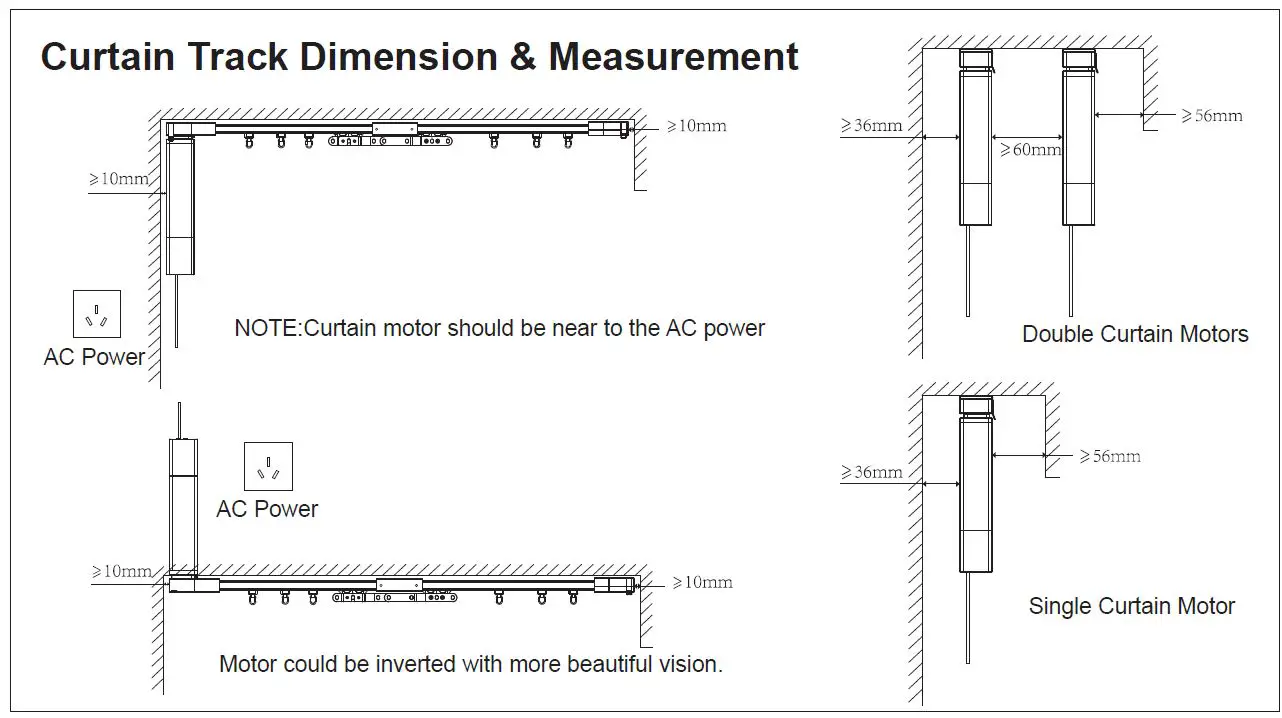

Curtain Track Dimension & Measurement

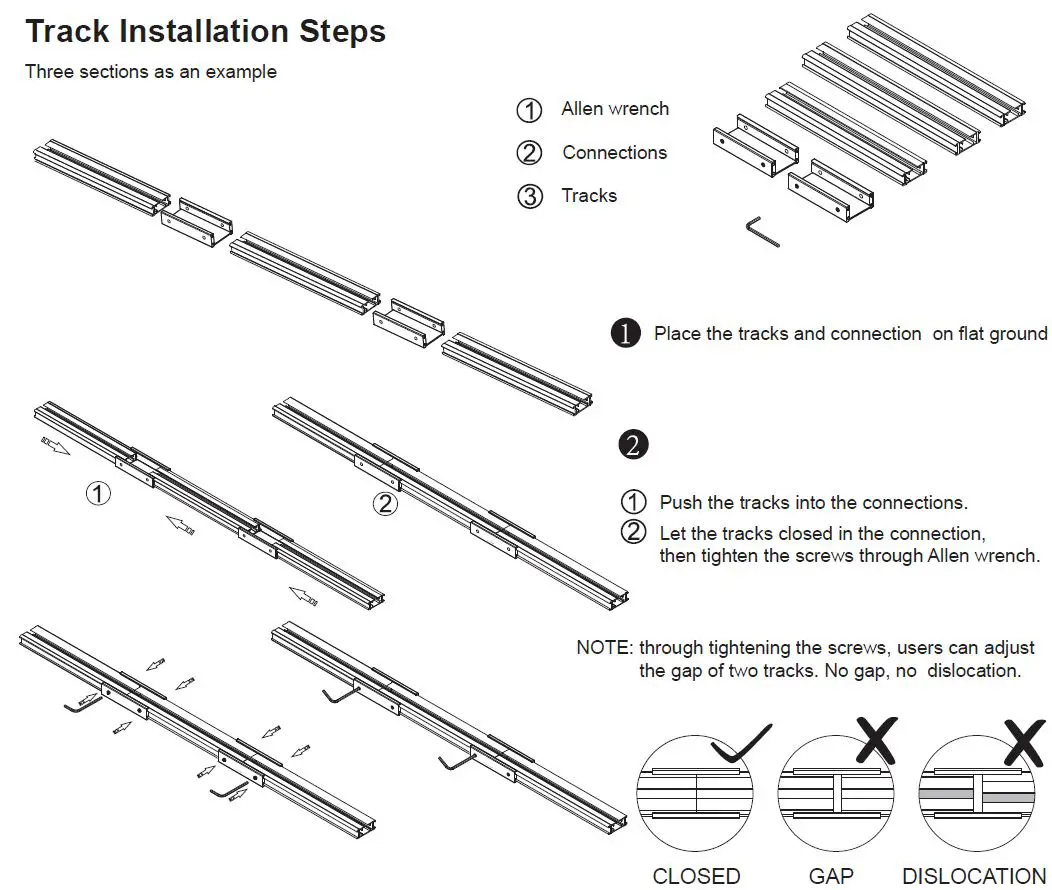

Track Installation Steps

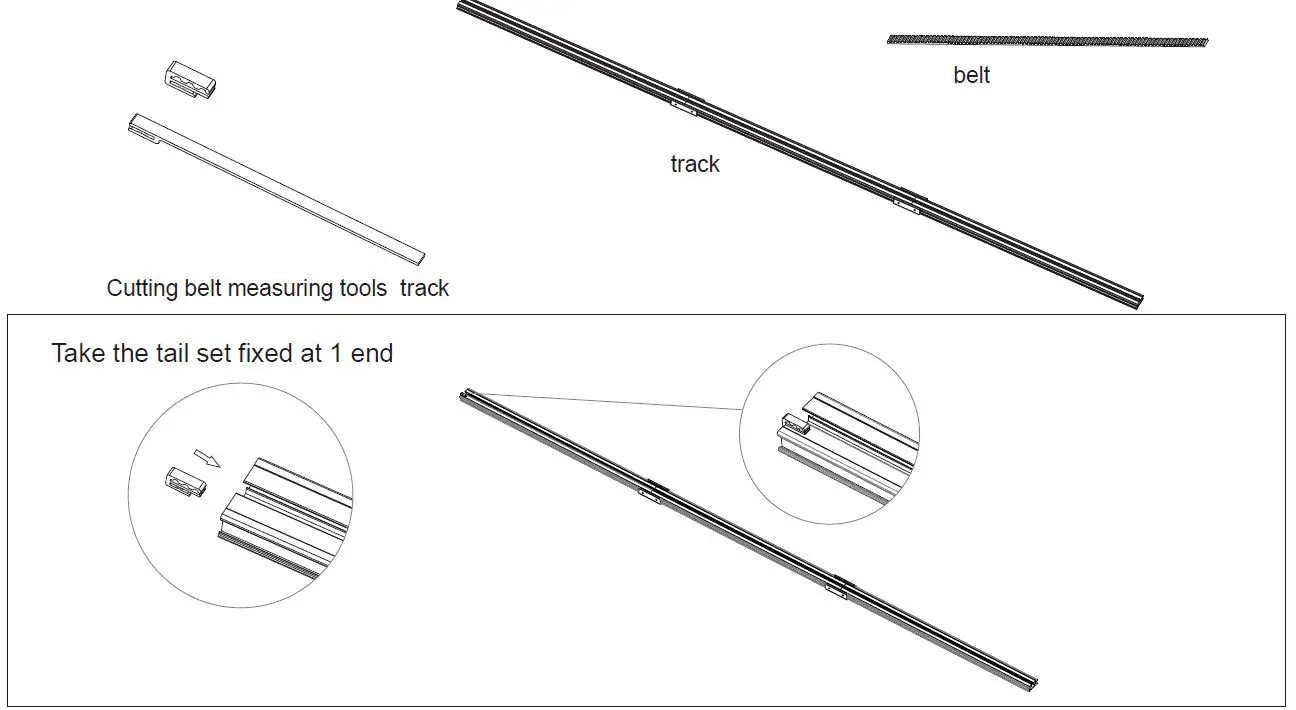

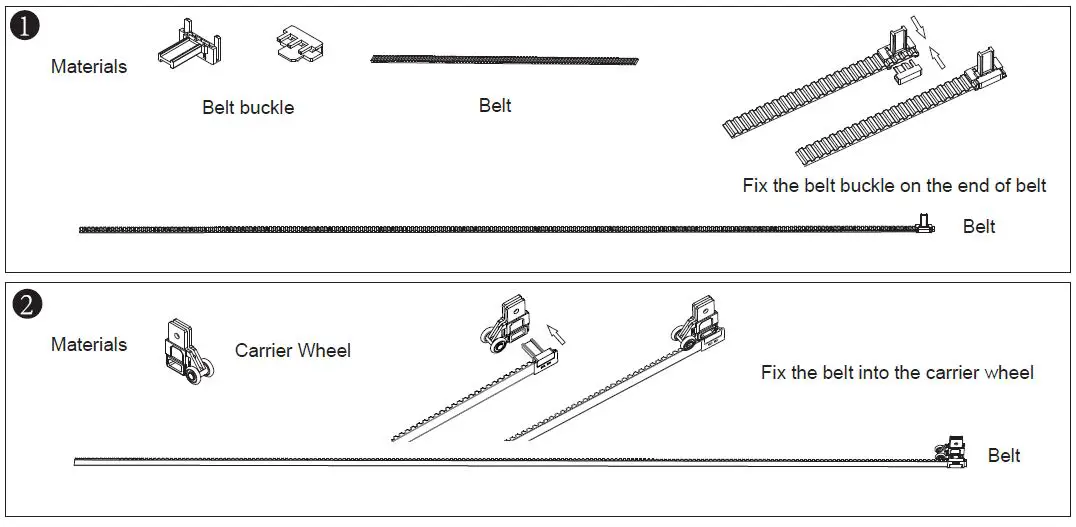

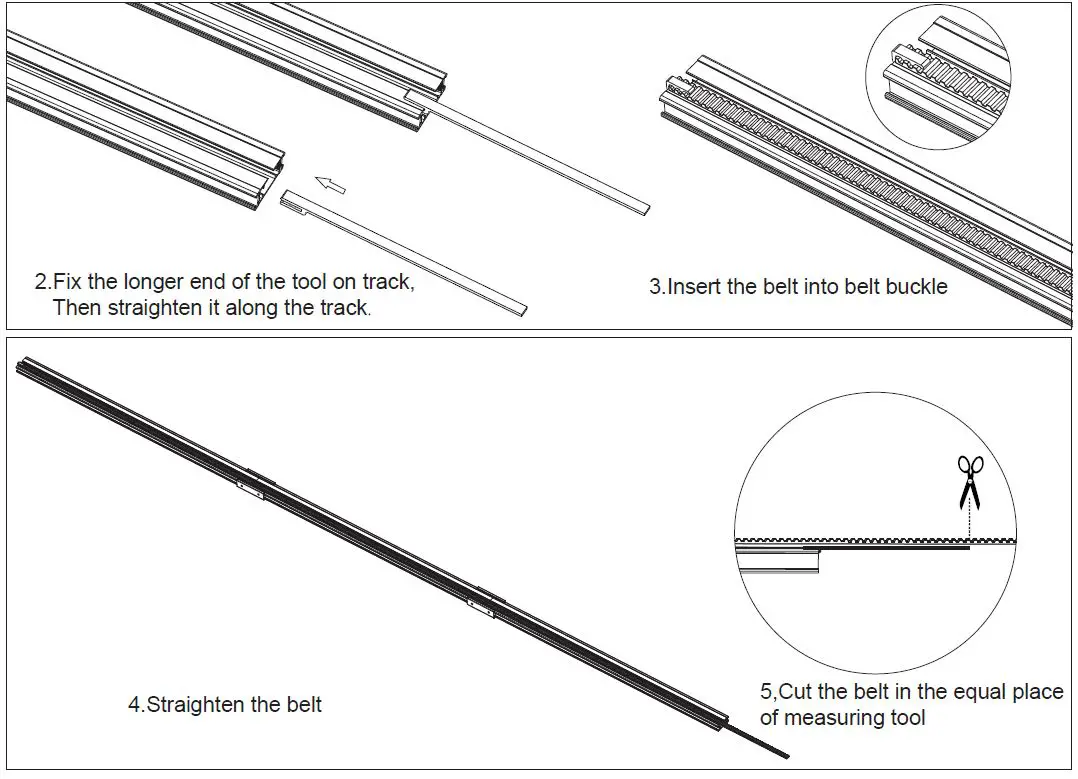

Cutting belt measuring tools instruction manual

Remark: Only applicable double direction opening belt cutting Double opening direction track needs making two equal length belts in the same way.The length of belt for single track is the total length of belt for double track plus two teeth. (Just one, don’t cut in the middle)

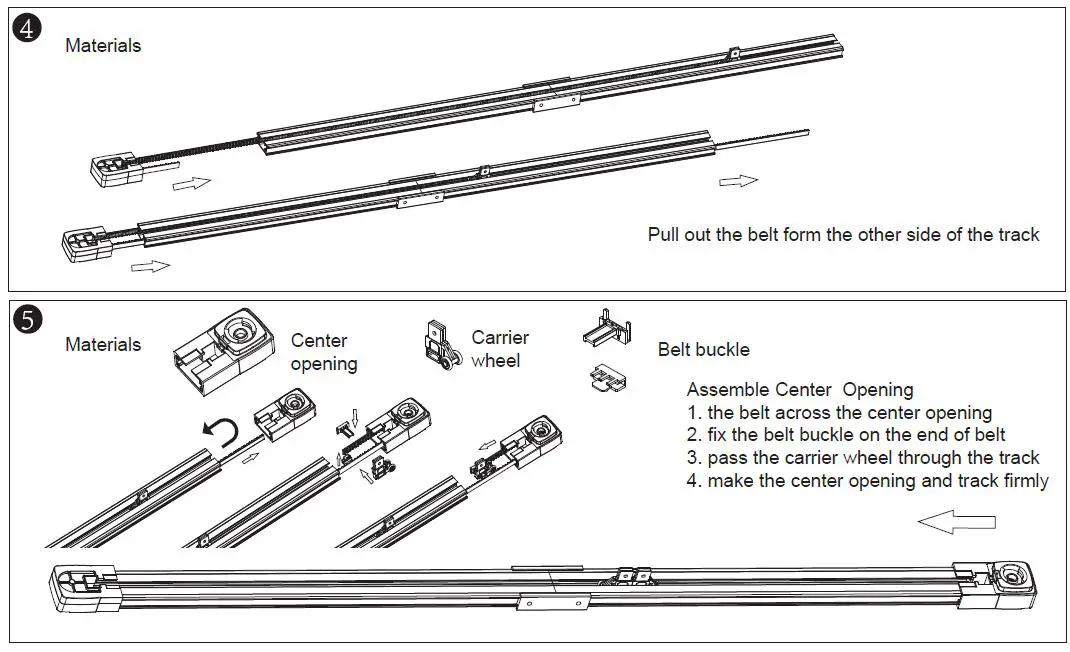

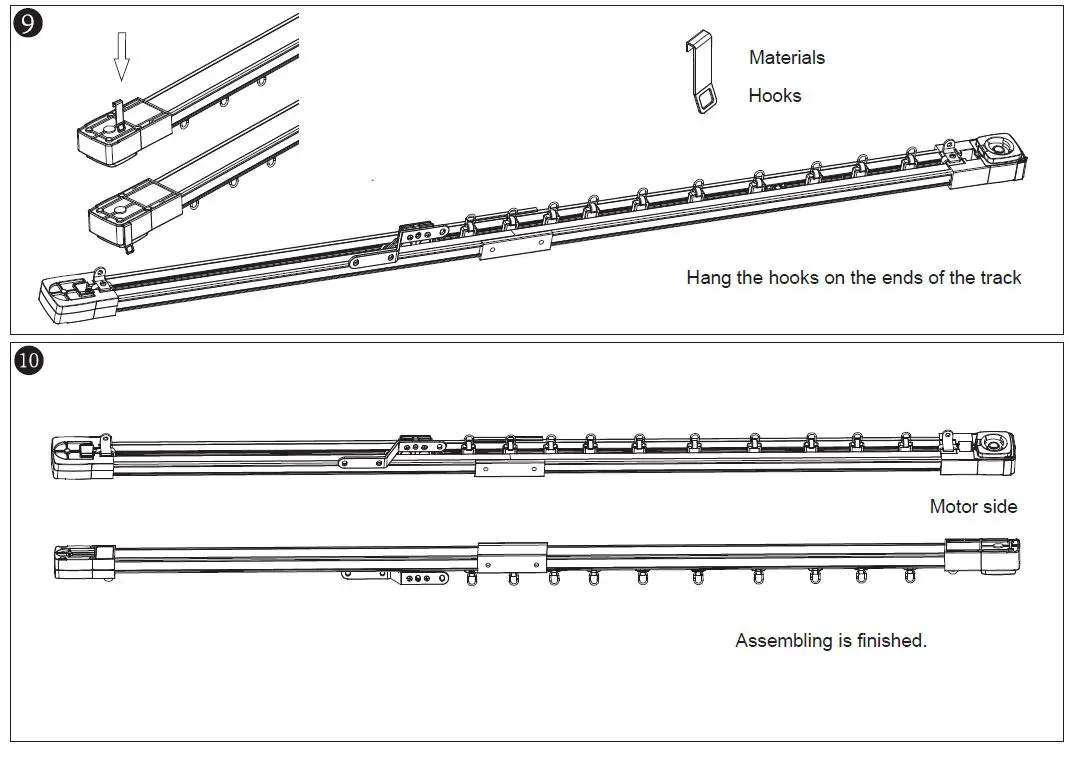

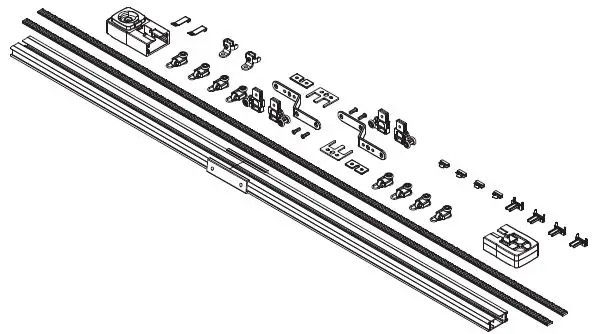

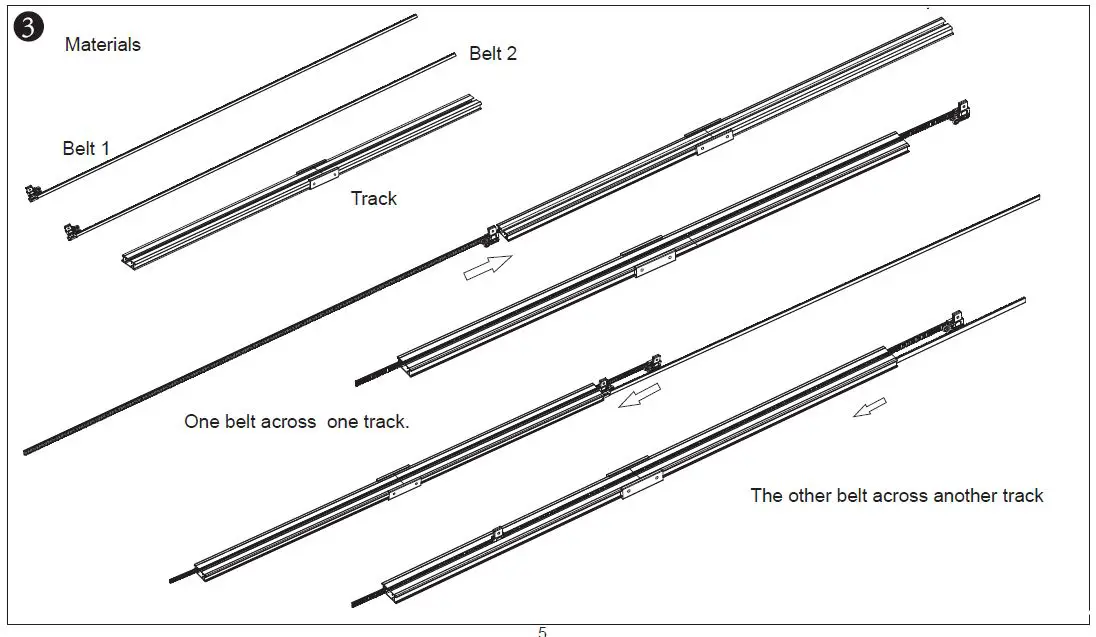

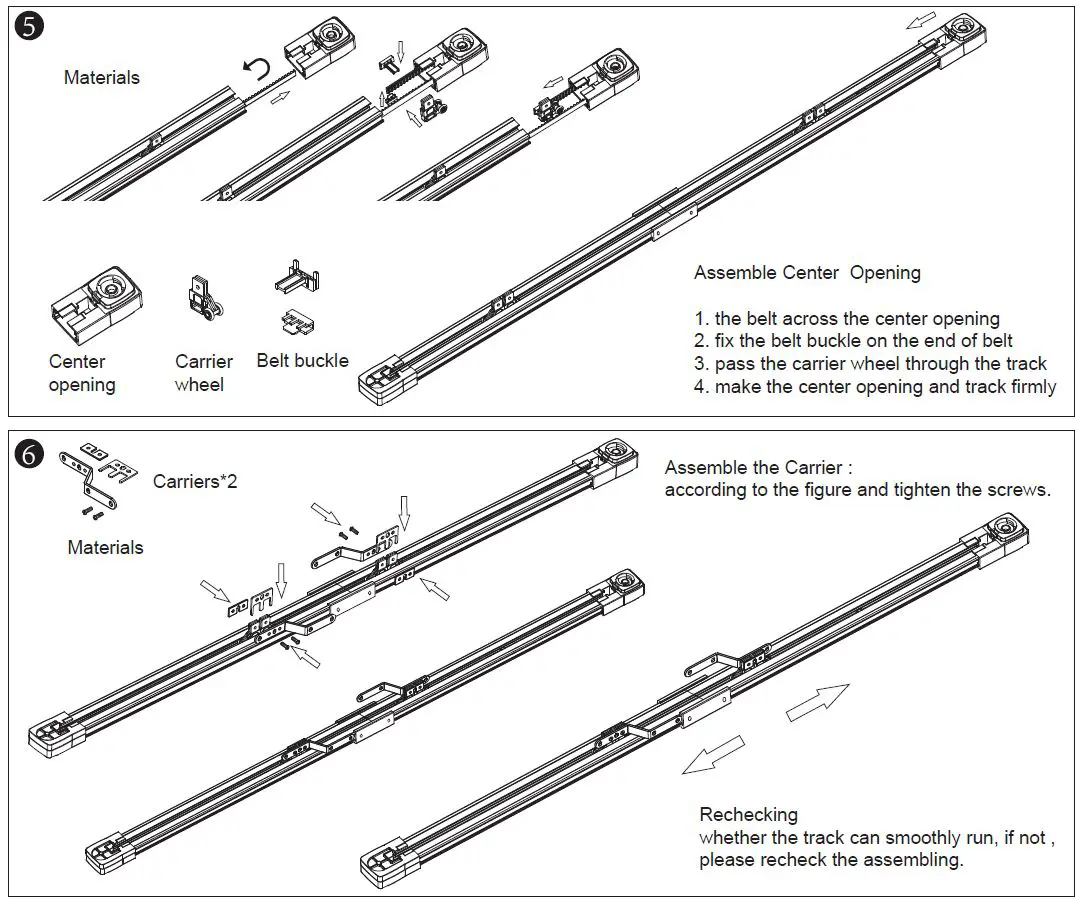

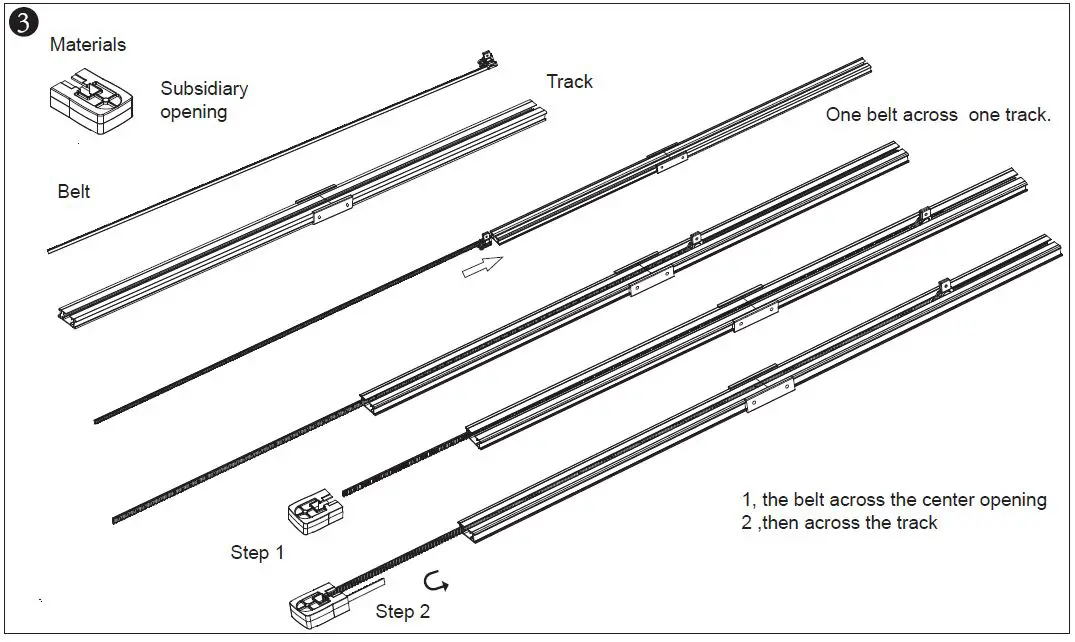

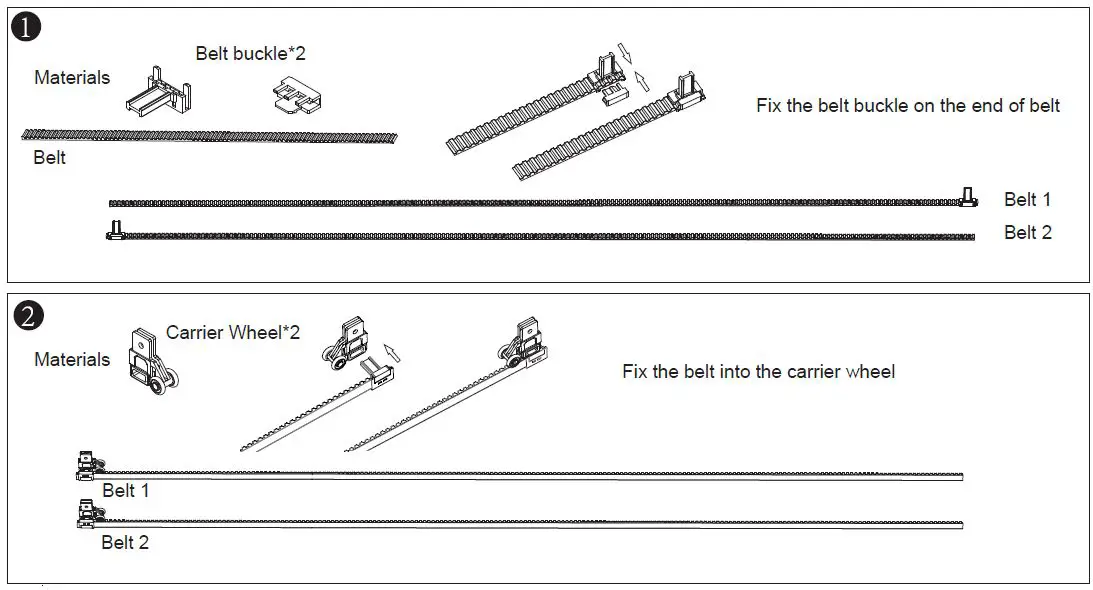

Double-side Open Track Installation Steps

• Length of Belt=length of track + 11cm: Customer needs 2 belt in same length.

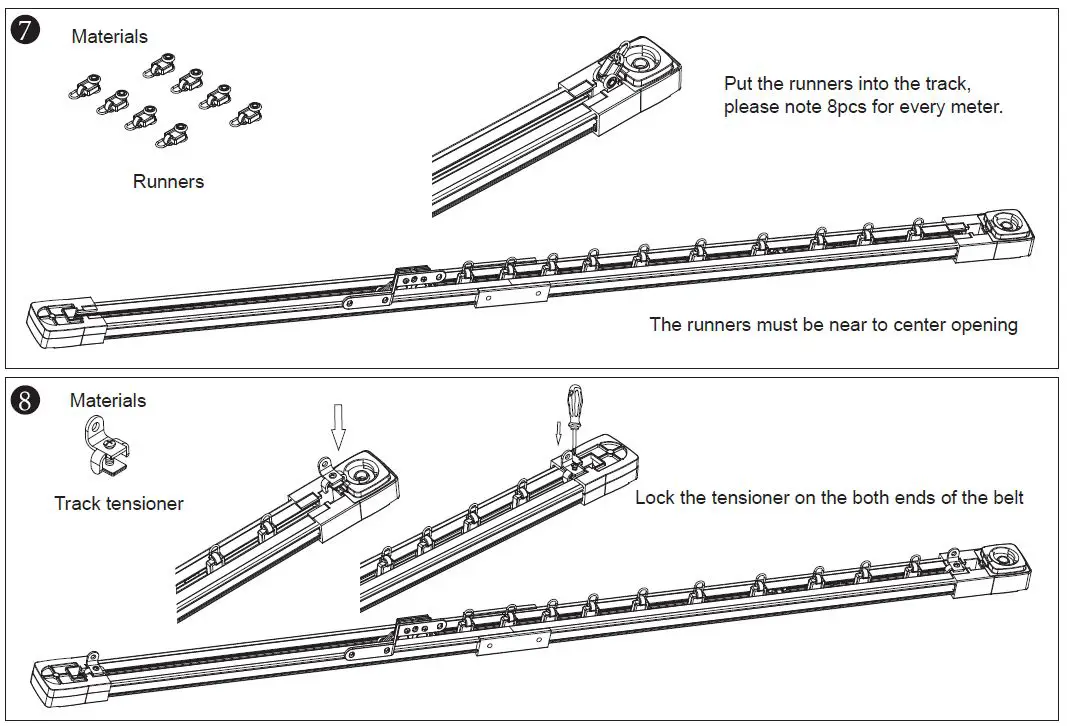

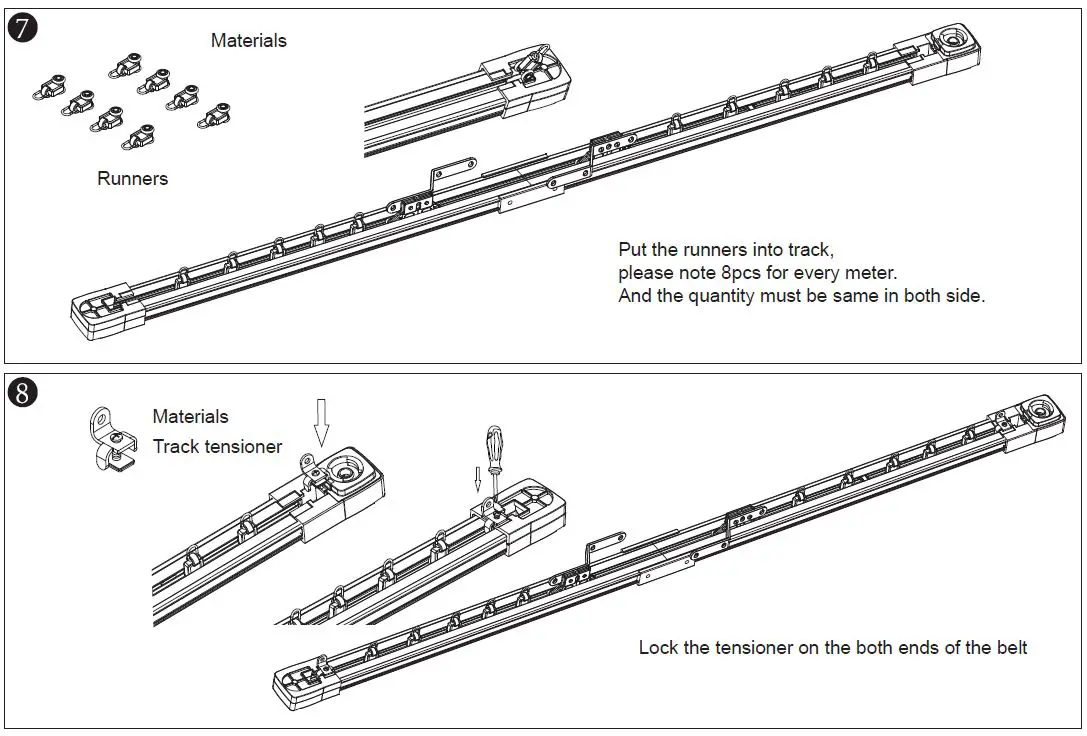

• Runners: 8pcs per meter; integer forward
• 2pcs hooks

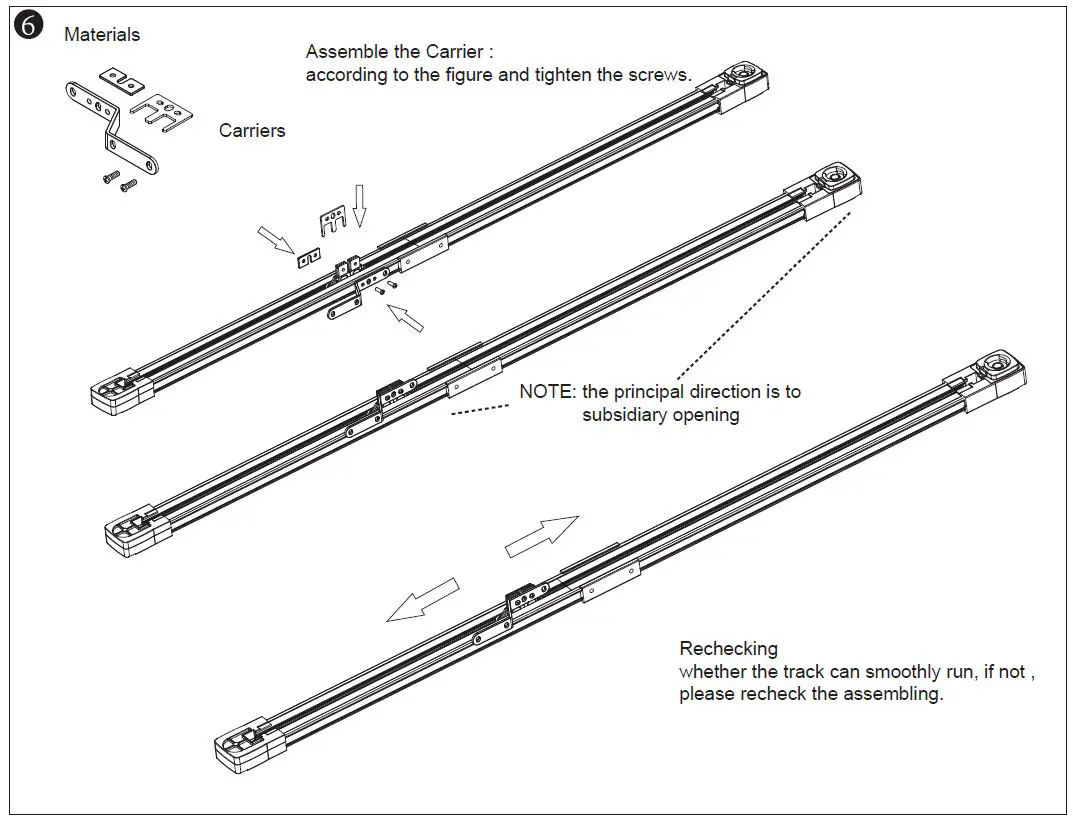

• 2pcs carriers for Double-side Open 2 sections track as an sample

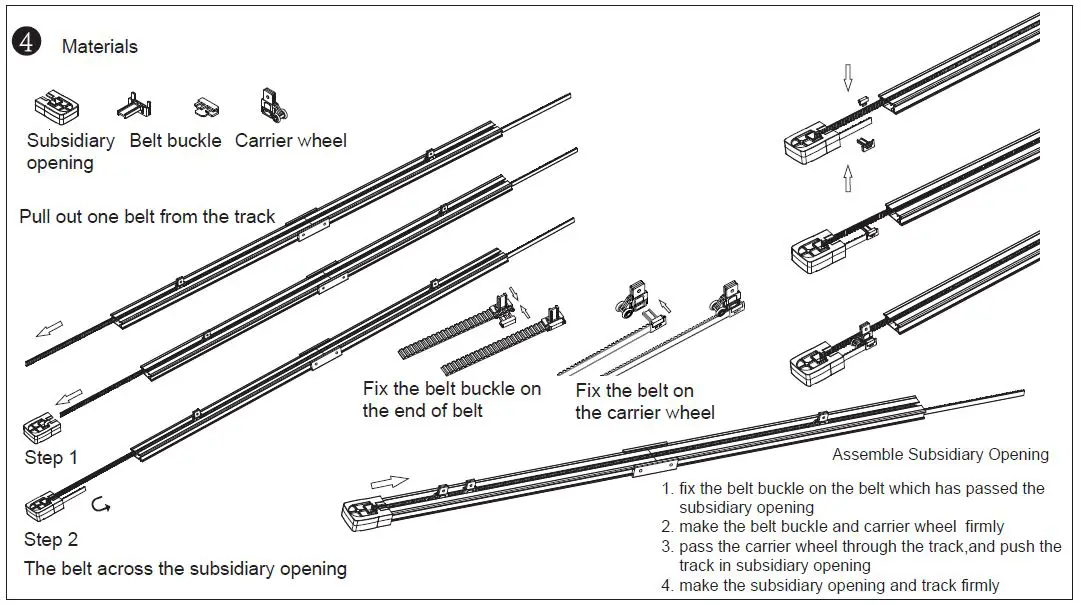

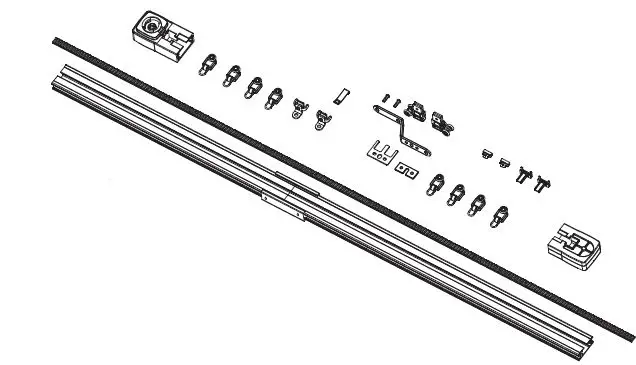

Single-side Open Track Installation Steps

• The length of belt for single track is the total length of belt for double track plus two teeth.( Just one, don’t cut it in the middle)
• Runners: 8pcs per meter; integer forward
• 1pcs hook
• 1pcs carrier for single-side opening 2 sections track as an sample

Track Installation Steps

• ceiling bracket= Npcs section+1pcs
• eg: 3 sections tracks with 4 ceiling bracket
• one ceiling brackets must be near to connection.
• two ceiling brackets should be close to both opening. 3 sections track as an sample

Location of Ceiling bracket

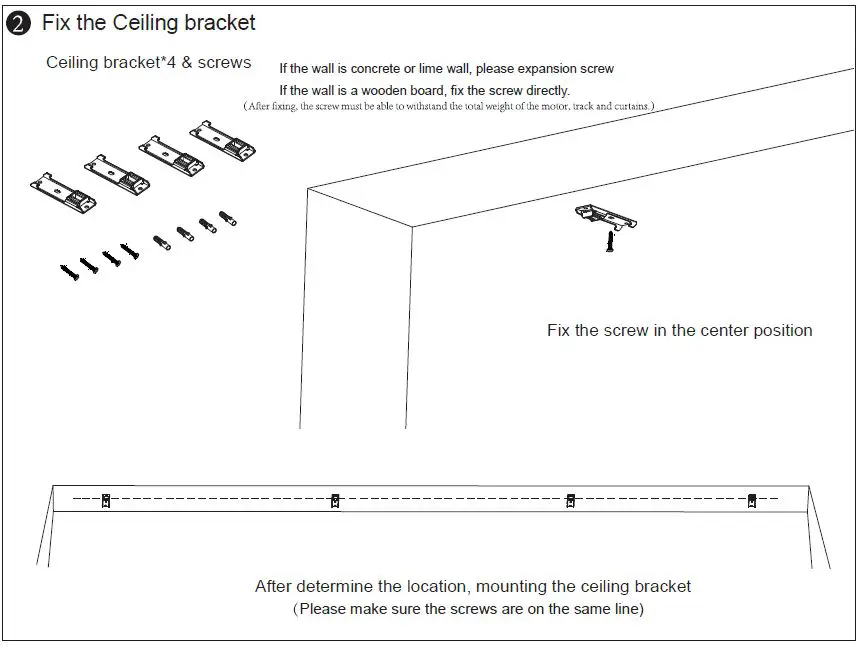

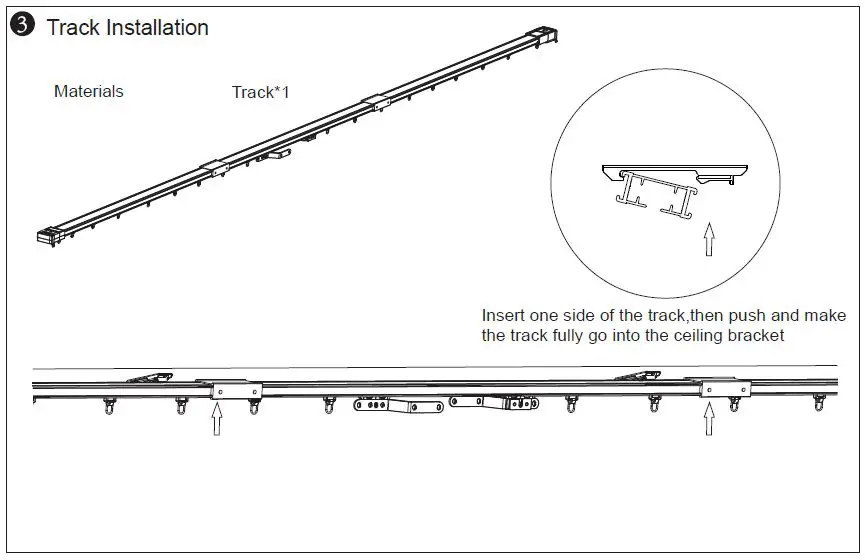

Fix the Ceiling bracket Track Installation

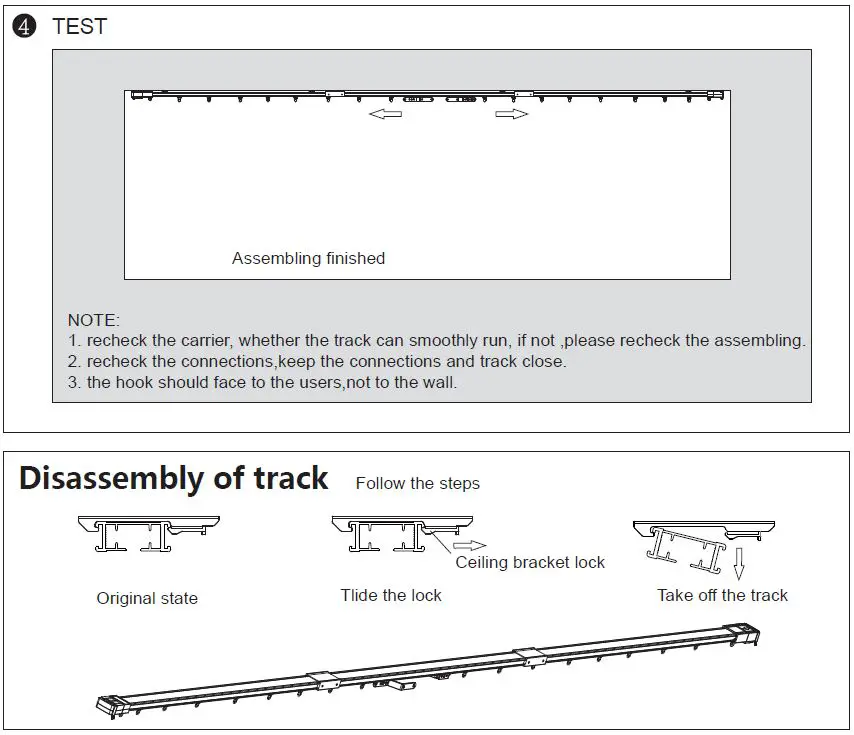

TEST

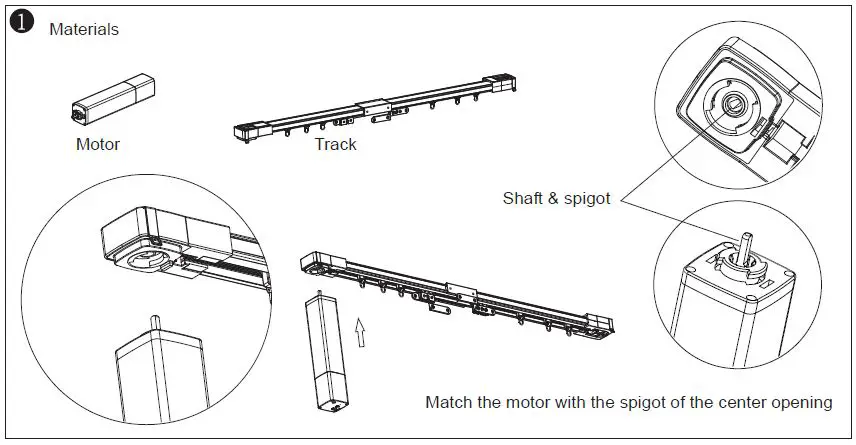

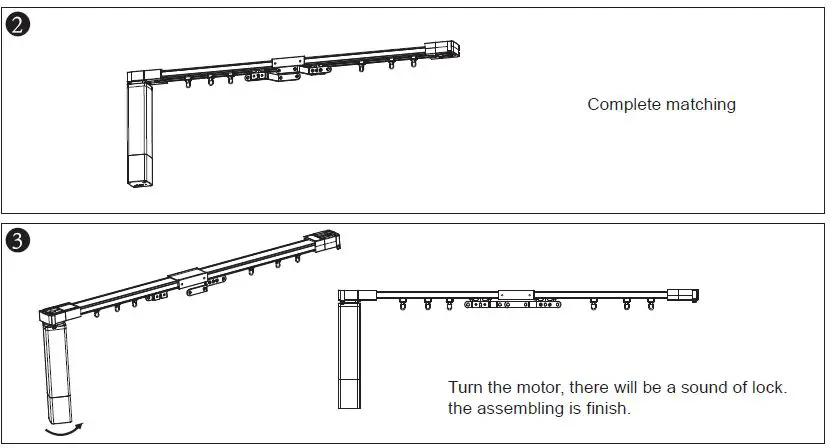

MOTOR

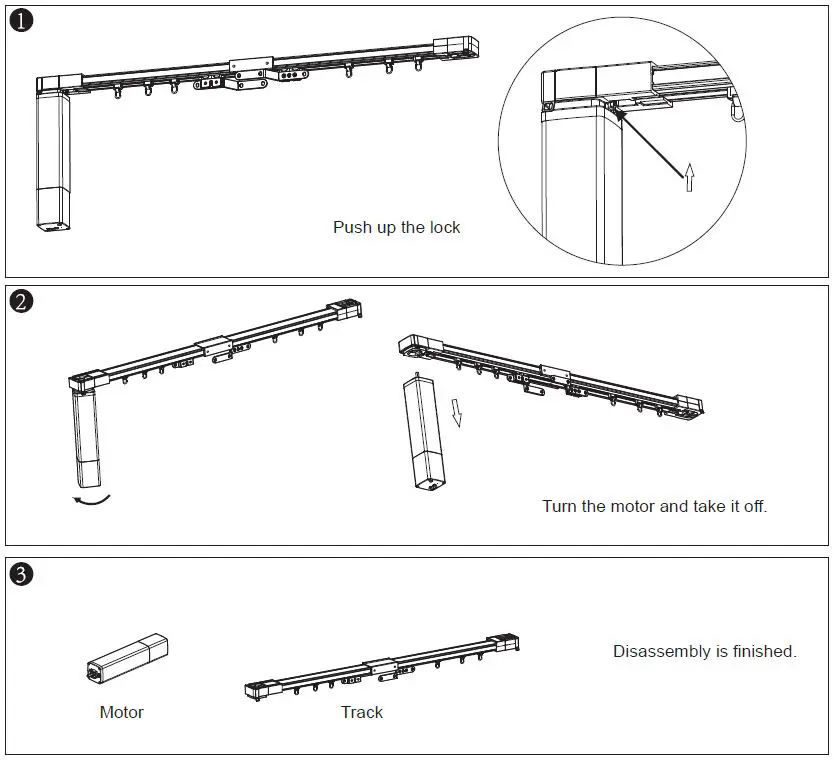

Disassembly of motor
