100A 6-12S BLHeli_32 4-in-1 ESC ELITE PRO
User Manual

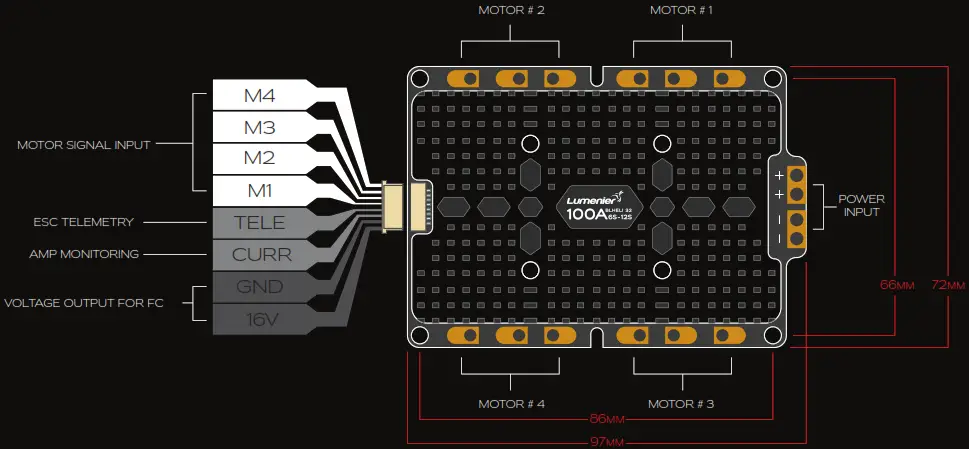

Wiring diagram
SPECIFICATIONS
| AMP COTINUOUS CURRENT | 100 AMPS |
| AMP PEAK CURRENT | 120 AMPS |
| BATTERY | 6 – 12S UP TO 52V |
| PROCESSOR | Cortex M4 32 BIT 120MHz |
| PWM FREQUENCY | PWM 8 – 48kHz |
| WEIGHT | 107 grams |
| SIZE | 97 mm x 72 mm x 15 mm |
| MOUNTING PATTERN | 30.5 mm x 30.5 mm / 86 mm x 66 mm |
| FW SUPPORT | DSHOT 300/DSHOT 600/DSHOT 1200/MULTISHOT/ONESHOT/PPM |
FEATURES
- OPTIMIZED BLHELI-32 FIRMWARE FOR 12S HIGH VOLTAGE USE
- BRAND-NEW CORTEX M4 32 BIT PROCESSOR RUNNING 120MHZ FREQUENCY
- SUPERB PCB CIRCUIT DESIGN AND 8 OZ THICK COPPER ENSURES HIGH-CURRENT CAPABILITY
- PCB ONE-SIDED MOSFET DESIGN REDUCES NOISE AND OPTIMIZES HEAT DISSIPATION
- HIGH VOLTAGE LOW RESISTANCE MOSFET: 100V, 1.5MΩ
- THE LUMENIER ELITE PRO ESC SUPPORTS DSHOT300, DSHOT600, DSHOT1200, MULTISHOT, ONESHOT AND PPM
- SUPPORTS PWM 8-48KHZ AT A VERY HIGH DEMAG
COMPENSATION
