elinchrom ONE Off-Camera Flash
|
Settings | Flash before ready | Yes/No |
| Flash scale | EL-Scale, 5.8 – 10 (10 scale), Ws | |
| Modlamp VFC | Off/On | |
| Modlamp Timer | Off/15”/30”/60” | |
| Modlamp Scale | F-stop/Percent | |
| Favorite function | Modlamp/Flash mode/Audio/ Photocell/Recycling mode | |
| Auto stand-by | Off, 1 to 59 min. Auto-off and auto stand-by shall be set inde- pendently. Auto stand-by cannot disable auto off. | |
| Auto-off | Off, (Auto stand-by+1) to 60 min. It shall be longer than Auto stand-by. Minimum value = auto stand-by + 1min. | |
| EL logo mode | Low, High, Off, Low on ready, High on ready | |
| EL logo color | Group color, White | |
| Ready tone | 1, 2, 3 | |
| Ready volume | Off, Low, Medium, High | |
| Keyboard click | Off/On | |
| Skyport | Off/On | |
| Touch | Off/On | |
| Wireless update | Setup wifi SSID and password |
To access the menu short tap on screen with 2 fingers
|
Info | Friendly name | Elinchrom ONE standard, can be changed with the computer or smartphone app. |
| Firmware rev. | ******* | |
| Skyport ID | ******* | |
| Life time | In hours (hhhh:mm) | |
| Power-on count | How many times the units has been turned on | |
| Flash count | Total flash number |

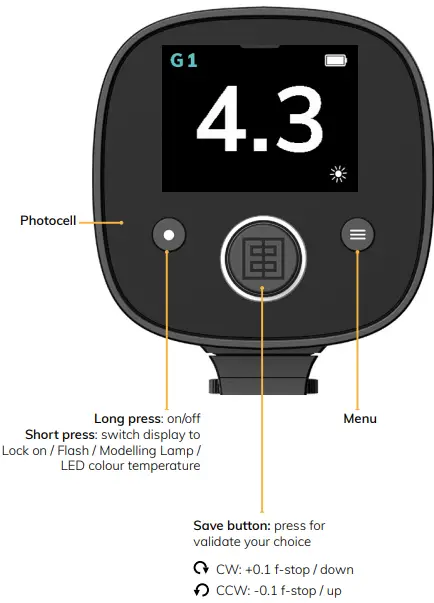

Control panel / Touch Screen

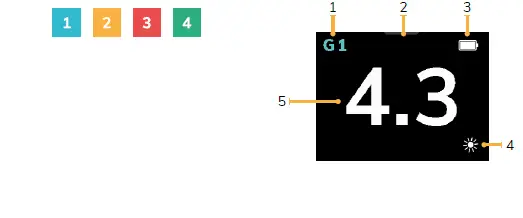

Display panel – Dashboard
The colour of the Group corresponds to the group number : blue for group 1, yellow for group 2, red for group 3 and green for group 4.The Elinchrom logo on the side of the unit illuminates with the color of the selected group.
- Group 1-4
- Modelling lamp menu
- Battery status
- Favorite Function; default setting is Mod. Lamp on/off
- Power value
Modelling lamp
Screen Views
Work Screen
Shows the most important settings, once the unit is configured. Displayed automatically after 45 sec of inactivity.

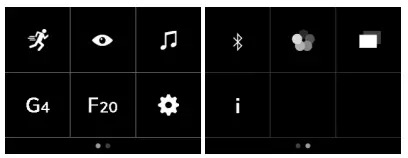

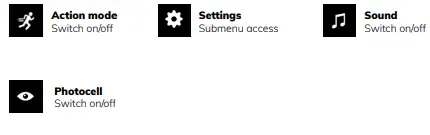

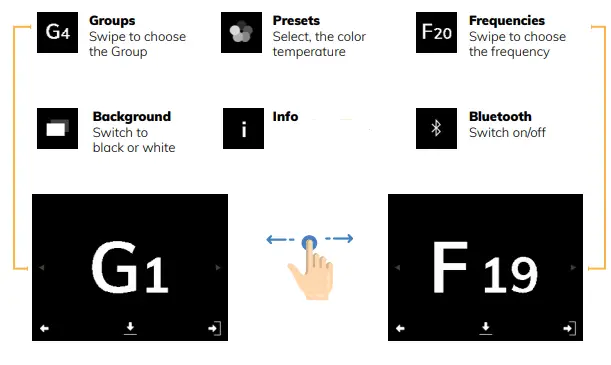

Sub-menu Screen
Select feature by scrolling.
Swipe left or right to change value between the arrows
Screen Lock
To activate the touch screen lock, press the Menu button, select the Setting wheel and go to Touch and select on / off

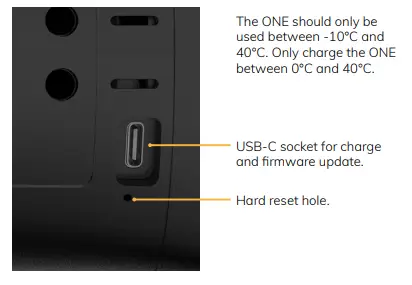

Connection
USB-C Charger
Use only the original Elinchrom One USB Charger to recharge the built-in Li-Ion battery.
When the unit is OFF the side logo color shows the charge status: Red: recharging
- Orange: almost charged
- Green: the unit is charged
- Recharging time: 100 min. to 100%
- Battery capacity min./max power: 9700 / 725 flashes per charged battery.
Reset To Default Settings
Switch the unit on, and release the ON button.
When the EL Logo appears press immediately the “ON” and“Menu” button for 4 seconds until the display shows “Reload all default parameters”.
www.elinchrom.com
Elinchrom is a registered trademark of ELINCHROM LTD, RENENS, SWITZERLAND
QSG ONE – 10.2022
