Godox V850ii Pioneering Li-ion Camera Flash Instruction Manual

Pioneering Li-ion Camera Flash

V850II
INSTRUCTION MANUAL

Before using this product:
Please read this user manual carefully in order to ensure your safety and the proper operation of this product. Keep for future reference.

Foreword

Thank you for purchasing a GODOX product.
V850II Li-ion camera flash adopts Godox wireless X system and 2.4G ratio transmission, which is compatible with AD360II-C, AD360II-N, TT685C, TT685N, X1T-C, X1T- N, etc. Fit all DSLR camera brands e.g. Canon, Nikon, Sony, etc.
This V850II camera flash features:

• GN60 (m ISO 100, @200mm). Adjust from 1/1 to 1/128 in 1/3rd stops
• Built-in 2.4G wireless transmission to support transmitting and receiving
• High speed sync, wireless remote control, multi flash and manual focus assist
• Stable consistency and color temperature with good even lighting
• User-friendly LCD display & control panel

Warning
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
Keep out of reach of children.
Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise, electric shock may occur if you touch the electronic parts inside it.
Do not fire the flash directly into the eyes (especially those of babies) within short distances. Otherwise visual impairment may occur.
Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. In certain circumstance, these materials may be sensitive to the strong  light emitting from this flash unit and fire or electromagnetic interference may result.
Do not leave or store the flash unit if the ambient temperature reads over 50 ℃ . Otherwise the electronic parts may be damaged.
Turn off the flash unit immediately in the event of malfunction.Pioneering Li-ion Camera Flash

Conventions used in this Manual

• This manual is based on the assumption that both the camera and camera flash’s power switches are powered on.
• Reference page numbers are indicated by “p.**”.
• The following alert symbols are used in this manual:
  The Caution symbol gives supplemental information.
  The Note symbol indicates a warning to prevent shooting problem.

Name of Parts

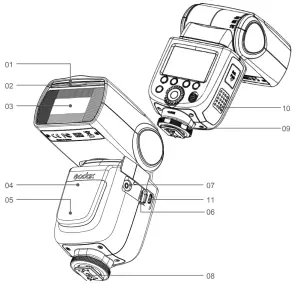

Body

Control Panel

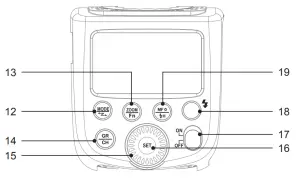

11.  Mode Selection Button/Wireless Mode Selection (Long Keypress)	15. Set Button.
12.  Zoom / Function Custom Button (Long Keypress)	16.  ON/OFF Power Switch.
13.  Group/ Channel Setting  (Long Keypress)	17.Test Button / Flash Ready Indicator.
14. Select Dial	18.Focus Assist Beam /High Speed Sync Button (Long Keypress)

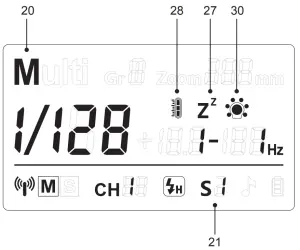

LCD Panel

19. <M>Manual Flash Mode	26. < >Sleep Status
20. <S1>S1 Slave Flash Triggering	27. < >Overtemperature Indication
21. <S2>S2 Slave Flash Triggering	28. < >Wireless Signal Transmission
22. <Multi>Multi/Stroboscopic Flash Mode	29. < >Focus Assist Beam Indicator
23. < >High Speed Sync    Triggering	30. Channel
24. < > Battery Level Indication	31. Group
25. < > Sound Beep Indication	32. Zoom focal length

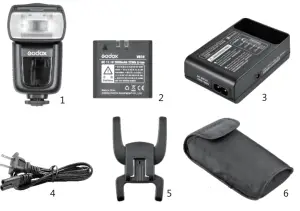

What’s in the Box of V850II Kit?
1. Flash Unit  Li-ion Battery Pack 3. Battery Charger 4. Battery Charger Cable 5. Mini Stand 6. Protection Case 7. Instruction Manual

What’s in the Box of V850II (only flash unit)?
1. Flash Unit 5. Mini Stand 6. Protection Case 7. Instruction Manual

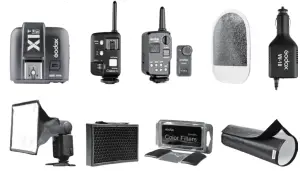

Separately Sold Accessories
The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects: X1 TTL wireless flash trigger, Cells II high  speed trigger, FT-16S power & trigger control, Car charger, Mini softbox, White & Silver Reflector, Honeycomb, Color gels, Snoot, etc.

Battery

Features

1. This flash unit uses Li-ion polymer battery which has long runtime. The available charge-and-discharge times are 500.
2. It is reliably safe. The inner circuit is against overcharge, overdischarge, overcurrent, and short circuit.
3. Take only 2.5 hours to fully charge the battery by using the standard battery charger.

Cautions

1. Do not short circuit.
2. Do not expose to rain or immerse into water. This battery is not water proof.
3. Keep out of reach of children.
4. No over 24 hours’ continuous charging.
5. Store in dry, cool, ventilated places.
6. Do not put aside or into fire.
7. Dead batteries should be disposed according to local regulations.
8. If the battery had ceased using for over 3 months, please make a full recharge.

Loading and Unloading the Battery

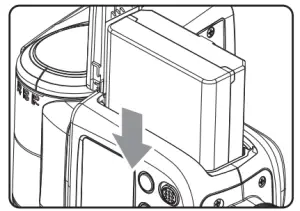

1. To load the battery, push the battery compartment cover downward and open it.

2. According to the triangle sign on the battery pack, insert it into the compartment until a white knob locks the battery with a click sound.

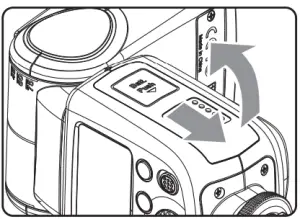

3. To unload the battery, tap the white knob and the battery pack will pop out. Then close the compartment.


Battery Level Indication
Make sure the battery pack is securely loaded in the flash. Check the battery level indication on the LCD panel to see the remaining battery level.

Attaching to a Camera

1. Attach the Camera Flash.
   • Slip the camera flash’s mounting foot into the camera’s hotshoe all the way.

2. Secure the Camera Flash.

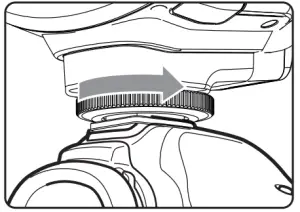

   • Rotate the locking screw on the mounting foot until it locks up.

3. Detach the Camera Flash.

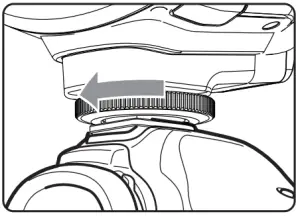

   • Rotate the locking screw on the mounting foot until it is loosened.


Using the Flash

Power Management

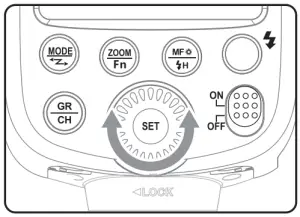

Use ON/OFF Power Switch to power the flash unit on or off. Turn off if it will not be used for an extended period of time. This flash unit has Sleep Function and will  enter into sleep status when there is no operation for a long time. For Sleep Function setting, see the following instruction.

Flash Output

• Flash output can be varied from 1/128th power to 1/1 full power in 1/3 stop increments. To obtain a correct flash exposure, use a hand-held flash meter to determine  the required flash output.
• Adjust the power output by rotating Select Dial . The following table makes it easier to see how the stop changes in terms off/stop when you increase or decrease the  flash output:

Figures displayed when reducing flash output level

Figures displayed when increasing flash output level
When “OF” is shown on the LCD display, it means no flash output and flash firing is turned off.

ZOOM: Setting the Flash Coverage

The flash coverage can be set to match the lens focal length from 20 mm to 200 mm. Press button and rotate Select Dial to change the flash coverage.

When setting the flash coverage, make sure it covers the lens focal length so that the picture will not have a dark periphery.

M Mode: Manual Mode

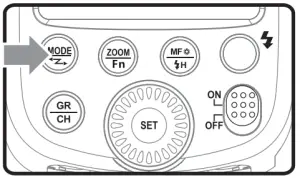

Press MODE Selection Button to enter M mode. In this mode, you can set the flash unit onto your camera hot shoe or your trigger hot shoe for firing. Before shooting,  adjust the flash power output. When the camera’s shutter is pressed, the flash will fire synchronously. Slave triggering mode is not available in M mode.

Multi Mode: Stroboscopic Flash

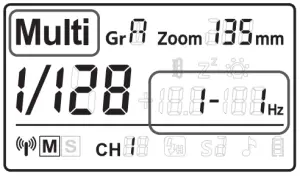

Press Mode Selection Button to enter Multi mode (Stroboscopic flash). With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture multiple images  of a moving subject in a single photograph. You can set the firing frequency (number of flashes per sec. expressed as Hz), the number of flashes, and the flash output. For  setting procedures, see the following:

1. Press the Mode Selection Button  so that “Multi” is displayed.

2. Press Set Button to select the item to be set. The item blinks.

3. Rotate Select Dial to set a desired number.


Calculating the Shutter Speed
During stroboscopic flash, the shutter remains open until the firing stops. Use the provided formula to calculate the shutter speed required to capture the full sequence of  flashes:

Number of flashes / Firing frequency = Shutter speed
For example, if the number of flashes is 10 and the firing frequency is 5 Hz, the shutter speed should be at least 2 sec.

Note:

• Stroboscopic flash is most effective with a highly reflective subject against a dark background.
• Using a tripod and a remote switch is recommended.
• A flash output of 1/1 or 1/2 cannot be set for stroboscopic flash.
• Stroboscopic flash can be used with “buLb”.

Maximum Stroboscopic Flashes：

Maximum Stroboscopic Flashes：

To avoid overheating and deteriorating the flash head during stroboscopic flash, do not use stroboscopic flash more than 10 times in succession.

S1 Mode: S1 Slave Triggering Mode

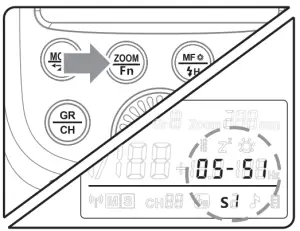

• Long Press button for 2 seconds to enter the custom menu and press Button to choose OS. Then, turn the Select Dial to choose OFF/S1/S2.
• In S1 mode, the flash unit can function as a slave flash for creating multiple lighting effects. It is respectively applicable to manual flash environment.
• In S1 mode, the flash unit will fire synchronously when the master flash fires, the same effect as that by the use of radio triggers.

S2 Mode: S2 Slave Triggering Mode

• Long Press button for 2 seconds to enter the custom menu and press Button to choose OS. Then, turn the Select Dial to choose OFF/S1/S2.
• In S2 mode, the flash unit can function as a slave flash for creating multiple lighting effects. It is applicable when using a TTL master flash.
• In S2 mode, the flash unit will ignore a single “preflash” from the master flash and will only fire in response to the second, actual flash from the master.

Hi-Speed Sync Triggering

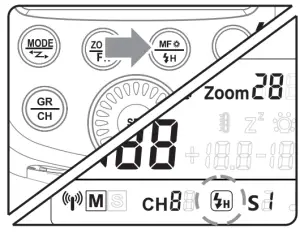

• To enter mode, long press button and hold for 2 seconds.
• To exit mode, press Mode Selection Button or long press  button and hold for 2 seconds again.
• In hi-speed sync triggering mode, you can use a hi-speed sync trigger to have your flash unit synchronized with all shutter speeds of cameras (max. 1/8000 second, up  to your camera). This is convenient when you want to use aperture priority for fill-flash portraits.

Note:
*Hi-speed sync triggering mode is effective only when the flash unit is used together with the following flash triggers.

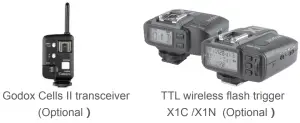

1. Hi-speed sync trigger, e.g., Godox Cells II transceiver.
2. TTL wireless flash trigger X1C
3. TTL wireless flash trigger X1N

*Hi-speed sync triggering mode is not available when V850II is mounted onto the camera.

To avoid overheating or deteriorating the flash head during high speed sync flash, the over-temperature protection function will be activated automatically after 10  continuous high-speed flashes and the ecycle time becomes 10 seconds longer.

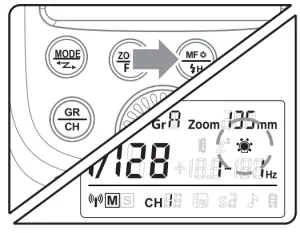

Custom Function–Focus Assist Lamp

• Under poorly-lit or low-contrast conditions, you can press button to turn on the focus assist beam in order to make it easier to autofocus.
• The beam will automatically put out certain seconds after the last pop is fired. The time between the last fire and the auto shutdown of focus assist beam is called No-Flash  Time. The time is user adjustable and set to 10 seconds by default.
• Press button and hold for 2 seconds to enter Custom Function. Then press “SET” button to enter “FC” mode. The LCD panel displays “FC” (Auto shutdown of focus assist lamp) and “No-Flash Time”. Rotate Select Dial  to set a desired time for the flash. Press button to return.

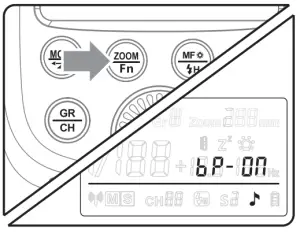

Buzz Function

• To turn the buzz function on or off, press button and hold for 2 seconds to enter Custom Function.
• Then press “SET” button to enter “bp” mode. The LCD displays“ON”means buzz is turned on while “OF” means buzz is turned off.
• When the buzzer is turned on, is shown on the LCD display.

Wireless Flash Shooting: Radio (2.4G) Transmission

• V850II has 2.4G radio transmission (Master/Slave) Wireless mode setting: Long press button and hold for 2 seconds until< > icon is blinking. Turn the Select Dial to  set from OFF/Master(M)/Slave(S) mode.
• Channel setting: Long press button and hold for 2 seconds until the figure besides the CH is blinking. Turn the Select Dial to choose the channel from 1~32.
• Group setting: Short press button to select group. In Master mode, groups can be selected from M/A/B/C/D/E; while in Slave mode, groups can be selected from A/B/C/D/E.
• As V850II adopts Godox wireless X system, it is compatible with AD360II-C, AD360II-N, TT685C, TT685N, X1T-C, X1T-N wireless control, etc.

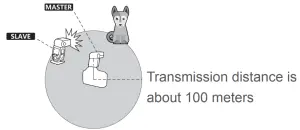

• See the picture below:


Wireless Control Function

• The flash unit is built in with a Wireless Control Port (6) so that you can wirelessly adjust the power level of the flash and control the on-or-off of your flash, focus assist  beam and buzzer, as well as trigger the flash.

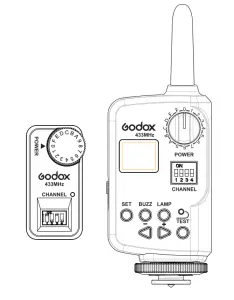

• To control the flash wirelessly, you need a Godox FT series remote control set (on-camera and on-flash). Insert its receive end into the Wireless Control Port (6) on the  flash and insert the transmit end into the camera hot shoe. Settings made on the hotshoe-mounted transmit and receive ends will be wirelessly communicated to the flash.  Then you can press the camera shutter- release button to trigger the flash. You can also hold the transmit end at hand to control your off-camera flash.

• For full instructions on the use of FT series remote control, see its user manual.

Sync Triggering

The Sync Cord Jack (7) is a Φ2.5mm plug. Insert a trigger plug here and the flash will be fired synchronously with the camera shutter.

Custom Function—-Sleep Function

• This product is equipped with Sleep Function to avoid battery drain when the flash unit is idle.

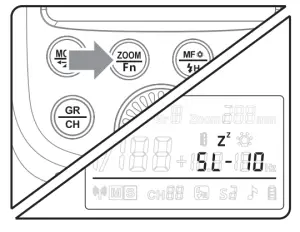

• Press button and hold for 2 seconds to enter the sleep Function Mode. The LCD panel displays “SL” (Sleep) and “Sleeping Time”. Idle time before entering Sleep  Mode is 10 minutes by default. Rotate Select Dial  to set a desired time for the flash or to turn off Sleep Function. Press button to return.

• When the flash enters sleep mode, the LCD panel displays a “” icon.
• To wake up the flash unit, press any button on the flash unit, or press the camera release button, or press the trigger TEST button.

Note:
The idle time before entering Sleep Mode is recommended to set short. This can ensure a longer battery life.

Custom Function Signs	Function	Settings & Description	Operation
SL	Sleeping Time Setting	Sellable Time: <3> 3 minutes <10> 10 minutes <30> 30 minutes <60> 60 minutes <OF> ( OFF )	1.  Press button to enter Custom Functions. 2.  Turn the Select Dial to adjust sleeping time. 3.  Press button to return. *Press any button can wake up the flash. * The idle time before entering Sleep Mode is recommended to set short. This can  ensure a longer battery life.
FC	Auto Power OFF Time Setting of Auto Focus Assist	<10>10 seconds <20>20 seconds <30>30 seconds	1.    Press button to enter Custom Functions. 2.    Press  button to enter FC states. 3.  Turn the Select Dial to adjust. 4. Press button e to return.
by	Buzz Setting	<ON> On <OF> Off	1.  Press button to enter Custom Functions. 2.  Press  button to enter by states. 3.  Turn the Select Dial to adjust. 4.   Press button to return.
bL	Backlight Setting	Backlight can be set as follows : <ON> : Always lighting <12> : Off in 12 sec. <OF> : Off	1.    Press button to enter Custom Functions. 2.    Press button to enter bL states. 3. Turn the Select Dial to adjust. 4. Press button to g return.
OS	Optic Slave Mode	<OF> Off <51> 51 mode <S2> S2 mode	1. Press button to. enter Custom Functions. 2.    Press  button to enter OS states. 3. Turn the Select Dial to adjust. 4.    Press button to return.

Protection Function

Over-Temperature Protection

• To avoid overheating and deteriorating the flash head, do not fire more than 30 continuous flashes in fast succession at 1/1 full power. After 30 continuous flashes, allow  a rest time of at least 10 minutes.
• If you fire more than 30 continuous flashes and then fire more flashes in short intervals, the inner over-temperature protection function may be activated and make the  recycling time about 10 to 15 seconds. If this occurs, allow a rest time of about 10 minutes, and the flash unit will then return to normal.
• When the over-temperature protection is started, is shown on the LCD display.

Number of flashes that will activate over-temperature protection:

Number of flashes that will activate over-temperature protection in high-speed sync mode:

Other Protections

The system provides real-time protection to secure the device and your safety. The following lists prompts for your reference:

Advanced Application

Bounce Flash
By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface before illuminating the subject. This can soften shadows behind the subject for a more  natural-looking shot. This is called bounce flash. To set the bounce direction, hold the flash head and turn it to a satisfying angle.

• If the wall or ceiling is too far away, the bounced flash might be too weak and result in underexposure.
• The wall or ceiling should be a plain, white color for high reflectance. If the bounce surface is not white, a color cast may appear in the picture.

Creating a Catchlight
With the catchlight panel, you can create a catchlight in the subject’s eyes to add life to the facial expression.

1. Point the flash head upward by 90°.

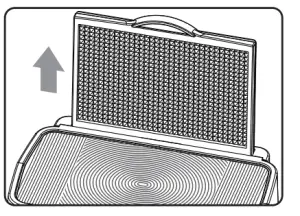

2. Pull out the wide panel.
   The catchlight panel will come out at the same time.
3. Push the wide panel back in.
   • Push in only the wide panel.
   • Follow the same procedures as for bounce flash.


• Point the flash head straight ahead and then upward by 90°. The catchlight will not appear if you swing the flash head left or right.
• For best catchlight effect, stay 1.5m/4.9ft away from the subject.

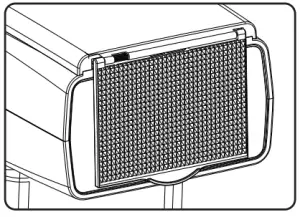

Using the Wide Panel
Pull out the built-in wide panel to enlarge the flash lighting range, so as to get more softened and natural lighting effect.

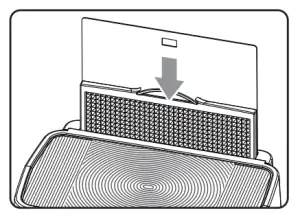

Pull out the wide panel and place it over the flash head  as shown. The flash coverage will then be extended to 14 mm.

• The catchlight panel will come out at the same time. Push the catchlight panel back in.

Technical Data

Maintenance

• Shut down the device immediately should abnormal operation be detected.
• Avoid sudden impacts and the lamp should be dedusted regularly.
• It is normal for the flash tube to be warm when in use. Avoid continuous flashes if unnecessary.
• Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories.
• This product, except consumables e.g. flash tube, is supported with a one-year warranty.
• Unauthorized service will void the warranty.
• If the product had failures or was wetted, do not use it until it is repaired by professionals.
• Changes made to the specifications or designs may not be reflected in this manual.

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device  must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to  provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed  and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur  in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the  user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.

Warranty

Dear customers, as this warranty card is an important certificate to apply for our maintenance service, please fill in the following form in coordination with the seller and safe- keep it. Thank you!

Note: This form shall be sealed by the seller.

Applicable Products
The document applies to the products listed on the Product Maintenance lnformation (see below for further information). Other products or accessories (e.g. promotional  items, giveaways and additional accessories attached, etc.) are not included in this warranty scope.

Warranty Period
The warranty period of products and accessories is implemented according to the relevant Product Maintenance lnformation. The warranty period is calculated from the  day(purchase date) when the product is bought for the first time, And the purchase date is considered as the date registered on the warranty card when buying the product.

How to Get the Maintenance Service
If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered as our obligation.

Inapplicable Cases
The guarantee and service offered by this document are not applicable in the following cases: . The product or accessory has expired its warranty period; . Breakage or damage caused by inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by an external force, contacting or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc; . Breakage or damage caused by the nonauthorized institution or staff in the process of installation, maintenance, alternation, addition and detachment; . The original identifying information of product or accessory is modified, alternated, or removed; . No valid warranty card; . Breakage or damage caused by using illegally authorized, nonstandard or non-public released software; .  Breakage or damage caused by force majeure or accident; . Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software beyond the warranty period r scope is not included in our maintenance scope. The normal discoloration, abrasion and consumption are not the breakage within the maintenance scope.

Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following Product Maintenance Information:

Godox After-sale Service Call 0755-29609320-8062

GODOX Photo Equipment Co., Ltd.
Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,
Shenzhen, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423
E-mail: [email protected]
godox.com
Made in China
