WGX1090TN Line Array Sources
Instructions Manual
WGX1090TN Line Array Sources
- Line Array optimized Waveguide with DE1090TN driver
- 120° max horizontal coverage
- 240 W continuous program power capacity
- 100 mm (4 in) aluminum voice coil
- Titanium diaphragm
- 500 – 18000 Hz response
- 108 dB sensitivity
- Neodymium magnet assembly with shorting copper cap
Waveguide horn are not sold separately
Line Array Sources- 1.4 Inches

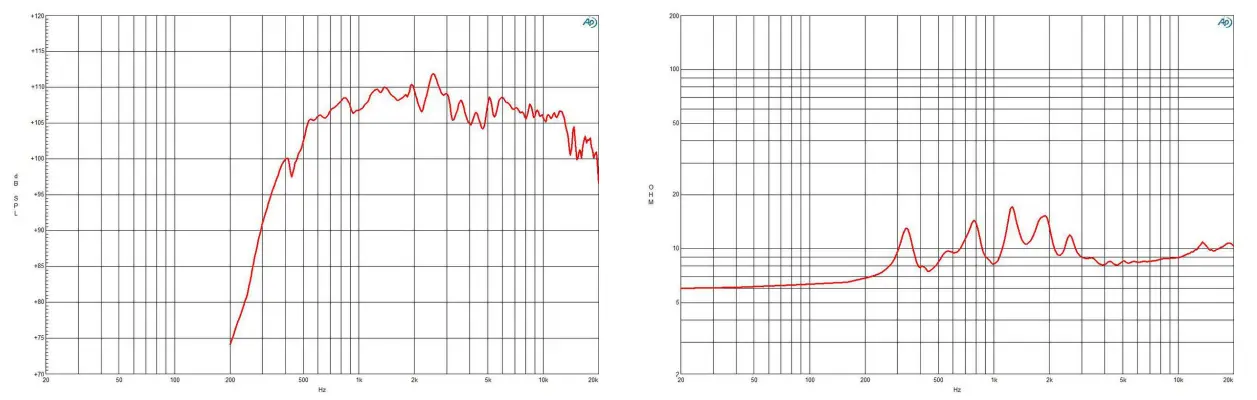

SPECIFICATIONS
| Horizontal Coverage | 120 ° Max |
| Active Radiating Factor | 93.70% |
| Recommended Crossover1 | 0.8 kHz |
| Waveguide Material | Cast Aluminium |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 8.0 Ω |
| Nominal Power Handling2 | 120 W |
| Continuous Power Handling3 | 240 W |
| Sensitivity4 | 108.0 dB |
| Frequency Range5 | 0.5 – 18.0 kHz |
| Voice Coil Diameter | 100 mm (4.0 in) |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Flux Density | 1.9 T |
| Magnet Material | Neo Inside Ring |
MOUNTING AND SHIPPING INFO
| Exit Size | 153×25 mm (6×1 in) |
| Driver Diameter | 127 mm (5.0 in) |

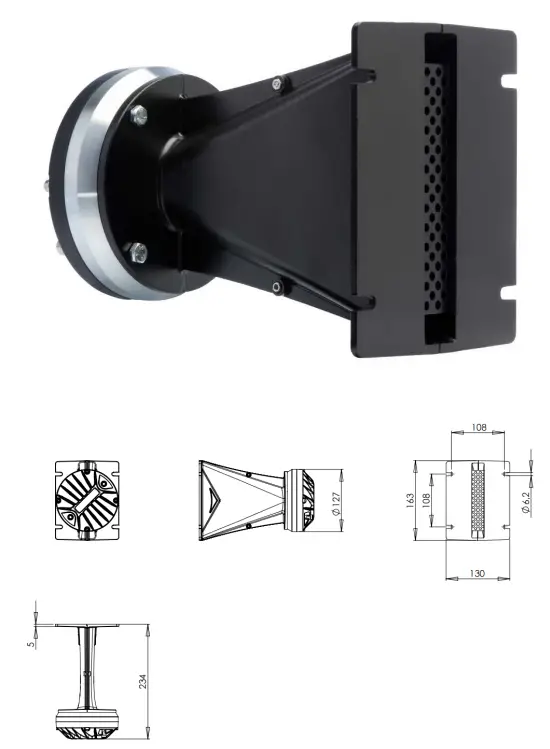

| Dimensions | 163x130x234 mm (6.42×5.12×9.21 in) |
| Net Weight | 2.9 kg (6.39 lb) |
| Shipping Units | 1 |
| Shipping Weight | 3.0 kg (6.61 lb) |
| Shipping Box | 245x140x175 mm (9.6×5.5×6.9 in) |
- 12 dB/Oct. Or higher slope high-pass filter.
- 2-hour test made with a continuous pink noise signal (6 dB crest factor) within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
- Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- Waveguide mounted on 90°x10° bell horn
