WG400
Line Array Sources – 1.0 Inches
User Manual

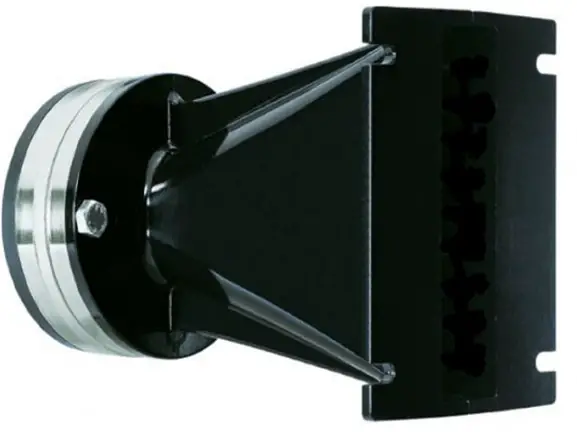

WG400 Line Array Sources
- Line Array optimized Waveguide with DE400 driver
- 140° max horizontal coverage
- 100 W continuous program power capacity
- 44 mm (1.7 in) aluminum voice coil
- Polyimide diaphragm
- 1200 – 18000 Hz response
- 108.5 dB sensitivity
- Compact Neodymium magnet assembly
SPECIFICATIONS
| Horizontal Coverage | 140 ° Max |
| Active Radiating Factor | 92.5 % |
| Recommended Crossover’ | 1.5 kHz |
| Waveguide Material | Cast Aluminium |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.7 Ω |
| Nominal Power Handling2 | 50 W |
| Continuous Power Handling3 | 100 W |
| Sensitivity4 | 108.5 dB |
| Frequency Ranges | 1.2 – 18.0 kHz |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimide |
| Flux Density | 1.8 T |
| Magnet Material | Neodymium Ring |
MOUNTING AND SHIPPING INFO
| Exit Size | 102×25 mm (4×1 in) |
| Driver Diameter | 86 mm (3.3 in) |
| Dimensions | 111x87x155 mm (4.4×3.5×6.1 in) |
| Net Weight | 1.3 kg (2.9 lb) |
| Shipping Units | 4 |
| Shipping Weight | 5.8 kg (12.79 lb) |
| Shipping Box | 265x245x240 mm (10.43×9.65×9.45 in) |

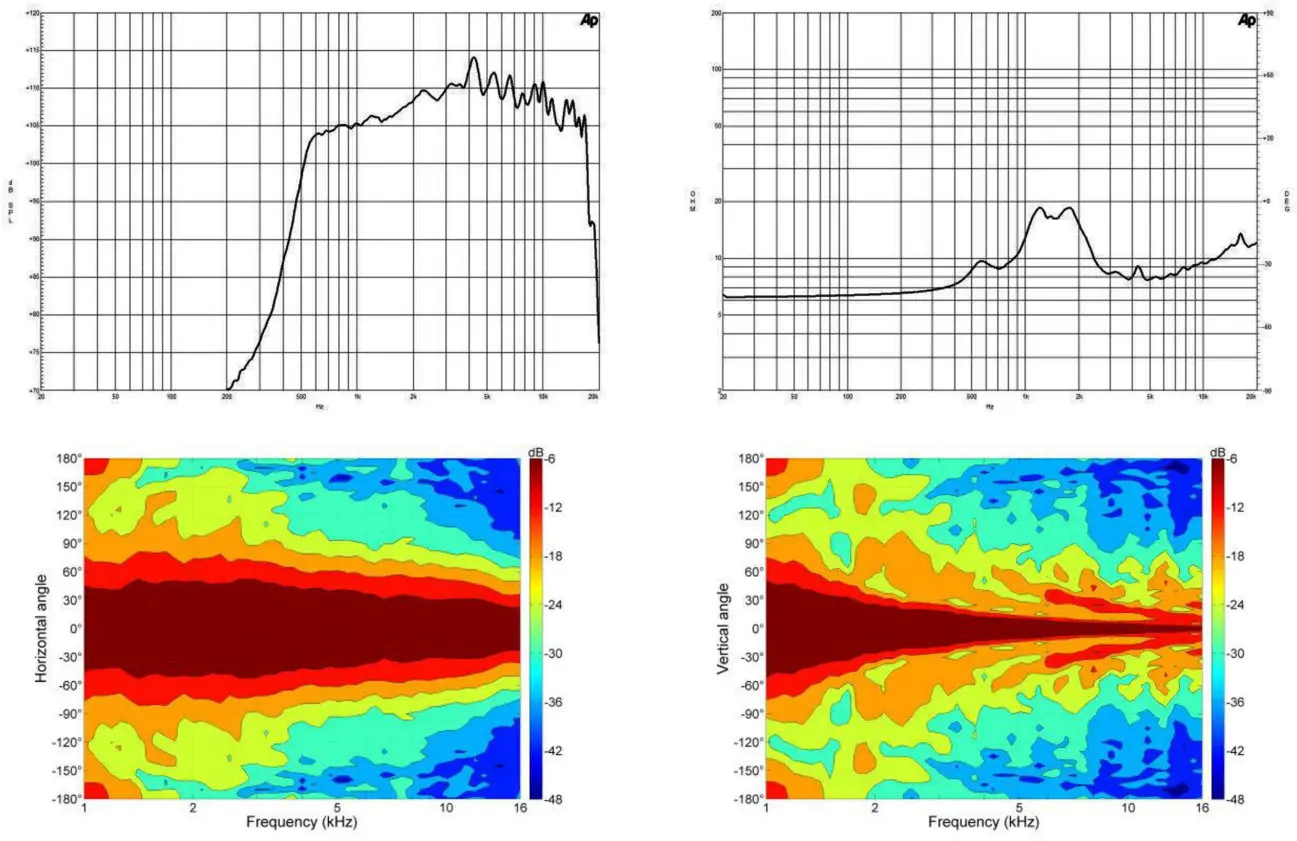

- 12 dB/Oct. Or higher slope high-pass filter.
- 2-hour test made with continuous pink noise signal (6 dB crest factor) within the range from the recommended crossover frequency to 20 kHz. Power is calculated on rated minimum impedance.
- Power on a Continuous Program is defined as 3 dB greater than the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- Waveguide mounted on 90°x10° bell horn
