LV00749 Brantley 22 in. Oak Square Wood End Table with Shelf and Drawer
Installation Guide

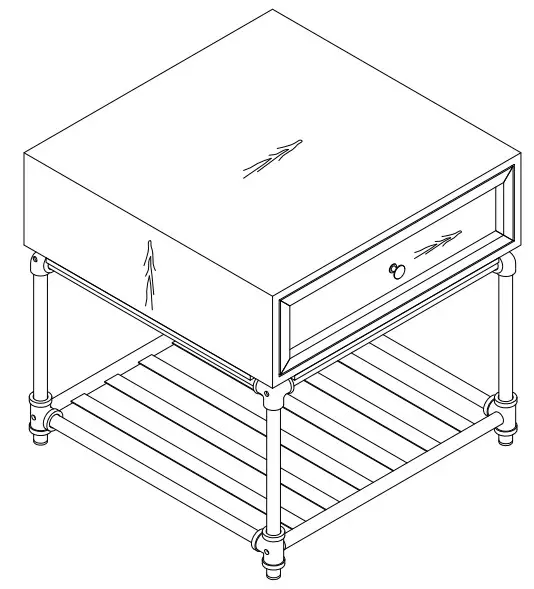

LV00749 Brantley 22 in. Oak Square Wood End Table with Shelf and Drawer
Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware. Compare with the parts list to be sure all parts are present. If any part(s) are missing or damaged, please contact your local furniture dealer. For efficient and speedy service, please indicate the model number and code letter of the part(s) needed.
*** Do not fully tighten screws until fully assembled ***
COMPONENT PARTS
| DECERPTION | PART NAME | Q’TY(PCS) |
| 1 | Box  | 1pc |
| 2 | Side frame  | 2pcs |
| 3 | Bottom frame  | 1pc |
| 4 | Connection tube  | 2pcs |
HARDWARE REQUIRED:
A  | Bolt 1/4″x1-1/8″ – 4pcs |
B | Bolt 1/4″1-3/8″ – 8pcs |
C | Bolt 1/4″x2-1/8″ – 4pcs |
D | Bolt 1/8″x1″ – 1pc |
E | Washer – 1pc |
F | Handle – 1pc |
G  | Allen Wrench M4 – 1pc |
Attention:
***Mattresses not included.
***Some number parts listed on the instruction sheet may not be in the parts bag as they may already be assembled.
Carefully check parts and packing materials prior to ordering replacements.

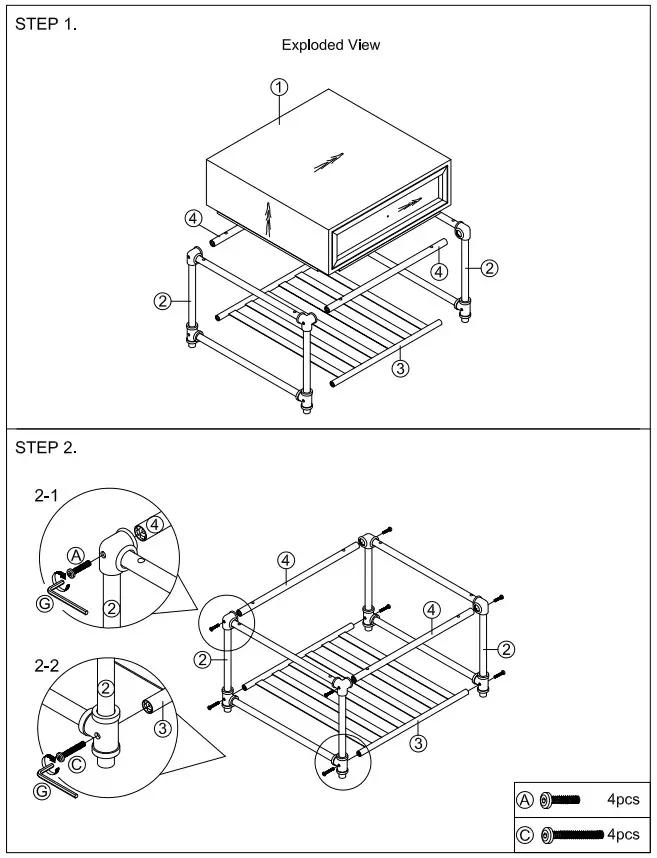

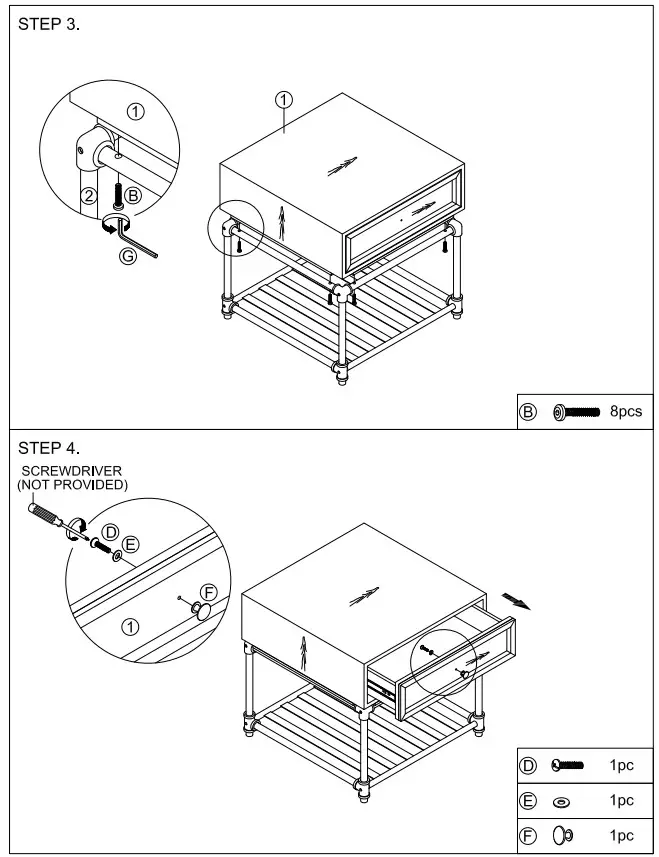

How to Assemble:
