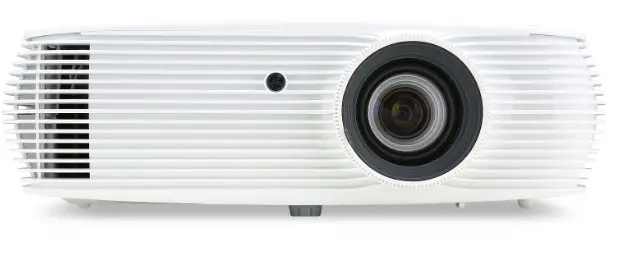

acer P5535 DLP Projector
Product Specifications
| Model name | P5535 |
| Projection system | DLP® |
| Resolution | 1080p (1,920 x 1,080) Maximum WUXGA (1,920 x 1,200) |
| Brightness | 4,500 ANSI Lumens (Standard), 3,600 ANSI Lumens (ECO), (Compliant with ISO 21118 standard) |
| Aspect ratio | 16:9 (Native), 4:3 (Supported) |
| Contrast ratio | Dynamic Black 20,000:1 |
| Throw ratio | 1.13 ~ 1.47 (80″@2m) |
| Projection lens | F = 2.5 ~ 2.782, f = 16.91mm~21.60mm, Manual Zoom & Focus |
| Keystone correction | +/-20° (Vertical, Manual & Auto), +/-20° (Horizontal, Manual), 4-Corner adjustment |
| Lamp life | 4,000 Hours (Standard), 10,000 Hours (ECO), 15,000 Hours (ExtremeEco) |
| Noise level | 24 dBA (ECO) |
| Input interface | Analog RGB/Component Video (D-sub) x 2 Composite Video (RCA) x 1 HDMI1.4a/MHL2.1 (Video, Audio, HDCP) x 1 HDMI1.4a(Video, Audio, HDCP) x 1 PC Audio (Stereo mini jack) x 1 |
| Output interface | Analog RGB (D-sub) x 1 PC Audio (Stereo mini jack) x 1 DC Out (5V/2A, USB Type A) x 1 |
| Control interface | USB (Type A) x 1, share output port RS232 (D-sub) x 1 |
| Network interface | Ethernet port (RJ45) x 1 USB (Type A, internal) x 1, for optional wireless dongle |
| Dimensions | 315 x 214 x 103 mm (12.4″ x 8.4″ x 4.1″) |
| Weight | 2.73 Kg (6 lbs) |
Feature Highlights
Expressive display
- Full HD (1,92 0 x 1 0 80) resolution
- 4, 5 00 ANSI lumens
- Dynamic Black 20,000:1
- Acer Blue light Shield
- Acer Lumi Sense
- Acer Color Boost 3D
- Acer Color Safe II
- HDMI 3D with 144Hz 24p
Enhanced usability
- 16 W built in speaker
- Crestron ® network system
- Mobile USB display 1
- Wireless Projection 2
- Hidden Dongle design
Installation flexibility
- 1.3X zoom
- H/V keystone correction
- 4 corner correction
- A u to ceiling mount correction
Eco friendly functionality
- Acer Eco Projection
- Lamp life up to 1 5 ,0 00 hours in
- Extreme Eco mode
- Mobile USB display can receive content with resolution up to 1080p. The display result will depend on projector’s native resolution.
- Optional Acer Wireless Projection Kit, Wireless CAST , or Wireless HD Kit is required.
Acer Blue light Shield
Acer Blue light shield allows users to lower levels of blue light to lessen the negative effects of blue light exposure. There are three levels of filter in projector suitable for different scenario. Each level also contains dynamic mechanism that will optimize the blue light level based on content. Blue light shield can reduces up to 30% blue light and protect your eyes.
Acer Lumi Sense
With an embedded light sensor, projector can detect ambient light conditions and dynamically optimizes brightness levels and color saturation accordingly. Content aware technology also analyzes projected contents frame by frame and dynamically adjusts image visibility to the optimum level.
