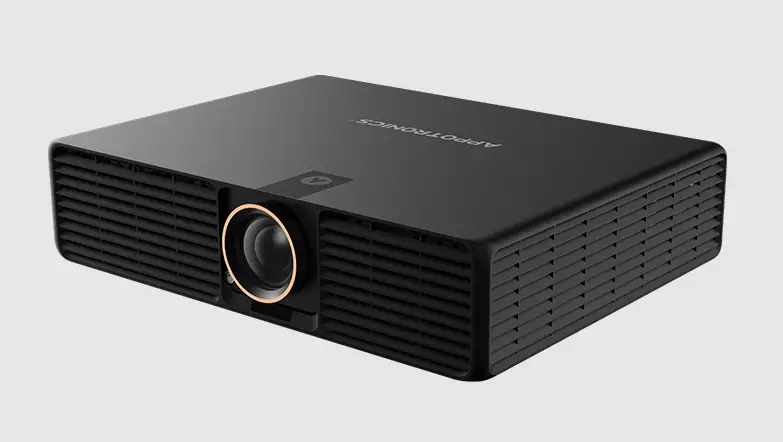

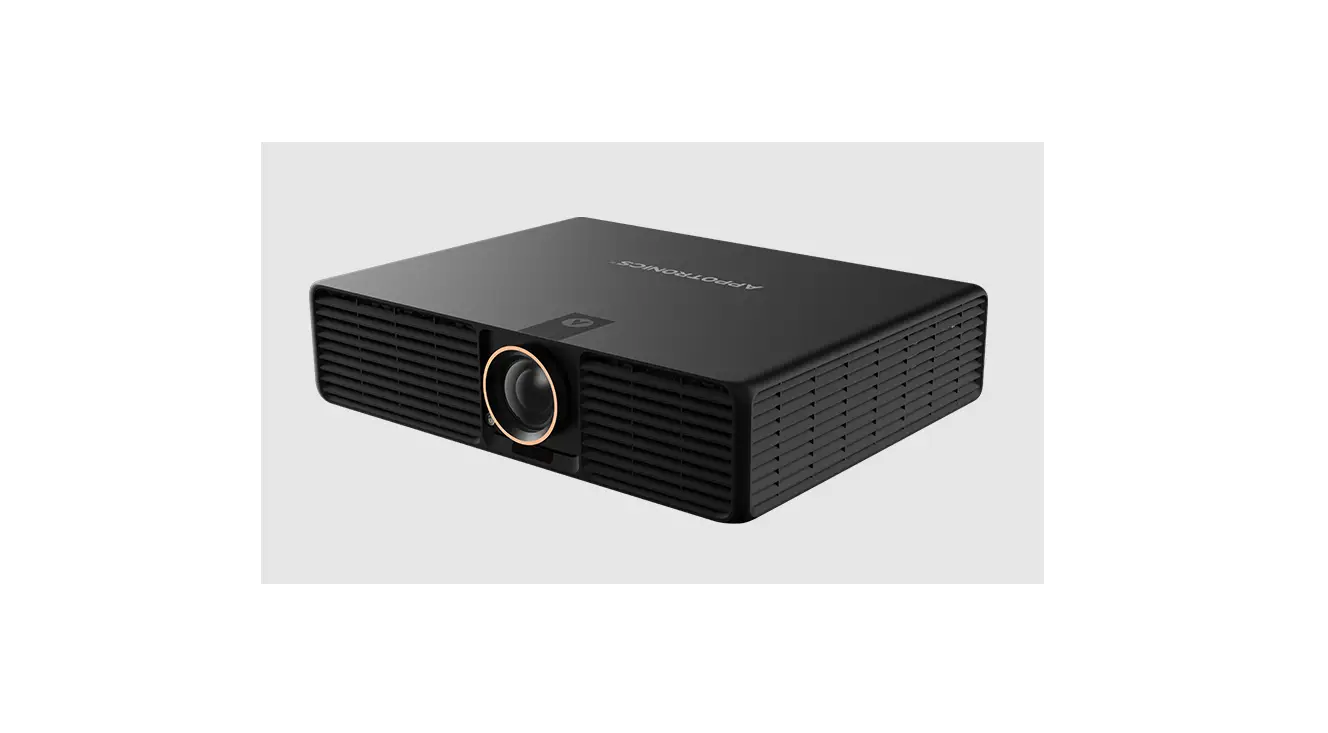

APPOTRONICS AL-MH620A M Series 6200lm 4K Projector
Vivid Color, High Resolution
- Precise Rec.709 color gamut. Perfect color reproduction.
- 1080P, 4K resolution.
Easy to Install
- Compact body with high output: thickness <4” and weighs only 20lbs.
- 360° installation, easy to install.
- Built-in wrapping & blending functions
- RGBCMYW 7-axiel color correction provides perfect uniformity.
- Multiple powered interchangeable lenses with wide range lens shift upto 100%.
Outstanding System Performance
- Built-in Android OS.
- 3D-Sync connection to support infrared 3D and DLP-link 3D.
- Rich I/O.
- Electric Shutter.
High Reliability
- Full-seal engine.
- Over 20000H engine life span.
4K Cinema Level Picture
Interchangeable Lens & Built-in Blending/Wrapping Functions
APPOTRONICS PROJECTOR SPECIFICATION
| Model | AL-MH620A | AL-MK620A | |
| Display Technology | DLP™x1, DLP™ projection system | ||
| Panel Size | 0.47″ DMD | ||
| Resolution | 1,920×1,080, 1080P | 3,840×2,160, 4K | |
| Brightness Output① | 6,200 lm | ||
| Light Source Type | ALPD® Laser (Laser type: Class1) | ||
| Life Source Lifetime⑥ | 20,000h | ||
| Contrast② | 100,000 :1 | ||
| Uniformity | 90% | ||
| Display Gamut | REC.709 | ||
| Optional Lenses | 0.7-0.9:1, 1.52-2.45:1 | ||
| Optional Lenses | 80″ ~ 300″ | ||
| Geometric Correction | Keystone: V: ±35°, H: ±35°, corner keystone | Keystone: V: ±35°, H: ±35°, 8-point correction | |
| Optical Axis Shift | Vertical: ±100%, Horizontal: ±40%, powered | ||
| I/O | HDMI×2/HDBaseT×1/VGA×2/AUDIO IN×1/AUDIO OUT×1/LAN(RJ45)×1/RS232(DB9)×1/3D SYNC×2(in/out)/3D IR OUT×1 | HDMI×2/HDBaseT×1/SPDIF×1/ LAN(RJ45)×1/RS232(DB9)×1/USB×1/3D SYNC×2(in/out)/3D IR OUT×1 | |
| Wi-Fi | / | 802.11 a/b/g/n/ac，2.4G+5G | |
| Power Supply | 100-240V AC, 50/60Hz | ||
| Orientation | 360° | ||
| Noise | 36dB (Standard) | ||
| Power Consumption | Standard | ≤500W | |
| Stand by | ＜0.5W | ||
| Structure | Measurements③ | 17.2″ × 13.1″ × 3.9″ | |
| Weight④ | ≤ 19.4 lbs | ≤ 20.3 lbs | |
| Working Environment | Temperature⑤ | 32°F~104°F (95°F~104°F Eco Mode) | |
| Humidity | 20%~80% (no condensation) | ||
- Based on ISO21118 standard.
- Full white/full black.
- Not including protruding parts.
- Including standard lens. Average value.
- Operation temperature will be set to 32°F~95°F when working under High Altitude Mode. The output of projector will be reduced to 50% if ambient temperature exceeds 95°F.
- The output of the projector will have decreased by approximately 50% around this time. Data from accelerated lab simulations. Actual time may vary according to the operating modes, environment and other user behaviors.
APPOTRONICS USA, INC.
For more information about Appotronics projector, please visit: www.appotronicsusa.com
- All brightness and contrast figures mentioned in this document are in accordance with ISO 21118 standard. Figures listed represent average values in production units.
- The life span of the light source can be influenced by many factors including display modes, usage and others.
- Measurements and measuring conditions of values mentioned in this document are all in accordance with IS0 21118.
- Appotronics Co., Ltd. 2020. DLP, DLP, DLP logo, and DLP Medallion logo are trademarks or registered trademarks of Texas Instruments.
