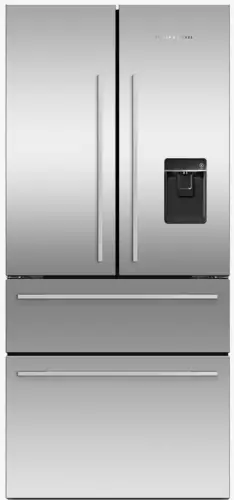

QUICK REFERENCE GUIDE > RF172GDUX1
Freestanding French Door
Refrigerator Freezer, 32″, 16.9
cu ft, Ice & Water
Series 7 | Contemporary
Stainless Steel | French hinge
Designed for those who need plenty of flexible space. Flush fit with a stylish stainless steel finish for a seamless look.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Door water dispenser and internal ice maker with boost function
- The spacious bottom freezer with easy-slide internal drawers to separate storage
- With SmartTouch control panel for ease of use

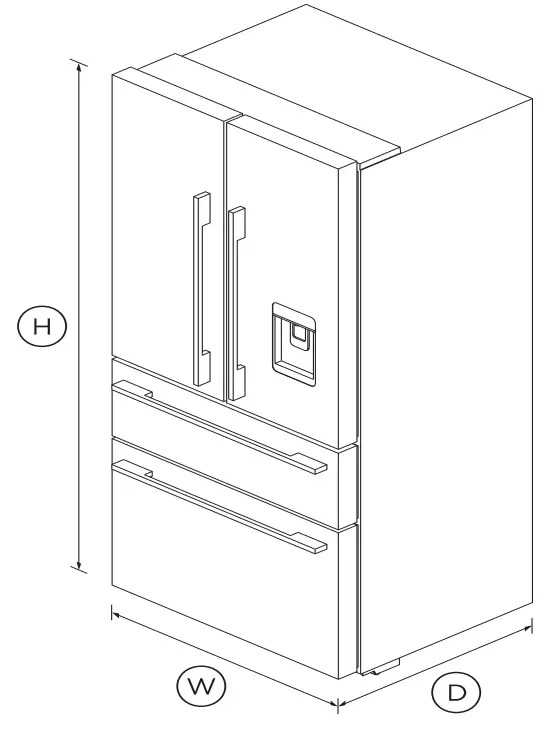

DIMENSIONS
| Height | 70 1/2″ |
| Width | 31 1/8″ |
| Depth | 27 1/16″ |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It is a technology that understands how you use your fridge and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
Easy slide drawers
With two independent freezer drawers and adjustable internal shelving and storage options, this fridge can be configured to suit your constantly changing needs.
Ultra slim water dispenser
The slimline water dispenser is easy to use. The angled water delivery means that almost any size or shape of vessel can be filled while taking up no storage space in the door.
Ice maker
The internal ice maker delivers fresh ice to a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times boost ice production by up to 30%.
Design quality
Our refrigerators are designed and built using quality materials.
We use real stainless steel, brilliant LED lighting, and solid glass for the interior shelving.
Easy to organize
There are multiple storage options for you to choose from.
Different sized adjustable shelves and door storage give you plenty of room to stack and pack all your groceries. Full extension runners make it easy to remove storage bins and clean them out.
SPECIFICATIONS
Accessories
| Replacement water filter | 847201 |
Capacity
| Total gross capacity | 16.8cu ft |
| Volume refrigerator | 10.6cu ft |
Features
| Adjustable door shelves | 6 |
| Cantilevered glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front leveling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
Freezer Features
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
Performance
| ActiveSmart™ Foodcare | • |
| Frost free freezer | • |
| Humidity control system | • |
| Internal replaceable water filter | • |
| Inverter controlled compressor | • |
| R600a refrigerant | • |
| Sabbath mode | • |
Product dimensions
| Depth | 27 1/16″ |
| Height | 70 1/2″ |
| Minimum air clearance – at rear | 1 3/16″ |
| Minimum air clearance – each | 1 3/16″ |
| Minimum air clearance – on top | 1 3/16″ |
| Width | 31 1/8″ |
Warranty
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 24885 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
