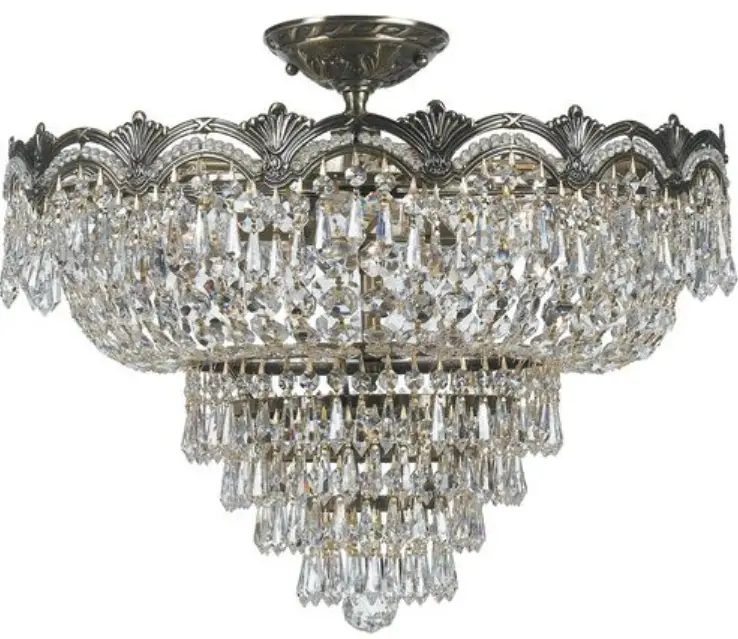

CRYSTORAMA 1485-HB-CL-MWP Majestic Five Light Ceiling Mount
Product Information
Assembly Instruction Model #1485-HB-CL-MWP
This product is a chandelier with a dry rating, model number 1485-HB-CL-MWP. The fixture requires five candelabra base bulbs,with a recommended wattage of 40 watts and a maximum wattage of 60 watts. LED bulbs are recommended or extended use. The chandelierincludes 214 crystal sets labeled A, 50 crystal sets labeled B, and one crystal set labeled C. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. The product can expose you to lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
Product Usage Instructions
- Do a complete inventory of all parts and components before you start installing.
- Safely attach the fixture into the outlet box.
- Install bobeches and bulbs, and proceed to connect the power.
- Dress the fixture, starting with the pocket labeled A.
- Apply crystal sets in alphabetical order, starting with set A.
Note that there are 50 pin holes for set B and 46 pin holes for set A. Make sure to follow the detailed illustration in the manualwhen installing the product.
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 5 -Candelabra Base Bulb 40 Watts recommended 60Watts Max. USE LED BULBS FOR EXTENDED USE
The fixture is dry rated.
How to Install
- Do a complete inventory of all parts and components before you start installing.
- After safely attaching fixture into outlet box, install bobeches, bulbs and proceed to connecting the power.
- When you begin to dress the fixture, start with pocket labeled(A)
- IMPORTANT: Apply crystal sets in alphabetical order.
Crystal Sets
- A. 214 Sets. (1)14mm + AS2-1.5″
- B. 50 Sets. (1)28mm + (1)26mm + (1)24mm + (1)20mm + (1)18mm + (1)16mm
- C. 1 Piece. (5)14mm + AS8-40mm Ball

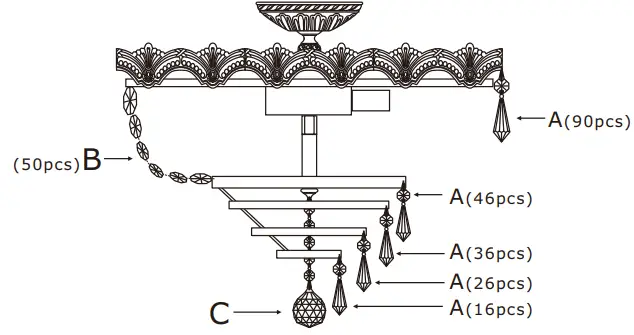

DETAILED ILLUSTRATION
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov
Part Number
Part Numbers
- A. (2)-Wire Connector
- B. (1)-Mounting Bar
- C. (1)-Screw
- D. (1)-Hex Nut
- E. (1)-Ball Nut-XSN1483HBBANUT
- F. (1)-Canopy (W5″xH1.75″) -XSN1483CAN5IN
- G. (1)-Vase
- H. (1)-Banding kit Decorative banding,90 pin holes Inside metal ring,50 pin holes
- I. (1)-Nut
- J. (1)-Thread
- K. (1)-Metal Tube(H2″)
- L. (1)-Nut
- M. (1)-4-Tier Basket;Ø10.5″,H4.5″ (50+46)+36+26+16 pin holes
- N. (1)-Finial-XSN1483HBFIN
