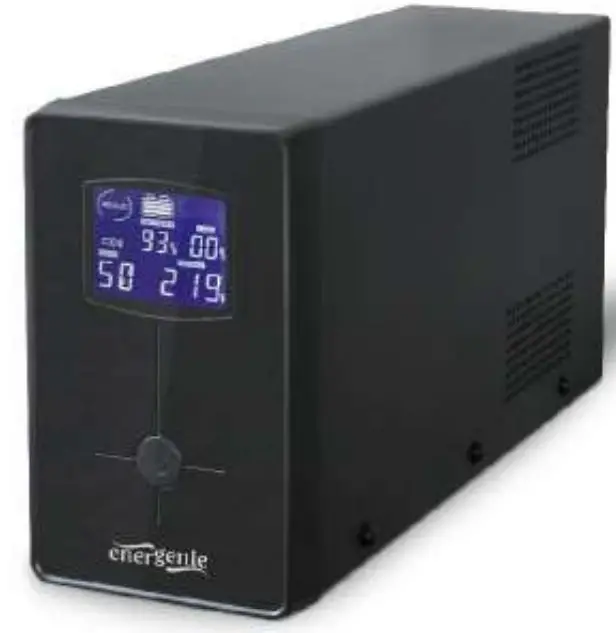

gembird EG-UPS-031 UPS with LCD Display USV Mit LCD User Manual
Features
- Uninterruptable power supply for PC’s
- Automatic output voltage regulation (AVR)
- USB interface (optional)

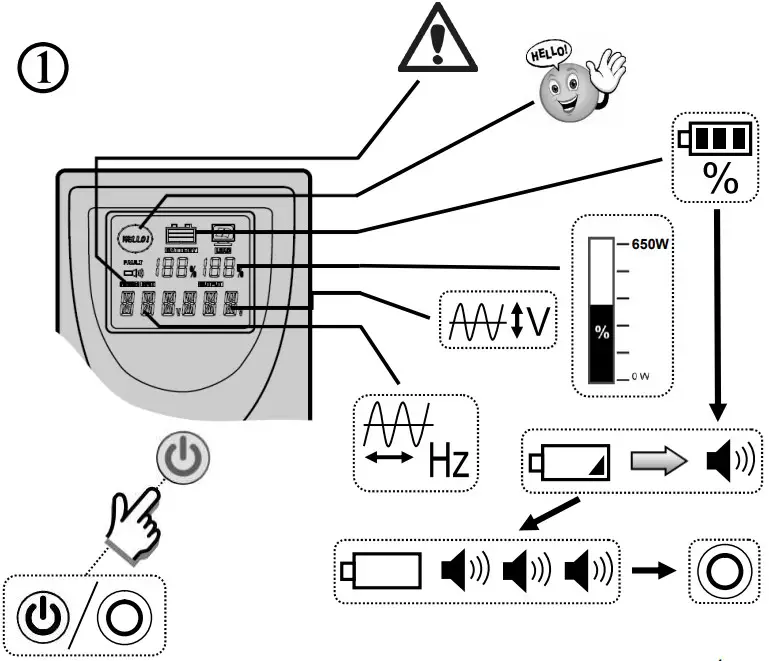

- LCD status indication
- Short circuit protection
- Surge, spike and lightning protection
- Audible and visual alarms
- Overcharge and overdischarge protection
- Including practical UPS Management software (optional)
| Specifications | EG-UPS | |||
| -031 | -031 | -033 | -034 | |
| Type: line interactive | · | · | · | · |
| Waveform: sine wave (AC mains), modified (square) sine wave (battery) | · | · | · | · |
| Input: 220 V AC ± 25%, 50 / 60 Hz ± 10% | · | · | · | · |
| Output: 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode) | · | · | · | · |
| Switching time: less than 10 ms | · | · | · | |
| Backup time: 8…20 mins (depends on the load) | · | · | · | · |
| Battery: | sealed leadacid 12 V DC / 7Ah | sealed leadacid 12 V DC / 8Ah | sealed lead-acid 12 V DC / 7 Ah x 2 pcs | sealed leadacid 12 V DC / 8 Ah x 2 pcs |
| Charge time: up to 12 hours | · | · | · | · |

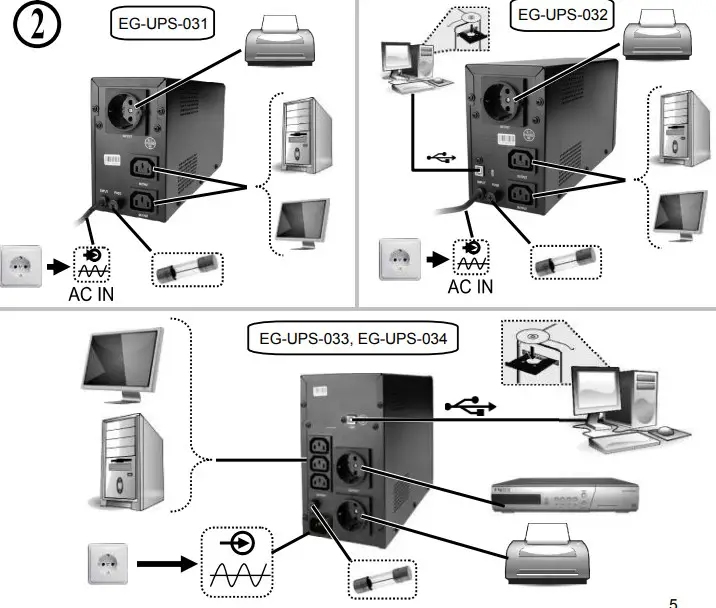

| Sockets: | 2 pcs x C13, 1 pc x german Shuko | 3 pcs x C13, 2 pcs x german Shuko | ||
| USB control interface: BF socket | – | · | · | · |
| Operating conditions: 0°C ~ 40°C, at humidity 20 ~ 90 %RH non condensing | · | · | · | · |
| Power: | 650 VA (390 W) | 850 VA (510 W) | 1200 VA (720 W) | 1500 VA (900 W) |
| Charging current: up to 1.2 A | · | · | · | · |
| Noise: < 45 dB at 1 m distance | · | · | · | · |
| Dimensions: | 340 x 95 x 165 mm | 400 x 125 x 220 mm | ||
| Net weight: | 5.2 kg | 7 kg | 10.4 kg | 10.8 kg |
This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu
Waste disposal:
Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
WARRANTY CONDITIONS
The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer’s expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products
Gembird Europe B.V.
Wittevrouwen 56, 1358CD Almere, The
Netherlands
www.gembird.nl/service
[email protected]
GEMBIRD Deutschland GmbH
Coesterweg 45, 59494 Soest
Deutschland
www.gembird.de/support
[email protected]
Tel. +49-180 5-436247
0,14 € pro Minute aus dem deutschen Festnetz.
Mobilfunkpreise können abweichen
All brands and logos are registered trademarks of their respective owners
