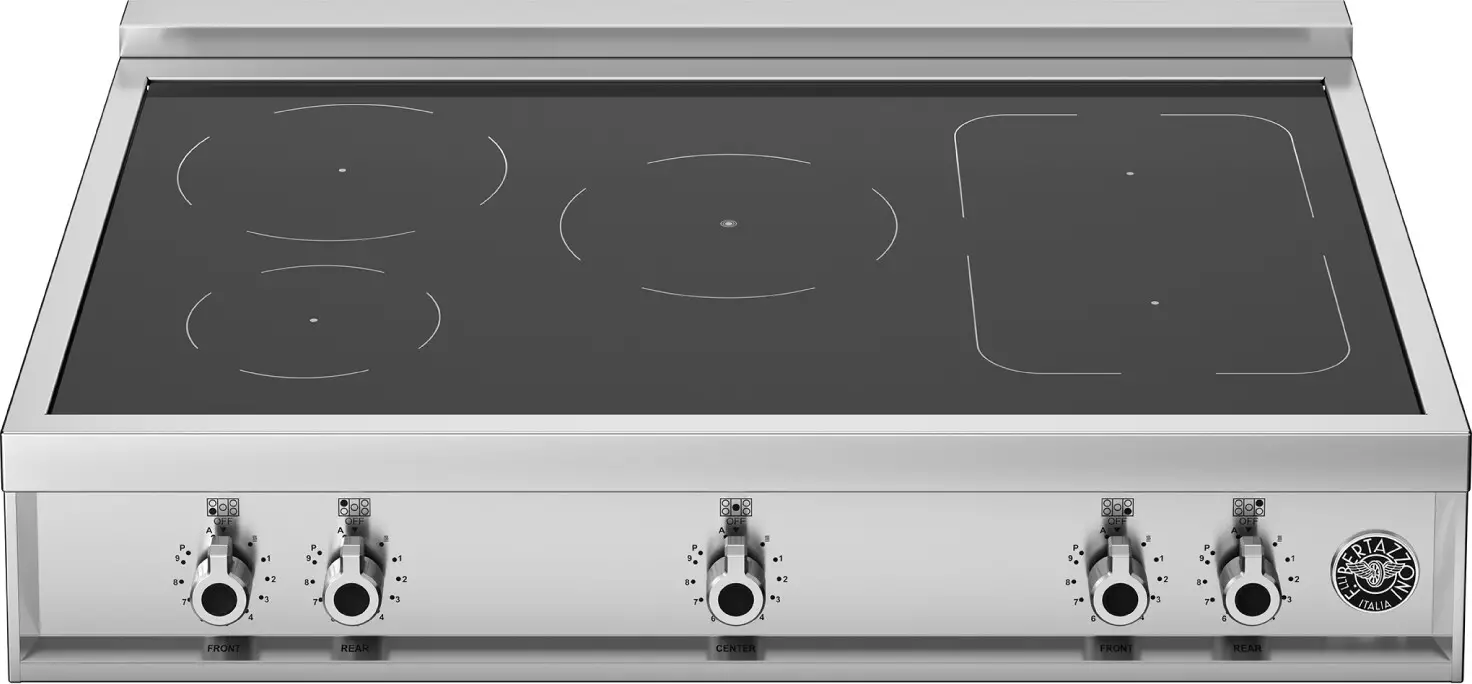

BERTAZZONI PROF365IRTXT 36 5 Induction Zones Rangetop Stainless Steel
Product Information
- Dimensions (inches):
- Top View: 35 3/4 x 25 1/4
- Front View: 7 5/8 x 1 26
- Side View: 6 5/8 x 21 5/8 x 1 9/16
- Countertop: 10 5/8 x 15
- Electrical Connection: horizontally-mounted electrical
receptacle - Cutout Dimensions:
- Top View Area for Electric Connection: 3 3/8 x 6
- Top View: 36 x 152
- Side View: 36 x 914
- Installation Requirements:
- Combustible material cannot be installed within shaded
area - Refer to hood/OTR manufacturer’s installation requirements for
installation with an updraft or downdraft hood as well as any
OTR
- Combustible material cannot be installed within shaded
Product Usage Instructions
- Ensure the installation area is free of any combustible material within the shaded area.
- Install a properly-grounded, horizontally-mounted electrical receptacle according to the provided drawing.
- Follow the cutout dimensions provided for installation.
- If installing with an updraft or downdraft hood or any OTR, refer to the manufacturer’s installation requirements.
- Once installed, use the product according to its intended purpose and the manufacturer’s instructions.
A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing

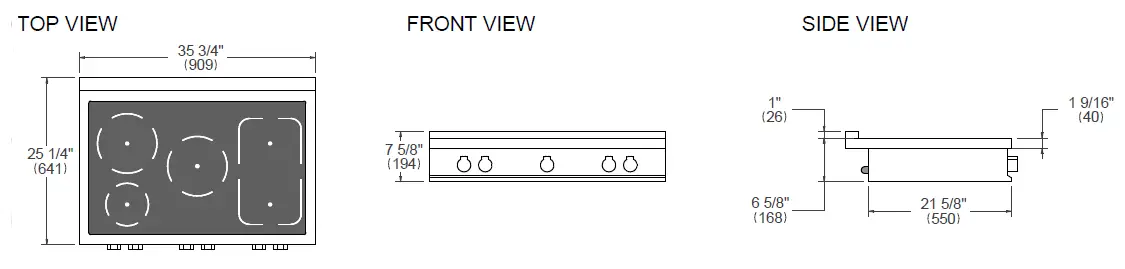

PRODUCT DIMENSIONS

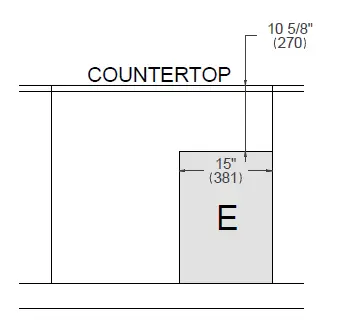

ELECTRICAL CONNECTION

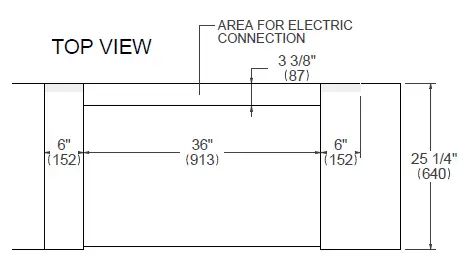

CUTOUT DIMENSIONS

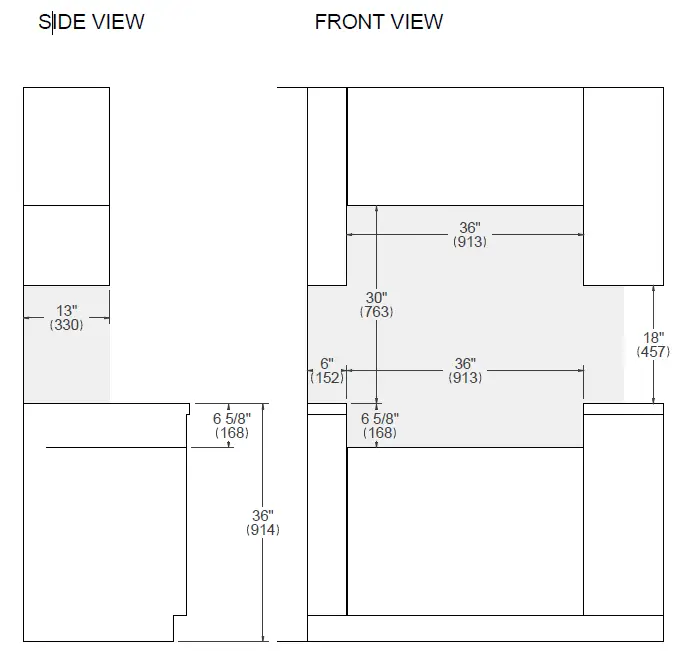

INSTALLATION REQUIREMENTS
Combustible material cannot be installed within shaded area.
