Delonghi SLI 905 90cm 5 Zone Life Induction Cooktop

Delonghi-SLI-905-90cm-5-Zone-Life-Induction-Cooktop-product

FEATURES

  • 5 Induction Cooking Zones
  • 9 Power Levels
  • 2 x Bridge Zones
  • Residual Heat Indicators
  • Front touch controls
  • Pause Function
  • Pan Detection
  • Fast Heating Function
  • Booster & Double Booster
  • Melting Function
  • Chef Cook
  • Child Lock
  • Minute minder, end cooking, count upDelonghi-SLI-905-90cm-5-Zone-Life-Induction-Cooktop-fig-1

Melting
When activated the zone will operate between 1.5%-2% of ifs normal power, Ideal for melting or warming.

Pause Mode
Will simply pause Cooking. The cooktop will recall what settings you were using when you resume.

Chef Cook
Pre-set temperature levels are activated when Chef Cook is selected

TECHNICAL SPECIFICATIONS

Product Dimensions (H x W x D)mm4 x 900 x 520
VoltageV220-240
CurrentA45.21
Left x2 Normal/Boost/Double Boost/BridgeW2100/2300/3000/3700
Right x 2 Normal/Boost/Double Boost/BridgeW2100/2300/3000/3700
Centre – Normal/Boost/Double BoosterW2300/3000
Total Power ConsumptionW10400
Warranty 2 years

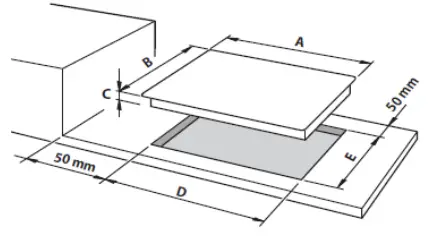

Standard Installation

Delonghi-SLI-905-90cm-5-Zone-Life-Induction-Cooktop-fig-2

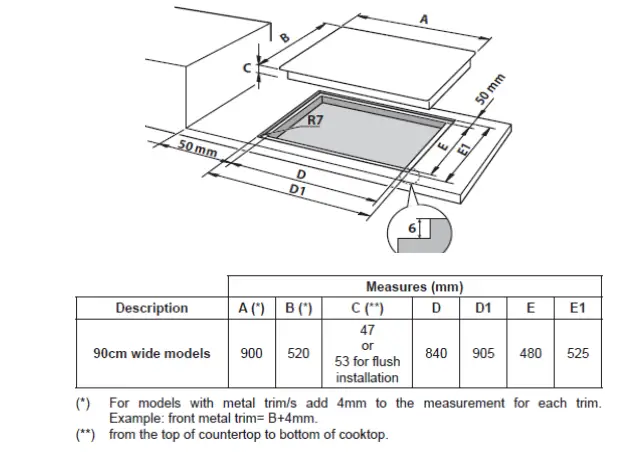

Flush Installation
If you wish to install the hob flush with the work surface, it is necessary to execute a milling in the hole of the cut-out as indicated

Delonghi-SLI-905-90cm-5-Zone-Life-Induction-Cooktop-fig-3

The product dimensions and specifications on this page apply to the specific model at the time of issue Dimensions & specifications may change at any time. Diagrams are a guide only the final fitting should Diagrams are a guide only final fitting should be made with the actual product
