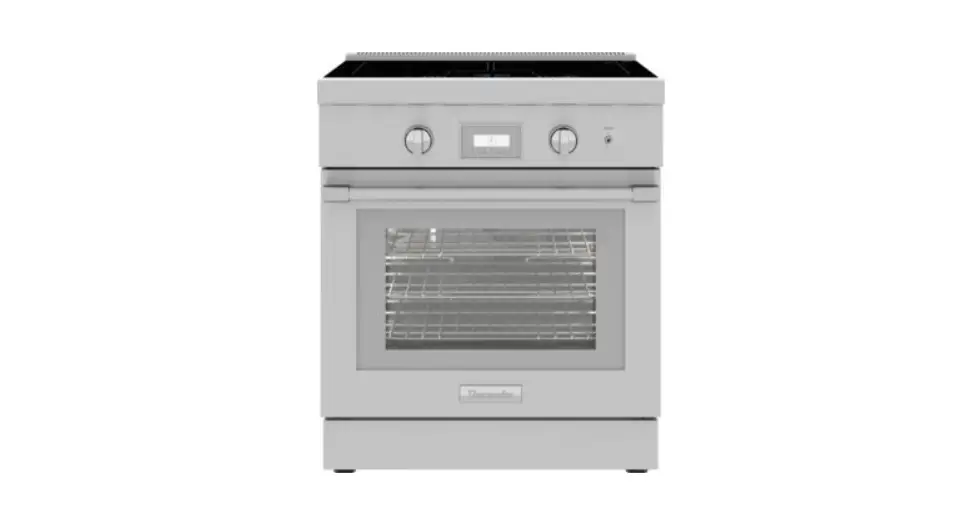

Thermador Pri30lbhu Pro Harmony Stainless Steel Freestanding Induction Range Owner's Manual (+ PDF)

Frameless black glass cooktop covers the surface, seamlessly
fitting into any kitchen
Provides true design flexibility–it can be installed flush
against a combustible wall with zero rear clearance and designed to
fit alongside standard 24 depth cabinets
True Convection oven with a third element adds greater
efficiency to cook up to five levels of sheet pans evenly
Super fast 2-hour self-clean mode is the fastest in the
industry

Cooktop Specifications:

Energy Source: 240 / 208 V, 60Hz 4 Wire Electric
Plug Type: No Plug (Purchase Separately)
Power Cord Length: USA Power Cord Length
Warranty: 2 Year Limited Warranty, Entire Appliance, Parts and
Labor

Cooktop Controls:

Touch Controls

Cooktop Inductor Elements:

Number of Inductor Elements: 4
Power of Left Area + 1A FlexPlusTM Left Heating Element: 3,300
W / 3,600 W (In Boost)
Power of Right Area + 3A FlexPlusTM Right Heating Element:
3,300 W / 3,600 W (In Boost)
Dimension of Back Left Heating Element: 8 1/2 x 7 1/2
Dimension of Front Left Heating Element: 8 1/2 x 7 1/2
Dimension of Back Right Heating Element: 8 1/2 x 7 1/2
Dimension of Front Right Heating Element: 8 1/2 x 7 1/2
Dimension of FlexPlusTM Left Heating Element: 3 1/2 x 11
1/4
Dimension of FlexPlusTM Right Heating Element: 3 1/2 x 11
1/4

Oven Specifications:

Oven Capacity: 4.4 cu. ft.
Cooking Modes: Bake, Convection Bake, True Convection,
Convection Roast, Roast, Convection Broil, Broil, Meat Probe
Sabbath Mode: Yes
Self Clean: Yes
Telescopic Rack(s): 1
Interior Lights: 2
Bake Power: 2,000 W
Broil Power: 4,000 W
Convection Power: 2,750 W
Cavity Interior Dimensions (HxWxD): 16 1/4 x 25 x 18 5/8
Cavity Usable Dimensions (HxWxD): 12 x 22 3/8 x 16 5/8

Dimensions & Weight:

Overall Appliance Dimensions (HxWxD): Refer to Installation
Manual for ANSI Standards
Required Cutout Size (HxWxD): Refer to Installation Manual for
ANSI Standards
Net Weight: 368 lbs.

Included Accessories:

1 Telescopic Rack
2 Standard Racks
Meat Probe
1 Lg. Broil Pan
Island Trim

Optional Accessories:

CHEFSPAN08: 10 Stainless Steel Pan
TGRILLPANX: Non-Stick Induction Grill 9 x 17
PARKB3XIHB: Metallic Blue Knob Kit
TROASTERT: Stainless Steel Roaster Pan 10 x 16
TEPPAN1016: Griddle Style Teppanyaki 10 x 16
TEPPAN1013: Teppanyaki 10 x 13

Product Usage Instructions:

To use the PRI30LBHU cooktop and oven, follow these
instructions:

Cooktop Usage:

Ensure that the cooktop is properly installed and connected to
the power source.
Use the touch controls to select the desired cooking zone and
adjust the heat settings.
Place the cookware on the selected cooking zone.
Monitor the cooking process and adjust the heat settings as
needed.
After cooking, turn off the cooktop and remove the
cookware.

Oven Usage:

Ensure that the oven is properly installed and connected to the
power source.
Select the desired cooking mode using the oven controls (Bake,
Convection Bake, True Convection, etc.).
Set the desired temperature and cooking time using the oven
controls.
Place the food inside the oven and close the oven door.
Monitor the cooking process through the oven window.
Once the cooking time is complete, turn off the oven and remove
the food using oven mitts.

Note: For detailed information on installation, safety
precautions, and maintenance, refer to the installation manual
provided with the product.

View Fullscreen

PRI30LBHU
30-INCH LIBERTY® INDUCTION COOKTOP PRO HARMONY® RANGE
PROFESSIONAL SERIES, STANDARD-DEPTH, BLACK FINISH COOKTOP SURFACE
COOKTOP

1A 3A

FEATURES & BENEFITS
– The Liberty® cooktop comes with two large flexible cooking zones and FlexPlusTM** heating elements that provide the ultimate in cooking performance and flexibility with HeatShift®, MoveMode®, and PowerBoost®
– Frameless black glass cooktop covers the surface, seamlessly fitting into any kitchen
– Provides true design flexibility–it can be installed flush against a combustible wall with zero rear clearance and designed to fit alongside standard 24″ depth cabinets
– True Convection oven with a third element adds greater efficiency to cook up to five levels of sheet pans evenly
– Super fast 2-hour self-clean mode is the fastest in the industry
– Connect to your range for remote preheating and monitoring via the Home Connect® app, smartwatch and other smart home devices and services

TECHNICAL DETAILS Home Connect® (Wi-Fi Enabled) Circuit Breaker Volts
Energy Source Plug Type USA Power Cord Length WARRANTY Limited Warranty, Entire Appliance, Parts and Labor

Yes 50 A 240 / 208 V, 60Hz 4 Wire Electric No Plug Purchase Separately
2 Year

SEE PAGE 2 FOR INCLUDED AND OPTIONAL ACCESSORIES

Controls

Touch Controls

Number of Inductor Elements

1 Power of Back Left Heating Element

2,200 W / 3,600 W (In Boost)

2 Power of Front Left Heating Element

2,200 W / 3,600 W (In Boost)

3 Power of Back Right Heating Element

2,200 W / 3,600 W (In Boost)

4 Power of Front Right Heating Element

2,200 W / 3,600 W (In Boost)

Power of Left Area + 1A FlexPlusTM Left Heating 3,300 W / 3,600 W (In Boost) Element

Power of Right Area + 3A FlexPlusTM Right Heating Element

3,300 W / 3,600 W (In Boost)

ELEMENT SIZE

Dimension of Back Left Heating Element

8 1/2″ x 7 1/2″

Dimension of Front Left Heating Element

8 1/2″ x 7 1/2″

Dimension of Back Right Heating Element

8 1/2″ x 7 1/2″

Dimension of Front Right Heating Element

8 1/2″ x 7 1/2″

Dimension of FlexPlusTM Left Heating Element 3 1/2″ x 11 1/4″

Dimension of FlexPlusTM Right Heating Element 3 1/2″ x 11 1/4″

OVEN

Oven Capacity

4.4 cu. ft.

Cooking Modes

Bake, Convection Bake, True Convection, Convection Roast, Roast, Convection Broil, Broil, Meat Probe

Sabbath

Yes

Self Clean

Yes

Telescopic Rack(s)

Interior Lights

Bake Power

2,000 W

Broil Power

4,000 W

Convection Power

2,750 W

Cavity Interior Dimensions (HxWxD)

16 1/4″ x 25″ x 18 5/8″

Cavity Usable Dimensions (HxWxD)

12″ x 22 3/8″ x 16 5/8″

DIMENSIONS & WEIGHT

Overall Appliance Dimensions (HxWxD) Required Cutout Size (HxWxD)

35 3/4″ 36 3/4″ x 29 15/16″ x 24 3/4″
35 3/4″ 36 3/4″ x 30″ x 24″

Net Weight

368 lbs.

*Refer to Installation Manual for ANSI Standards. All local codes must be followed. **FlexPlusTM heating element can be activated only in combination with the adjacent left or right heating element.

THERMADOR® EXCLUSIVE

Page 1 of 4

5 / 23

PRI30LBHU
30-INCH LIBERTY® INDUCTION COOKTOP PRO HARMONY® RANGE
PROFESSIONAL SERIES, STANDARD-DEPTH, BLACK FINISH COOKTOP SURFACE
ACCESSORIES (INCLUDED) 1 Telescopic Rack, 2 Standard Racks, Meat Probe, 1 Lg. Broil Pan, Island Trim

ACCESSORIES (OPTIONAL)
CHEFSPAN08 10″ Stainless Steel Pan
TGRILLPANX Non-Stick Induction Grill 9″ x 17″
PARKB3XIHB Metallic Blue Knob Kit

TROASTERT Stainless Steel Roaster Pan 10″ x 16″
TEPPAN1016 Griddle Style Teppanyaki 10″ x 16″
TEPPAN1013 Teppanyaki 10″ x 13″

Page 2 of 4

5 / 23

PRI30LBHU
30-INCH LIBERTY® INDUCTION COOKTOP PRO HARMONY® RANGE
PROFESSIONAL SERIES, STANDARD-DEPTH, BLACK FINISH COOKTOP SURFACE

30-INCH RANGE DIMENSIONS

Measurements in inches (mm)

3/4 (19)

2915/16 (760)

23/16 (55)
247/16 (621)

273/16 (691)

273/8 (695)

243/4 (630)

A
353/4363/4 (908933)

225/8 (575)
447/8 (1140)

53/4 (147)
A

25/8 (67)

30-INCH RANGE CUTOUT DIMENSIONS inches (mm)

30″, 36″, 48″, 60″ (762, 914, 1219, 1524)

E X

8″

(203)

Range model
All Harmony series 36”/ 48” Grand series 60” Grand series

Gas zone A
4” (102) 4” (102) 4” (102)

Electric zone B
6” (152) 6” (152) 6” (152)

X
5” (127) 8” (203) 8” (203)

C
N/A 4” (102) 4” (102)

D
N/A 3” (76) 3” (76)

E
2” (51) 2” (51) 1” (25)

Page 3 of 4

5 / 23

PRI30LBHU
30-INCH LIBERTY® INDUCTION COOKTOP PRO HARMONY® RANGE
PROFESSIONAL SERIES, STANDARD-DEPTH, BLACK FINISH COOKTOP SURFACE

30-INCH RANGE DIMENSIONS AND CLEARANCE REQUIREMENTS WITH “FLUSH ISLAND TRIM”

NOTE: A 36-inch minimum clearance is required between the top of the cooking surface and the bottom of an unprotected cabinet. A 30-inch clearance can be used when the bottom of the wood or metal cabinet is protected by not less than 1/4 inch of a flame retardant material covered with not less than No. 28 MSG sheet steel, 0.015 inch (0.4 mm) thick stainless steel, 0.024 inch (0.6 mm) aluminum, or 0.020 inch (0.5 mm) thick copper.

36″ (914 mm) min. to combustible materials

28″ (711 mm) 27¼” (692 mm)

Zero Clearance Wall and Island Trim

24″ (625 mm)

35 ” (911 mm) Min. 36 ¾” (933 mm) Max.

24″ (610 mm) max. recess depth
24¾” (630 mm)

Combustible Materials
Combustible Back Wall

22″ (575 mm)
44″ (1140 mm) Total Clearance

Models PCG305xx, PRD305xx, PRD606xx, PRG305xx, PRG304xx, PRD304xx, PRx488xx, PRIxxxxxx are suitable for 0″ rear clearance to combustible surfaces. All other models: when using the included Island Trim a minimum 6″ (152 mm) rear clearance is required to a combustible surface. When installing against a combustible surface, a Thermador® Low Backguard is required for a 0″ rear clearance to the combustible surface. A Thermador Low Backguard must be purchased separately. A rear clearance to a surface covered in a noncombustible material (metal, ceramic tile, brick, marble, or stone) is 0″ when using the included Island Trim. Clearances of less than 6″ (152 mm) should be approved by the local codes and/or by the local authority having jurisdiction. Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA.
These warranties give you specific legal rights and you may have other rights that vary from state to state. Limited warranty from date of delivery. For complete warranty details, refer to your Use & Care manual, or ask your dealer.
Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model number. Specifications are correct at time of printing. Thermador reserves the right to change product specifications or design without notice. Some models are certified for use in Canada. Thermador is not responsible for products that are transported from the U.S. for use in Canada.
