ENDURO X AIR All Terrain Suspension System
ALL TERRAIN SUSPENSION
PREMIUM AIR RIDE
Instructions

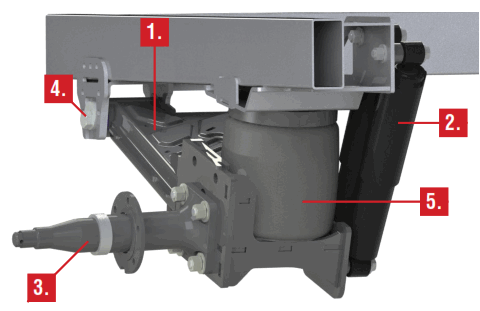

- Automotive inspired optimised construction for strength and lower unsprung weight for performance.
- AL-KO dual in-line shocks
- Forged bolt-on stub. Drum or Disc brake options
- Tow & Camber adjustment
- Premium Air Bag Man quality

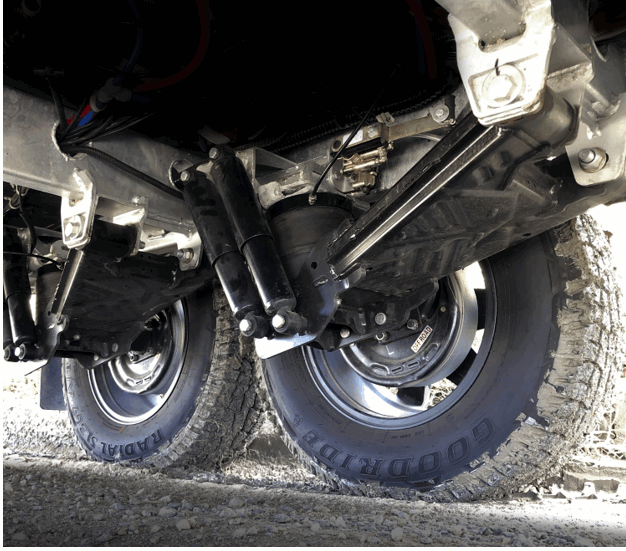

AL-KO is proud to introduce its new suspension system for caravans. ENDURO X is designed to ensure next-generation performance and handling in unpredictable, off-road conditions.
It’s the kind of breakthrough you’d expect from a market leader – exclusive new technology, lightweight construction for improved handling, premium AL-KO shock absorbers with upgraded metal casing, and a premium Black eCoat to ensure rust and chip resistance.
| Specification | ENDURO X AIR |
| Terrain Suitability | All Terrain |
| Replaceable Stub Axle |  |
| Maintenance Free Bushes | |
| Shock Absorber | 2 x Premium Shock Absorbers |
| AL-KO Premium Brakes | Off-Road Premium |
| Finish | Automotive eCoat |
| Wheel travel | 140mm |
| Suspension Height | 210mm (stub lower position)* 160mm (stub upper position)* *at optimal 185mm air bag height |
| Stub Overhang | 175mm, 200mm, 225mm |
| Maximum GTM Capacity | Single – 2500kg GTM Tandem – 4100kg GTM |
| Disc brake Option | |
| Tow Assist Option | |
 |  |  |
| Standard Air Bag Control I Manual Inflation Point I Heavy Duty 12V Compressor I Pre-Wired Control Panel I Dual Digital Pressure Gauge I Extended Reach Tyre Inflation Coil & Wand I Aluminium Air tank (11litres, 3 port, drain tap) I Led Power Switch | Wireless Air Bag Control I Manual Inflation Point I Heavy Duty 12V Compressor I Pre-Wired Control Panel I Dual Digital Pressure Gauge I Wireless Remote Control Activation I Extended Reach Tyre Inflation Coil & Wand I Aluminium Air tank (11litres, 3 port, drain tap) I Automatic moisture trap I LED power switch | Auto Levelling Air Bag Control I Manual inflation points I Heavy Duty 12V Compressor I Pre-Wired Control Panel I Dual Digital Pressure Gauge I Extended Reach Tyre Inflation Coil & Wand I Aluminium Air tank (11litres, 3 port, drain tap) I Automatic moisture trap I LED power switch I Self levelling |
Safety Pack – Upgrade to Tow Assist ABS and Sway Mitigation (Available for 12” Electric Brakes.)
Introducing AL-KO Tow Assist, the world’s first ABS braking system for caravans. Keep your family safe when combining Enduro suspension with AL-KO Tow Assist. Developed in collaboration with Bosch, Tow Assist brings the most advanced automotive level safety systems to caravans to protect you and all the important things in your life. With AL-KO and Bosch, you’re in safe hands.
 | |||
| ELECTRIC ABS BRAKES | SWAY MITIGATION | TOWABLE ODOMETER | EVASIVE ACTION CONTROL |
