RF ELEMENTS THB Twin Horn Bracket

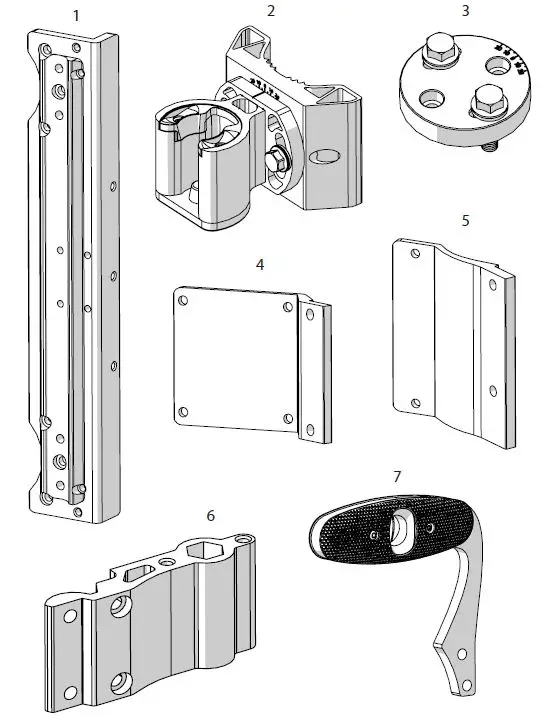

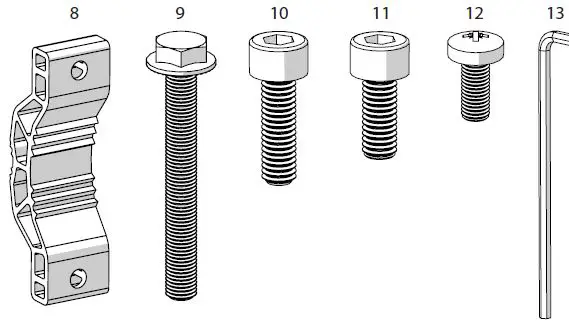

Package Contents
| Number | Description | Quantity |
| 1 | Body THB | 1x |
| 2 | Bracket Base UBR | 1x |
| 3 | Bracket Ring UBR | 1x |
| 4 | e3K Bracket | 1x |
| 5 | A5c Bracket | 1x |
| 6 | Bracket Arm | 1x |
| 7 | Handle | 1x |
| 8 | Pole Mount Bracket | 1x |
| 9 | M8x80mm DIN 6921 Screw | 2x |
| 10 | M6x20mm DIN 912 Screw | 2x |
| 11 | M6x16mm DIN 912 Screw | 8x |
| 12 | M5x12mm DIN 7985 Screw | 4x |
| 13 | Hex key 5x16x200mm | 1x |
Installation

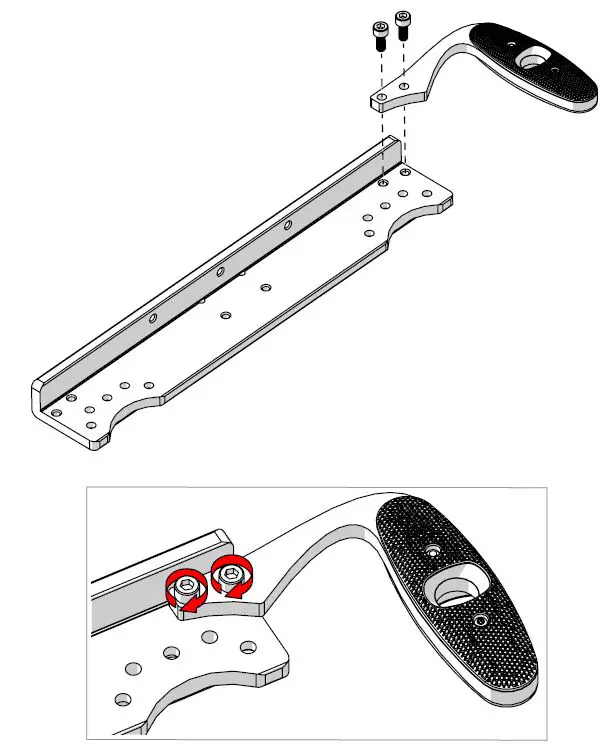

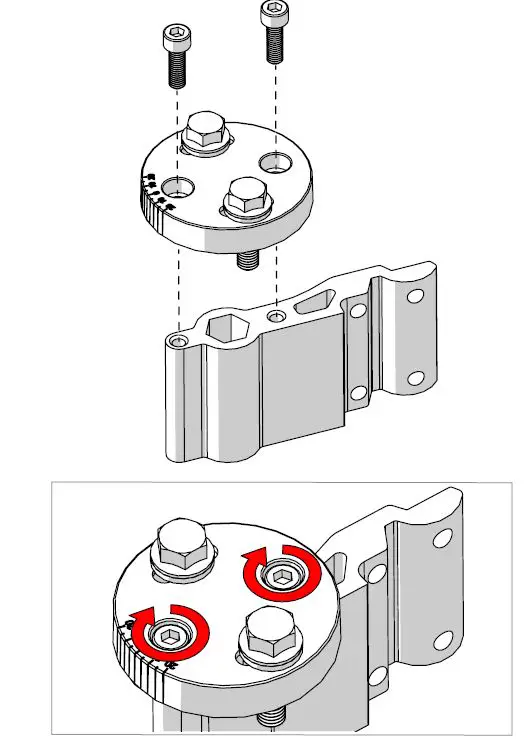

Use M6 x 20mm screws (part no. 10)

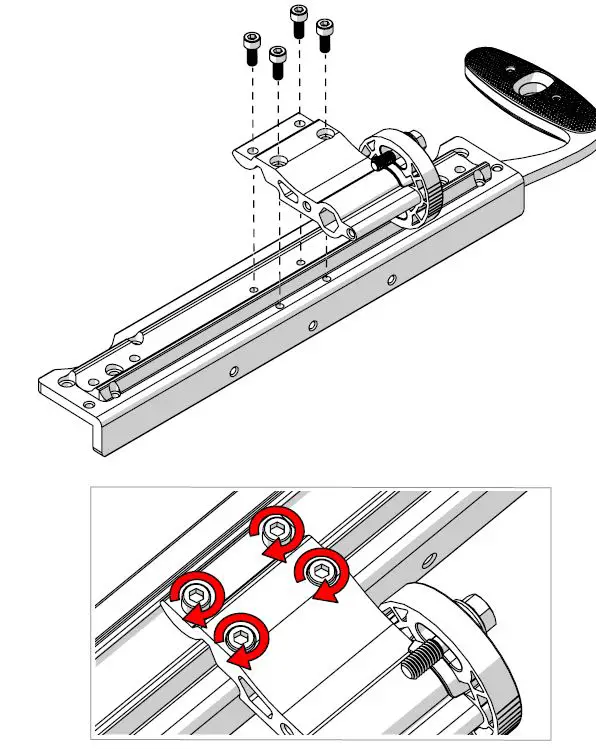

– Use M6 x 16mm screws (part no. 11)

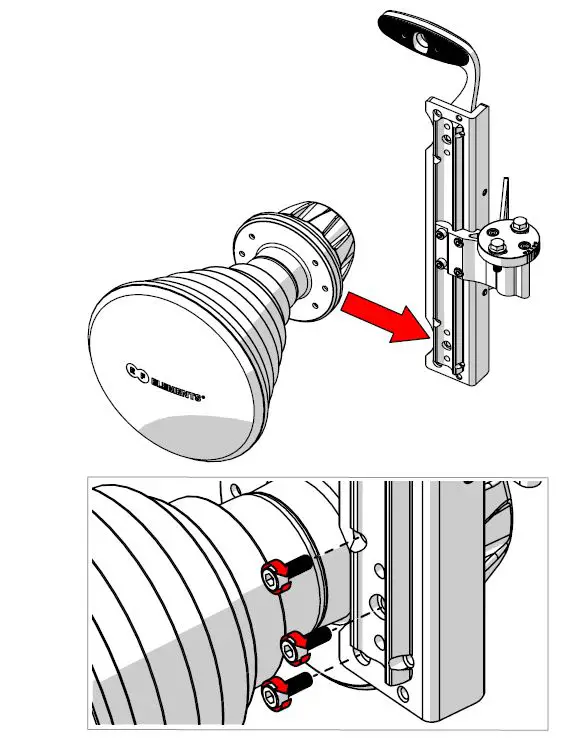

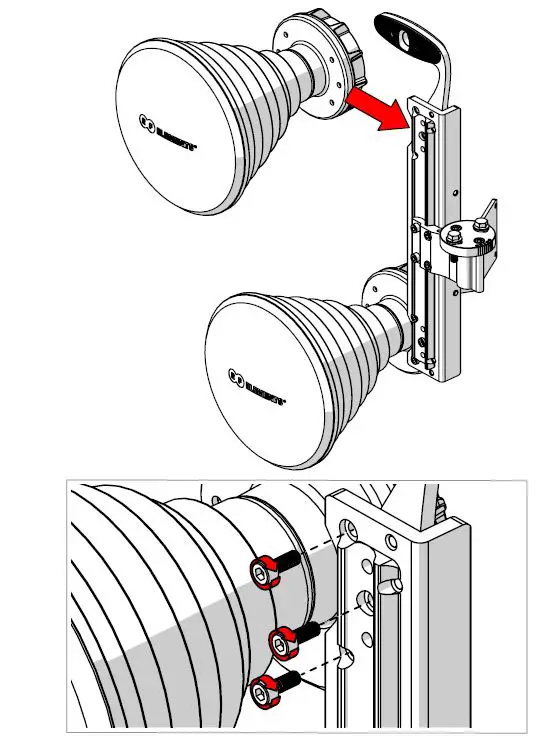

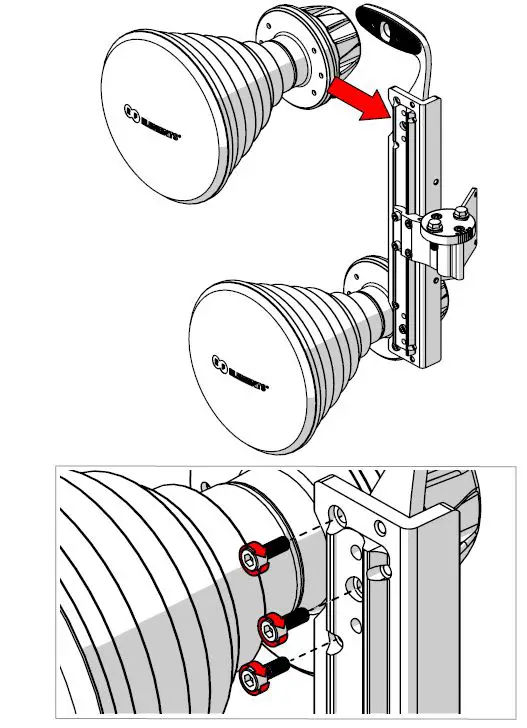

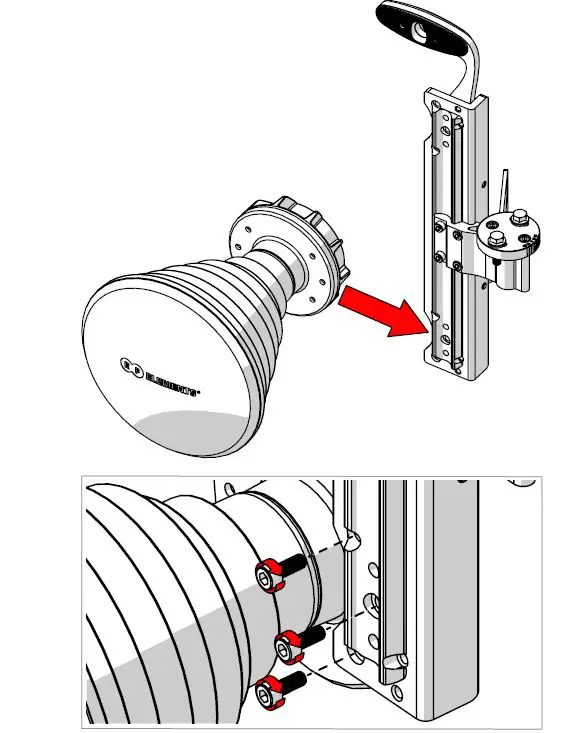

Antenna Installation
– Use M6 x 15 mm screws (part of antenna package)
Model HG3-TP-S30 shown. Installation instructions are identical for all Symmetrical Horn models. Antenna dimensions may differ. www.rfelements.com
Model HG3-TP-S30 shown. Installation instructions are identical for all Symmetrical Horn models. Antenna dimensions may differ.
Model HG3-CC-S30 shown. Installation instructions are identical for all Symmetrical Horn models. Antenna dimensions may differ.

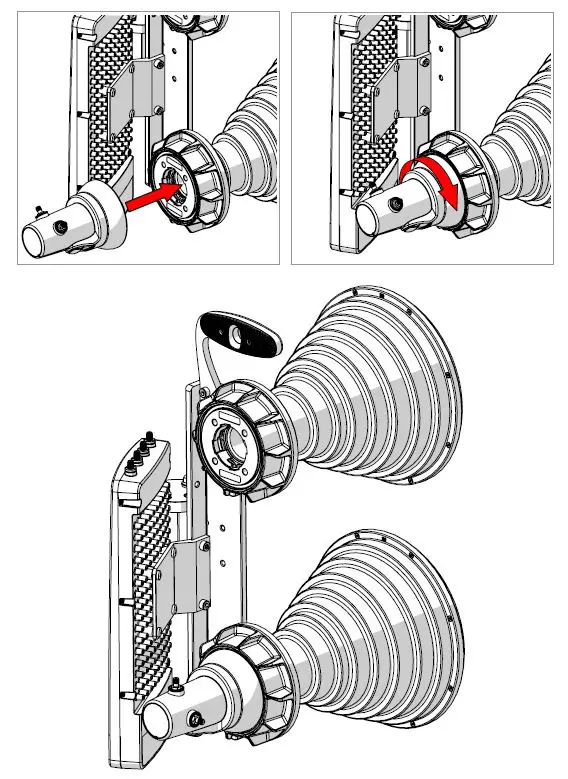

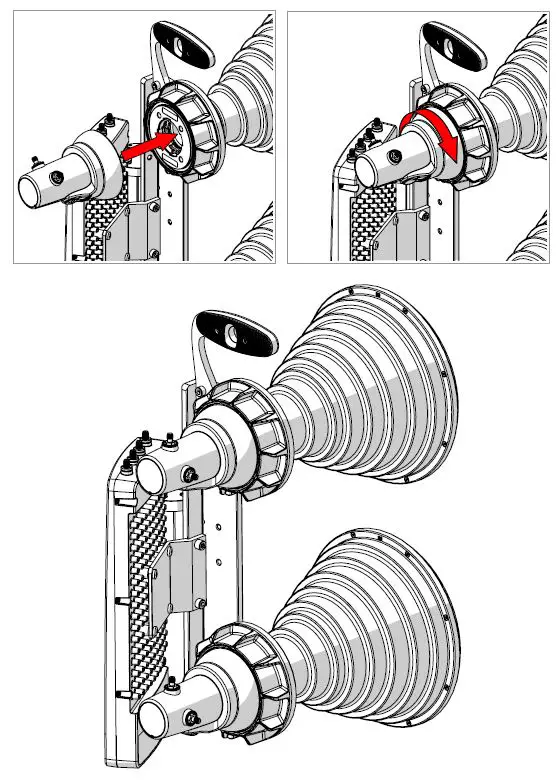

Radio Installation

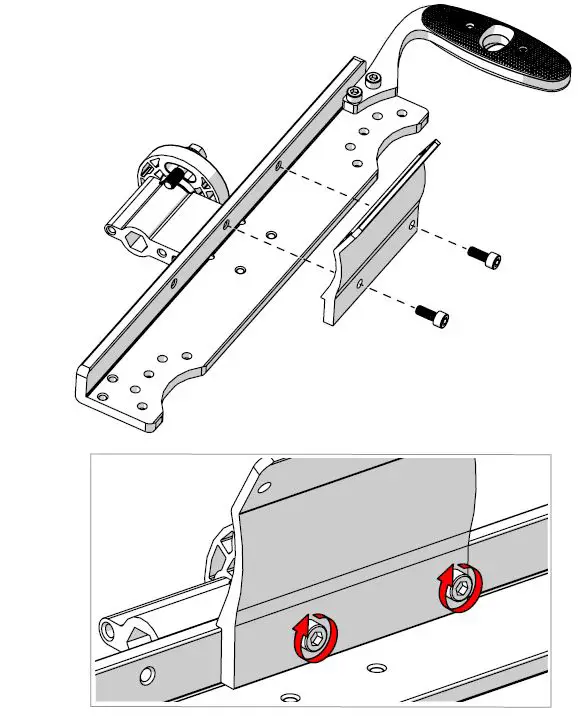

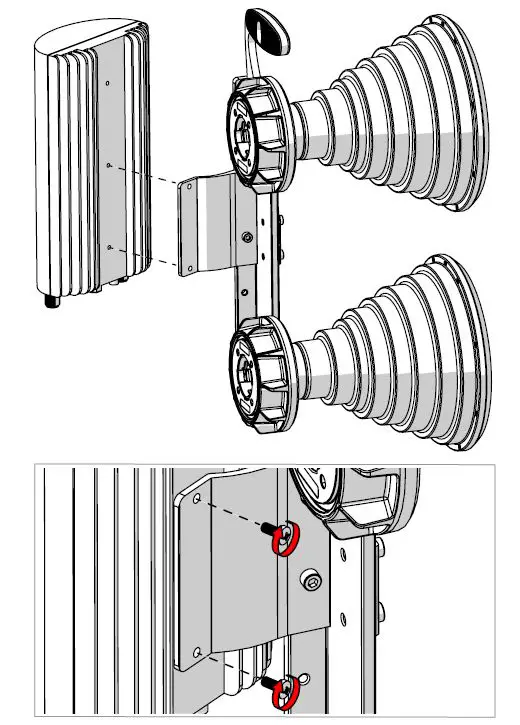

Use M5 x 12mm screws (part no. 12) Valid when mounting Mimosa A5c

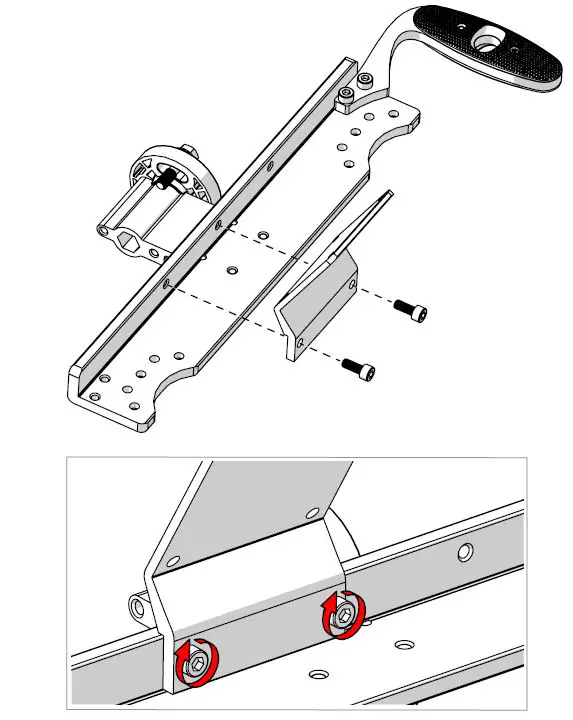

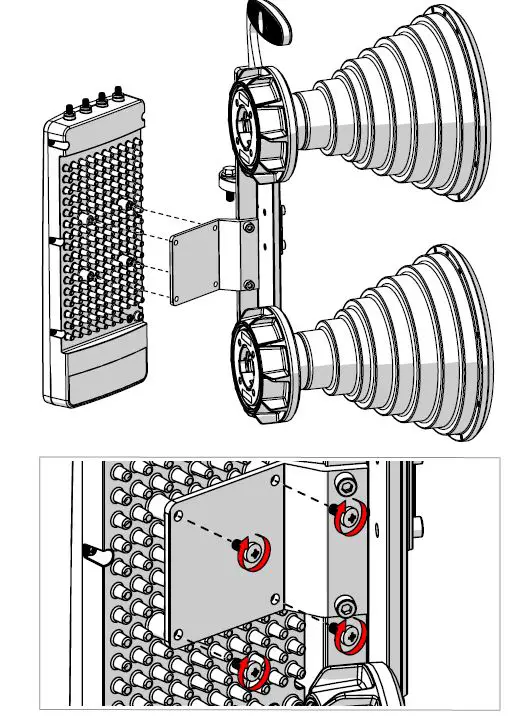

Valid when mounting Cambium ePMP 3000

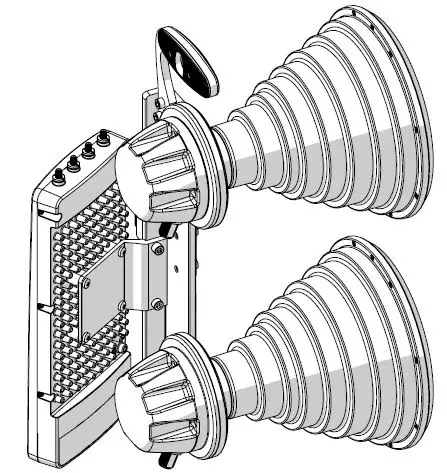

Installation
Installation – Recommended length of cables is 800 mm for both radio types.
Model HG3-TP-S30 shown. Installation instructions are identical for all Symmetrical Horn models. Antenna dimensions may differ.
Installation – Recommended length of cables is 800 mm for both radio types.

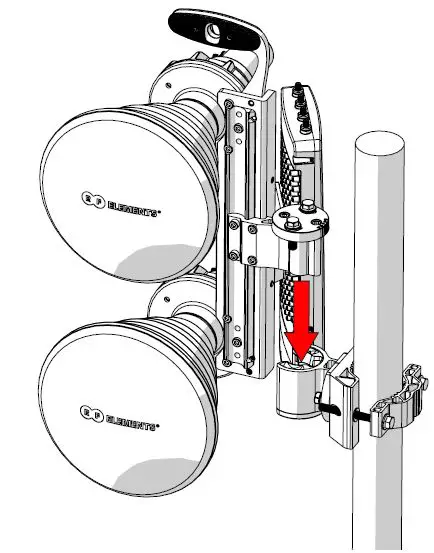

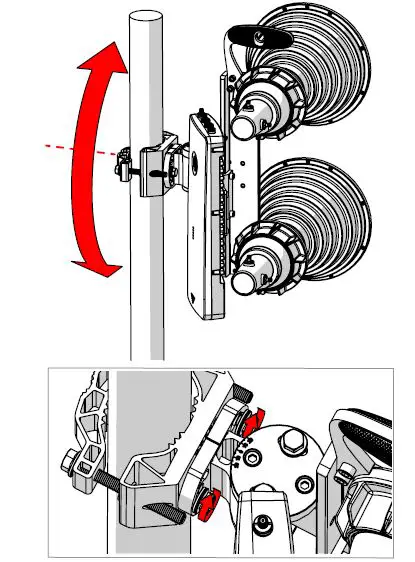

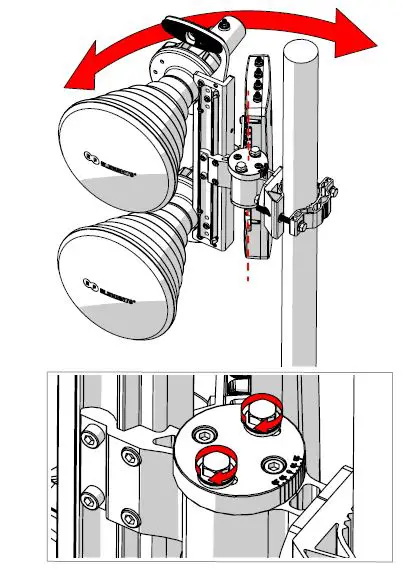

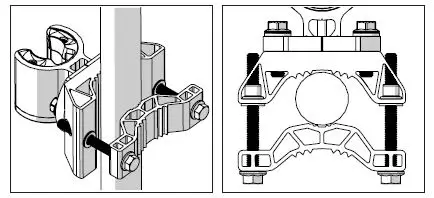

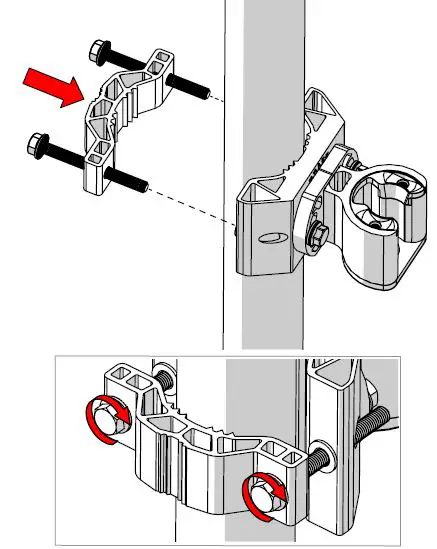

Pole Installation
Place the Bracket like this for pole diameter of 40 – 57mm
Place the Bracket like this for pole diameter of 58 – 80mm
Compatible Antennas:
RF elements s.r.o.
any Symmetrical Horn TP Antennas Gen2, any Symmetrical Horn CC Antennas Gen2
Compatible Devices: Mimosa A5c, Cambium ePMP 3000
RF elements® is trademark of
RF elements s.r.o., Slovakia.
All rights of trademark owners reserved.
RF elements s.r.o.
Phone +421 2 7333 7733
[email protected] www.rfelements.com
