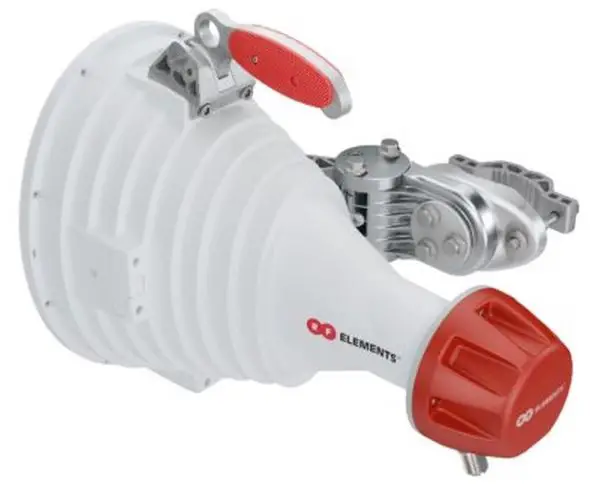

RF ELEMENTS AH20-CC Connectorized Asymmetrical Horn Antenna
Overview
| Product ID | Antenna Dimensions (mm/inch) | Weight* (kg/lbs) | Gain (dBi) | |
| 20° Horn AH20-CC | AH20-CC | 421 x 444 x 235 16.3 x 17.5 x 10.0 | 6.6 14.6 | 20.5 |
| 30° Horn AH30-CC | AH30-CC | 421 x 376 x 304 16.3 x 14.8 x 12.8 | 6.6 14.6 | 20.5 |
| 60° Horn AH60-CC | AH60-CC | 494 x 334 x 304 19.4 x 13.1 x 11.9 | 6.3 13.8 | 17.0 |
| 90° Horn AH90-CC | AH90-CC | 462 x 391 x 333 18.1 x 15.3 x 13.1 | 6.8 14.9 | 16.0 |

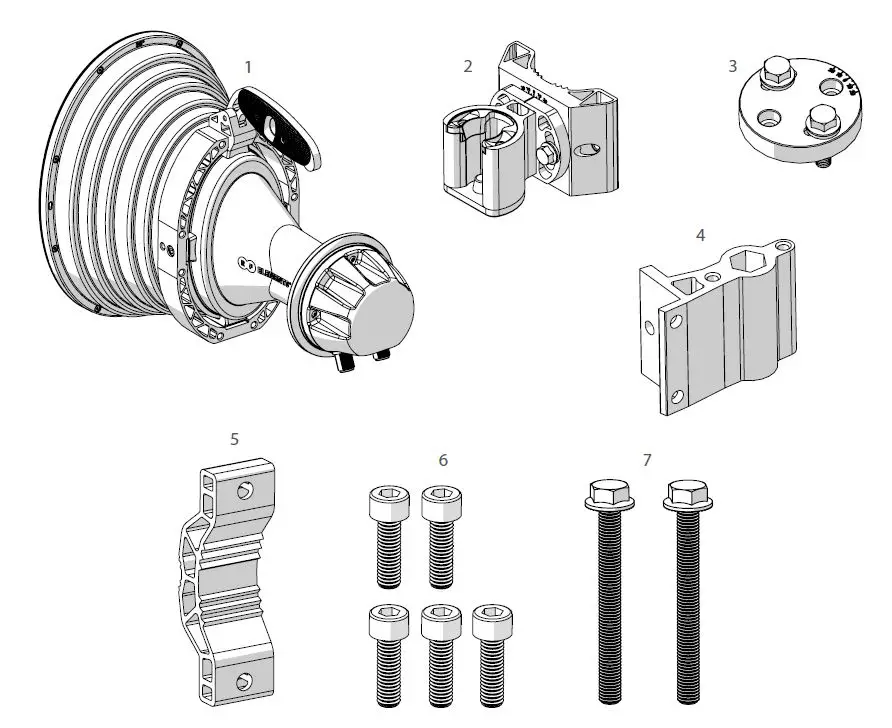

Package Contents
AH20-CC, AH30-CC, AH60-CC and AH90-CC Antennas
To continue installation see Step 1.
| Number | Description | Quantity |
| 1 | AH-CC Body | 1x |
| 2 | Bracket Base UBR | 1x |
| 3 | Bracket Ring UBR | 1x |
| 4 | AH-CC Bracket Arm | 1x |
| 5 | Pole Mount Bracket | 1x |
| 6 | M6 x 20 mm DIN 912 Screw | 5x |
| 7 | M8 x 80 mm DIN 6921 Screw | 2x |
Pre – Installation

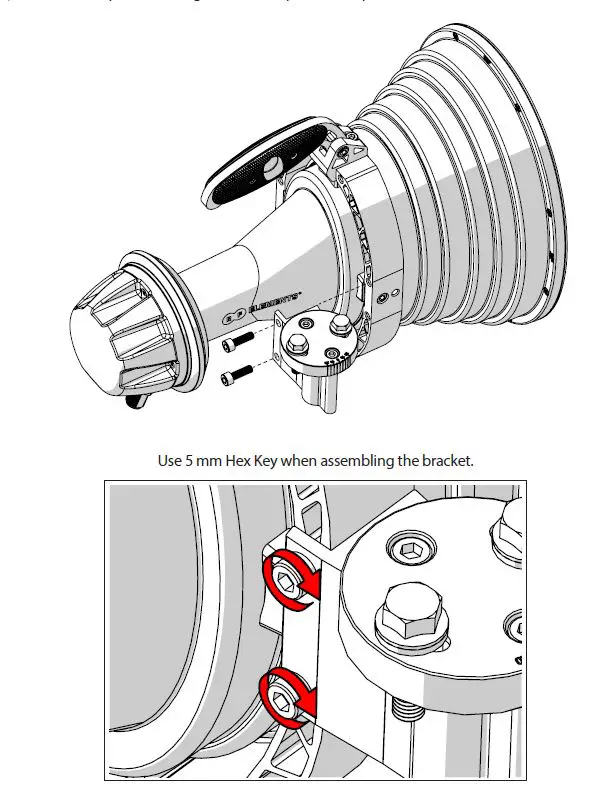

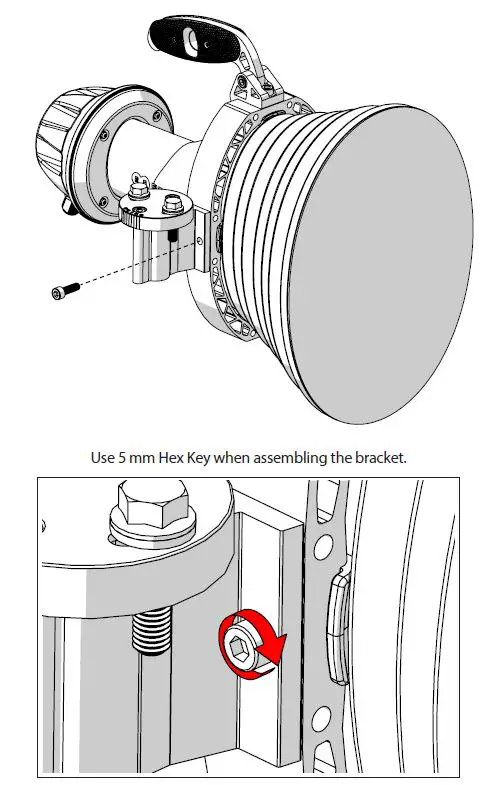

Assembly guide for LEFT pole side installation. See Step 2 to continue the installation. Use a 5 mm Hex Key when assembling the bracket.

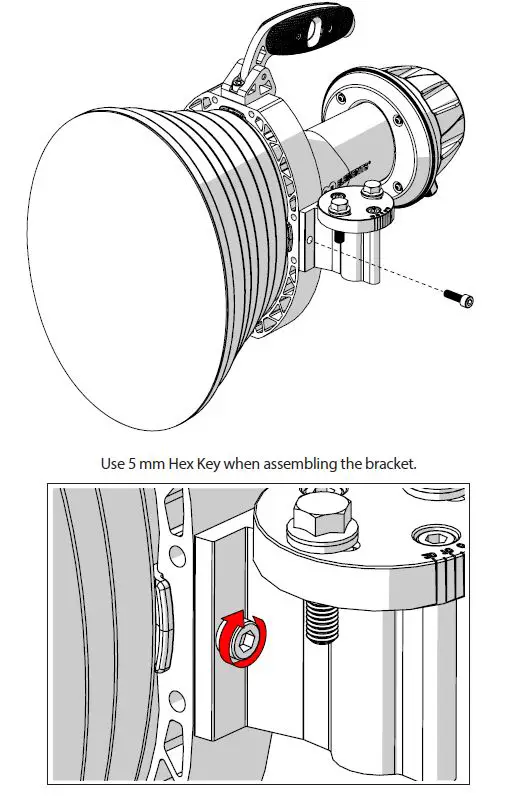

Assembly guide for RIGHT pole side installation. See Step 9 to continue the installation. Use a 5 mm Hex Key when assembling the bracket.

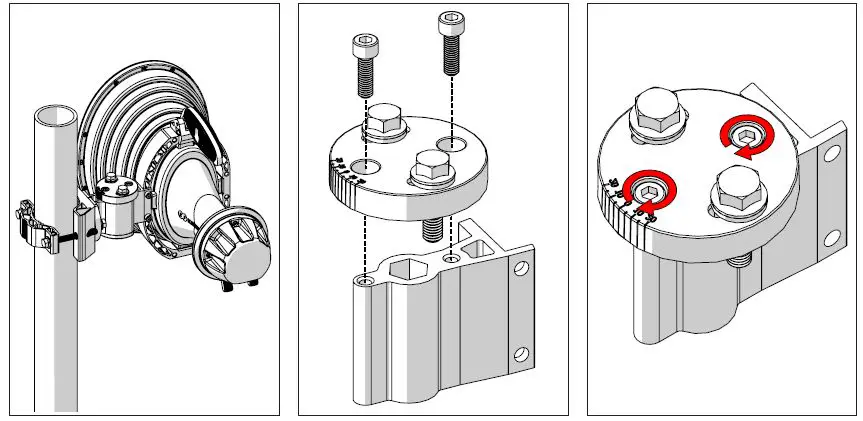

Assembly guide for LEFT pole side installation. If you need to swap to use the right side of the pole, see step 9.
Assembly guide for LEFT pole side installation. If you need to swap to use the right side of the pole, see step 9.
Installation Guide

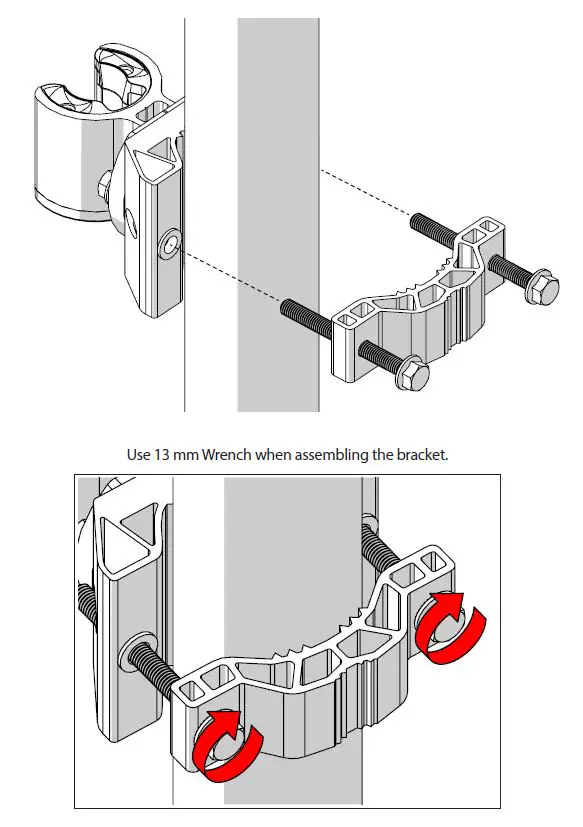

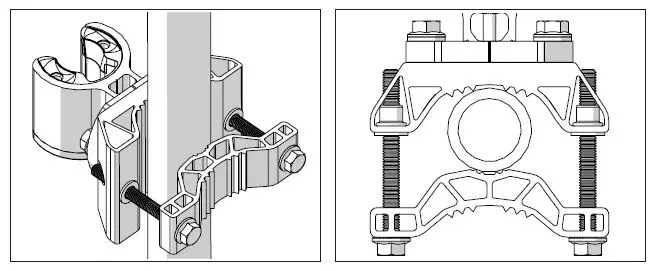

- Install the Pole Mount Bracket as shown for pole diameter range 40 – 57 mm (1.5 – 2.2 inch).

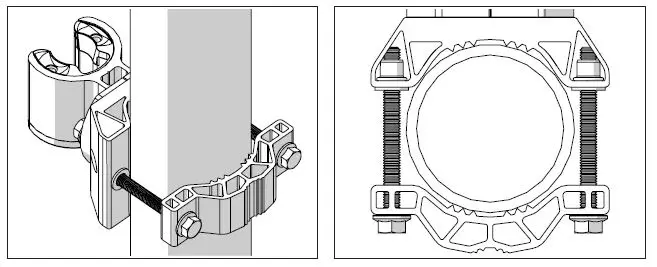

- Install the Pole Mount Bracket as shown for pole diameter range 58 – 80 mm (2.2 – 3.1 inch).

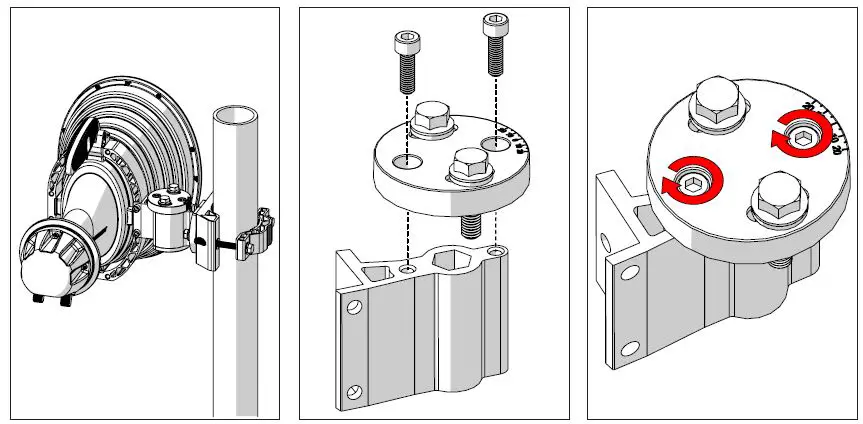

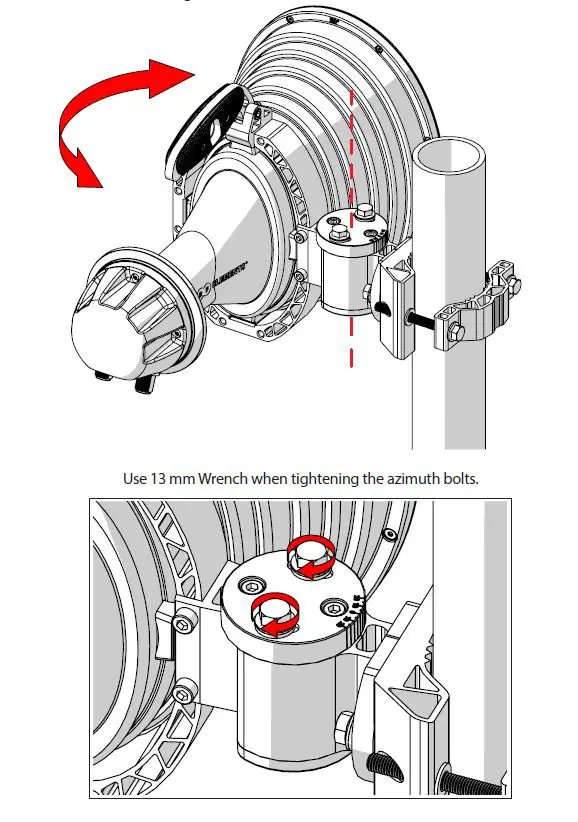

Adjust and secure azimuth aiming

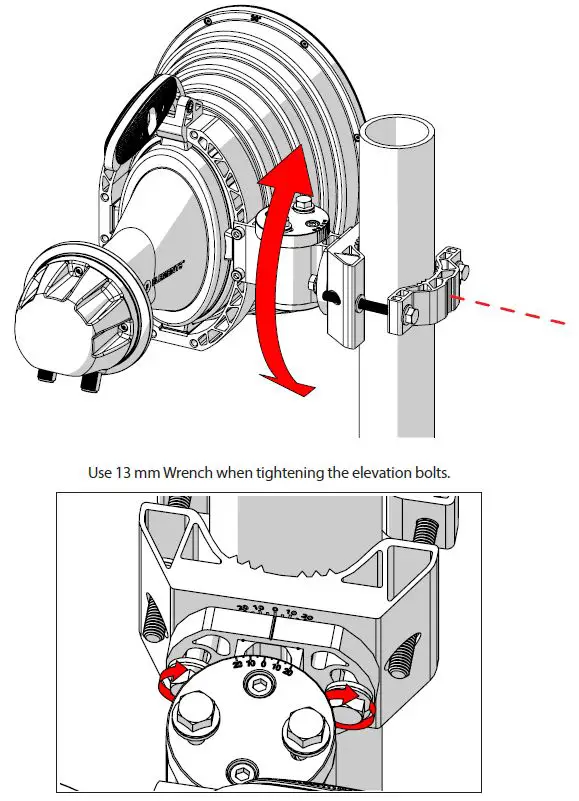

Adjust and secure elevation tilt
Pre – Installation
Optional: Right pole side mounting guide.
