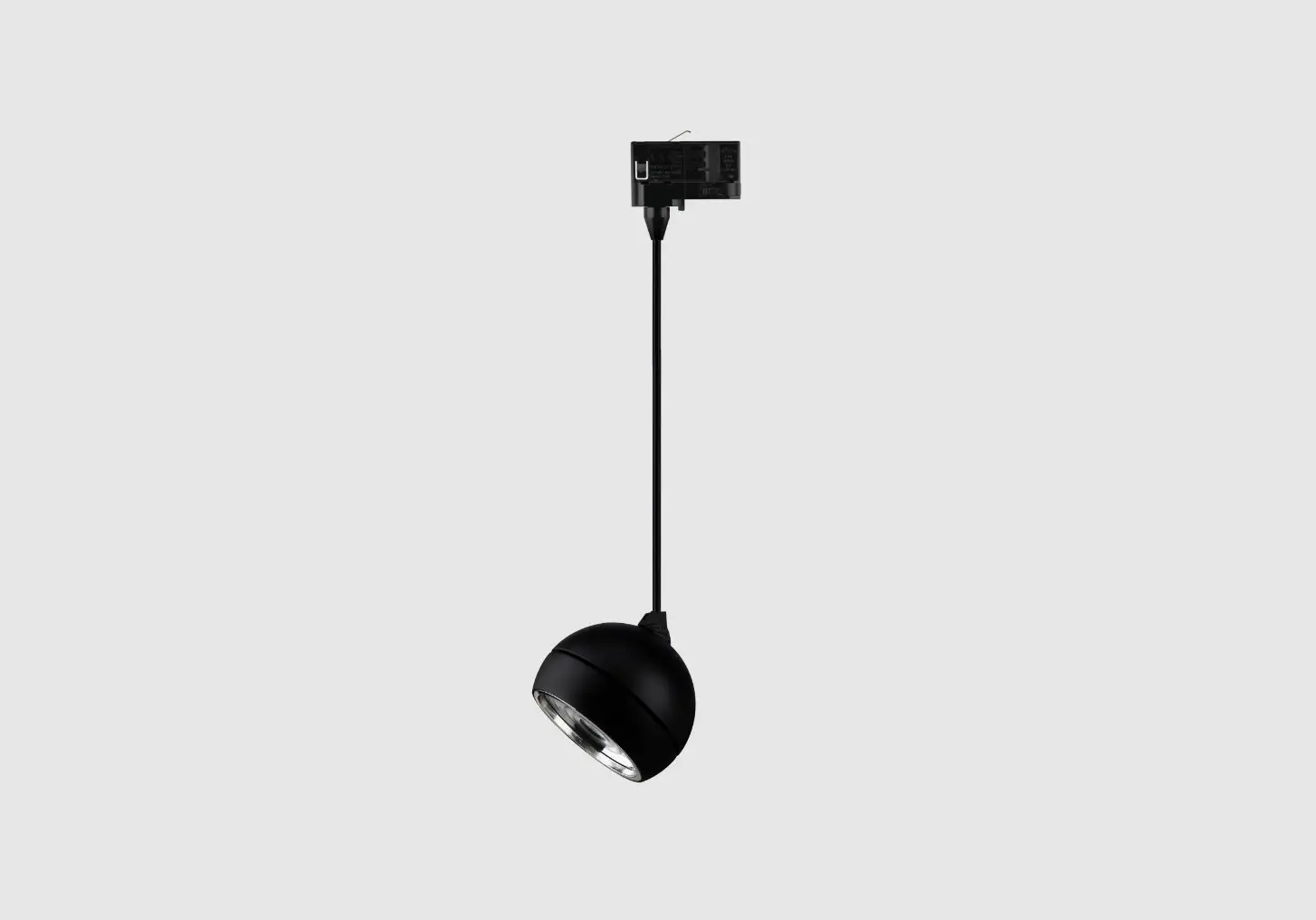

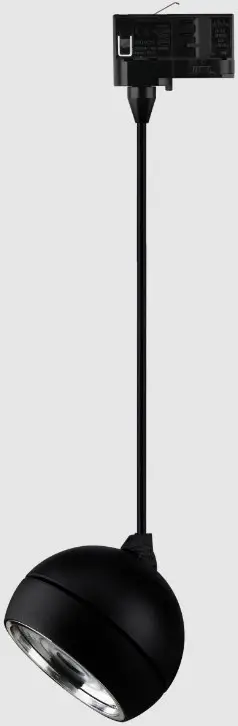

Domus Moon-trk-pdt Moon Track Head Pendant Instruction Manual

DOMUS MOON-TRK-PDT MOON Track Head Pendant Instruction Manual

Optional Optics

1. Flood


2. Spot

3. Opal


4. Tube

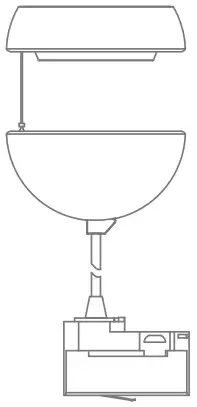

Installation

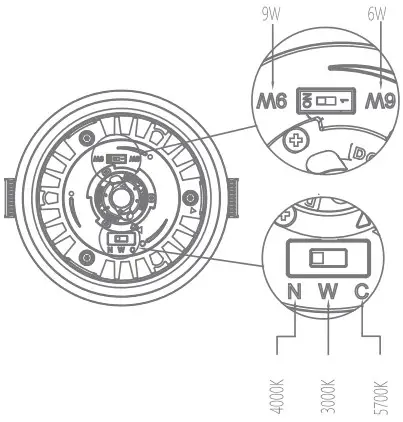

1. Select suitable CCT /Power you need.

2. Select the optics, then lock the safety wire

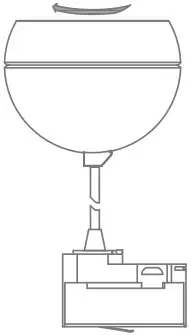

3. Rotate the optics on the LED engine in clockwise direction, make sure it was locked until you hear”click

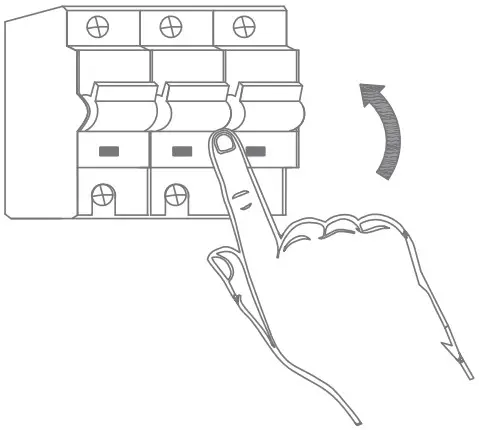

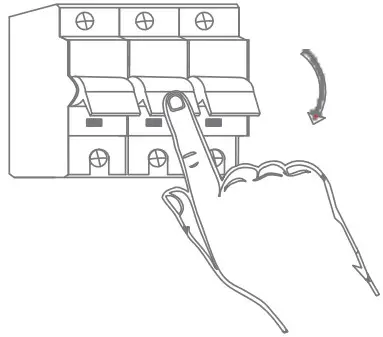

4. Turn off the power

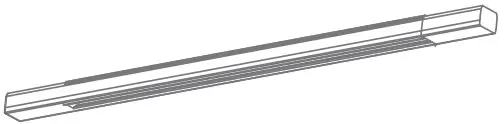

5. Check if the track light suitable with track rail, make sure the track rail is wired correctly and fixed well.

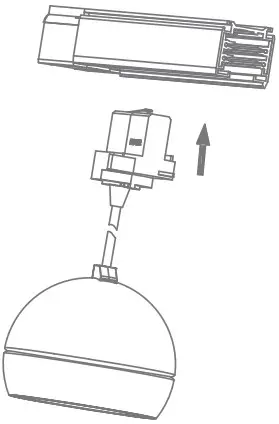

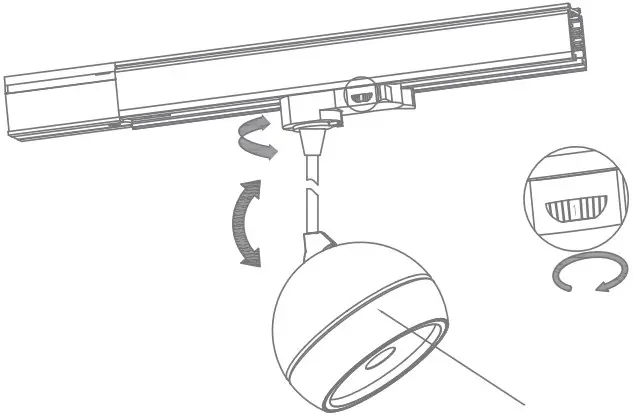

6. Insert the track adapter into the track rail under the correct direction

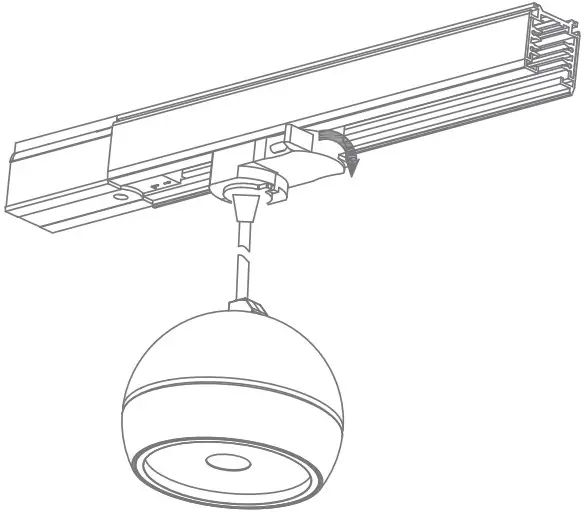

7. Fix the track adapter in the track rail.

8. Adjust the angle.

9. Turn on the power


Note:

• The lamp must be installed by professional electrician
• Ensure the power supply is switched off before fitting this product
• Do not touch the lamp when in use
• Keep away from hot steam and corrosive gas
