3-Light Pendant Light
Instruction Manual
ITEM NO:M7019MBKNB
M7019WHNB
M7019WHNB 3-Light Pendant Light
INSTALLATION INSTRUCTIONS

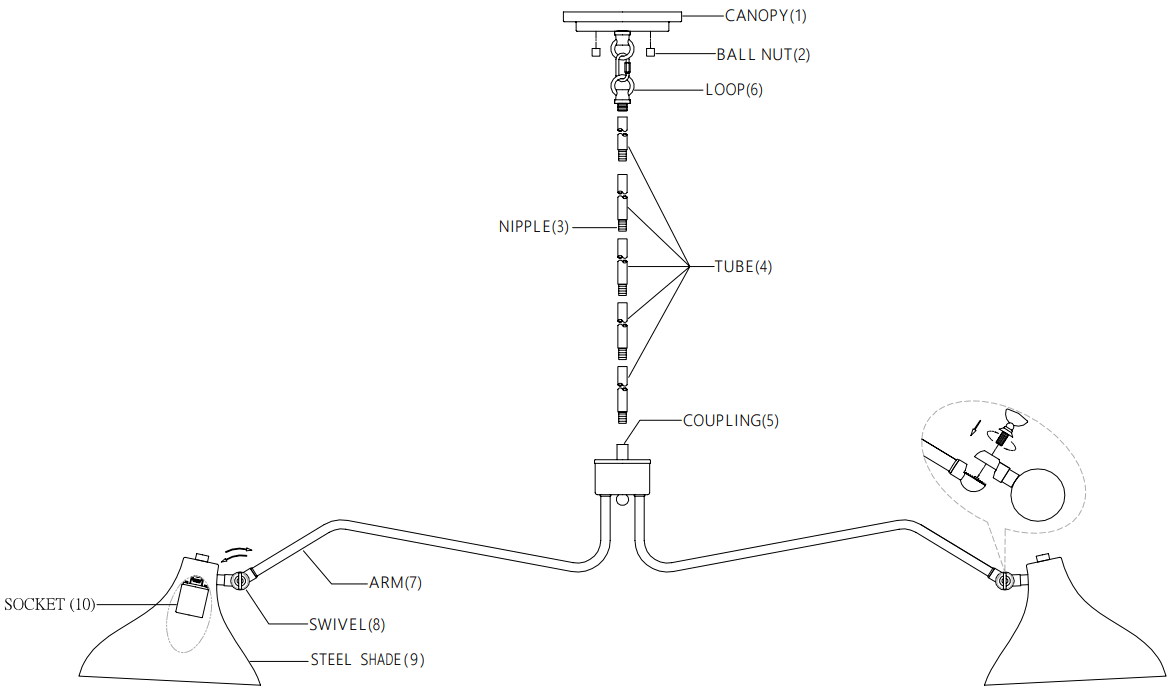

- Carefully remove the fixture out of the carton, and check that all parts are included referring to the above illustration. Make sure not to misplace any parts that are needed for the installation;
- Assemble the tube (4) together using the nipple (3), then attach the bottom end of tube (4) onto the coupling (5) tightly, then secure the loop (6) onto the tube (4).
- Install the arm (7), onto the thumb screw on the swivel (8).
- Install the socket (10), onto the steel shade (9).
- Fixture is ready for lamping and installation.
