iSMA CONTROLLI SFAR-S-16DO Room Controllers iSMA Installation Guide
iSMA CONTROLLI SFAR-S-16DO Room Controllers iSMA

SPECIFICATION
Power supplyVoltage10-38 V DC; 10-28 V AC
Power consumption2,4 W @ 24 V DC 3 VA @ 24 V AC
Digital outputsTransistor output max voltage 30 V DC max current 500 mA
Output protectionOutput O1-O8 polymer fuse 4 A;
Output O9-O16 polymer fuse 4 A;
Galvanic isolationMax 1500 Vrms
InterfaceRS485, up to 128 devices on the bus
BaudrateFrom 2400 to 115200 bps
Ingress protectionIP40 – for indoor installation
TemperatureOperating -10°C – +50°C; Storage – 40°C – +85°C
Relative humidity5 to 95% RH (without condensation)
Relative humidity5 to 95% RH (without condensation)
ConnectorsMax 2.5 mm2
Dimension119,1 mm x 101 mm x 22,6 mm
MountingDIN rail mounting (DIN EN 50022)
Housing materialPlastic, self-extinguishing PC/ABS

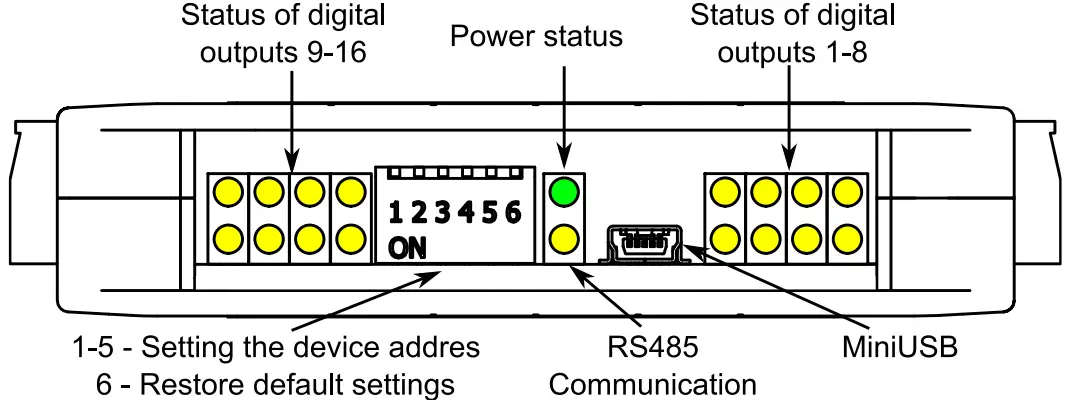

TOP PANEL

TOP PANEL

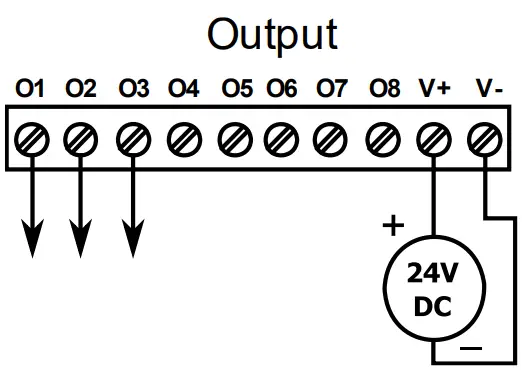

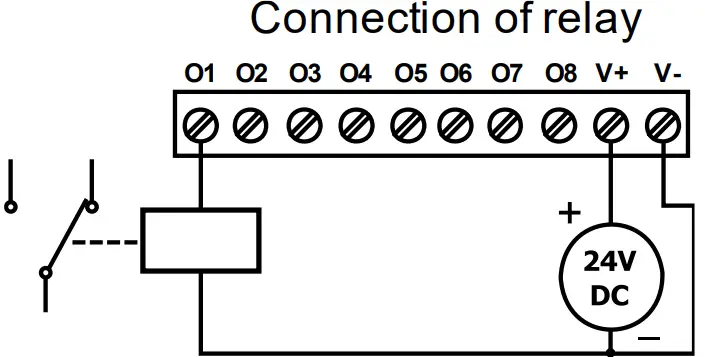

DIGITAL OUTPUTS

DIGITAL OUTPUTS
DIGITAL OUTPUTS

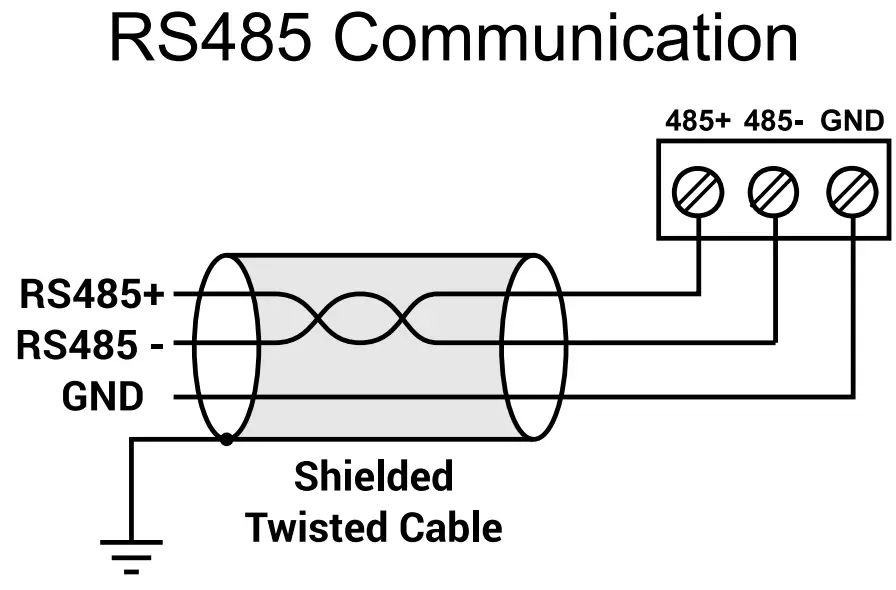

COMMUNICATIONC

COMMUNICATION

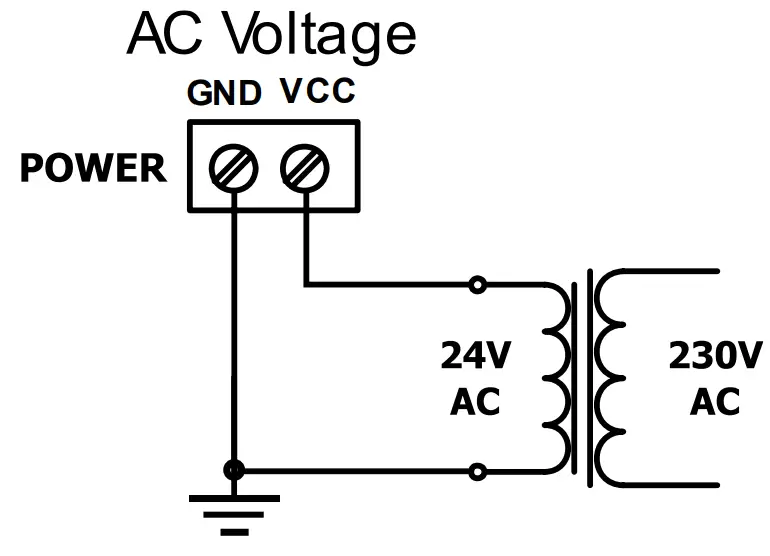

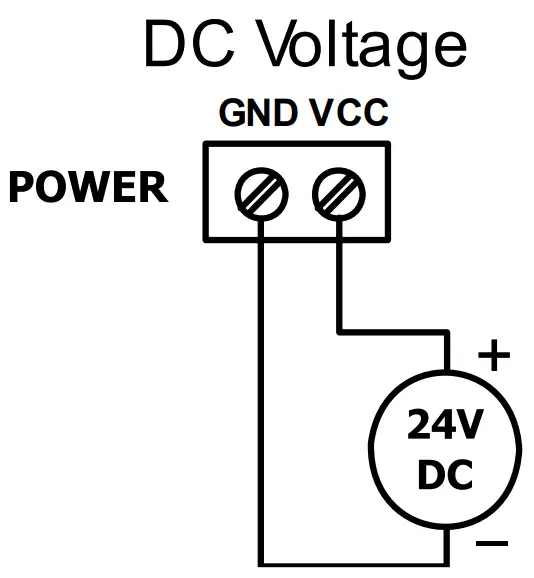

POWER SUPPLY

POWER SUPPLY

POWER SUPPLY

WARNING ICON WARNING

  • Note, an incorrect wiring of this product can damage it and lead to
    other hazards. Make sure the product has been correctly wired before turning the power ON.
  • Before wiring, or removing/mounting the product, be sure to turn the power OFF. Failure to do so might cause electric shock.
  • Do not touch electrically charged parts such as the power terminals. Doing so might cause electric shock.
  • Do not disassemble the product. Doing so might cause electric shock or faulty operation.
  • Use the product within the operating ranges recommended in the specification (temperature, humidity, voltage, shock, mounting direction, atmosphere etc.). Failure to do so might cause fire or faulty operation.
  • Firmly tighten the wires to the terminal. Insufficient tightening of the wires to the terminal might cause fire

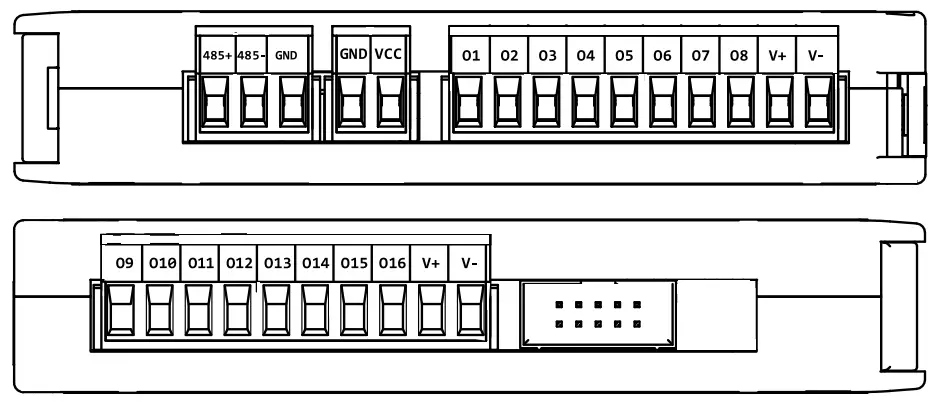

TERMINALS OF THE DEVICE

TERMINALS OF THE DEVICE

iSMA CONTROLLI S.p.A. – Via Carlo Levi 52, 16010 Sant’Olcese (GE) – Italy | [email protected]

ModbusDecHexRegister NameAccessDescription
3000100x00Version/TypeReadVersion and Type of the device
3000210x01SwitchesReadSwitches state
4000320x02Baud rateRead & WriteRS485 baud rate
4000430x03Stop Bits & Data BitsRead & WriteNo of Stop bits & Data Bits (see 3.5.3)
4000540x04ParityRead & WriteParity bit
4000650x05Response DelayRead & WriteResponse delay in ms
4000760x06Modbus Mode`Read & WriteModbus Mode (ASCII or RTU)
4000980x08WatchdogRead & WriteWatchdog
40013120x0CDefault Output StateRead & WriteDefault output state (after power on or watchdog reset)
 40033 32 0x20Received packets LSR (Least Significant Reg.) Read & Write  No of received packets
 40034 33 0x21Received packets MSR (Most Significant Reg.) Read & Write
40035340x22Incorrect packets LSRRead & Write No of received packets with error
40036350x23Incorrect packets MSRRead & Write
40037360x24Sent packets LSRRead & Write No of sent packets
40038370x25Sent packets MSRRead & Write
40052510x33OutputsRead & WriteOutput state

INSTALLATION GUIDELINE

SYMBOL Please read the instruction before use or operating the device. In case of any questions after reading this document, please contact the iSMA CONTROLLI Support Team ([email protected]).

  • WARNING ICON Before wiring or removing/mounting the product, make sure to turn the power off. Failure to do so might cause an electric shock.
  • Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on.
  • Do not touch electrically charged parts such as power terminals. Doing so might cause an electric shock.
  • Do not disassemble the product. Doing so might cause an electric  shock or faulty operation.
  • Use the product only within the operating ranges recommended in the specification (temperature, humidity, voltage, shock, mounting direction, atmosphere, etc.). Failure to do so might cause a fire or faulty operation.
  • WARNING ICON Firmly tighten the wires to the terminal. Failure to do so might cause a fire.
  • Avoid installing the product in close proximity to high-power electrical devices and cables, inductive loads, and switching devices. Proximity of such objects may cause an uncontrolled interference, resulting in an instable operation of the product.
  • Proper arrangement of the power and signal cabling affects the operation of the entire control system. Avoid laying the power and signal wiring in parallel cable trays. It can cause interferences in monitored and control signals.
  • It is recommended to power controllers/modules with AC/DC power suppliers. They provide better and more stable insulation for
    devices compared to AC/AC transformer systems, which transmit disturbances and transient phenomena like surges and bursts to devices. They also isolate products from inductive phenomena from other transformers and loads.
  • Power supply systems for the product should be protected by external devices limiting overvoltage and effects of lightning discharges.
  • Avoid powering the product and its controlled/monitored devices, especially high power and inductive loads, from a single power source. Powering devices from a single power source causes a risk of introducing disturbances from the loads to the control devices.
  • If an AC/AC transformer is used to supply control devices, it is strongly recommended to use a maximum 100 VA Class 2
    transformer to avoid unwanted inductive effects, which are dangerous for devices.
  • Long monitoring and control lines may cause loops in connection with the shared power supply, causing disturbances in the operation of devices, including external communication. It is recommended to use galvanic separators.
  • To protect signal and communication lines against external electromagnetic interferences, use properly grounded shielded cables and ferrite beads.
  • Switching the digital output relays of large (exceeding specification) inductive loads can cause interference pulses to the electronics installed inside the product. Therefore, it is recommended to use external relays/contactors, etc. to switch such loads. The use of controllers with triac outputs also limits similar overvoltage phenomena.
  • Many cases of disturbances and overvoltage in control systems are generated by switched, inductive loads supplied by alternating mains voltage (AC 120/230 V). If they do not have appropriate built-in noise reduction circuits, it is recommended to use external circuits such as snubbers, varistors, or protection diodes to limit these effects.

ICON Electrical installation of this product must be done in accordance with national wiring codes and conform to local regulations.

iSMA CONTROLLI S.p.A. – Via Carlo Levi 52, 16010 Sant’Olcese (GE) – Italy | [email protected]

www.ismacontrolli.com
Installation Guideline Issue rev. 1 | 05/2022
