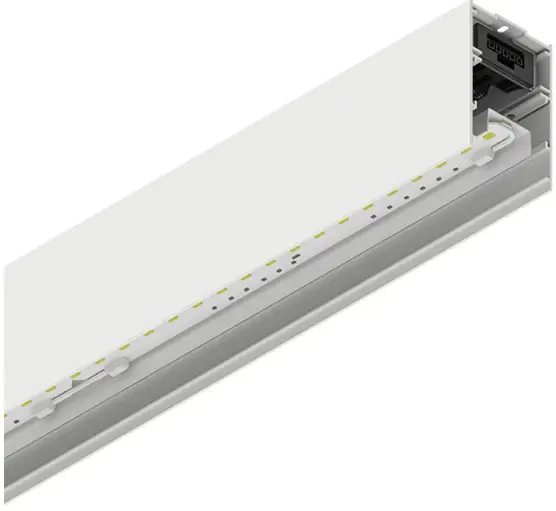

Novalux Lucky Evo 100503.01 Plus 100573.99 Instruction Manual

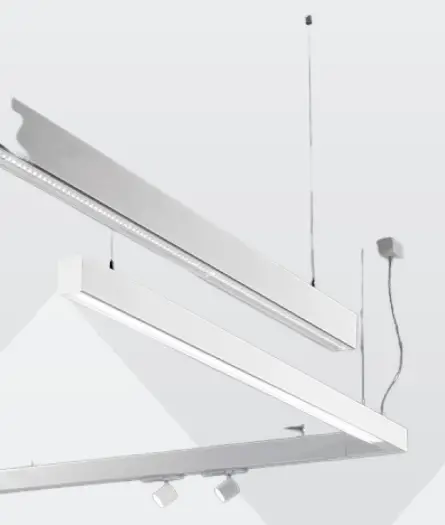

novalux LUCKY EVO 100503.01 plus 100573.99 Instruction Manual

Features

• Use: Indoor
• Type of installation: WALL, RECESSED INTO PLASTERBOARD, SUSPENDED, CEILING
• MOUNTED, TRACK
• Emission: DIRECT
• Optics: MICRO-STRUCTURED
• Colour: WHITE
• Dimming: ON/OFF
• Emergency: NO

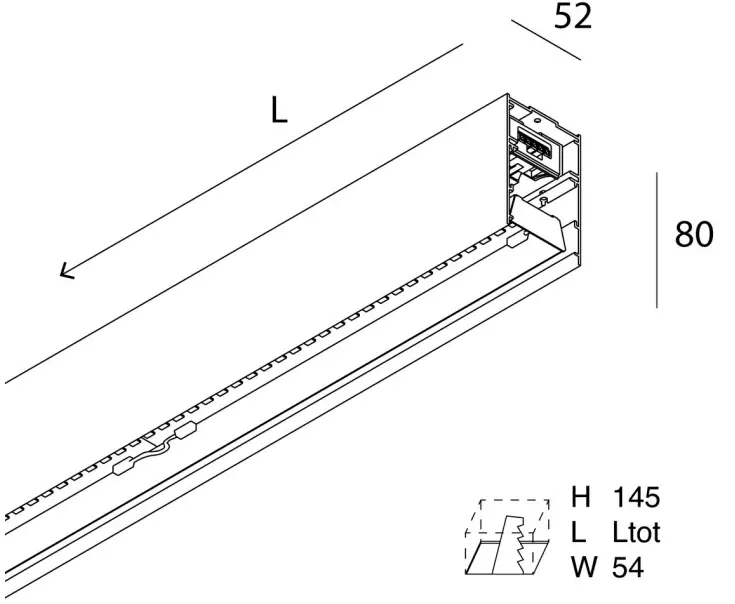

• L: 1125mm
• A: 52mm
• H: 80mm
• Made in: ITALY
• Warranty: 5 years
• Weight: 2.7kg


Tech data

• Luminaire input power: 28.5W
• Luminaire luminouse flux: 1970lm
• IP: 40
• Insulation class: I
• Supply voltage: 220-240V 50/60Hz
• UGR: <19
• SELV: Sì

Source

• Light source: LED
• Source power: 25W
• Source luminous flux: 3749lm
• Colour temperature: 3000K
• CRI: >80
• Colour tolerance: 3 Step MacAdam
• LED lifespan: 50000h L80 B20


Compliance

CEI EN 60598-1:2015 + A11:2009. IEC 60598-2:2015 2-1, 2-2

Standards

Photobiological risk: RISK GROUP 0Certified fixture in EXEMPT GROUP, in accordance with
CEI EN 62471:2010-01, IEC TR 62778:2014.
View more product info

COMPLETION ACCESSORIES

	LUCKY EVO: TESTATE COPPIA BIA	18750.01
	LUCKY EVO: KIT DI GIUNZ. RETTILINEO	18751.99

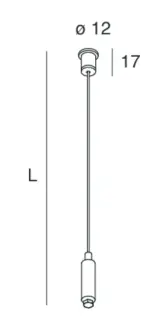

MOUNTING ACCESSORIES

	HERO: SOSP.L3000 1PZ. TESTA/CODA	108685.99
	ALL-TRACK: COPPIA ADATT. 3P BIA	106722.01
	LUCKY EVO: SOSP.L3000 1PZ. UNIONE	18757.99
	LUCKY EVO: SPESS. CARTONG. 10MM 4PZ.	18753.99
	KIT ALIMENTAZIONE L1200 3P BIA	108919.0
	LUCKY EVO: KIT INCASSO LED (2X)	18752.99
	KIT ALIMENTAZIONE L3000 3P BIA	108920.01
	LUCKY EVO: STAFFA PARETE “L” BIA	1005A2.01

LUCKY EVO: TESTATE COPPIA BIA 18750.01

Novalux S.r.l. via Marzabotto, 2 40050 Funo di Argelato (BO) Italy
Tel: +39 051 860558 · Fax +39 051 6647859 · Mail: [email protected] · VAT number 00536541204 · novalux.com Company subject to the management and coordination by SLV Gmbh

This technical data sheet is owned by Novalux S.r.l., all rights reserved. Novalux S.r.l. reserves the right to make changes without prior notice.
