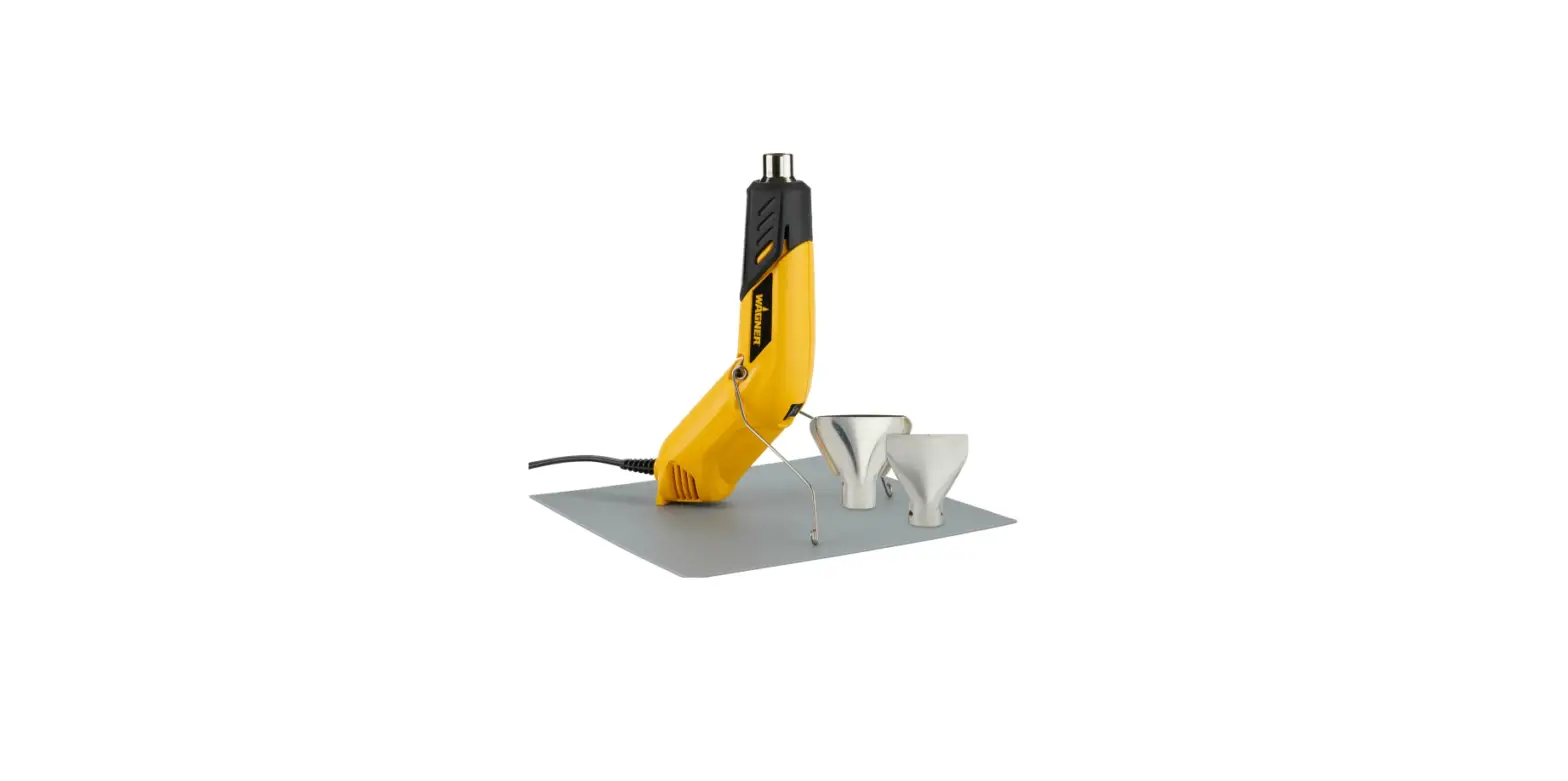

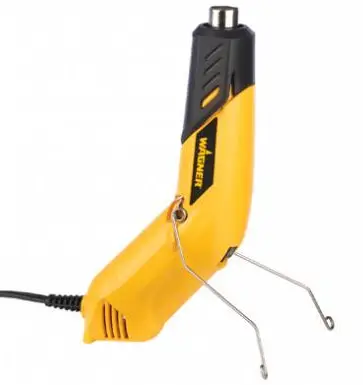

WAGNER 2419809 Furno Micro Heat Gun Craft Kit
USING THE HEAT TOOL
WARNING
- Always read the safety information included in this manual before using the heat tool.
- Tools and paint scrapings become very hot. To avoid burns, use work gloves and eye protection when scraping.

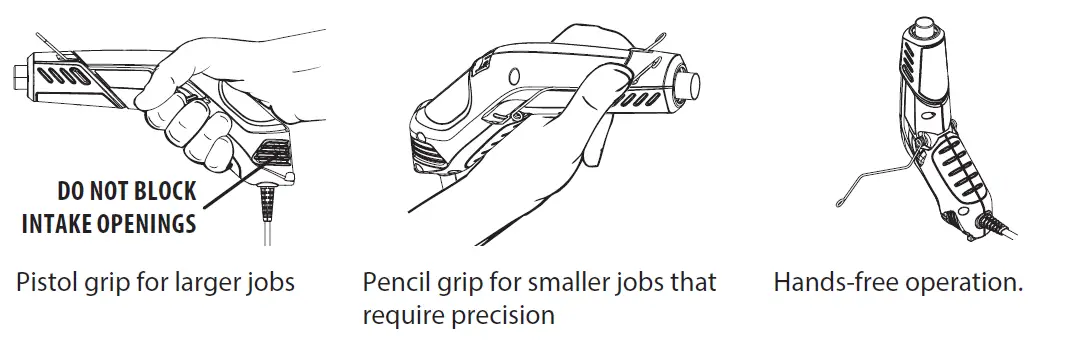

HAND POSITIONS
The Heat Tool can be gripped/used in a variety of ways based on the type of job you are doing.
WARNING: When gripping the heat tool, ensure that your hands are not obstructing the intake openings in the housing (on the rear of the housing, just above the power cord). Keep fingers away from the metal nozzle.
SWITCH SETTINGS
The Heat Tool power switch has three settings: Low (I), OFF (0), and High (II). Refer to the Heating Guidelines (page 9) to determine the appropriate heat setting for the task you are doing.

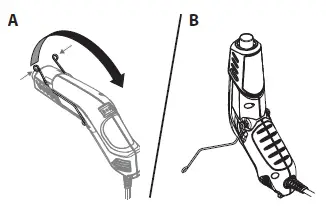

HANDS-FREE OPERATION / COOL DOWN
The Heat Tool has a built-in stand for benchtop applications and cool-down. Turn the Heat Tool OFF (0), gently pull the prongs and rotate the stand backward (A). Set on a flat surface as shown (B).
