PREFACE

Using this manual

This manual is intended to be used as a work of reference for professional, well trained and authorised users to be able to safely install, use, maintain and repair the product mentioned on the cover of this document.

Pictograms and symbols

The following pictograms and symbols are used in this manual:

• TIP: Suggestions and recommendations to simplify carrying out tasks and actions.
• ATTENTION: A remark with additional information for the user. A remark brings possible problems to the user’s attention.
• CAUTION: Procedures, if not carried out with the necessary caution, could damage the product, the workshop or the environment.
• WARNING: Procedures which, if not carried out with the necessary caution, may damage the product or cause serious personal injury.
• CAUTION: Denotes risk of electric shock.
• WARNING: Fire hazard! Important warning to prevent fire.
• WARNING: Explosion hazard! Important warning to prevent explosions.
• Personal protective equipment (PPE)
  • Instruction to use respiratory protection when you do service, maintenance and repair jobs, as well as during functional testing. We recommend to use a half-face respirator according to EN 149:2001 + A1:2009, class FFP3 (Directive 89/686/EEC).
• Personal protective equipment (PPE)

  • Instruction to use protective gloves when you do service, maintenance and repair jobs.

Text indicators

• Listings indicated by “-” (hyphen) concern enumerations.
• Listings indicated by “•” (bullet point) describe steps to perform.

Service and technical support

For information about specific adjustments, maintenance or repair jobs which are not dealt with in this manual, please contact the supplier of the product. He will always be willing to help you. Make sure you have the following specifications at hand:

• product name
• serial number

You can find these data on the identification plate.

INTRODUCTION

Identification of the product

The identification plate contains, among other things, the following data:

• product name
• serial number
• supply voltage and frequency
• power consumption

General description

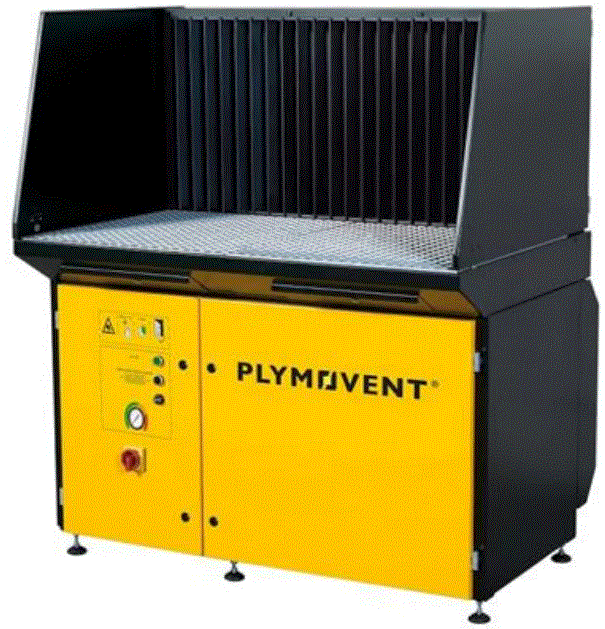

The downdraft table is a workbench with an integrated extraction fan and filtration system that is used for welding, grinding, and plasma cutting applications. Depending on the specific application, the use of certain accessories is required and/or recommended (refer to paragraph 1.3).

Refer to the table in Fig. I for more instructions per application.

Fig. I: Selection diagram

The downdraft table features a work grid, a three-stage pre-filtration system for optimum spark arresting and two oval filter cartridges1. Both pre and main filters have dust drawers underneath. The working height of the downdraft table is adjustable.

DraftMax Basic

• The filter cartridges of the DraftMax Basic are disposable.

DraftMax Ultra

• The filter cartridges in the DraftMax Ultra are self-cleaning by means of an automatically controlled compressed air system.

Options and accessories

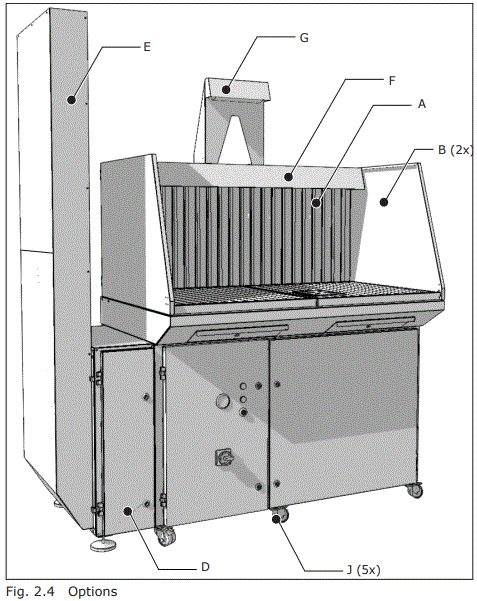

The following products can be obtained as an option and/or accessory:

Refer to paragraph 2.3 for the functioning of the various options and accessories.

Backdraft kit (required for all welding and plasma cutting applications and recommended for grinding applications)

• The backdraft kit consists of narrowing plates to be mounted below the workgrid and a backdraft panel with vertical lamellas.

Side panels

• The side panels consist of hinged trapezium-shaped sheet metal plates and have to be used in combination with the backdraft kit. They are to be mounted on the sides of the downdraft table.

Plasma cutting work grid (required for plasma cutting applications)

• Specially constructed work grid suitable for plasma cutting, including additional perforated steel spark arresters.

HEPA kit (required for stainless steel welding)

• Consists of a filter housing with a HEPA filter to be mounted on the outlet of the downdraft table. Filter surface area 34 m². Filter class: HEPA 11.

Silencer/Outlet duct

• Consists of a rectangular sheet metal shaft to be mounted on the outlet of the downdraft table or on the HEPA kit.

Working light

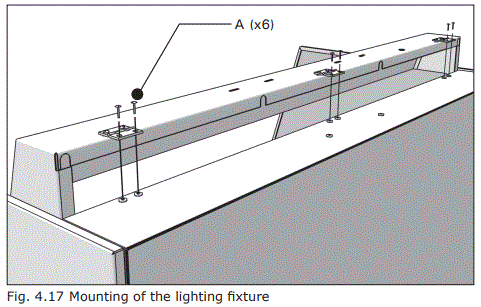

• Lighting fixture with 9 W LED light to be mounted to the backdraft panel.

Movement sensor (DraftMax Ultra only)

• Automatic start/stop based on movement sensor, to be mounted on top of the backdraft panel.

Welding cable sensor (DraftMax Ultra only)

• Metal clamp with built-in sensor that works as an automatic start/stop device. The clamp is to be connected to the mass cable of the welding machine. Suitable for welding applications only.

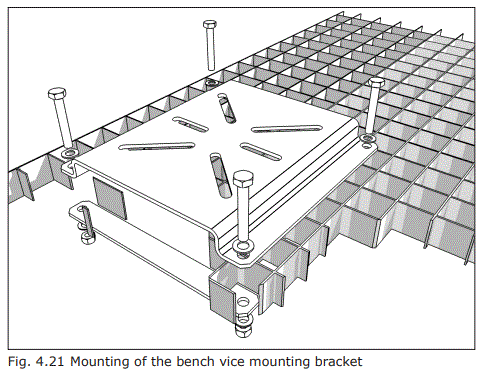

Bench vice mounting bracket

• To be connected to the standard work grid of the downdraft table (bench vice not included).

Wheel set

• Consists of 5 swivel castors – 2 of which with brake – to be mounted below the downdraft table.

Dust tray lid (recommended for stainless steel welding)

• Lid to cover the dust drawer below the filter cartridges.
• Comes with a plastic bag, a face mask, and a pair of disposable gloves.

FCC-36/PTFE (recommended for heavy applications)

• Filter cartridges of BiCo spunbond polyester + PTFE membrane (2 x 18 m²).

Technical specifications

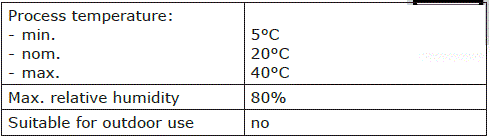

Ambient and process conditions

• Refer to the available product data sheets for detailed product specifications.

Transport of the unit

• You cannot hold the manufacturer liable for any transportation damage after delivery of the product.

PRODUCT DESCRIPTION

Components

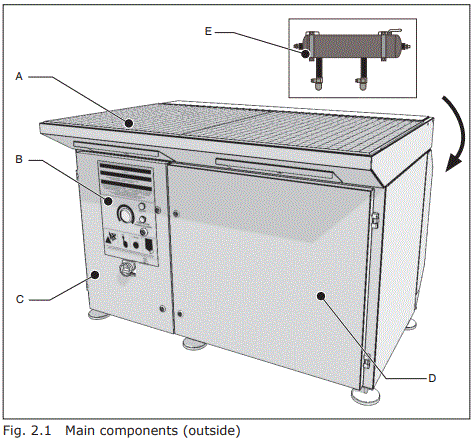

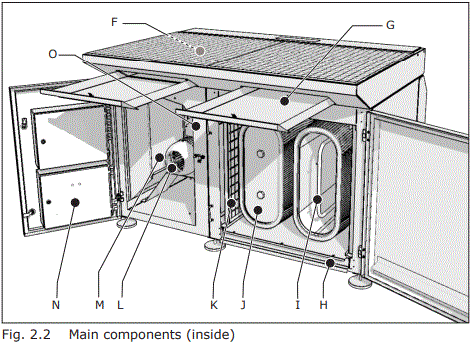

The product consists of the following main components and elements (refer to Fig. 2.1 and Fig. 2.2):

• A Work grid (two-piece)
• B Control panel
• C Left door (controls/fan)
• D Right door (filter compartment)
• E Compressed air tank (DraftMax Ultra only)
• F Pre spark arresters
• G Dust drawers (pre filtration)
• H Dust drawer (filter cartridges)
• I Filter cleaning mechanism (DraftMax Ultra only)
• J Filter cartridges
• K Main spark arresters
• L Fan
• M Outlet grid
• N Electrics high voltage
• O Electrics low voltage

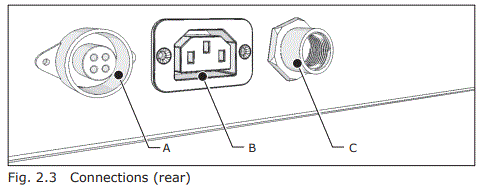

The rear of the downdraft table has connections for:

• A Movement sensor or welding cable sensor (DraftMax Ultra only)
• B Working light
• C Compressed air (DraftMax Ultra only)

If you have a DraftMax Basic, connection (A) and (C) are not available.

Operation

The air containing welding fume, grinding dust or debris from other processes is extracted and filtered, after which the filtered air is recirculated back into the work environment. The air is extracted through the work grid and the backdraft panel (refer to paragraph 2.3 A) by the internal extraction fan. The air passes through a pre filter for optimum air distribution. This pre filter is the first spark arresting stage. Next, the air passes through a labyrinth spark trap before it reaches the vertical spark arresters in the filter housing. Finally, the air passes through the filter cartridges. The air exits the downdraft table through the outlet on the left side.

DraftMax Basic

The filter cartridges of the DraftMax Basic are disposable. A pressure gauge on the control panel indicates when you must replace the filter cartridges.

DraftMax Ultra

The filter cleaning system inside the DraftMax Ultra starts automatically when the pressure drop reaches a certain maximum value during use (online cleaning). The filter cartridges are cleaned from the inside by compressed air shots. An alarm light on the control panel indicates when you must replace the filter cartridges.

Options and accessories

Refer to paragraph 1.3 for additional information on the various options and accessories.

SAFETY INSTRUCTIONS

General

The manufacturer does not accept any liability for damage to the product or personal injury caused by ignoring of the safety instructions in this manual, or by negligence during installation, use, maintenance, and repair of the product mentioned on the cover of this document and any corresponding accessories.

Specific working conditions or used accessories may require additional safety instructions. Immediately contact your supplier if you detect a potential danger when using the product. The user of the product is always fully responsible for observing the local safety instructions and regulations. Observe all applicable safety instructions and regulations.

User manual

• Everyone working on or with the product, must be familiar with the contents of this manual and must strictly observe the instructions therein. The management should instruct the personnel in accordance with the manual and observe all instructions and directions given.
• Do not change the order of the steps to perform.
• Keep the manual with the product.

Users

• The use of this product is exclusively reserved to authorised, trained and qualified users. Temporary personnel and personnel in training can only use the product under supervision and responsibility of skilled engineers.
• Stay alert and keep your attention to your work. Do not use the product when you are under the influence of drugs, alcohol or medicine.
• The product is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children must be supervised not to play with the product.

Intended use 2

The product has been designed as a workbench with integrated extraction and filtration facility for welding and grinding purposes, provided the appropriate options have been installed (refer to paragraph 2.3). With the optional HEPA set the product is suitable to extract welding fume from high alloyed steel, i.e. steel with a nickel and chromium content of >30%. This corresponds with welding fume class “W3”. Using the product for other purposes is considered contrary to its intended use. The manufacturer accepts no liability for any damage or injury resulting from such use. The product has been built in accordance with state-of-the-art standards and recognised safety regulations. Only use this product when in technically perfect condition in accordance with its intended use and the instructions explained in the user manual.

Technical specifications

• Do not change the specifications given in this manual.

Modifications

• Modification of (parts of) the product is not allowed.

Installation

• The installation of this product is exclusively reserved to authorised, trained and qualified engineers.
• The electric connection must be executed in accordance with the local codes and requirements. Ensure compliance with the EMC regulatory arrangements.
• During installation, always use Personal Protective Equipment (PPE) to avoid injury. This also applies to persons who enter the work area during installation.
• Do not install the product in front of entrances and exits which must be used for emergency services.
• Make sure that the workspace is well illuminated.
• Stay alert and keep your attention to your work. Do not install the product when you are under the influence of drugs, alcohol or medicine.
• Air containing particles such as chromium, nickel, beryllium, cadmium, lead etc., should never be recycled. This air must always be brought outside the working area.

“Intended use” as explained in EN-ISO 12100-1 is the use for which the technical product is suited as specified by the manufacturer, inclusive of his directions in the sales brochure. In case of doubt it is the use which can be deduced from the construction, the model and the function of the technical product which is considered normal use. Operating the machine within the limits of its intended use also involves observing the instructions in the user manual.

Use

• Inspect the product and check it for damage. Verify the functioning of the safety features.
• During use, always use Personal Protective Equipment (PPE) to avoid injury. This also applies for persons who enter the work area.
• Check the working environment. Do not allow unauthorised persons to enter the working environment.
• Protect the product against water and humidity.
• Make sure the room is always sufficiently ventilated; this applies especially to confined spaces.
• Make sure that the workshop, in the vicinity of the product, contains sufficient approved fire extinguishers (suitable for fire classes ABC).

Service, maintenance and repairs

• Obey the maintenance intervals given in this manual.
• Overdue maintenance can lead to high costs for repair and revisions and can render the guarantee null and void.
• Always use Personal Protective Equipment (PPE) to avoid injury. This also applies for persons who enter the work area.
• Make sure the room is sufficiently ventilated.
• Use tools, materials, lubricants and service techniques which have been approved by the manufacturer. Never use worn tools and do not leave any tools in or on the product.
• Clean the area afterwards.

ATTENTION

• Service, maintenance and repairs must be performed in accordance with directive TRGS 560 and TRGS 528 by authorised, qualified and trained persons (skilled) using appropriate work practices.

ATTENTION: Before you carry out service, maintenance and/or repair jobs:

• fully disconnect the unit from the mains Personal protective equipment (PPE) Wear respiratory protection and protective gloves during service, maintenance and repairs.

WARNING

• The industrial vacuum cleaner that you use during service and maintenance must meet dust class H according to EN 60335-2-69 or HEPA class (efficiency ≥99.97% at 0.3 μm).

INSTALLATION

Tools and requirements

You need the following tools and requirements to install the unit:

• basic tools

Unpacking

Make sure that the product is complete. The package contains:

• Downdraft table
• Work grid (two-piece)
• Bolt M6 (8)
• Square key 8 mm (to lock/unlock doors)
• Square key 6 mm (to lock/unlock dust drawers and doors of electrics)

Installation

• Refer to paragraph 4.4 for mounting instructions of the options and accessories.
• If you do not have any options, proceed with paragraph 4.5 for mounting of the work grid.

Options and accessories

• Install options and accessories, if any.

Backdraft kit

• Backdraft panel
• Narrowing plate (2)

TIP: If you have side panels as well, we recommend to install them to the backdraft panel first. Refer to paragraph 4.4.2.

ATTENTION: When the downdraft table is used for grinding only, we recommend not to mount the narrowing plates in the backdraft panel. For welding and plasma cutting, however, the narrowing plates are required.

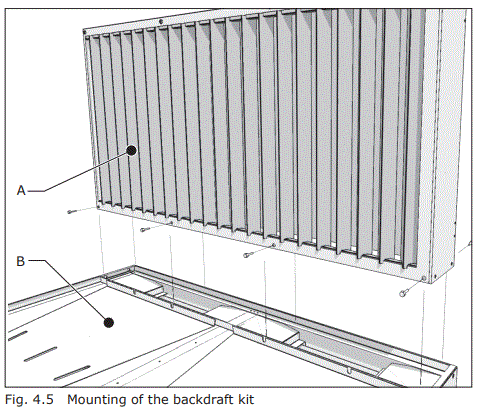

• Remove the cover strip. Keep the 8 bolts.
• Put the narrowing plates (B) on the downdraft table.
• Put the backdraft panel (A) in place.
• Attach the narrowing plates and the backdraft panel with the 8 bolts.

The cover strip becomes redundant.

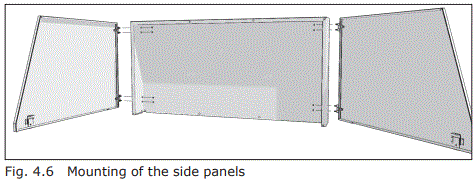

Side panels

• Left side panel
• Right side panel

To install the side panels, do the following.

• Loosen the bolts on the loose side of the hinges and remove the washers. Keep the bolts and washers.
• Put the pins through the holes on the sides of the backdraft panel.
• Put the washers and bolts over the pins.
• Tighten the bolts.

Plasma cutting work grid

• Grid frame (2)
• Metal bar (2×13)
• Additional perforated steel spark arrester (2)

To install the plasma cutting work grid, do the following.

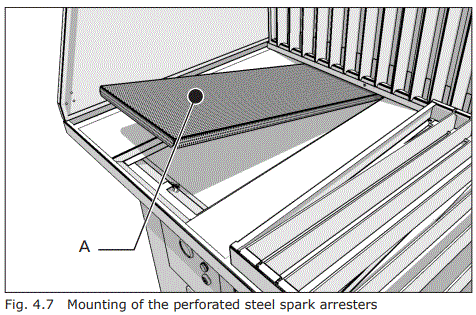

• Put the perforated steel spark arresters (A) over the pre spark arresters. Make sure to direct the edgeless sides to the back.

WARNING: Do not remove the standard spark arresters.

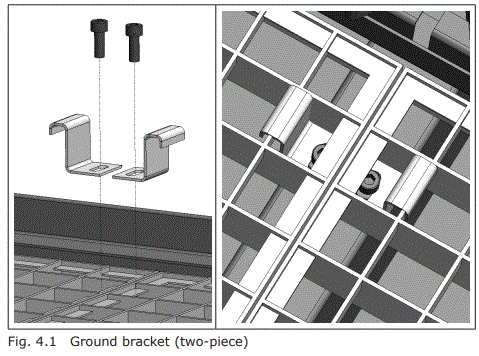

• Remove the ground bracket at the position of the work grid. Keep the bolts.

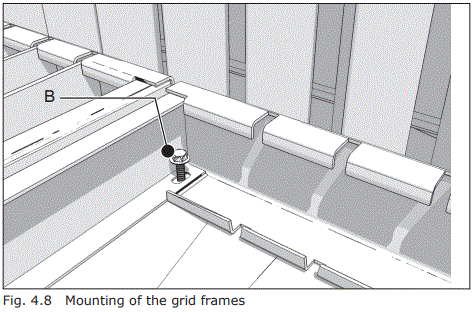

• Install the grid frames.
• Attach the grid frames with the 2 bolts (B).

WARNING: It is necessary to apply the bolts to earth the work grids.

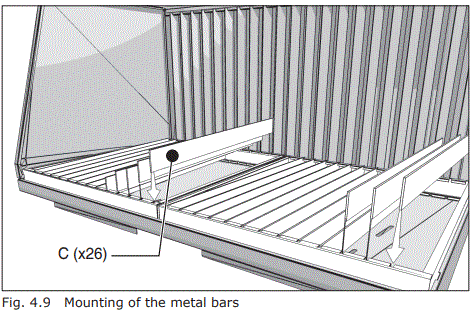

• Install the metal bars (C).
• The standard work grid and the ground bracket become redundant.

HEPA kit

• HEPA box with filter
• Spare bolts M6 (4)
• Draught strip

ATTENTION: To avoid damage, handle the HEPA box and filter with care when you unpack and install it.

To install the HEPA kit, do the following.

• Remove the outlet panel of the downdraft table. Keep the 4 bolts.

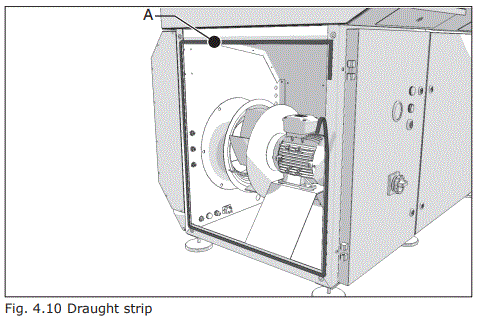

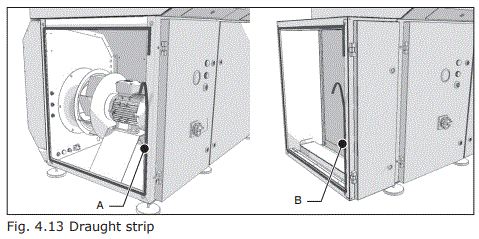

• Apply the draught strip (A) to the downdraft table.

• Push a screwdriver or other tool at the position of the strips (B) to unlock the HEPA filter.

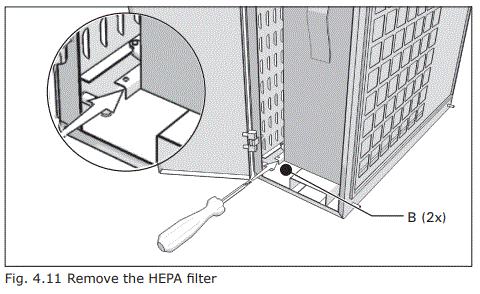

• Remove the HEPA filter.

TIP: To make it easier to install the HEPA box:

• remove the outlet panel of the HEPA box
• remove the outlet grid inside the downdraft table
• Do not forget to install them again.

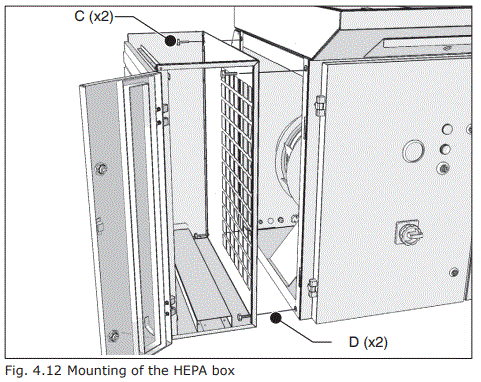

• Put a bolt halfway through the 2 upper holes (C) at the outlet of the downdraft table.
• Hang the HEPA box on the bolts.
• Put a bolt through the 2 lower holes (D) in the HEPA box.
• Tighten the 4 bolts (C+D).
• Put the HEPA filter in the box.
• Pull the two straps tightly to lock the filter. When you hear a click sound the filter is correctly locked.

If you will install a Silencer/Outlet duct, the outlet panel of the HEPA box is redundant.

When the downdraft table is at its final position:

• use the adjusting feet to put the table in fully horizontal position
• The outlet panel of the downdraft table becomes redundant anyway.

Silencer/Outlet duct

• Upper shaft with top grid
• Lower shaft
• Draught strip
• Bolt (6)
• Washer (6)

You can connect the Silencer/Outlet duct to the HEPA box or install it directly to the downdraft table.

To install the Silencer/Outlet duct, do the following

• If applicable: remove the outlet panel of the downdraft table or the outlet panel of the HEPA box. Keep the 4 bolts.
• Apply the draught strip to the downdraft table (A) or HEPA box (B).

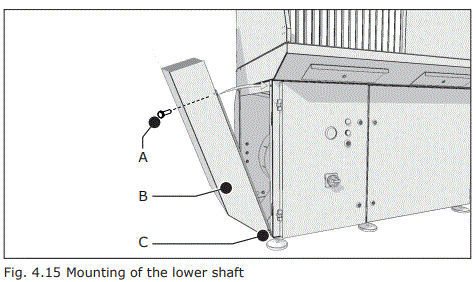

• Put a bolt (C) halfway through the 2 lower holes at the outlet of the downdraft table or HEPA box.
• Put the lower shaft (B) of the Silencer/Outlet duct over the bolts (C).
• Move it in an upright position and put a bolt (A) in the 2 upper holes.
• Tighten the 4 bolts.

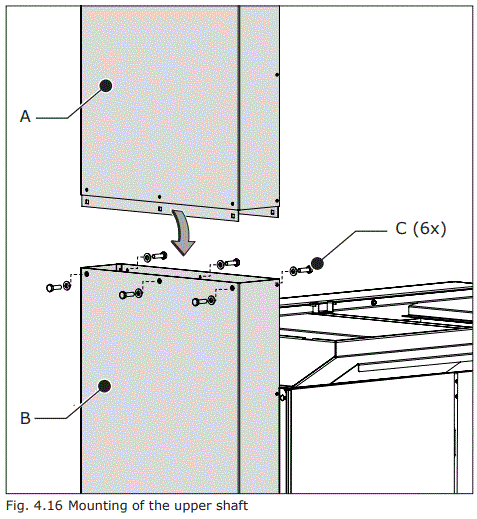

• Put the upper shaft (A) on top of the lower shaft (B).
• Attach it with the 6 bolts + washers (C).
• The outlet panel of the downdraft table becomes redundant.

Working light

• Lighting fixture with 2,3 m of cable and plug
• Bolts M6 (6)
• Tie-wrap (3)

To install the working light, do the following

• Install the lighting fixture on the backdraft panel with the 6 bolts (A).
• Lead the cable down the back side of the downdraft table.

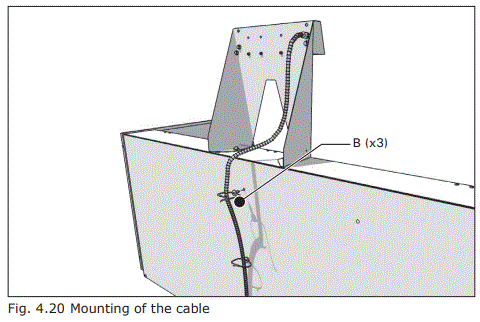

• Attach the cable to the backdraft panel with the 3 tie-wraps (B).
• Connect the cable (refer to Fig. 2.3B).

Movement sensor

• Automatic start/stop device with 2,3 m of cable and plug
• Bolts M6 (2)
• Tie-wrap (3)

To install the movement sensor, do the following

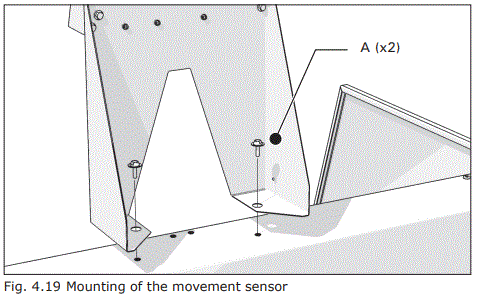

• Install the movement sensor on top of the backdraft panel with the 2 bolts (A).
• Lead the cable down the back side of the downdraft table.

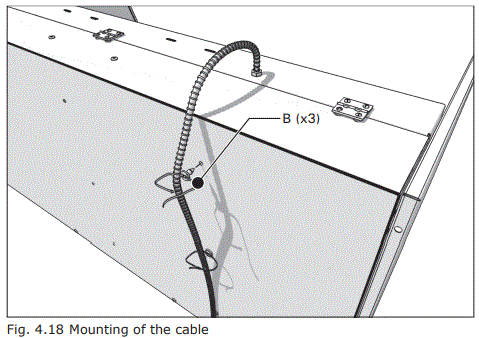

• Attach the cable to the backdraft panel with the 3 tie-wraps (B).
• Connect the cable (refer to Fig. 2.3A).

Welding cable sensor

• Clamp with 2,3 m of cable and plug
• Tie-wrap (3)

To install the welding cable sensor, do the following

• Connect the cable (refer to Fig. 2.3A).

Bench vice mounting bracket

The bench vice mounting bracket is suitable for mounting on the standard work grid only.

• Mounting bracket
• Strip (2)
• Bolt M6 (4)
• Nut M6 (4)
• Washer (8)

To install the bench vice mounting bracket, do the following

• Determine the desired position and put the mounting bracket on the grid.
• Install the strips below the grid and attach them with the bolts, nuts and washers.

Wheel set

• Swivel caster with brake (2)
• Swivel caster without brake (3)

To install the wheet set, do the following

• Lift the downdraft table with a fork-lift truck or pallet truck.
• Loosen and remove the 5 adjusting feet.
• Install the swivel casters instead;
  • swivel casters with brake: left + right front corner
  • swivel casters without brake: positions on the rear

ATTENTION

• Turn the screw thread of the swivel casters in as deep as possible.
• By the use of the wheelset, the working height of the downdraft table is fixed to 950 mm.

Work grid

To install the work grid, do the following.

• Loosen the ground bracket3 from the downdraft table. Keep the screws.
• Install the work grids.
• Put the ground bracket over both work grids.
• Attach it with the removed screws.

ATTENTION

• It is necessary to apply the bracket to ground the work grids.

Compressed air connection (DraftMax Ultra only)

The downdraft table functions on compressed air with a recommended working pressure of 5-8 bar. Make sure that the working pressure is between these values (preferably at 5 bar). If required, install a pressure relief valve to prevent overpressure. If the pressure is too high, the pressure relief valve of the system will be opened, thus decreasing the pressure until the system pressure has reached an appropriate level.

ATTENTION: The compressed air must be dry and oil-free according to ISO 8573-3 class 6.

Connect the downdraft table to compressed air (refer to Fig. 2.3C).

Positioning

You can move the downdraft table to its final position with:

• a fork-lift truck (preferred way); or
• a pallet truck (in this case you must tilt the table); or

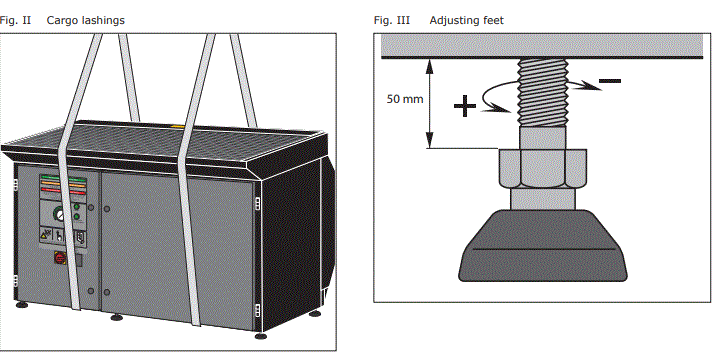

• cargo lashings lifted by a fork-lift truck (refer to Fig. I)

CAUTION

Do not position the product where it is exposed to vibrations or heat radiation from heat sources. Observe the earlier described ambient conditions.

• Put the downdraft table against the wall.
• If necessary: Use the adjusting feet to put the table level and to adjust it to the desired height (min. 920 mm – max. 970 mm) (also refer to Fig. III on page 16).

Electric connection

CAUTION

• Make sure that the product is suitable for connection to the local mains. You can find information about the connection voltage and frequency on the identification plate.
• The cables must be connected in conformance with the local rules and regulations and can only be carried out by well qualified and authorised technicians.

You can connect the downdraft table to the mains by

• a three-phase plug (grounded); or
• directly to the power supply
• Connect the mains cord to the mains.

Sense of rotation

To make sure that the sense of rotation of the fan is correct:

• Turn on the main switch.
• Push the ON button to switch on the fan.
• Push the OFF button to switch off the fan.
• Wait 10 seconds.
• Open the left door.

WARNING

Do not open the door within 10 seconds after you have switched off the fan. Keep your hands away from the fan wheel. The motor contains a sticker that indicates the correct sense of rotation.

• Examine the sense of rotation during the slow-down period of the fan.
• Turn off the main switch.
• Disconnect the downdraft table from the mains.
• If necessary: Change the connection of the phases.

USE

WARNING

• Fire hazard! Do not use the downdraft table without spark arresters, filter cartridges and dust drawers.

DraftMax Basic

Control panel

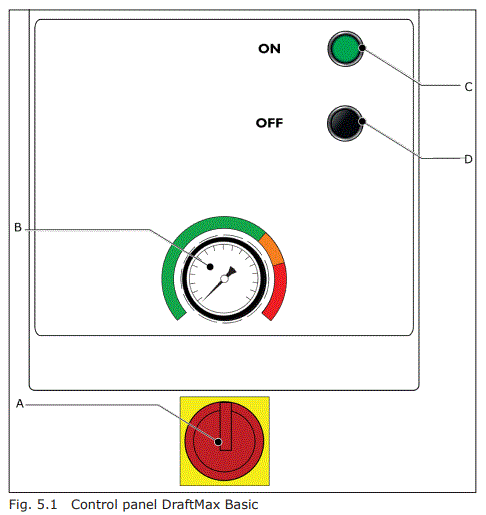

The control panel has the following controls and indicators:

• A Main switch
• B Pressure gauge
• C ON button (green)
• D OFF button (black)

Operation

• Make sure that the main switch (A) is on.
• Push the ON button (C) to start the fan.
• Start welding/grinding.
• Push the OFF button (D) after you have finished welding/ grinding to stop the fan.

Filter replacement

• During use, you must regularly check the pressure gauge (B). When the pressure reaches 1400 Pa, you must replace the filter cartridges.
• Refer to paragraph 6.2.1 for the filter replacement procedure.

DraftMax Ultra

Control panel

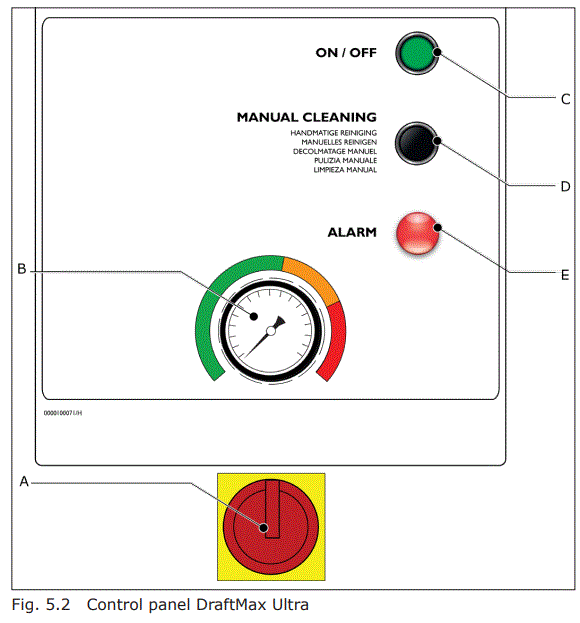

The control panel has the following controls and indicators:

• A Main switch
• B Pressure gauge
• C Button ON/OFF (green)
• D Button MANUAL CLEANING (black)
• E Indicator light ALARM

Operation

• Make sure that the main switch (A) is on.

Depending on your specific configuration

Automatic filter cleaning

When the pressure over the filter cartridges reaches the threshold value (1200 Pa) during use, the filter cleaning system starts automatically. This procedure takes 2 minutes, during which each filter cartridge is cleaned by 7 compressed air shots.

Manually activated filter cleaning

If desired, you can activate the filter cleaning system manually (online cleaning only).

• Push the ON/OFF button (C) to start the fan.
• Push the MANUAL CLEANING button (D) to activate the filter cleaning system.

This procedure takes 2 minutes, during which each filter cartridge is cleaned by 7 compressed air shots.

Indicator light ALARM

The ALARM light can show two different signals:

Signal	Means	Required action
	Filter cartridges are clogged	Replace the filter cartridges (refer to par. 6.2.1). Replace the HEPA filter, if any, as well (refer to par. 6.2.2)
	No compressed air available	Repair the compressed air connection

To suppress the ALARM light temporarily: Push the ON/OFF button two times (off and on). The ALARM light starts blinking again after 10 minutes, unless you have solved the problem.

Filter replacement

When the filter cleaning system is unable to get the pressure below 1200 Pa within 10 minutes, the filter cartridges are probably clogged and must be replaced. This is indicated by the alarm light (ref. paragraph 5.2.5).

• Push the ON/OFF button (C) to stop the fan.
• Refer to paragraph 6.2.1 for the filter replacement procedure.

MAINTENANCE

Periodic maintenance

The product has been designed to function without problems for a long time with a minimum of maintenance. In order to guarantee this some simple, regular maintenance and cleaning activities are required which are described in this chapter. If you observe the necessary caution and carry out the maintenance at regular intervals, any problems occurring will be detected and corrected before they lead to a total breakdown.

WARNING: Overdue maintenance can cause fire.

The indicated maintenance intervals can vary depending on the specific working and ambient conditions. Therefore we recommend to thoroughly inspect the complete product once every year beside the indicated periodic maintenance. For this purpose contact your supplier.

CAUTION: De-energize the downdraft table and disconnect the compressed air (if applicable) before you carry out the activities below. First read the maintenance regulations at the beginning of this manual.

The text printed in italics in the table below refers to options and accessories.

Filter replacement

Personal protective equipment (PPE)

• Wear respiratory protection and protective gloves when you replace any filter.

WARNING

• Do not replace any filter while the fan is running.

ATTENTION

• Use an industrial vacuum cleaner that meets dust class H according to EN 60335-2-69 to clean the spark arresters, dust drawers, filter compartment and the (optional) HEPA filter housing.

Filter cartridges

The spare filter cartridges are supplied in a plastic bag and come with face mask and a pair of disposable gloves. It is recommended to replace both filter cartridges at the same time.

To replace the filter cartridges, do the following

• De-energize the unit.
• Unpack the replacement filters and keep the plastic bags.
• Open the right door with the square key. Turn the square key to the left to unlock the door.

WARNING: Wait at least 60 seconds before open the door to allow the dust in the filter compartment to settle.

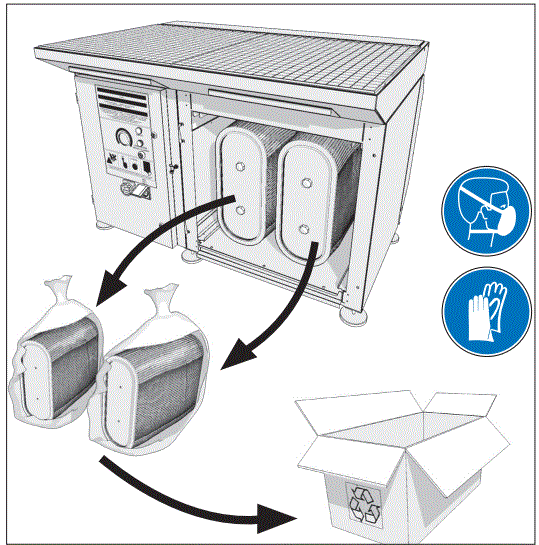

• Remove the used filter cartridges and pack them in the plastic bags in which the new filters are supplied.
• Seal the bags firmly with the supplied tie-wrap.
• Clean the pre spark arresters and put them back.
• Empty the dust drawers below the pre spark arresters and the filter cartridges, preferably with an industrial vacuum cleaner. Put dust drawers back in place.
• Remove the main spark arresters and clean them.
• Clean the entire filter compartment, including the space left and right of the main spark arresters.
• Put the main spark arresters back.
• Install new filter cartridges.
• Close the door.
• Dispose of the used filter cartridges in accordance with state or local regulations.

If you have installed the optional HEPA kit, you must replace the HEPA filter as well.

HEPA filter (option)

The HEPA filter is supplied in a plastic bag and comes with face mask and a pair of disposable gloves. You must replace the HEPA filter together with the filter cartridges. To replace the HEPA filter, do the following.

• Open the door of the HEPA box.
• Unlock the HEPA filter (refer to Fig. 4.11B).
• Remove the used HEPA filter and pack it in the plastic bag in which the new filter is supplied.
• Clean the filter housing.
• Install a new HEPA filter.
• Pull the two straps tightly to lock the filter. A click sound confirms that the filter is correctly locked.
• Close the door.
• Dispose of the used HEPA filter in accordance with state or local regulations.

TROUBLESHOOTING

If the unit does not function (correctly), consult the checklist below to see if you can remedy the error yourself. Should this not be possible, contact your supplier.

TIP: Text printed in italics refers to options and accessories.

WARNING

• Obey the safety regulations that are written in chapter 3 when you carry out the activities below.
• After you have switched off the fan, wait at least 60 seconds before you open any door.

SPARE PARTS

Filter unit

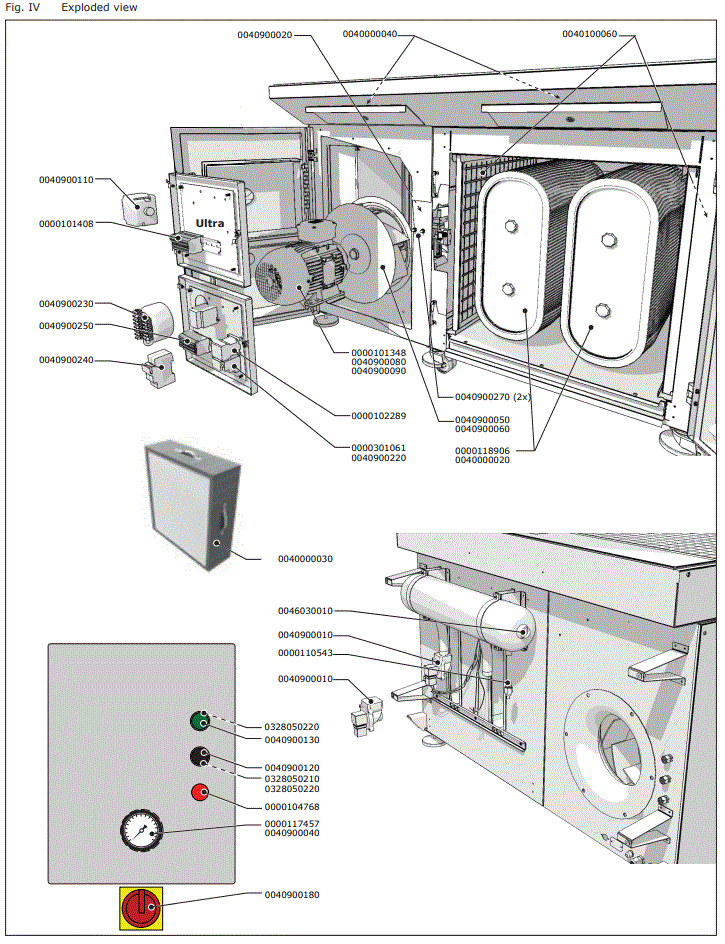

The following spare parts are available for the downdraft table; refer to exploded view Fig. IV on and spare parts list Fig. V on.

Fig. V: Spare parts

ELECTRICAL DIAGRAM

Refer to the separately supplied electrical diagram.

DISPOSAL

• Dismantling and disposal of the downdraft table must be done by qualified persons.

Personal protective equipment (PPE)

• Wear respiratory protection and protective gloves when you dismantle and dispose of the unit.

Dismantling

To safely dismantle the downdraft table, obey the safety instructions that follow.

Before dismantling of the downdraft table:

• disconnect it from the mains
• disconnect it from the compressed air
• clean the outside

During dismantling of the downdraft table:

• make sure that the area is sufficiently ventilated, e.g. by a mobile ventilation unit

After dismantling of the downdraft table:

• clean the dismantling area

Disposal

Dispose of the pollutants and dust, together with the used filter cartridges, in a professional manner in accordance with federal, state or local regulations.

CE DECLARATION

CE declaration of conformity for machinery

We, Plymovent Manufacturing B.V., Koraalstraat 9, 1812 RK Alkmaar, Netherlands, herewith declare, on our own responsibility, that the product:

• DraftMax Basic
• DraftMax Ultra

which this declaration refers to, is in accordance with the conditions of the following Directives:

• Machine Directive 2006/42 EC
• EMC 2014/30 EU
• LVD 2014/35 EU
• ErP Directive 2009/125 EC
• EN-ISO 21904-2-2020 (W3) 4

Signature

• Name: M.S.J. Ligthart
• Position: Product Manager
• Date of issue: 1st April 2021

www.plymovent.com

References

• Plymovent - Clean air at work
