Velleman WSL199 Animated Starlight White LED Mini Kit

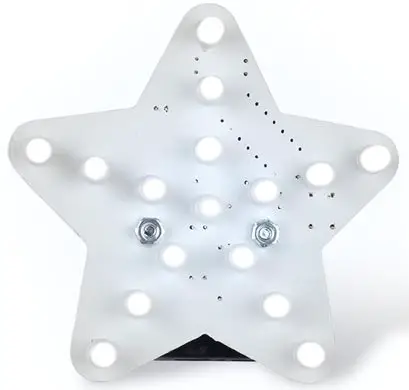

PRODUCT OVERVIEW
PARTS OF PRODUCT

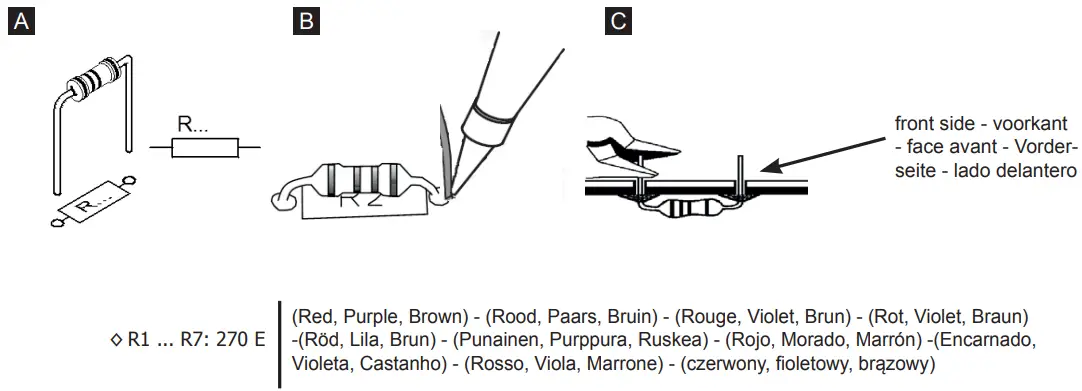

- Resistor
- Cermaic capacitor

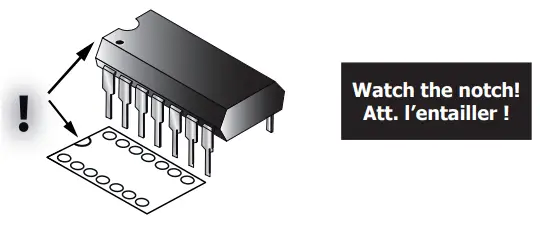

- IC

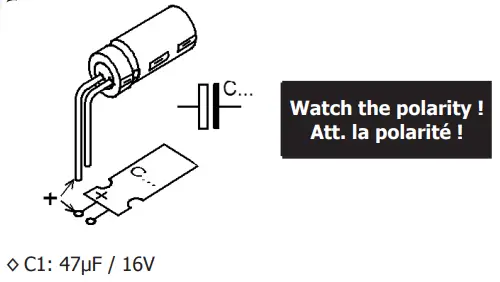

- Capacitor

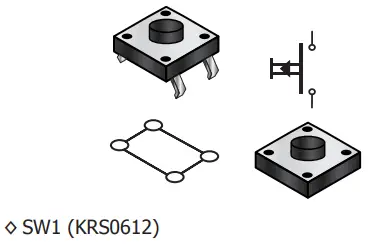

- Switch

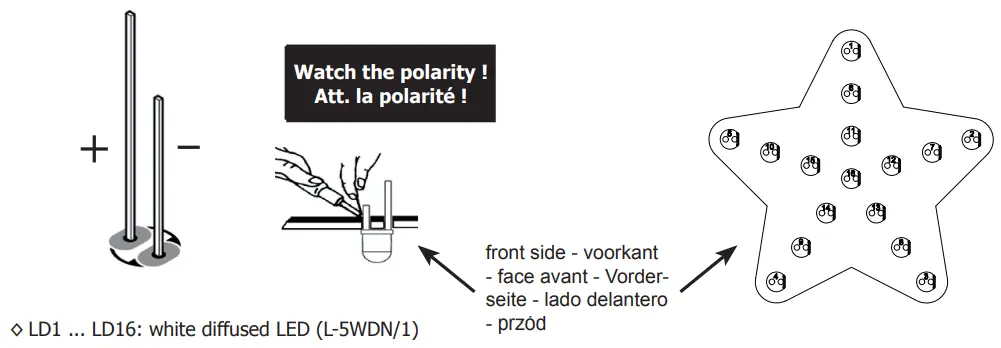

- LED
- Battery holder
- Press switch: ON
- 1 x soft light
- 2 x strong light
- 3 x strong inside
- 4 x strong outside
- 5 x slow fade
- 6 x quick fade
- 7 x slow inside to outside fi ll
- 8 x explode
- 9 x implode
- 10 x fl ashing LEDs #1
- 11 x counter clockwise rotation
- 12 x clockwise rotation
- 13 x spiral in and out
- 14 x fl ashing LEDs #2
- Press long: OFF
- Press switch: ON
