7ryms Minbo Mini Cardioid Condenser Microphone User Guide

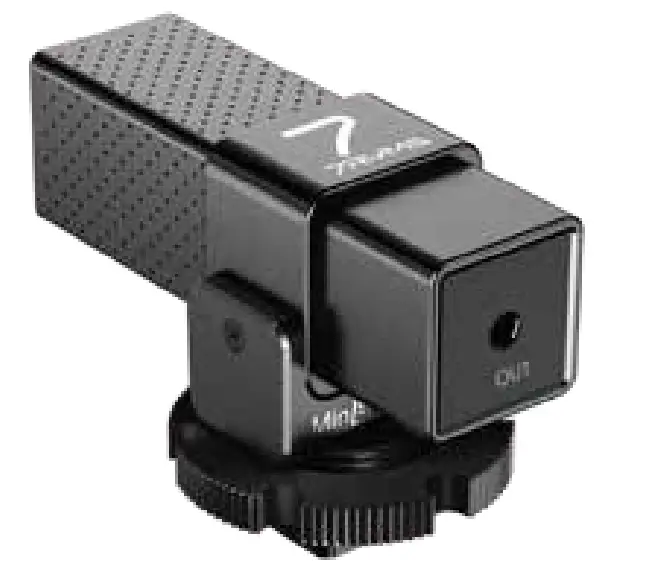

7RYMS MinBo Mini Cardioid Condenser Microphone

Preface

Thank you for purchasing Min Bo Mini

Feature

• Mini and Light, Universal for Camera and Phone
• No Battery Required, Plug and Play
• Built-in Elastic Suspension for Better Shock Absorption
• Full Metal Made for Better Shielding

Tips

When using with USB devices, please equip the relevant audio adapter cable by yourself
When using with smartphones with Android system, Min Bo Mini can work normally in audio mode, it may not be compatible with most of the smartphones in video mode (Then we suggest you to try the 3rd party’s video APP, such as Filmic Pro, Proshot, eel.)
When using with smartphones with iOS system, the mic works well either in audio or video mode

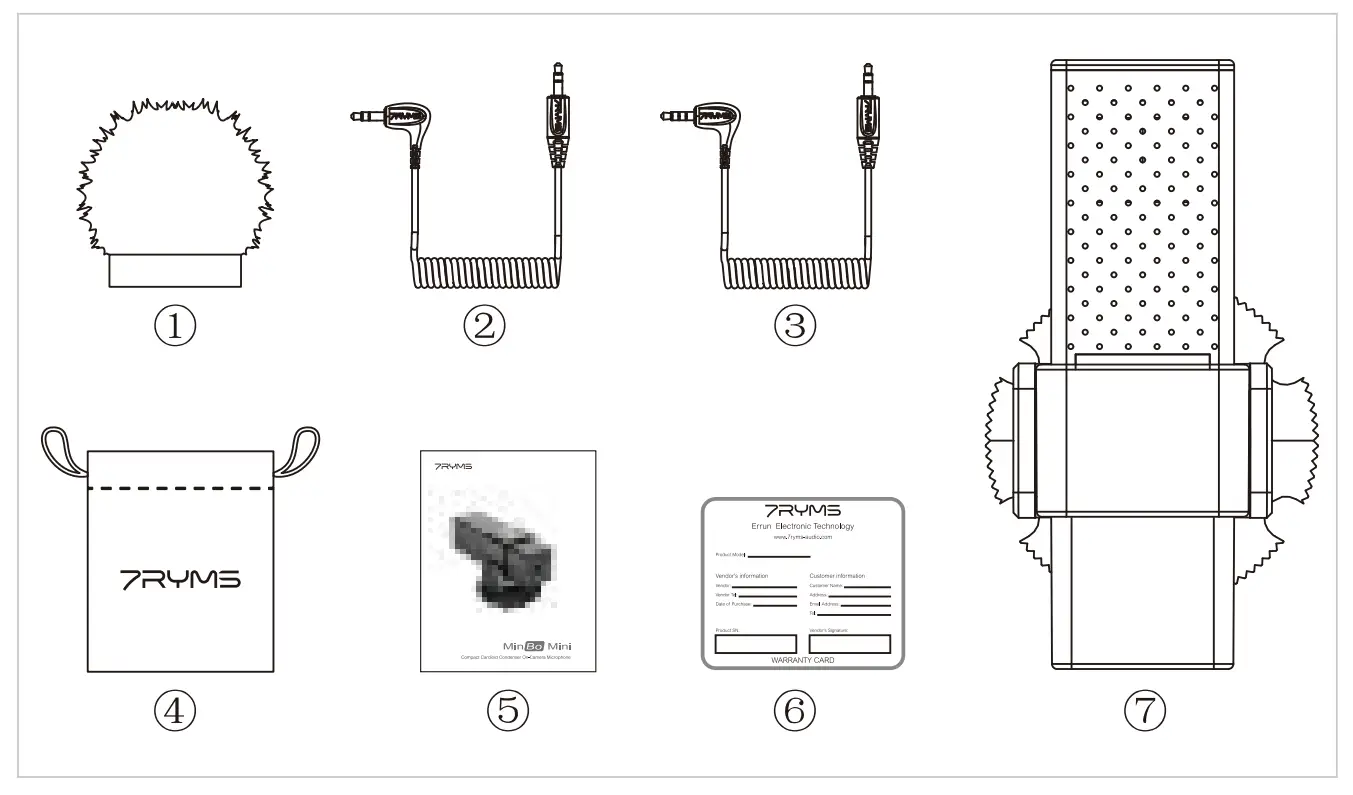

Item Check List

1. Windshield
2. 3.5mm TRS-TRS Audio Cable
3. 3.5mm TRS-TRRS Audio Cable
4. Portable Package
5. User Guide
6. Guarantee Card
7. Microphone

Installation and Operation

Mounting to Camera:

1. MinBo Mini can be mounted to the camera via the built-in cold shoe mount
2. Connect one end of the 3.5mm TRS-TRS audio cable into the MinBo Mini and the other end into the camera

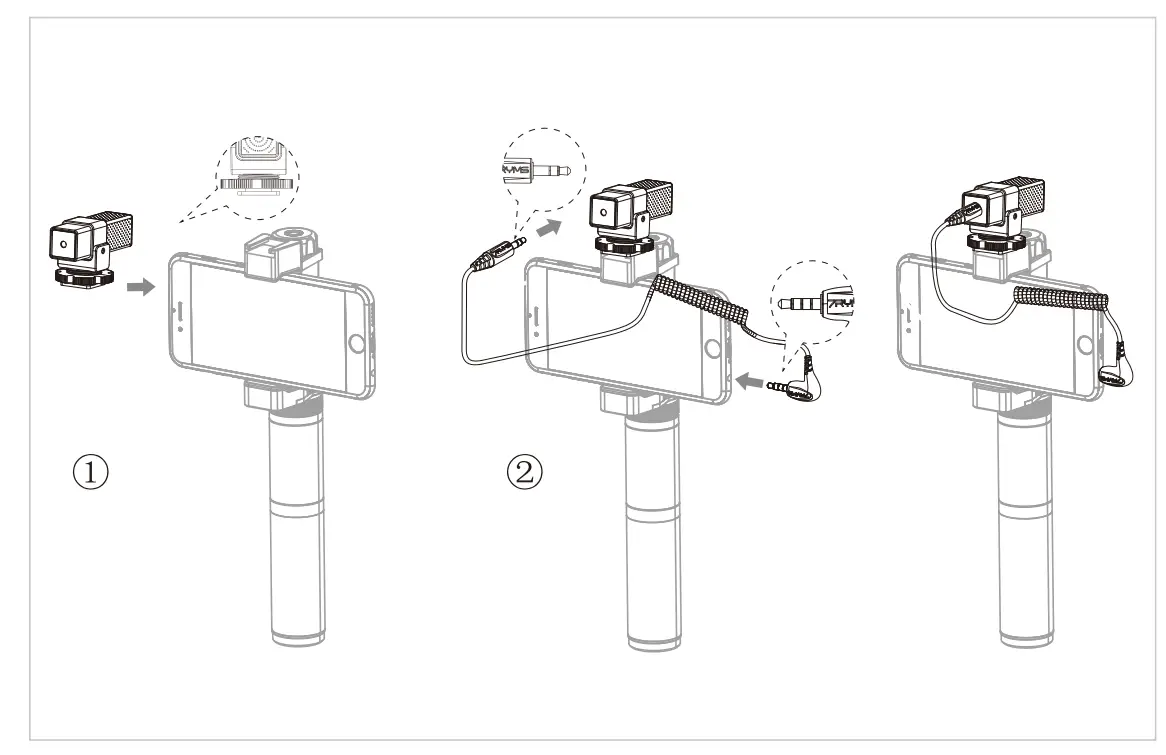

Mounting to Smartphone :

1. 1CD MinBo Mini and smartphone can be mounted to the smartphone holder (Please purchase the smartphone holder by yourself)
2. Connect the one end 3.5mm TRS plug into the MinBo Mini and the other end 3.5mm TRRS plug into the smartphone

Specification

Email: [email protected]
The 7RYMS LOGO is trademark which is registered and owned by Errun Electronic Technology Co., Ltd
