Salus Re600 Signal Amplifier User Guide

SALUS RE600 Signal Amplifier

Introduction

SALUS RE600 is a product that is used as a booster to extend the Zigbee device’s communication range. It can be installed directly within a wall box or surface mounted onto the wall using the supplied wall bracket. This product must be used with the SALUS UGE600/UG600 (purchased separately). The SALUS UGE600/UG600 allows communication with other SALUS Smart Home products using the SALUS Smart Home App.
Product Compliance
This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU (RED) and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. 2405-2480MHz; <14dBm

Safety information

Use in accordance with the regulations. Indoor use only. Keep your device completely dry. Disconnect your device before cleaning it with a dry cloth. This accessory must be fitted by a competent person, and installation must comply with the guidance, standards and regulations applicable to the city, country or state where the product is installed. Failure to comply with the relevant standards could lead to prosecution.

Terminals

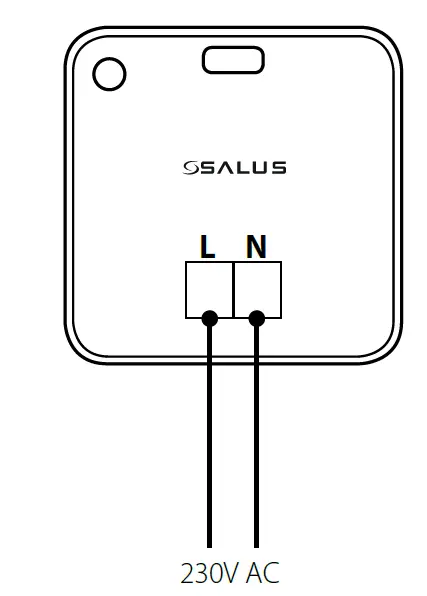

Wiring

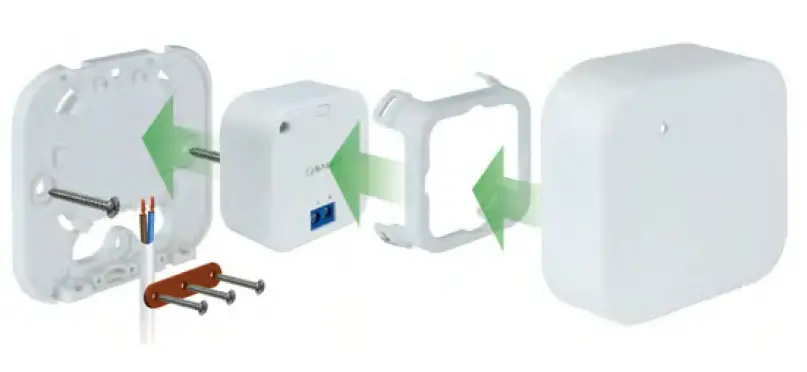

Mounting

Box content

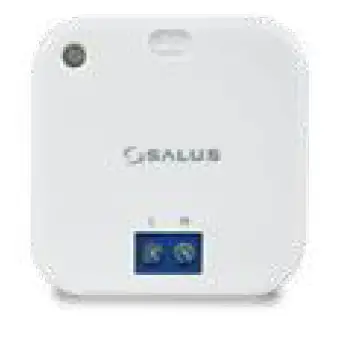

1. Smart repeater
2. Wall mounting bracket

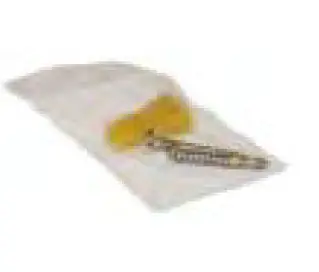

3. Fixing kit
4. Quick Guide

LED Indication

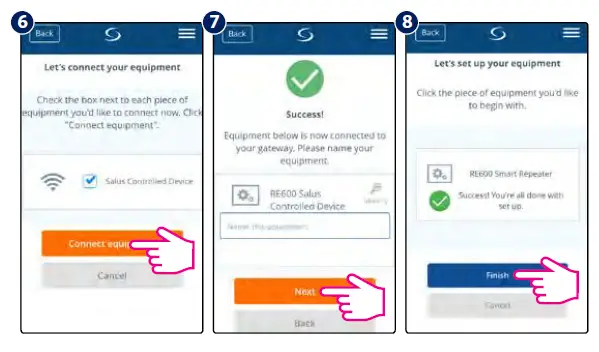

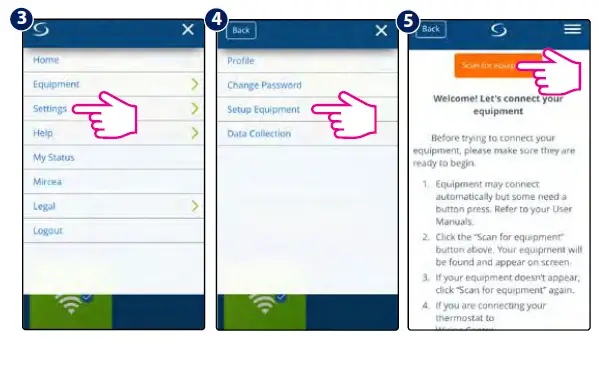

Pairing

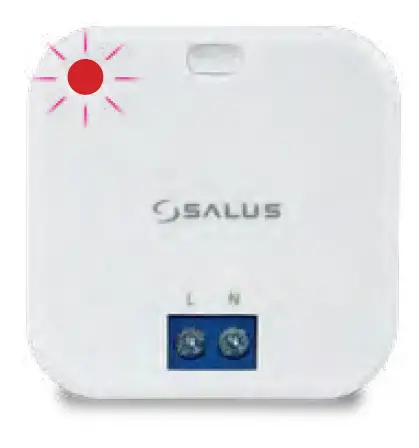

Once powered, the LED will flash red to indicate pairing mode

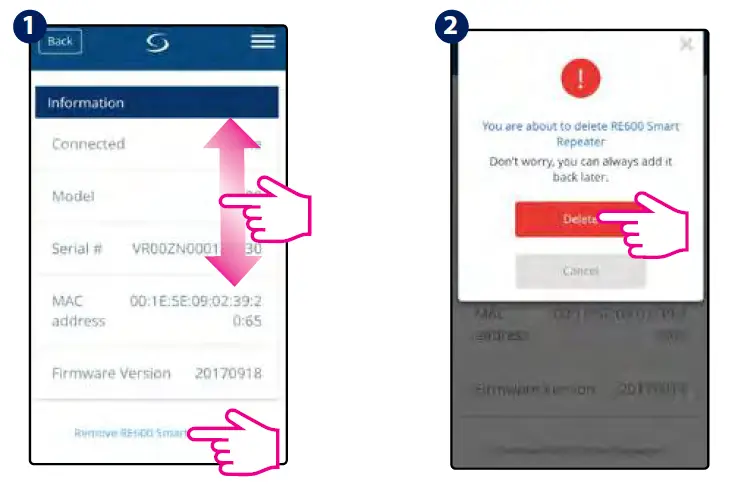

Remove

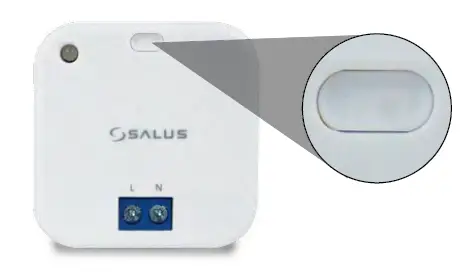

Button operation

1. To identify the device, short press the button.
2. To enter pair mode, press and hold the button for 3 seconds.
3. To do a factory reset, press and hold the button until LED
4. flashes red (max 15 sec).
