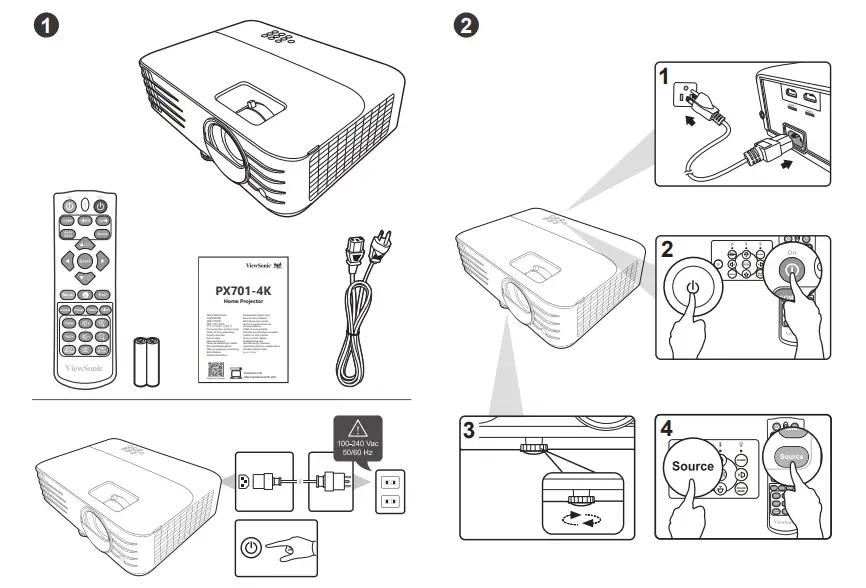

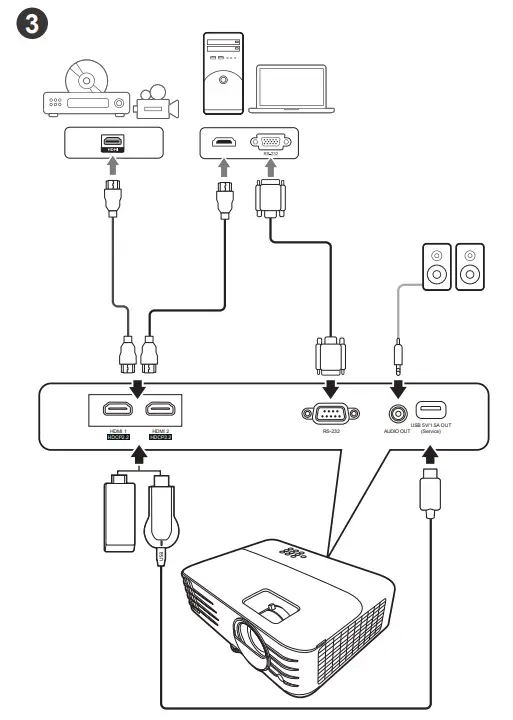

PX701-4K Home Projector

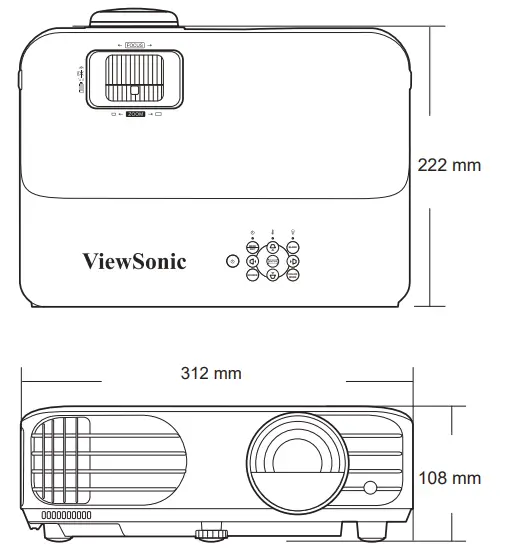

Screws: M4 x 8 (Max. L = 8 mm)
Unit: mm

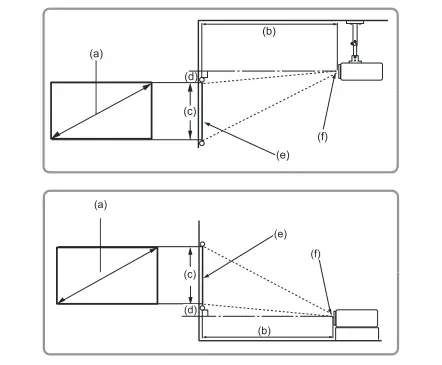

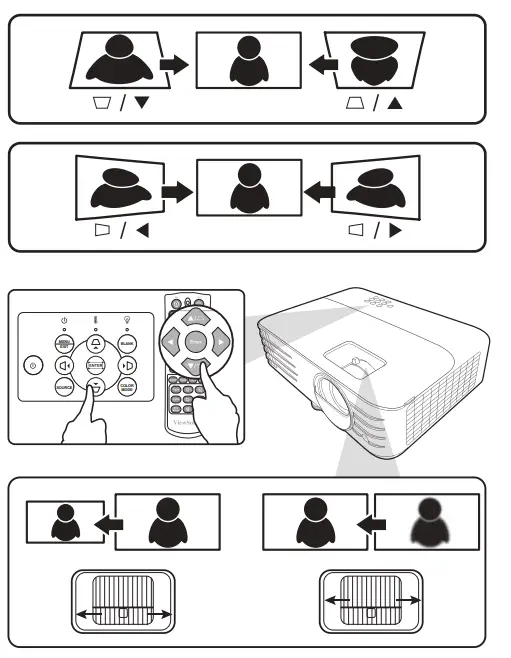

16:9 image on a 16:9 screen

16:9 image on a 4:3 screen

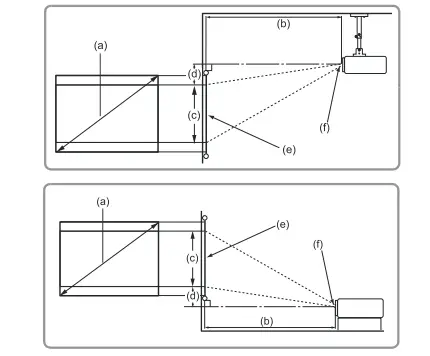

(a) Screen Size		16:9 image on a 16:9 Screen
		(b) Projection distance				(c) Image height		(d) Vertical offset
		min.		max.		(c) Image height		min.		max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
60	1524	79.	1996.	86.	2195.	29.	747.	3.	75.	3.	75.
70	1778	92.	2328.	101.	2561.	34.	872.	3.	87.	3.	87.
80	2032	105.	2661.	115.	2927.	39.	996.	4.	100.	4.	100.
90	2286	118.	2994.	130.	3293.	44.	1121.	4.	112.	4.	112.
100	2540	131.0	3326.	144.	3659.	49.0	1245.	5.	125.	5.	125.
110	2794	144.	3659.	159.	4025.	54.	1370.	5.	137.0	5.	137.0
120	3048	157.	3992.	173.	4391.	59.	1494.	6.	149.	6.	149.
130	3302	170.	4324.	187.	4757.	64.	1619.	6.	162.	6.	162.
140	3556	183.	4657.	202.	5123.	69.	1743.	7.	174.	7.	174.
150	3810	196.	4990.	216.	5488.	74.	1868.	7.	187.	7.	187.
160	4064	210.	5322.	231.	5854.	78.	1992.	8.	199.	8.	199.
170	4318	223.	5655.	245.	6220.	83.	2117.	8.	212.	8.	212.
180	4572	236.	5987.	259.	6586.	88.	2242.	9.	224.	9.	224.
190	4826	249.	6320.0	274.	6952.0	93.	2366.0	9.	237.	9.	237.
200	5080	262.	6653.	288.	7318.	98.	2491.	10.	249.	10.	249.

(a) Screen Size		16:9 image on a 4:3 Screen
		(b) Projection distance				(c) Image height		(d) Vertical offset
		min.		max.		(c) Image height		min.		max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
60	1524	72	1832.	79	2015.	27.0	686.	3.	69.	3.	69.
70	1778	84	2137.	93	2351.	32.	800.	3.	80.0	3.	80.0
80	2032	96	2443.	106	2687.	36.0	914.	4.	91.	4.	91.
90	2286	108	2748.	119	3023.	41.	1029.	4.	103.	4.	103.
100	2540	120	3053.	132	3359.	45.0	1143.0	5.	114.	5.	114.
110	2794	132	3359.	145	3694.	50.	1257.	5.0	126.	5.0	126.
120	3048	144	3664.	159	4030.	54.0	1372.	5.	137.	5.	137.
130	3302	156	3969.	172	4366.0	59.	1486.	6.	149.	6.	149.
140	3556	168	4274.	185	4702.	63.0	1600.	6.	160.0	6.	160.0
150	3810	180	4580.	198	5038.	68.	1715.	7.	172.	7.	172.
160	4064	192	4885.0	212	5374.	72.0	1829.	7.	183.	7.	183.
170	4318	204	5190.	225	5709.	77.	1943.	8.	194.	8.	194.
180	4572	216	5496.	238	6045.	81.0	2057.	8.	206.	8.	206.
190	4826	228	5801.0	251	6381.	86.	2172.	9.	217.	9.	217.
200	5080	240	6106.	264	6717.	90.0	2286.0	9.0	229.	9.0	229.

There is 3% tolerance among these numbers due to optical component variations. It is recommended that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector’s optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.
