ViewSonic X11-4K Smart LED Projector User Guide

Contents hide

1 Package Content

2 Inductions

3 FCC Compliance Statement

4 Documents / Resources

4.1 References

5 Related Posts

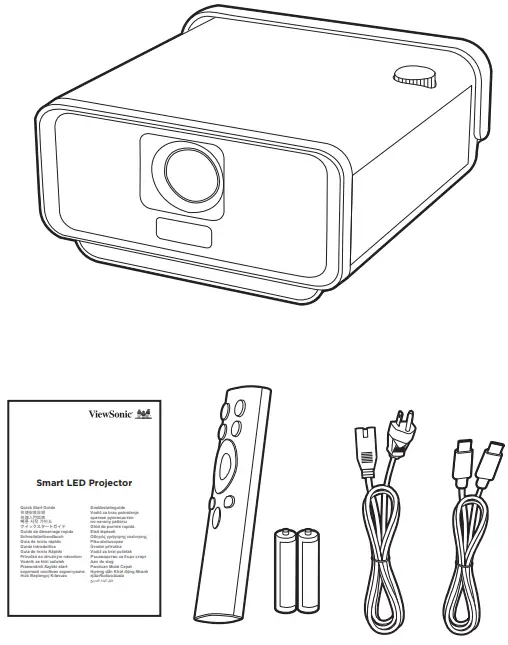

Package Content

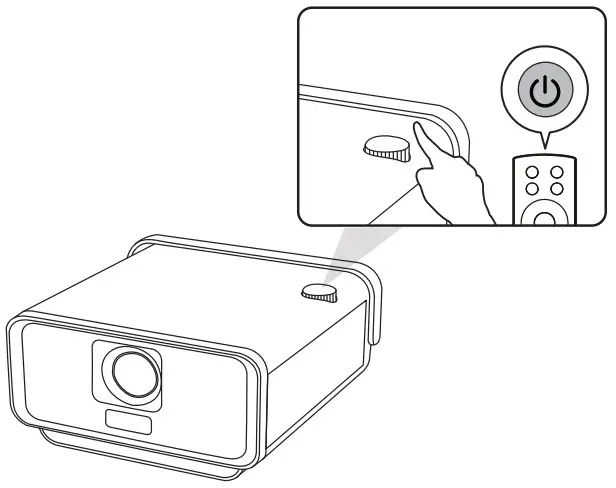

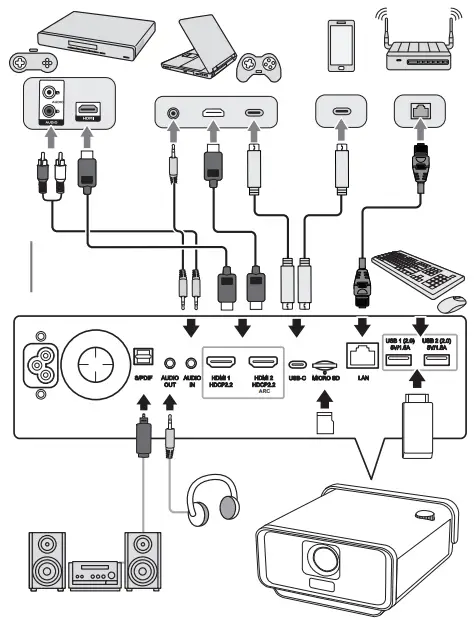

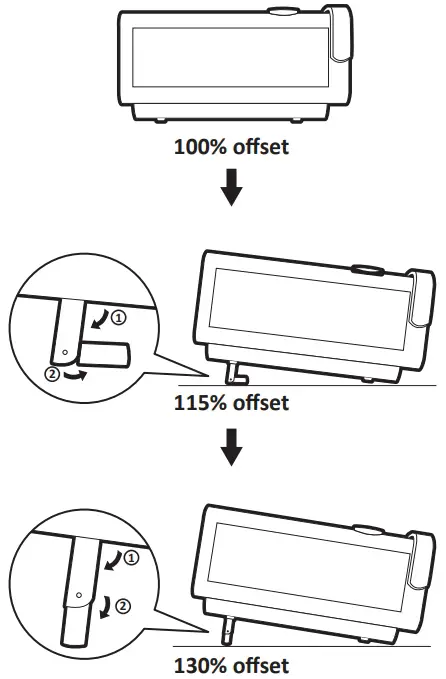

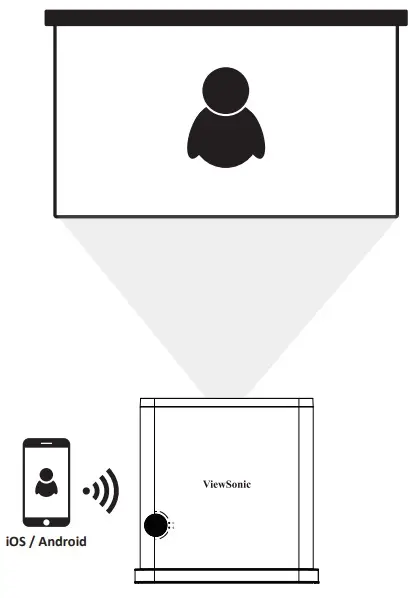

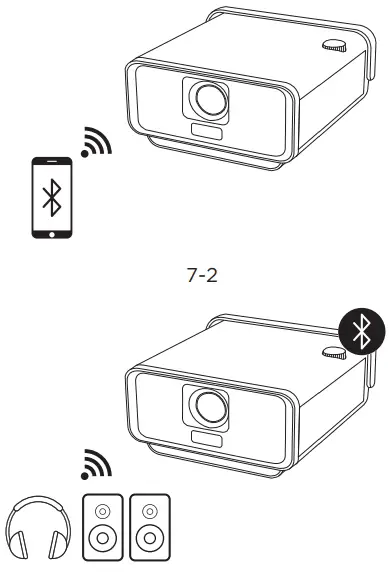

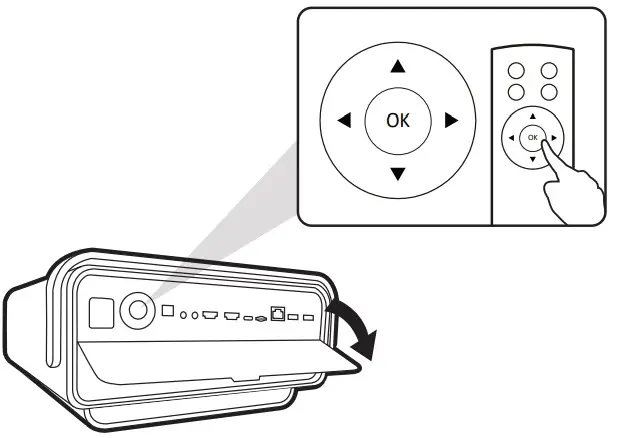

Inductions

(a) Screen Size		16:9 Image on a 16:9 Screen
		(b) Projection distance				(c) Image height		(d) Vertical offset
		min.		max.		(c) Image height		min.		max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
30	762	19.7	501	19.7	501	14.7	374	0.00	0	0.00	0
40	1016	26.7	678	26.7	678	19.6	498	0.00	0	0.00	0
50	1270	33.7	856	33.7	856	24.5	623	0.00	0	0.00	0
60	1524	40.7	1033	40.7	1033	29.4	747	0.00	0	0.00	0
70	1778	47.6	1210	47.6	1210	34.3	872	0.00	0	0.00	0
80	2032	54.6	1387	54.6	1387	39.2	996	0.00	0	0.00	0
90	2286	61.6	1564	61.6	1564	44.1	1121	0.00	0	0.00	0
100	2540	68.5	1741	68.5	1741	49.0	1245	0.00	0	0.00	0
110	2794	75.5	1918	75.5	1918	53.9	1370	0.00	0	0.00	0
120	3048	82.5	2095	82.5	2095	58.8	1494	0.00	0	0.00	0
130	3302	89.5	2272	89.5	2272	63.7	1619	0.00	0	0.00	0
140	3556	96.4	2449	96.4	2449	68.6	1743	0.00	0	0.00	0
150	3810	103.4	2627	103.4	2627	73.5	1868	0.00	0	0.00	0
160	4064	110.4	2804	110.4	2804	78.4	1992	0.00	0	0.00	0
200	5080	138.3	3512	138.3	3512	98.1	2491	0.00	0	0.00	0

It is recommended that if you intend to permanently install the projector, please physically test the projection size and distance using the actual projector in situ before you permanently install it.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)

CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive 2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following website:
https://www.viewsonicglobal.com/public/products_download/safety_compliance/projector/VS18846_CE_DOC.pdf

Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC).

Country/ Region	Website/Phone	Country/ Region	Website/Phone
Asia Paciﬁc & Africa
Australia	www.viewsonic.com/au/	Bangladesh	www.viewsonic.com/bd/
中国 (China)	www.viewsonic.com.cn 4008 988 188	香港 (繁體中文)	www.viewsonic.com/hk/
Hong Kong (English)	www.viewsonic.com/hk-en/	India	www.viewsonic.com/in/
Indonesia	www.viewsonic.com/id/	Israel	www.viewsonic.com/il/
日本 (Japan)	www.viewsonic.com/jp/	한국	www.viewsonic.com/kr/
Malaysia	www.viewsonic.com/my/	Middle East	www.viewsonic.com/me/
Myanmar	www.viewsonic.com/mm/	Nepal	www.viewsonic.com/np/
New Zealand	www.viewsonic.com/nz/	Pakistan	www.viewsonic.com/pk/
Philippines	www.viewsonic.com/ph/	Singapore	www.viewsonic.com/sg/
臺灣 (Taiwan)	www.viewsonic.com/tw/	ประเทศไทย	www.viewsonic.com/th/
Việt Nam	www.viewsonic.com/vn/		www.viewsonic.com/za/
Americas
United States	www.viewsonic.com/us 1-800-688-6688	Canada	www.viewsonic.com/us 1-866-463-4775
	www.viewsonic.com/la
Europe
Europe	www.viewsonic.com/eu/ +49-0821-45057383	France	www.viewsonic.com/fr/
Deutschland	www.viewsonic.com/de/	Қазақстан	www.viewsonic.com/kz/
Россия	www.viewsonic.com/ru/	España	www.viewsonic.com/es/
Türkiye	www.viewsonic.com/tr/	Україна	www.viewsonic.com/ua/
United Kingdom	www.viewsonic.com/uk/
