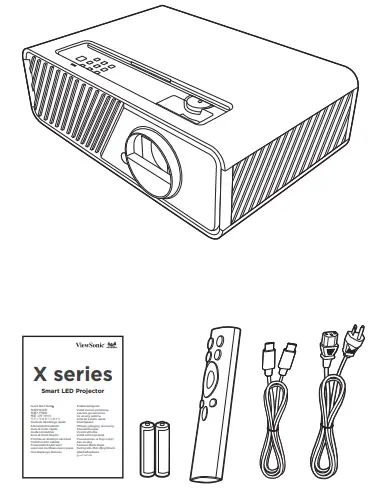

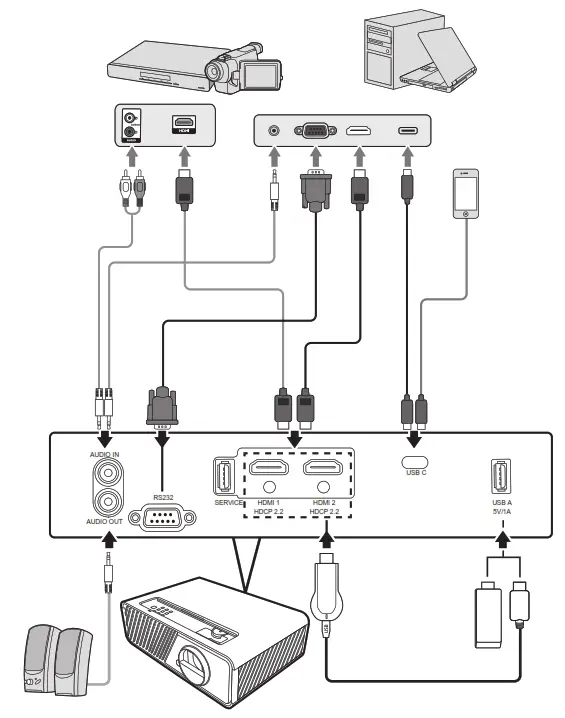

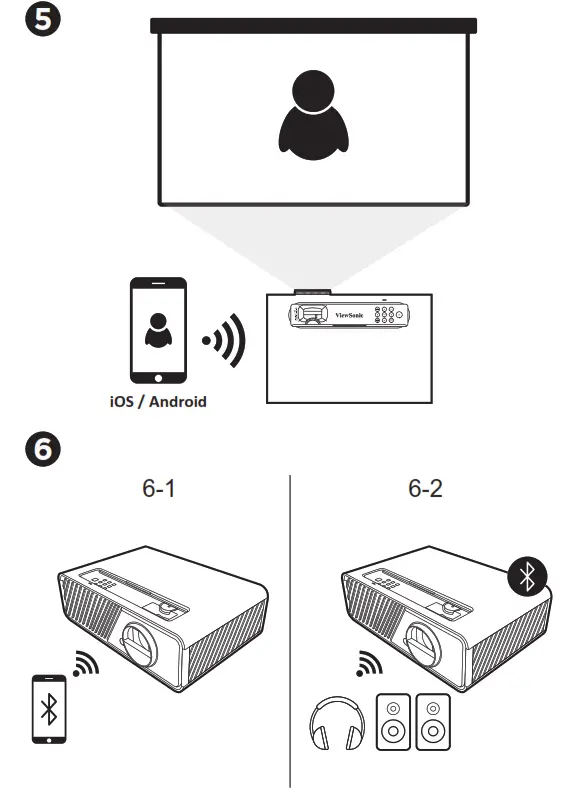

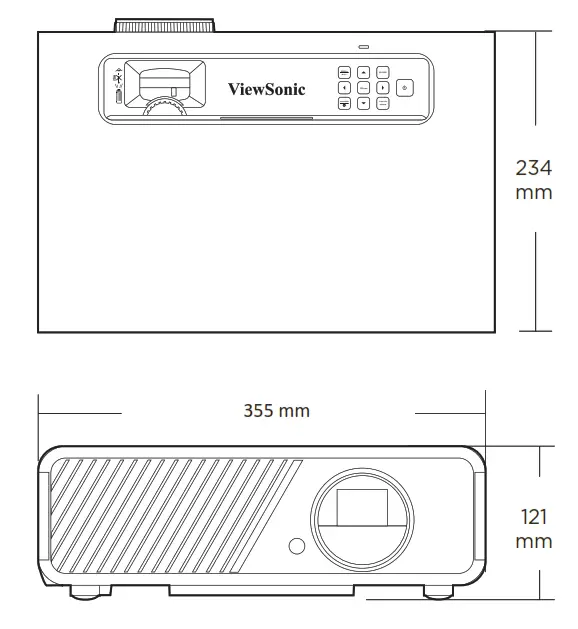

	Mounting Screw: M4 x 8 (Max. L = 8 mm) Unit: mm

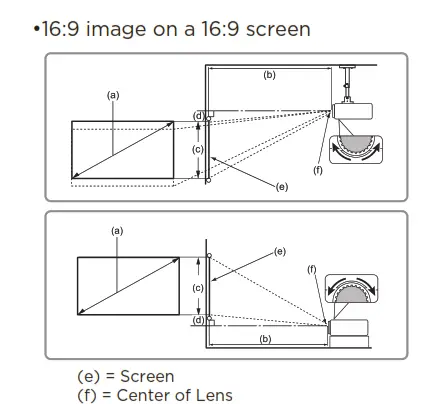

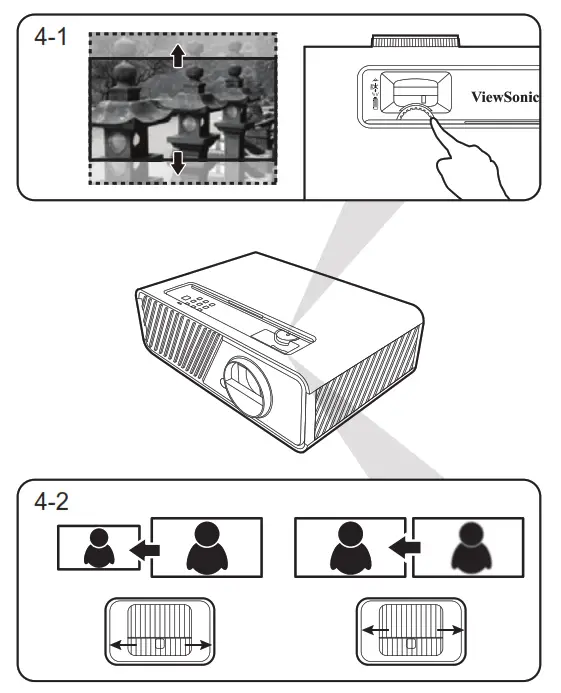

(a) Screen Size		16:9 Image on a 16:9 Screen
		(b) Projection distance				(c) Image height		(d) Vertical offset
		min.		max.		(c) Image height		min.		max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
30	762	30.21	767	39.27	998	14.71	374	1.47	37	4.41	112
60	1524	60.42	1535	78.55	1995	29.42	747	2.94	75	8.82	224
70	1778	70.49	1791	91.64	2328	34.32	872	3.43	87	10.30	262
80	2032	80.56	2046	104.73	2660	39.22	996	3.92	100	11.77	299
90	2286	90.63	2302	117.82	2993	44.12	1121	4.41	112	13.24	336
100	2540	100.70	2558	130.92	3325	49.03	1245	4.90	125	14.71	374
110	2794	110.77	2814	144.01	3658	53.93	1370	5.39	137	16.18	411
120	3048	120.85	3069	157.10	3990	58.83	1494	5.88	149	17.65	448
130	3302	130.92	3325	170.19	4323	63.73	1619	6.37	162	19.12	486
140	3556	140.99	3581	183.28	4655	68.64	1743	6.86	174	20.59	523
150	3810	151.06	3837	196.37	4988	73.54	1868	7.35	187	22.06	560
200	5080	201.41	5116	261.83	6651	98.05	2491	9.81	249	29.42	747
250	6350	251.76	6395	327.29	8313	122.57	3113	12.26	311	36.77	934
300	7620	302.11	7674	392.75	9976	147.08	3736	14.71	374	44.12	1121

It is recommended that if you intend to permanently install the projector, please physically test the projection size and distance using the actual projector in situ before you permanently install it.
