MAZDA SM1262944 Air Filter
2017 Mazda Truck CX-3 AWD L4-2.0L (SKYACTIV-G) Vehicle > Heating and Air Conditioning > Cabin Air Filter / Purifier > Service and Repair > Removal and Replacement
AIR FILTER REMOVAL/INSTALLATION
- Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

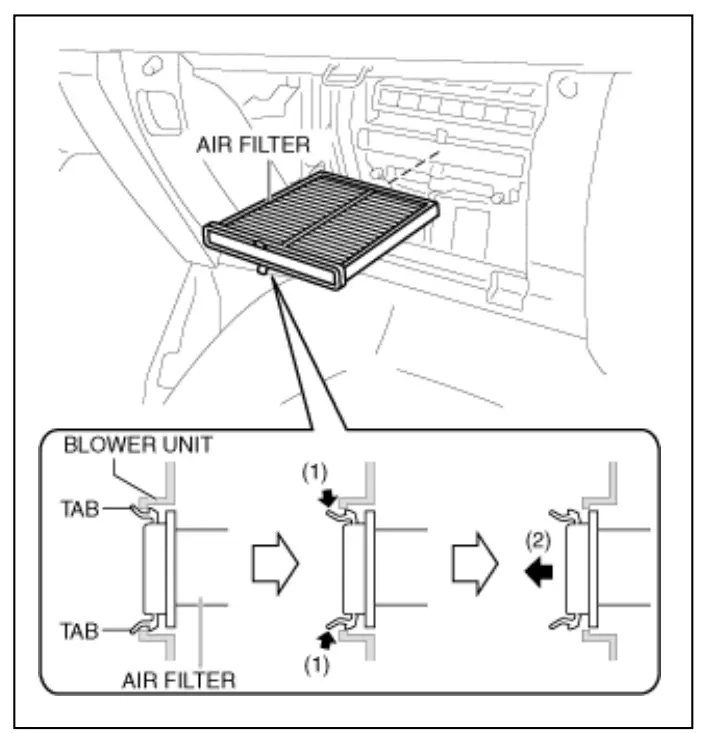

- While pressing the tabs in the direction of arrows (1) shown in the figure, remove the air filter in the direction of arrow (2).
- Install in the reverse order of removal.
