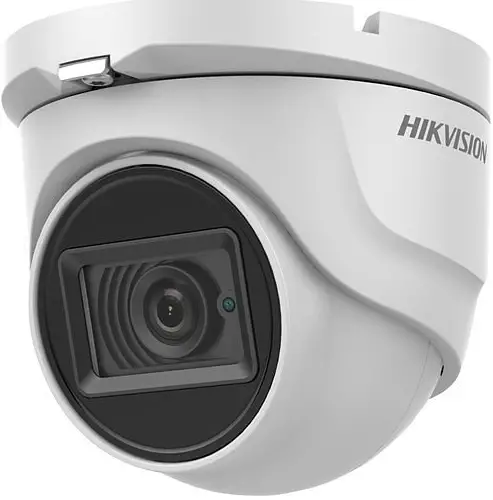

HIKVISION DS-2CE76U7T-ITMF 8 MP Ultra Low Light Camera

Product Information

The DS-2CE76U7T-ITMF is an 8 MP Ultra-Low Light Camera with a CMOS image sensor and a PAL/NTSC signal system. Its key features include a frame rate of [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, a resolution of 8.29 MP, and a minimum illumination level. The camera also has a shutter time, lens with a horizontal field of view, and lens mount. Additionally, it has day and night capabilities with WDR (Wide Dynamic Range) and angle adjustment (bracket). The camera supports various image modes such as AGC and day/night mode, white balance, and AE (Auto Exposure) mode. It also has noise reduction and language functions. The interface includes switchable TVI/AHD/CVI/CVBS and video output. The camera operates in various conditions with a power supply and power consumption level. It also has protection level material and IR range communication. The camera’s dimensions and weight are also provided.

Product Usage Instructions

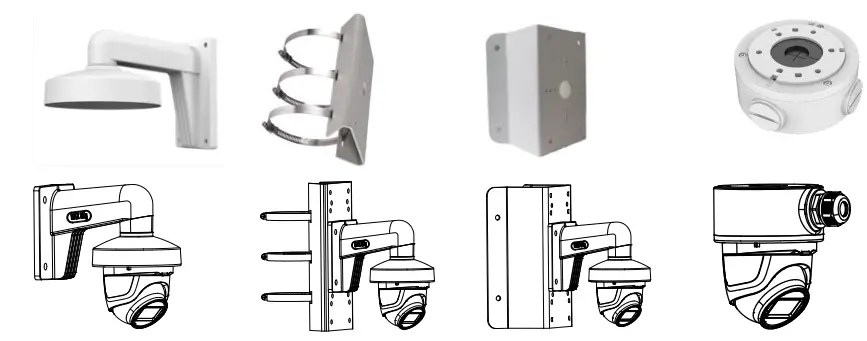

To use the DS-2CE76U7T-ITMF camera, first, connect the camera to a power supply. Next, adjust the angle of the camera using the angle adjustment bracket. Choose the appropriate lens mount based on your needs. The camera supports various image modes such as AGC and day/night mode, white balance, and AE (Auto Exposure) mode. Adjust these modes based on your preferences. The camera also has noise reduction and language functions that can be adjusted as needed. Use the switchable TVI/AHD/CVI/CVBS interface to select the desired video output. The camera operates in various conditions, so ensure it is placed in a suitable location. Additionally, the camera has a protection level material and IR range communication. If needed, use the provided accessories such as the wall mount or vertical pole mount.

Key Feature

8.29 MP, 3840 × 2160 resolution
Ultra-low light
130 dB true WDR, 3D DNR
2.8 mm, 3.6 mm fixed lens
Smart IR, up to 30 m IR distance
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67

Specification

*Camera*
Image Sensor	8.29 MP CMOS
Signal System	PAL/NTSC
Frame Rate	TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: [email protected], 8MP@15fps CVI: [email protected], 8MP@15fps CVBS: P/N
Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Lens	2.8 mm, 3.6 mm fixed lens
Horizontal Field of View	102° (2.8 mm), 79° (3.6 mm)
Lens Mount	M16
Day & Night	ICR
WDR (Wide Dynamic Range)	≥130 dB
Angle Adjustment (Bracket)	Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
*Menu*
Image Mode	STD/HIGH-SAT
AGC	Yes
Day/Night Mode	Auto/Color/BW (Black and White)
White Balance	Auto/Manual
AE (Auto Exposure) Mode	Global/BLC/HLC/WDR
Noise Reduction	3D DNR
Language	English
Functions	Brightness, Sharpness, Mirror, Smart IR
*Interface*
Video Output	Switchable TVI/AHD/CVI/CVBS
*General*
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply	12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 4.2 W
Protection Level	IP67
Material	Metal
IR Range	Up to 30 m
Communication	HIKVISION-C

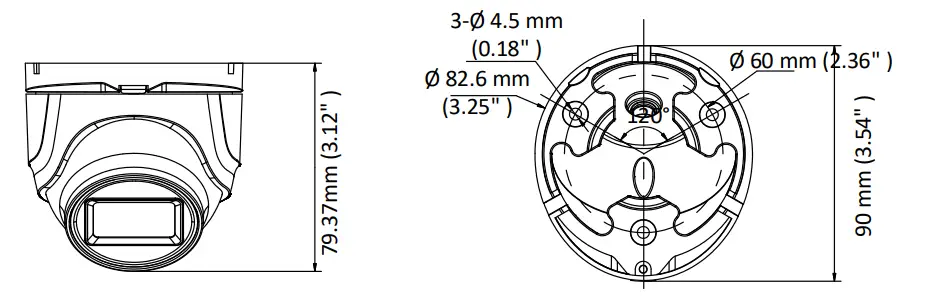

Dimensions	90 mm × 79.37 mm (3.54″ × 3.12″)
Weight	Approx. 310 g (0.68 lb.)
