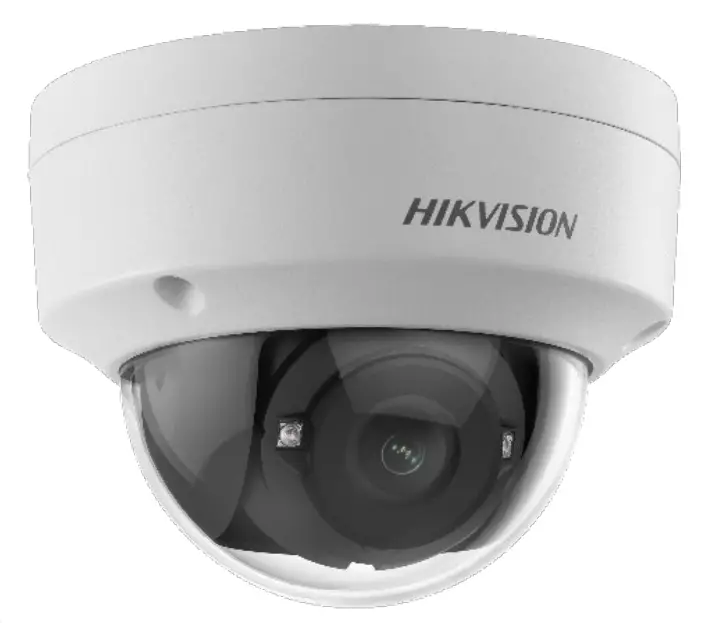

HIKVISION DS-2CE57U7T-VPITF 2.8mm 8 MP Ultra Low Light Camera
Key Feature
- 8.29 MP, 3840 × 2160 resolution
- Ultra-low light
- 130 dB true WDR, 3D DNR
- 2.8 mm fixed lens
- Smart IR, up to 30 m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67, IK10
Specification
| Camera | |
| Image Sensor | 8.29 MP CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: [email protected], 8MP@15fps CVI: [email protected], 8MP@15fps CVBS: P/N |
| Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.8 mm fixed lens |
| Horizontal Field of View | 102° (2.8 mm) |
| Lens Mount | M16 |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | ≥130 dB |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Menu | |
| Image Mode | STD/HIGH-SAT |
| AGC | Yes |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | Global/BLC/HLC/WDR |
| Noise Reduction | 3D DNR |
| Language | English |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 4.2 W |
| Protection Level | IP67, IK10 |
| Material | Metal |
| IR Range | Up to 30 m |
| Communication | HIKVISION-C |
| Dimensions | Φ 110.8 mm × 84.7 mm (Φ 4.4″ × 3.3″) |
| Weight | Approx. 480 g (1.06 lb.) |
Order Model
DS -2CE57U7T -VPITF 2.8mm

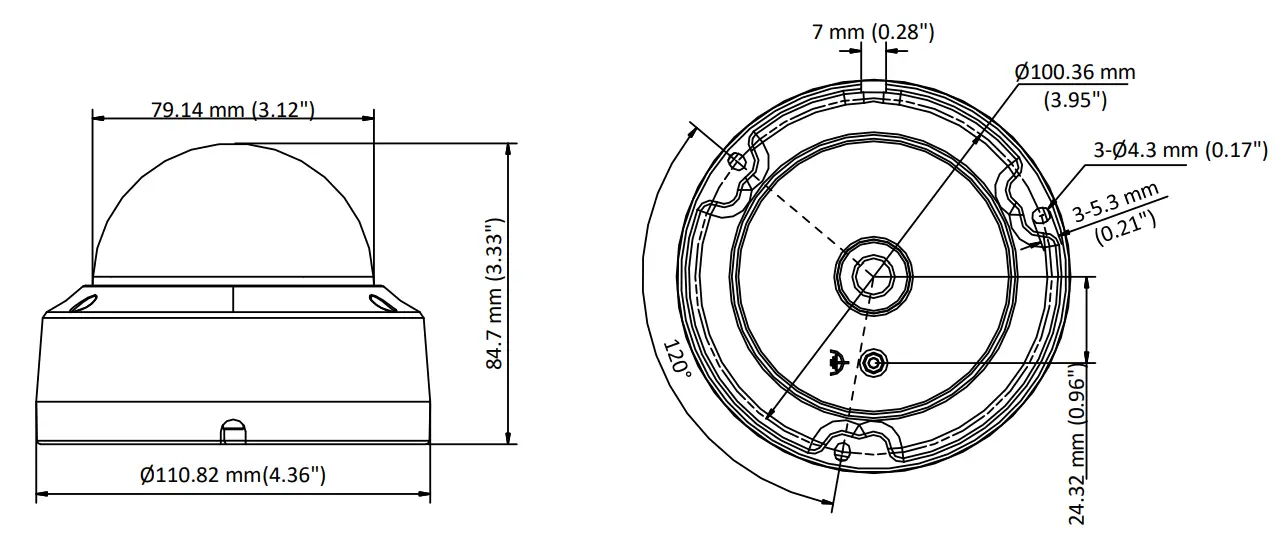

Dimension
Accessory

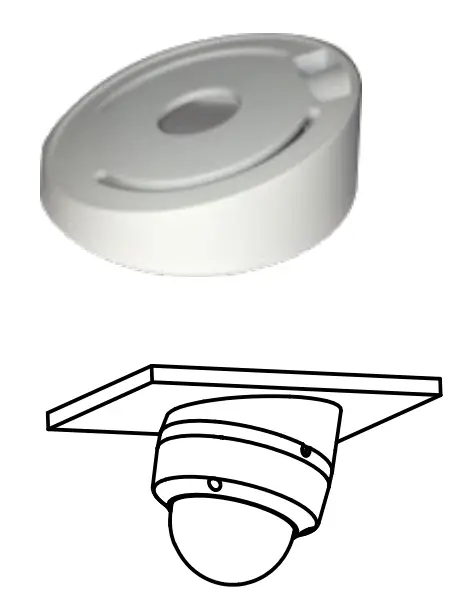

- AB110
Inclined Ceiling Mount

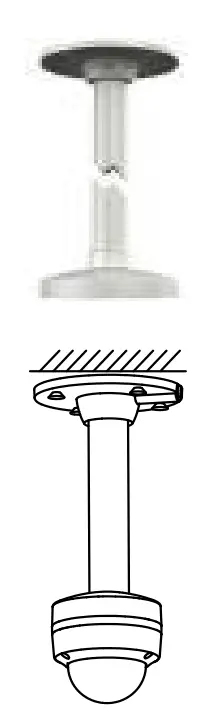

- CPM+PC110
Pendant Mount
- WMS+PC110
Wall Mount

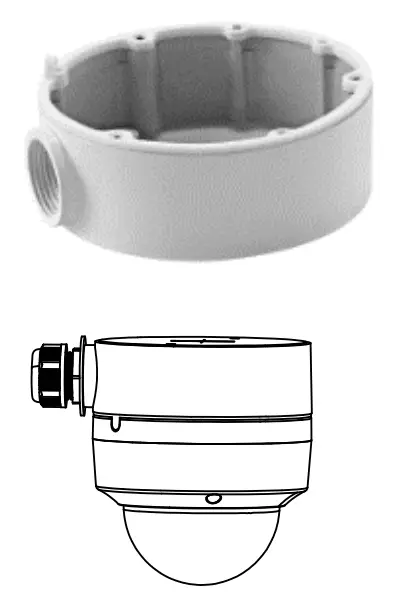

- CB110
Junction Box
- WM110
Wall Mount

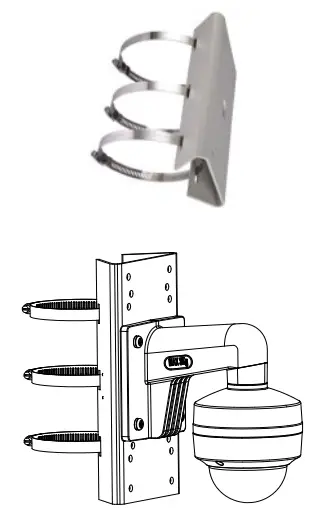

- PM
Vertical Pole Mount
