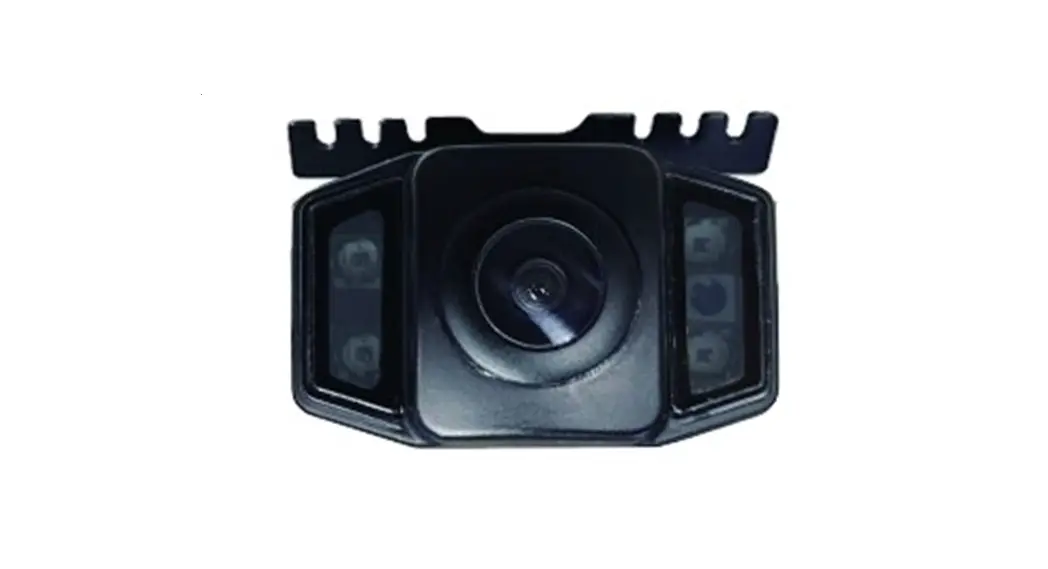

Universal CVBS/AHD Camera
with Butterfly & License Plate Mounts
User Manual
PHDCAM10U
Introduction
Thank you for purchasing your EchoMaster Pro automotive camera.
This manual covers the following part numbers
> PHDCAM10U
EchoMaster Pro cameras are designed to improve safety during driving by providing high quality images of surrounding areas and obstacles in the vicinity of the vehicle. They will also improve vehicle maneuvering capability by displaying blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of this manual before fitting or using your EchoMaster Pro Camera. Choose a suitable mounting place dependent on the application. Ensure that there are no wiring harnesses or hose/pipes located behind this panel before drilling.
Key Features
- Selectable Analog High Definition (AHD) or Standard (CVBS) Resolution
- Multiple Mounting Options
- 1/3” CMOS Sensor
- 4 IR LEDs
- 170 Degree Viewing Angle
- IP67 Water/Debris-Proof rating
- Selectable Mirroring & Parking Lines
Box Contents
- Camera
- Wiring Harness
- Mounting Brackets
- Manual

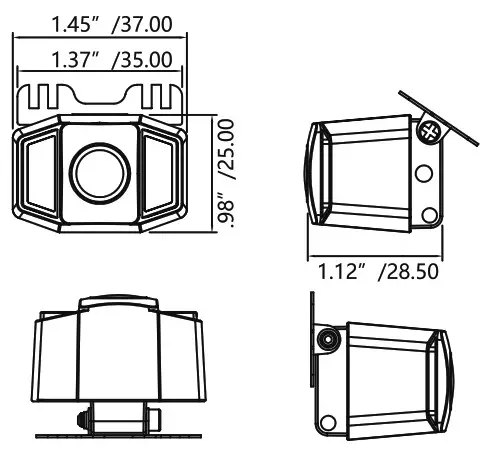

Dimensions (in/mm)
Specifications
| PHDCAM10U | |
| Sensor Type | CMOS |
| LEDs | 4 |
| Illumination | 0 LUX |
| Viewing Angle | 170° |
| Mirror Image | Selectable |
| Parking Lines | Selectable |
| Water/Debris-Proof | IP67 |
| Audio | NO |
| Power Supply | DC9-16V |
| Current | <150mA |
| Working Temperature | -20°C – 65°C |
| Dimensions (in/mm) | D1.45/37xW.98/25xH1.12/28.5 |
| System | CVBS / AHD |
| TV Lines (CVBS/AHD) | 480 / 720 |
| Resolution (CVBS/AHD) | 648 x 488 / 1280 x 720 |

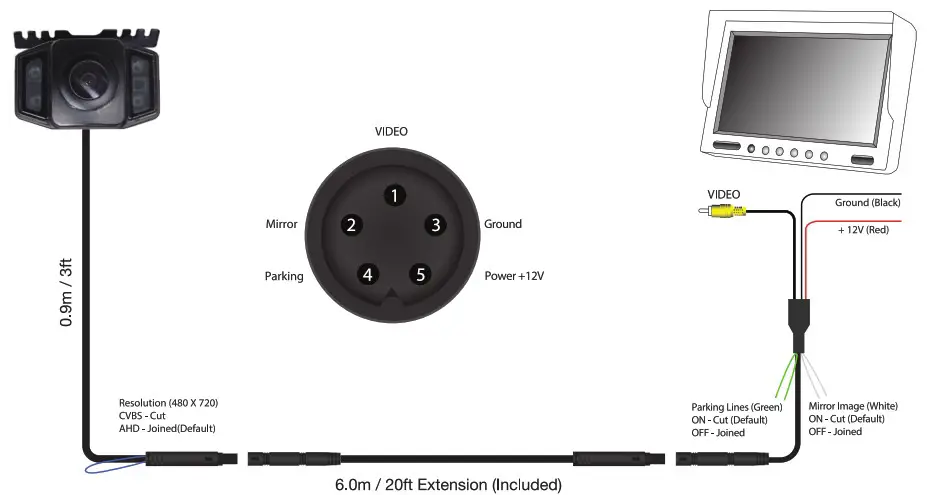

Wiring Diagram & Pin Out
15500 Lightwave Drive, Suite 202 Clearwater, Florida 33760
email – [email protected] (US)
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
