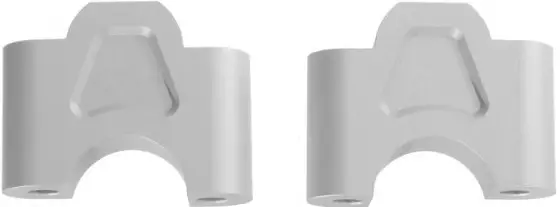

TOURATECH 01-045-5257-0 Handlebar Riser Instruction Manual
We recommend having the accessory parts fitted by a specialist workshop.
Caution
Note
Warning
Liquid
Torque
Template
2 Person
original MotorradteilINSTRUCTION
- The maximum load on luggage racks is 5 kg! Luggage racks Zega Pro TC is 10 kg!
- If other original accessories or aftermarket accessories are used, ensure clearance1 fitment and do not come into contact with other parts!
- We recommend cutting protective film to size and applying it to impact areas that are likely to be chipped by stones.
- Work on the brake system and suspension should always be carried out by a specialist workshop.
- If modifications are made to the fairing, stem, handlebar, fairing parts, etc., ensure that electrical wiring, brake lines, accelerator and clutch cables are refitted correctly. Check clearance, both sides with full steering lock .
- Always disconnect the battery when working on the electrics!
- For special tightening torques refer to your specialist workshop!
- Please take into account that fitting panniers, crash bars, foot peg lowering kits (rider and pillion), Kickstand enlargement plate, front spoilers and engine guards may restrict the bike’s lean angle!
- Check and if necessary tighten all bolted connections after 50 km.
- Touratech accepts no liability for incorrectly fitted parts and resulting material damage or personal injury!
- These instructions are written based on our current state of knowledge. Information is provided without any guarantee as to its accuracy. Subject to technical modifications.
- The order of assembly steps must be followed.
- Please observe applicable road vehicle (construction and use) regulations as well as EC/ECE Directives and applicable laws in your country.
- If parts are fitted which require inspection and/or approval after fitting, take your vehicle to a testing station immediately and have the vehicle papers updated.Standard tightening torques in Nm for bolted connections with strength class 8.8.
- Apply conventional lubricant to stainless steel bolts prior to assembly.
- PDF fitting instructions also can be downloaded from the Touratech webshop.

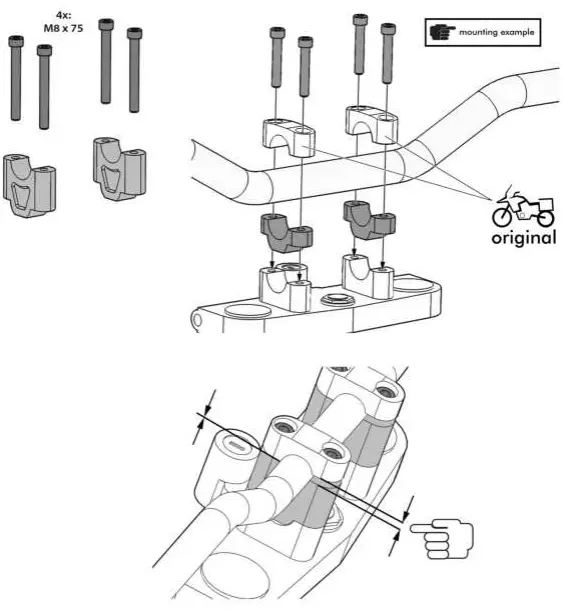

Mounting Instruction
