5501.615 Component shelf 2 U, static installation
User Manual
DK 5501.615 Component shelf 2 U, static installation
State: 10/10/2022 (Source: rittal.com/com-en

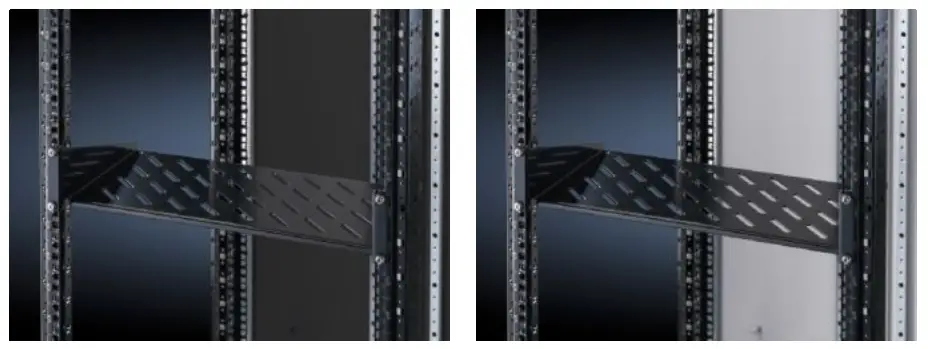

Component shelf 2 U, static installation for attachment to the 482.6 mm (19″) system punchings.
Load capacity: 25 kg.
Features
| Model No. | DK 5501.615 |
| Design | 482.6 mm (19″) |
| Product description | For mounting between 482.6 mm (19″) mounting angles. |
| Material | Sheet steel |
| Surface finish | Spray-finished |
| Colour | RAL 9005 |
| Load capacity | 25 kg surface load, static |
| Note | Not suitable for combination with telescopic slides. |
| Dimensions | Width: 482.6 mm Depth: 250 mm |
| Packs of | 1 pc(s). |
| Weight/pack | 2.5 kg |
| Copper weight (kg per piece) | 0 |
| Customs tariff number | 73269098 |
| EAN | 4.02818E+12 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
