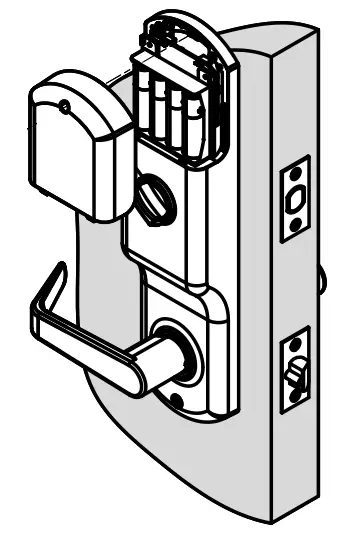

vizpin VZ-9708 Smart Lock CLS Powered Interconnected Lock

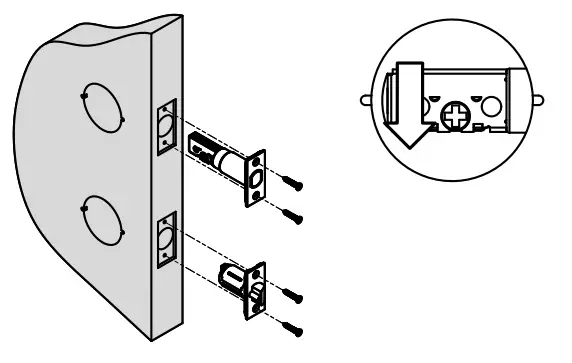

PREPARE DOOR & INSTALL LATCHES
- Prepare door according to template
- Install deadbolt latch in top hole with cross slot for tailpiece toward bottom
- Install beveled latch on bottom with bevel toward door frame
- Secure with (4) combo screws

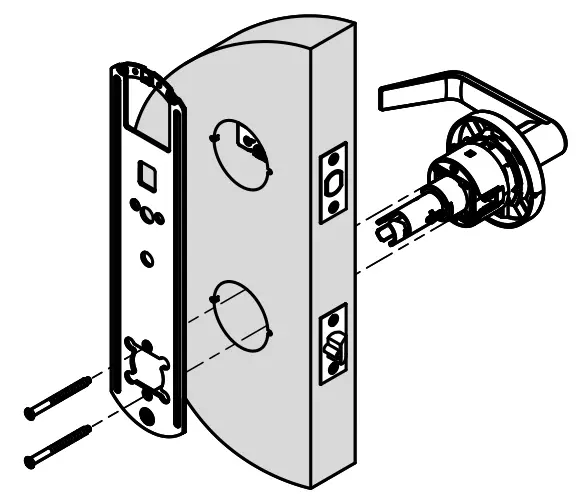

INSTALL LOCK ASSEMBLY
- Install lock chassis into bottom hole making sure to properly engage lock body into latch bolt
- Install inside mounting plate and secure with (2) screws
INSTALL CYLINDER ASSEMBLY
- Install cylinder assembly from outside of door
- If extended, retract deadbolt
Left Hand Door – Rotate tailpiece clockwise until it stops in the vertical orientation
Right Hand Door – Rotate tailpiece counterclockwise until it stops in the vertical orientation

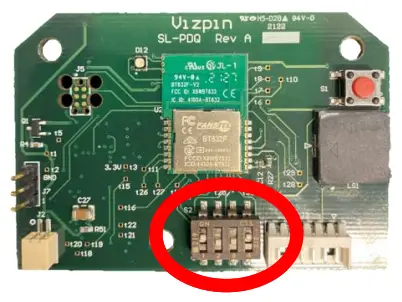

CONFIGURE BOARD FOR DOOR HANDING
- For right hand doors, have the dip switch set to 8
- For left hand doors, have the dip switch set to 9

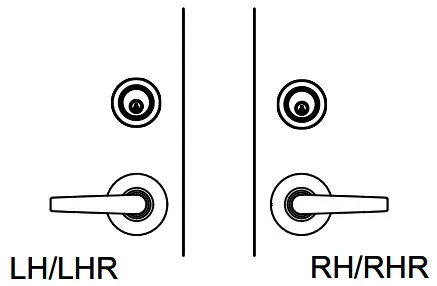

LEFT HAND
RIGHT HAND

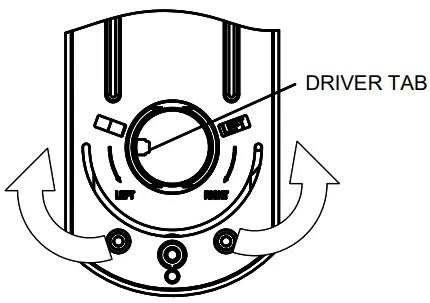

PREPARE INSIDE ESCUTCHEON
- Rotate lever driver tab to correct orientation as shown
OUTSIDE TRIM

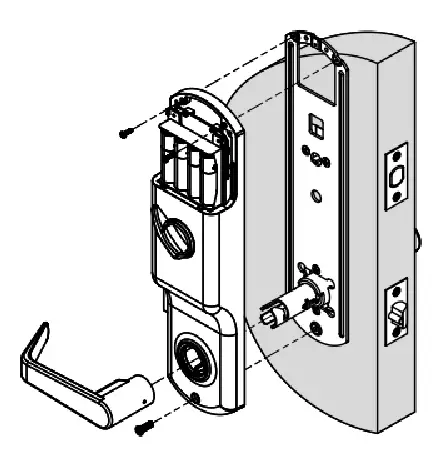

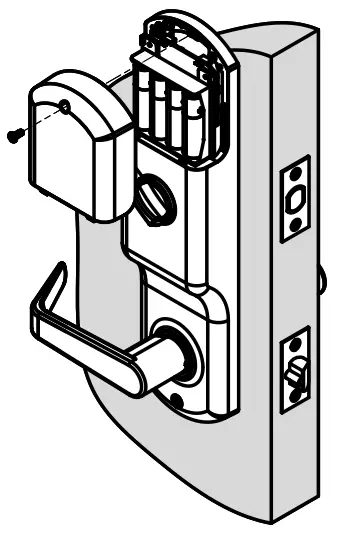

INSTALL INSIDE ESCUTCHEON AND LEVER
- Rotate thumb turn away from leading edge of door
- Install inside escutcheon
- Secure escutcheon using two screws
- Install lever
- Install batteries and battery cover
CUSTOMER SUPPORT
For Mechanical Concerns:
Phone: 866-874-3662
www.pdqlocks.com
For Electrical Concerns:
Email: [email protected]
www.VIZpin.com
