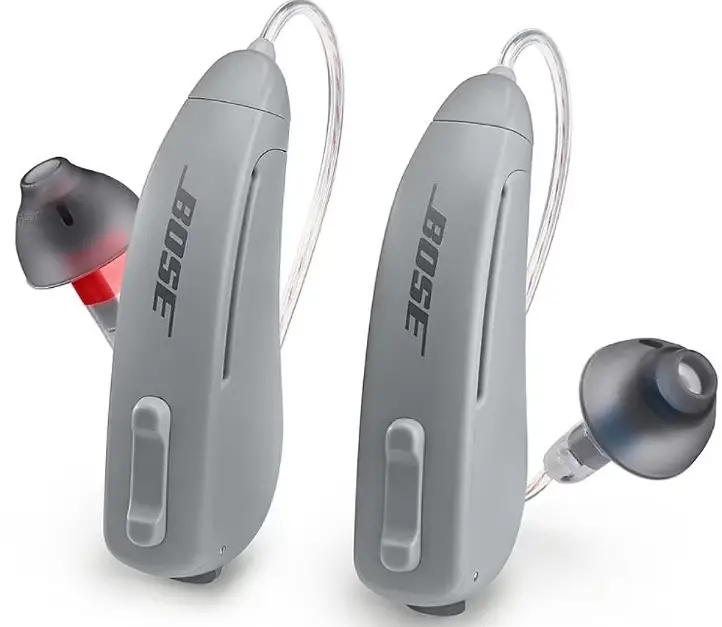

Lexie B1 Receiver Wire

Lexie B1 Receiver Wire

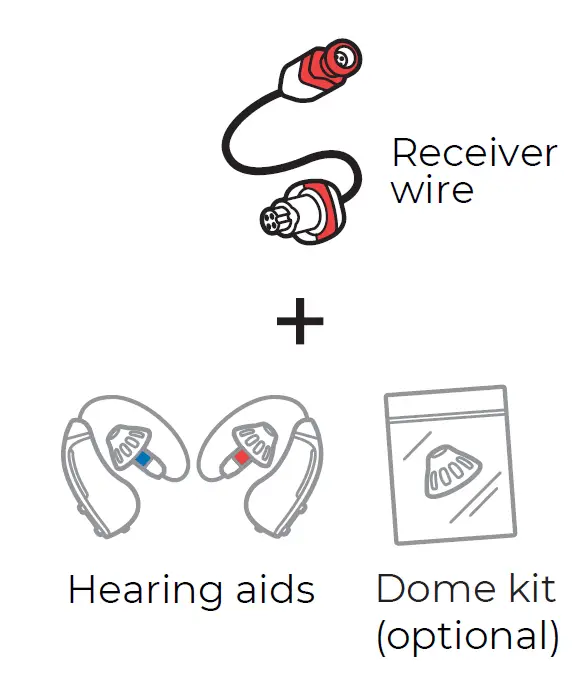

What you need:

Lexie B1 Receiver Wire 1Lexie B1 Receiver Wire 1

Step 1:

Lexie B1 Receiver Wire 2

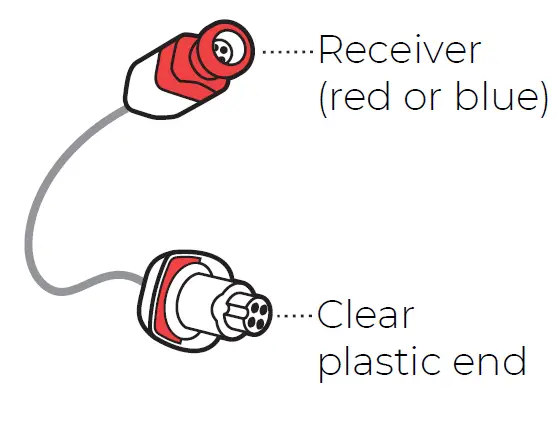

Identify the two ends of the receiver wire.

Step 2:

Lexie B1 Receiver Wire 3

On the hearing aids, find the old receiver wire that has the same color speaker as the new cable (red or blue).

Step 3:

Lexie B1 Receiver Wire 4

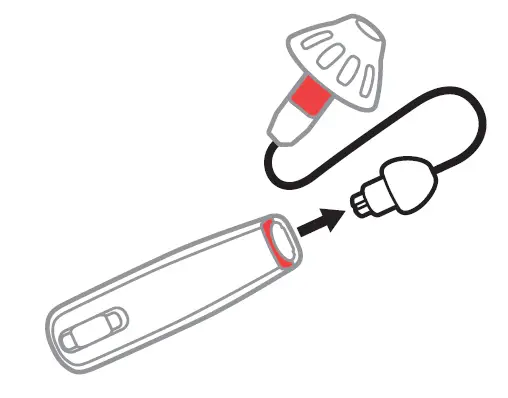

Firmly pull the old receiver wire until it detaches from the hearing aid body.
Note: You may have to pull harder than expected.

Step 4:

Lexie B1 Receiver Wire 5

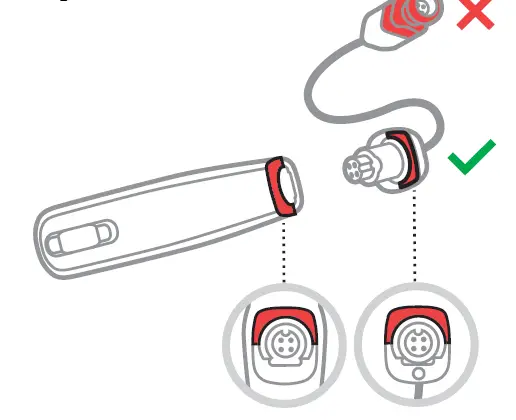

Align the clear plastic end of the new receiver wire with the port on the hearing aid body so the red or blue marks line up.

Step 5:

Lexie B1 Receiver Wire 6

Insert the receiver wire into the hearing aid body until you hear or feel a click.

Step 6:

Lexie B1 Receiver Wire 7

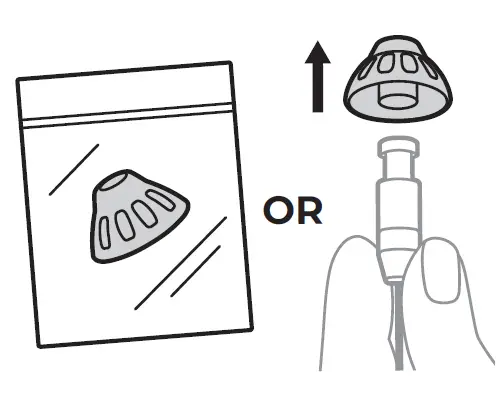

Get a dome for the new receiver wire. Either pick your size from a dome kit (available separately) or firmly pull the dome off of the old receiver wire.

Step 7:

Lexie B1 Receiver Wire 8

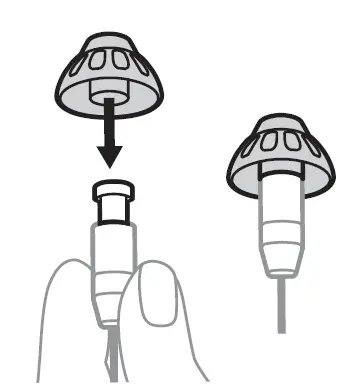

On the new receiver wire, align the opening of the dome with the receiver and slide the dome onto the receiver.

Step 8:

Lexie B1 Receiver Wire 9

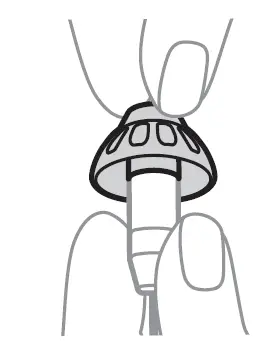

Gently tug the dome to make sure it’s securely fastened.
Note: This helps prevent the dome from falling off in your ear canal.
