Dwyer DSGT-101-C0S Series DSGT Digital Indicating Transmitter

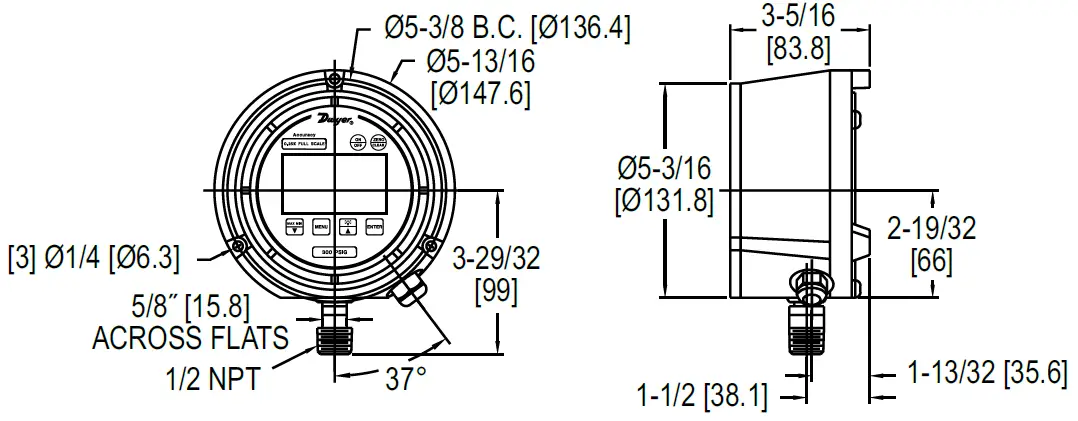

Dimension

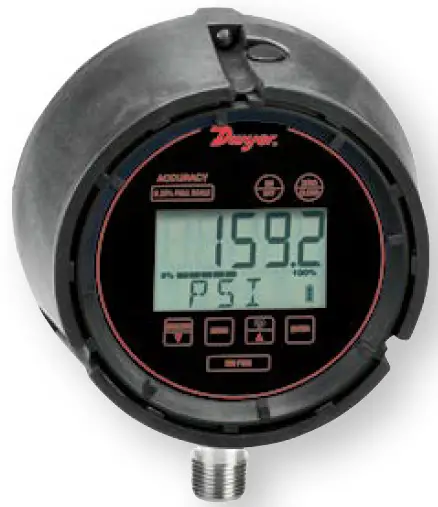

The Series DSGT Digital Indicating Transmitter is a versatile multi-function process gage that features an excellent 0.25% full-scale accuracy. This all-in-one digital gage package is designed to reduce installation costs, and instrument cost, and save space where an application requires a gage, transmitter, and switches. The Series DSGT gage comes standard with a loop-powered 4-20 mA transmitter. The Series DSGT gage is enclosed in a durable fiberglass reinforced thermoplastic case that is designed to meet NEMA 4 IP56 requirements. The gage features a menu-driven display for easy customization. User-selectable features include 12 engineering units of measure, password-protected calibration and disable functions, as well as an adjustable bar graph and update/dampening rates.
BENEFITS/FEATURES
- The all-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches
- Durable fiberglass reinforced thermoplastic case to meet NEMA 4 (IP56) requirements supports use in harsh environments
- Password-protected calibration and disable functions helps to insure no errors by untrained personnel.
APPLICATIONS
- Process
- Outdoor
- Compressor
- OEM

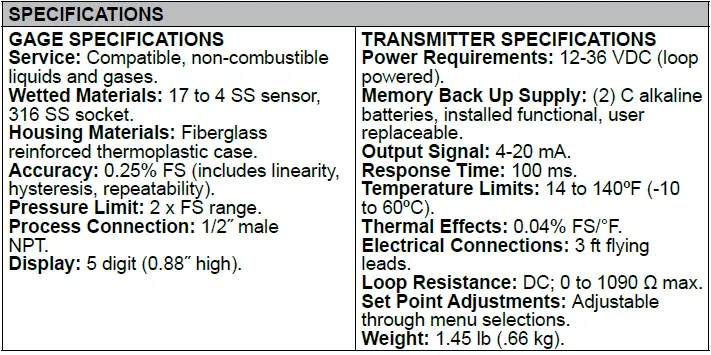

SPECIFICATIONS
| OPTIONS | |
| To order, add suffix: | Description |
| NISTCAL-PT1 | NIST traceable calibration certificate |
MODEL CHART
| MODEL CHART | |||||||
| Model | Range (psig) | Model | Range (psig) | Model | Range (psig) | Model | Range (psig) |
| DSGT-101-C0S DSGT-102-C0S DSGT-104-C0S DSGT-105-C0S | 30˝ Hg-0 to 15 30˝ Hg-0 to 30 0 to 30 0 to 60 | DSGT-106-C0S DSGT-107-C0S DSGT-108-C0S | 0 to 100 0 to 160 0 to 200 | DSGT-109-C0S DSGT-110-C0S DSGT-112-C0S | 0 to 300 0 to 600 0 to 1000 | DSGT-116-C0S DSGT-117-C0S DSGT-118-C0S | 0 to 5000 0 to 8000 0 to 10000 |
DWYER INSTRUMENTS, LLC
