Instructions
Thule Approach
901010, 901011, 901012,
901013, 901014, 901015, 901016
THULE.COM

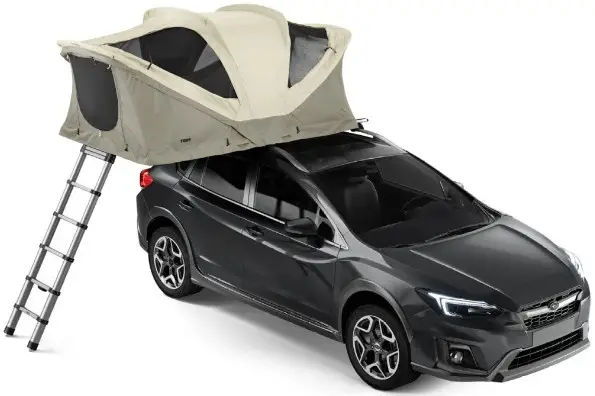

901010 Roof Mounted Tent for Car

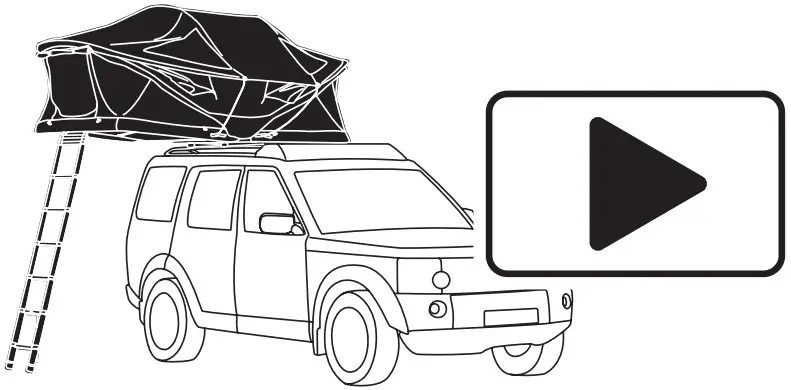

Video Instructions
Thule Approach
https://vimeo.com/701988776/1dae6e516d
Bring Your Life
thule.com
Roof mounted tent for car load carrier.
 |  |

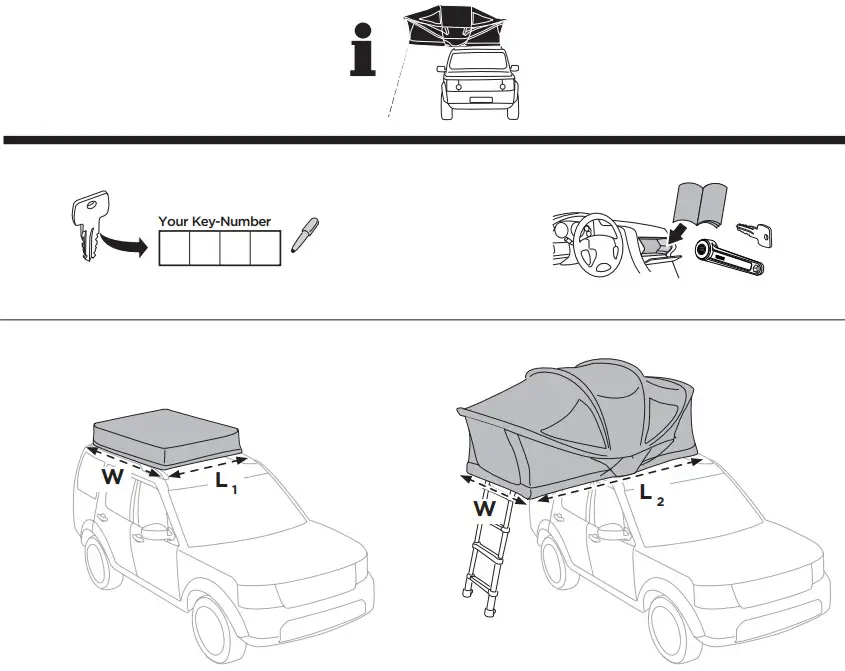

 Tent Weight | Dimensions Closed L1 x W | Dimensions Open L2 x W | |
 Thule Approach S901010, 901011 | 50 kg 110 lbs | 110 x 123 cm 43 x 48 in | 209 x 123 cm 82 x 48 in |
 Thule Approach M901012, 901013, 901014 | 58 kg 128 lbs | 124 x 143 cm 49 x 56 in | 240 x 143 cm 95 x 56 in |
 Thule Approach L901015, 901016 | 68 kg 150 lbs | 124 x 184 cm 47 x 72 in | 240 x 184 cm 95 x 72 in |
| Video Instructions Thule Approach |  |  www.thule.com |

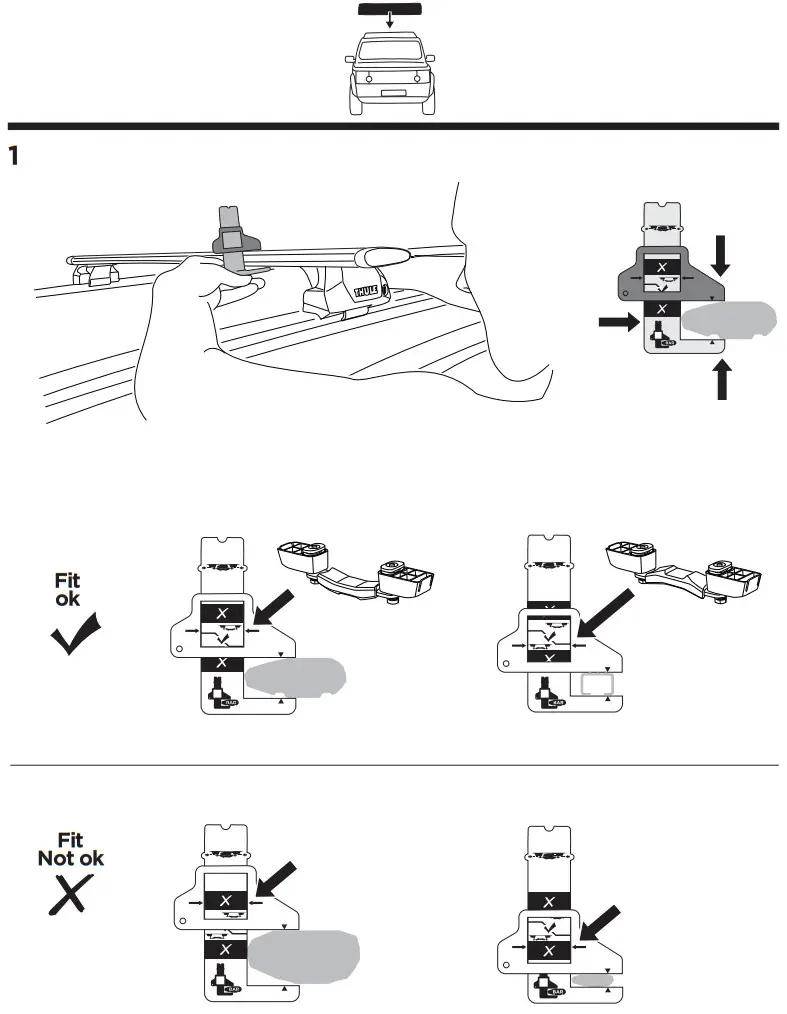

| Video Instructions Thule Mounting Bracket |  |  www.thule.com |
Weight capacity of tent in use with people inside the tent (static weight) can exceed the dynamic (driving) weight capacity. The tent’s static weight capacity is 300 kg/ 600 lbs

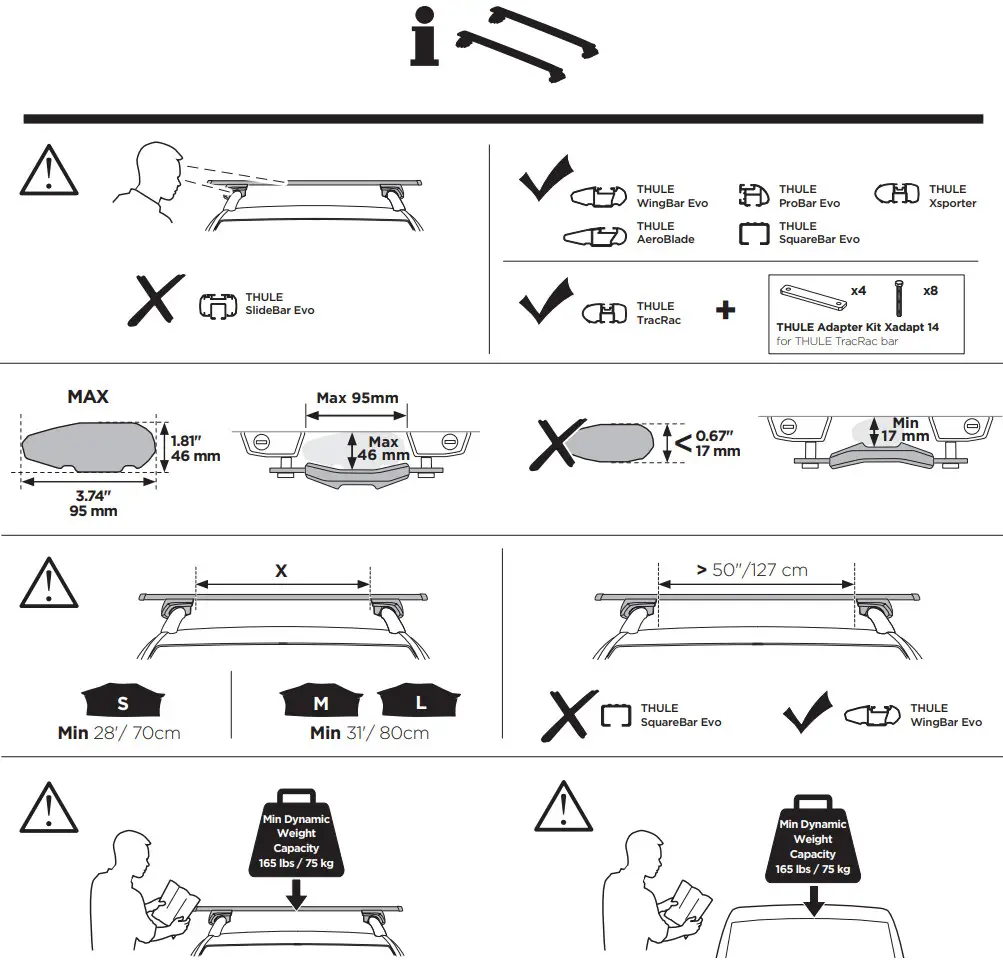

Recommended roof rack weight capacities can be found on Thule.com. Check your vehicle instruction booklet for information on recommended roof load. Thule only recommends Thule roof rack systems for Thule rooftop tents. Do not use Thule tents with a vehicle´s factory installed crossbars, they are often too flexible. For other brand roof rack applications check vehicle and roof rack owner’s manual for maximum weight capacity. Thule cannot guarantee any compatibility of other roof racks and/or their load capabilities.

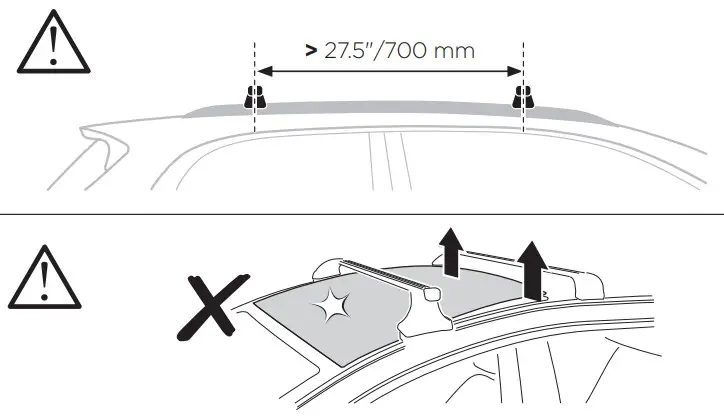

DO NOT use Thule rooftop tents with vehicles with glass roofs.
Cars with sunroofs may be used but the opening function should not be used.
Do not use Thule Tents with any type of Thule Clamp or Thule Edge style roof racks as the high static weight may cause damage to your car´s roof.

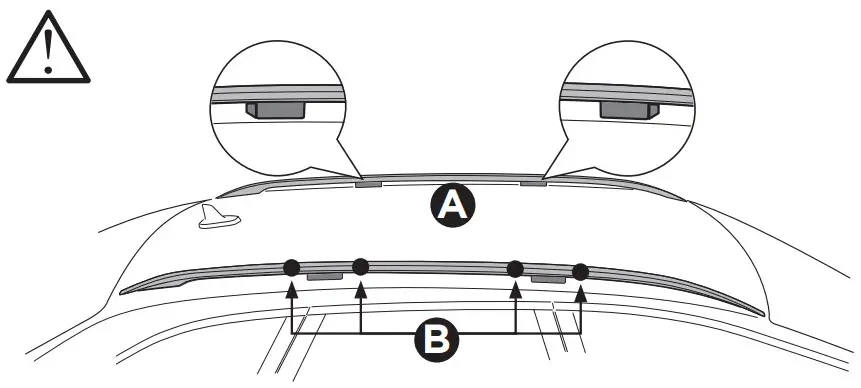

When mounting Thule rooftop tents to vehicles with raised side rails:
A. Make sure raised rails are structurally supported.
B. Make sure crossbars are positioned next to supports of raised rails.
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |

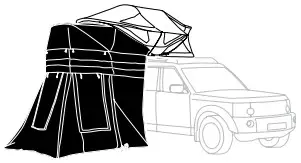

| Thule Approach Awning 901851, 901852, 901853 | Thule Approach Annex 901019, 901020, 901021 |
 |  |
| Thule Tent Table 901900 | Thule Anti-Condensation Mat 901883, 901884, 901885 |
 |  |
| ThuleRooftop Tent Organizer 901850 | Thule Approach Fitted Sheet 901854, 901855, 901856 |
 |  |
| Thule Levelers 307617 | Thule Approach Insulator 901857, 901858, 9018859 |
 |  |

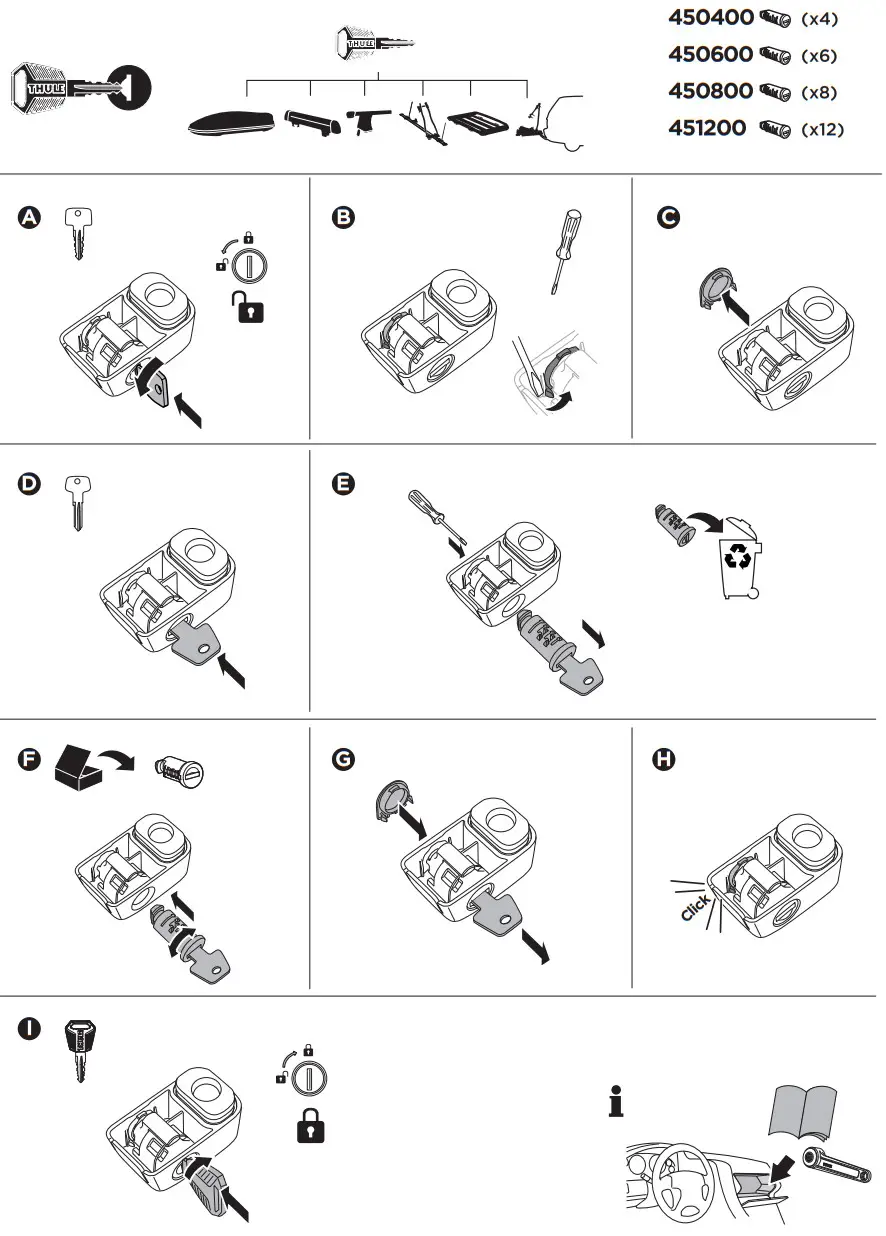

Thule One-Key System
Thule Sweden AB, Borggatan 5
335 73 Hillerstorp, SWEDEN
[email protected]
© Thule Group Aug. 2023.
All rights reserved.
www.thule.com
5561421001
