THULE 901010 Approach Roof Tent Instructions

Contents hide

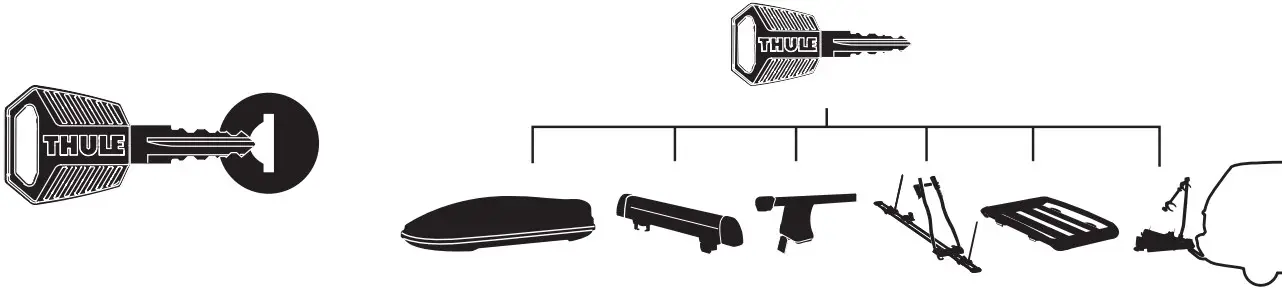

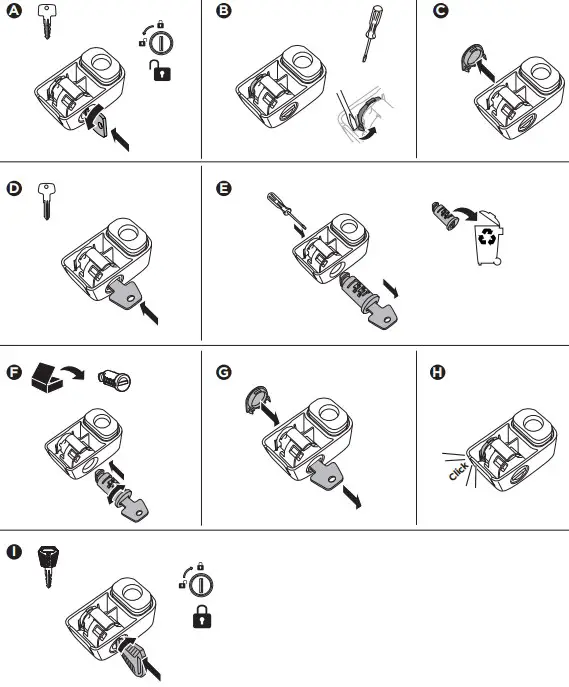

5 Thule One-Key System

6 Documents / Resources

6.1 References

7 Related Posts

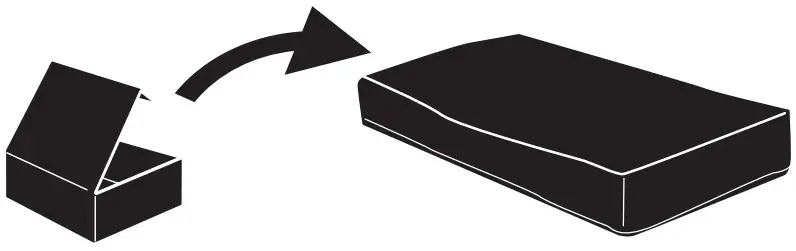

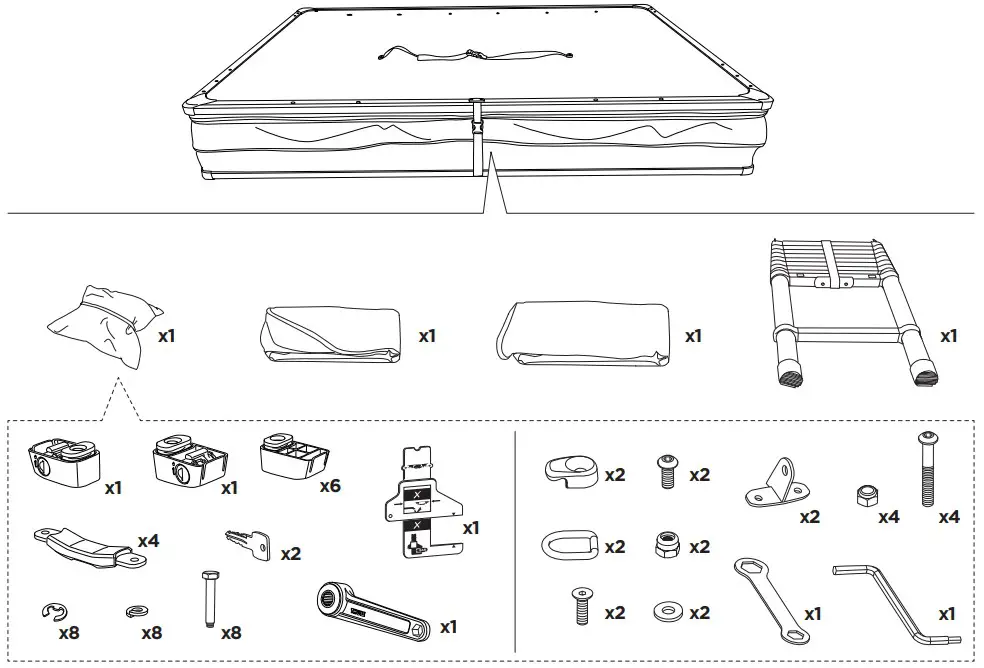

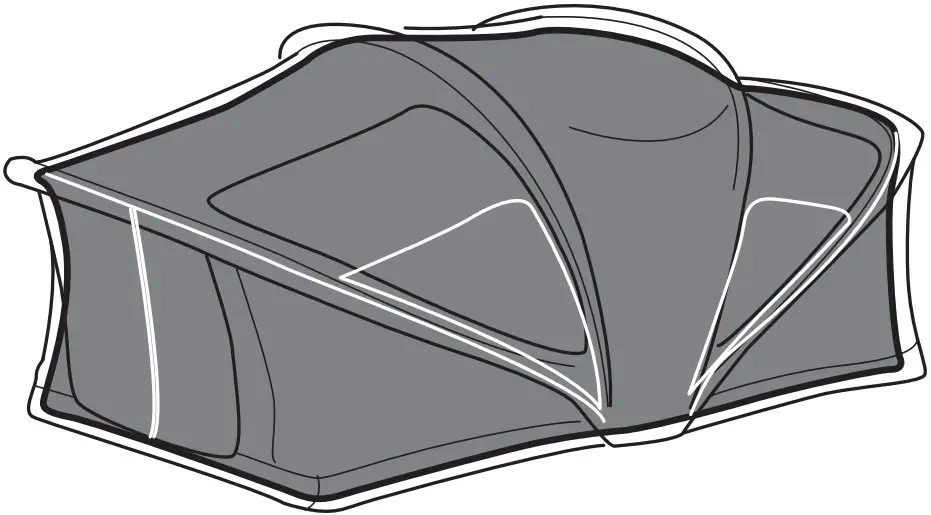

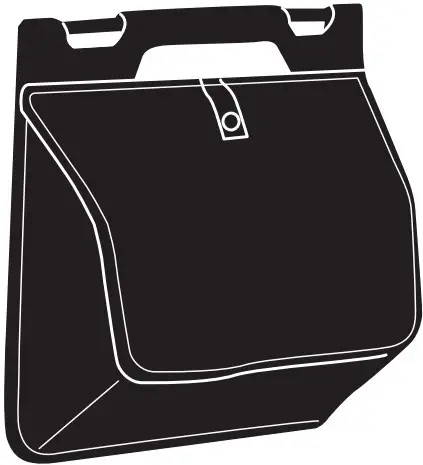

What In The Box

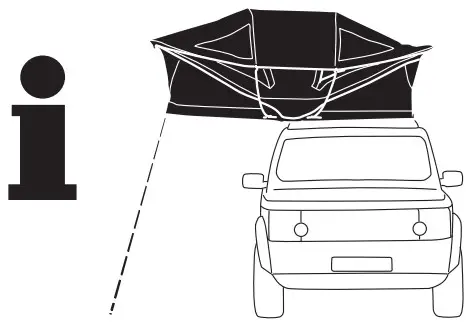

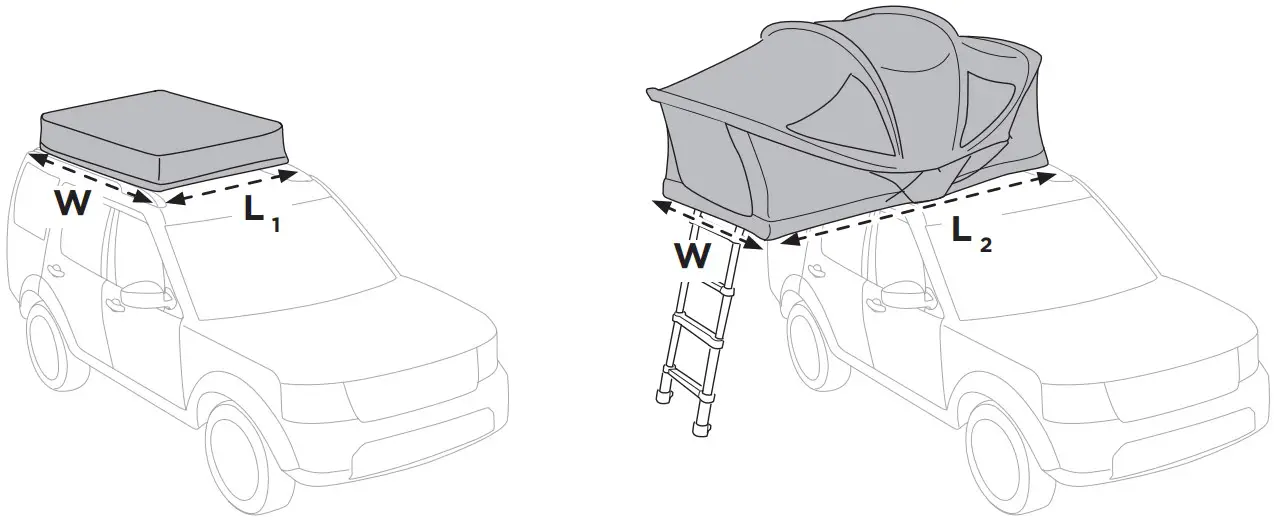

Dimensions

	Tent Weight	Dimensions Closed L1 x W	Dimensions Open L2 x W
Thule Approach S 901010, 901011	50 kg 110 lbs	110 x 123 cm 43 x 48 in	209 x 123 cm 82 x 48 in
Thule Approach M 901012, 901013, 901014	58 kg 128 lbs	124 x 143 cm 49 x 56 in	240 x 143 cm 95 x 56 in
Thule Approach L 901015, 901016	68 kg 150 lbs	124 x 184 cm 47 x 72 in	240 x 184 cm 95 x 72 in

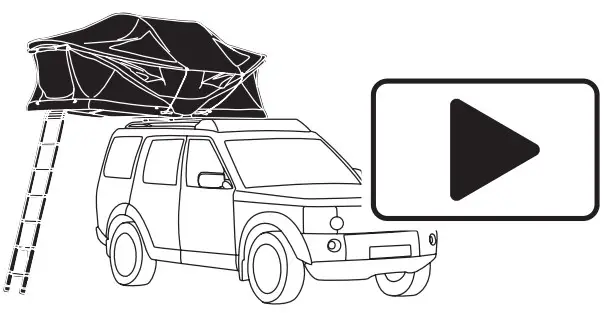

Video Instructions
Thule Approach

www.thule.com

Video Instructions
Thule Mounting Bracket

www.thule.com

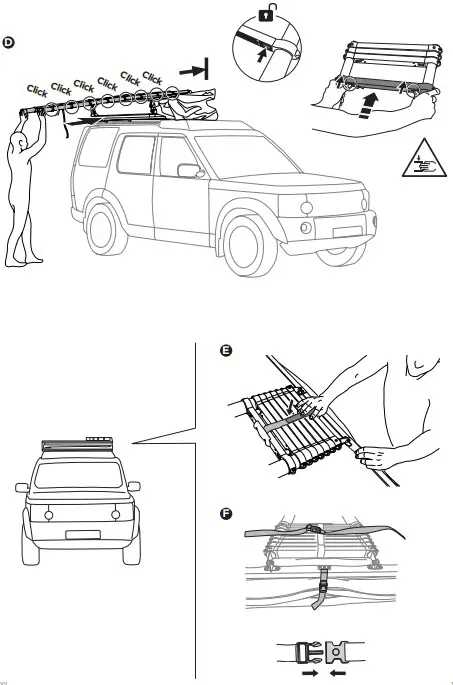

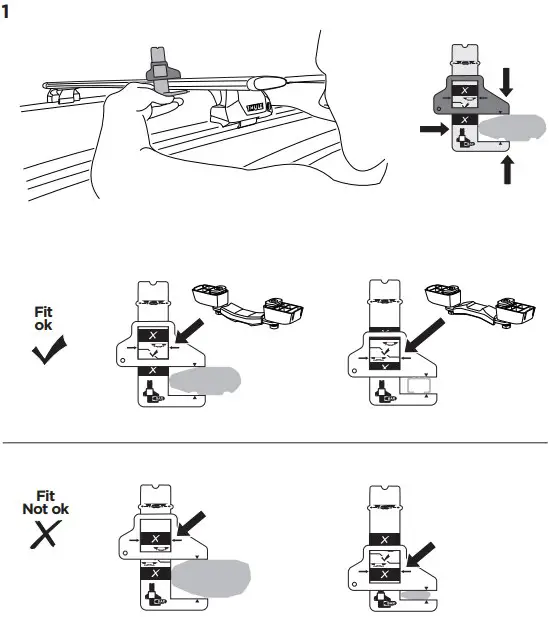

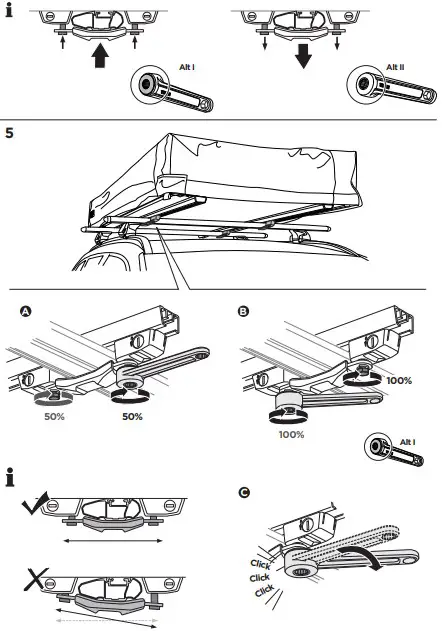

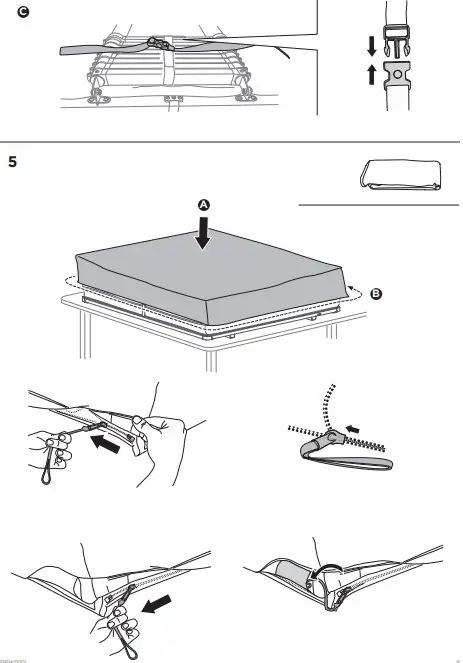

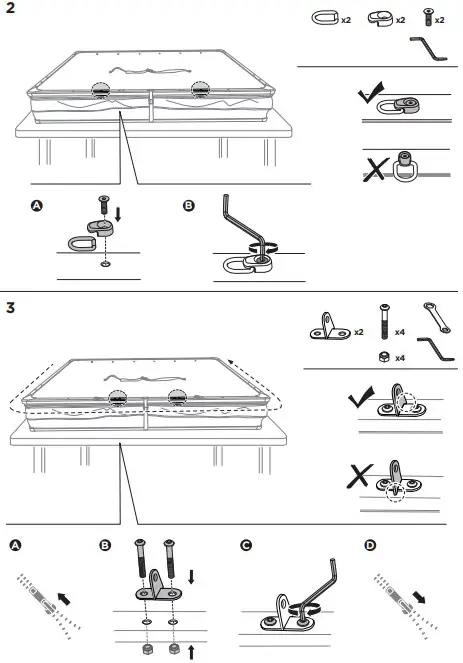

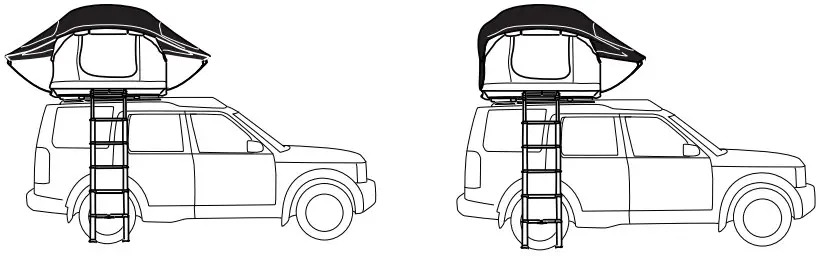

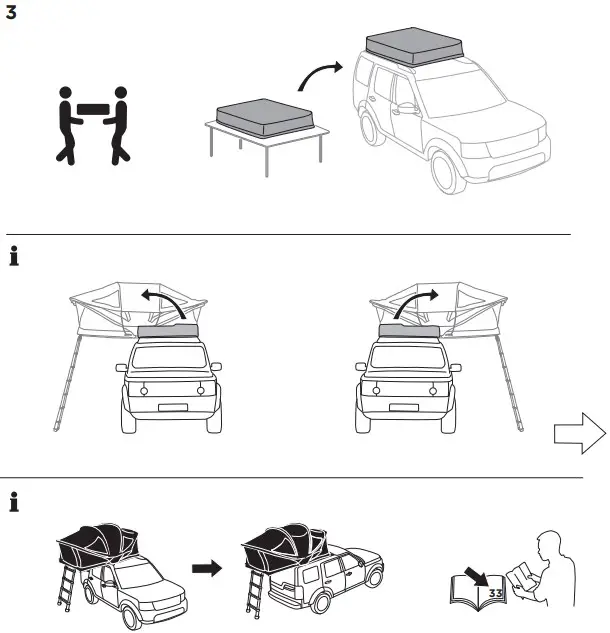

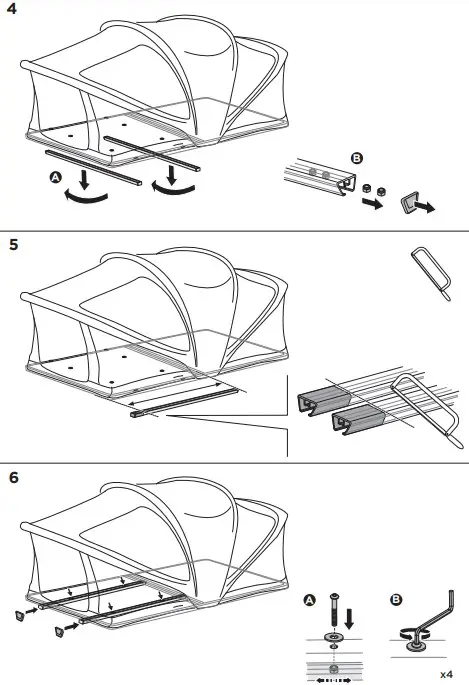

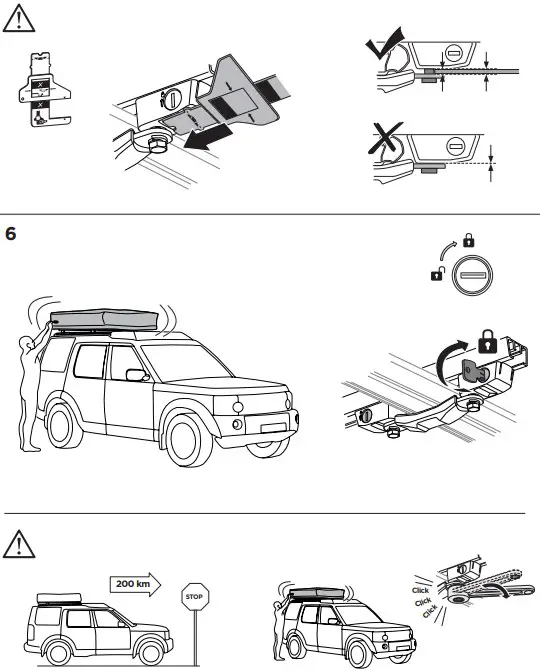

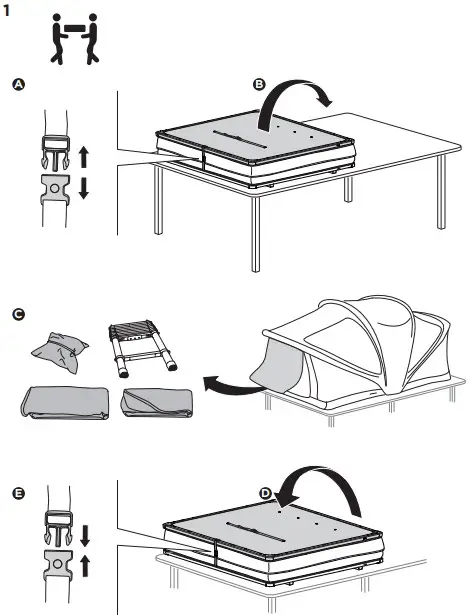

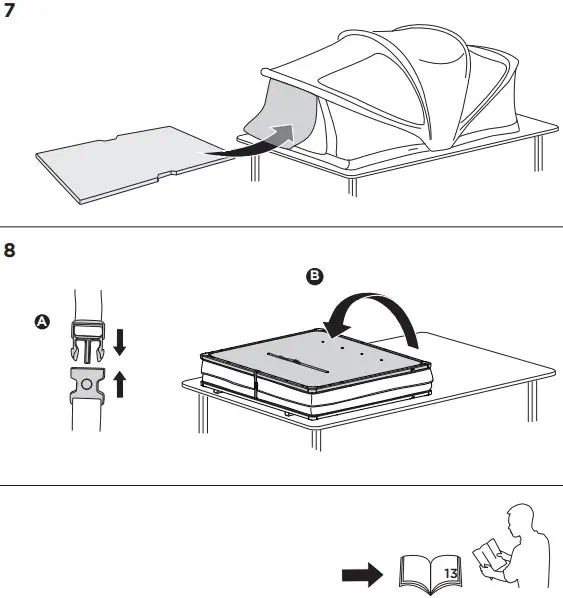

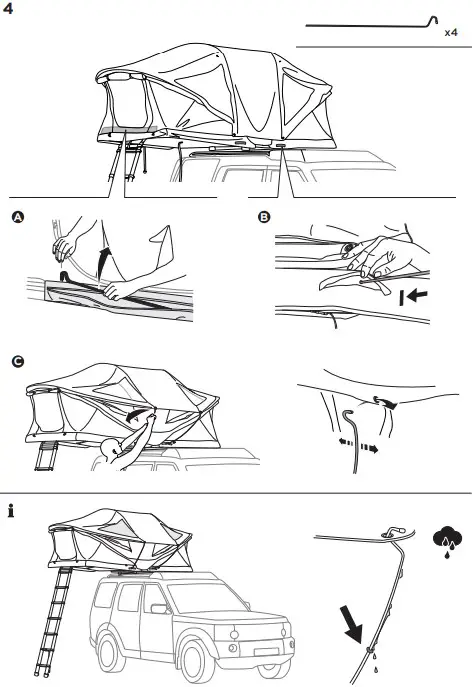

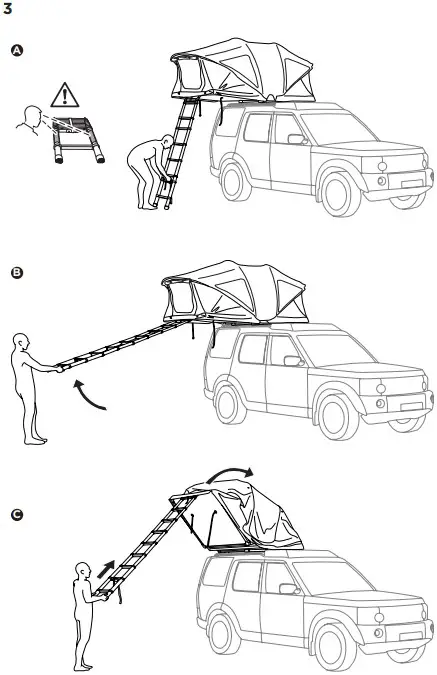

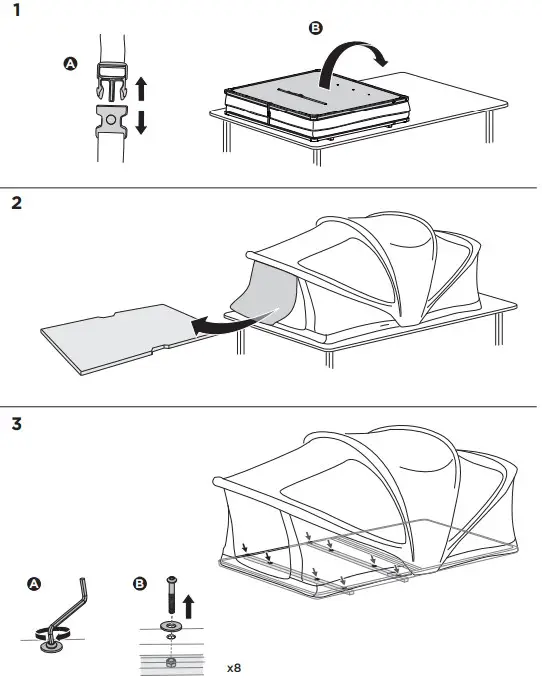

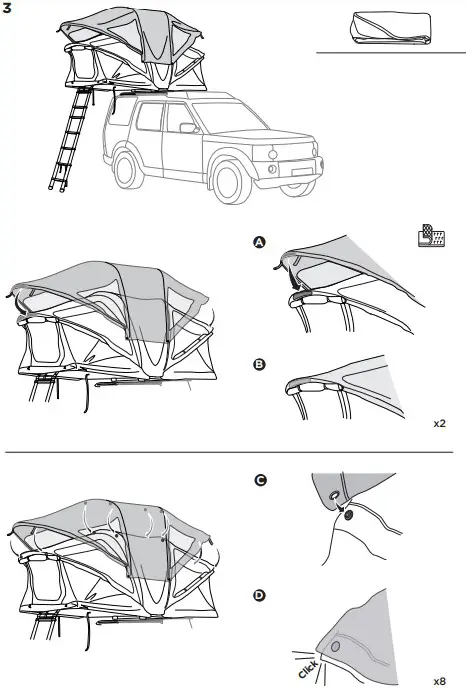

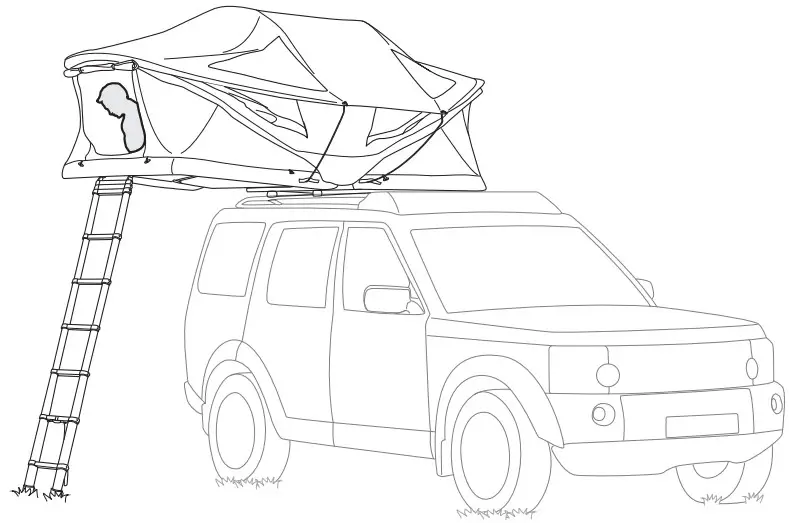

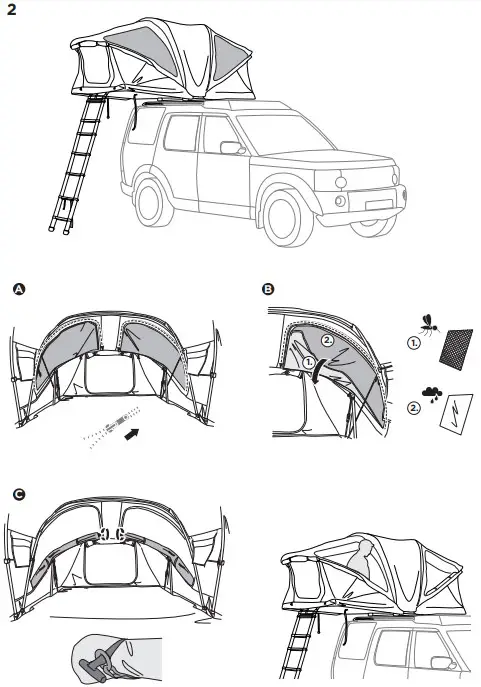

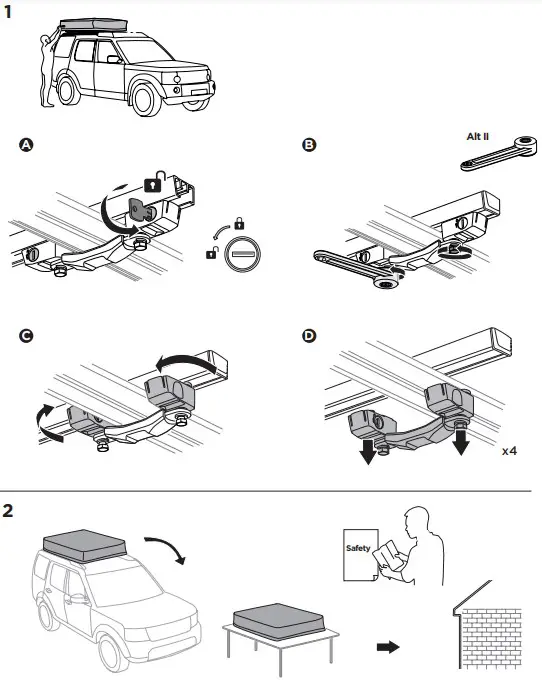

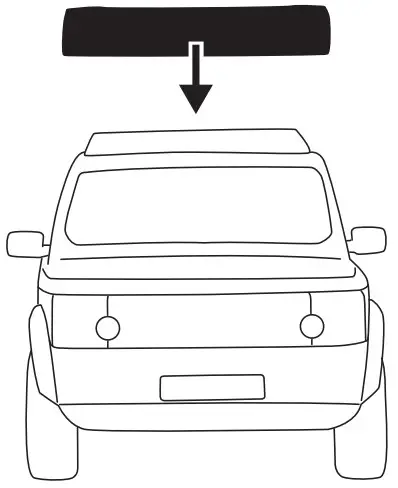

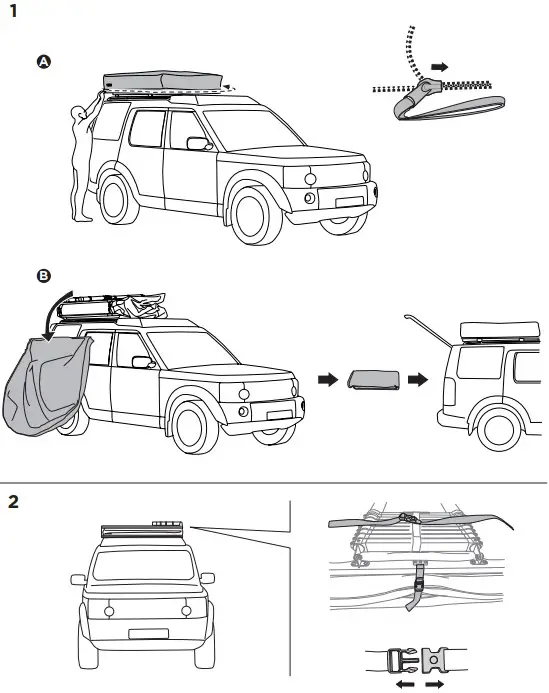

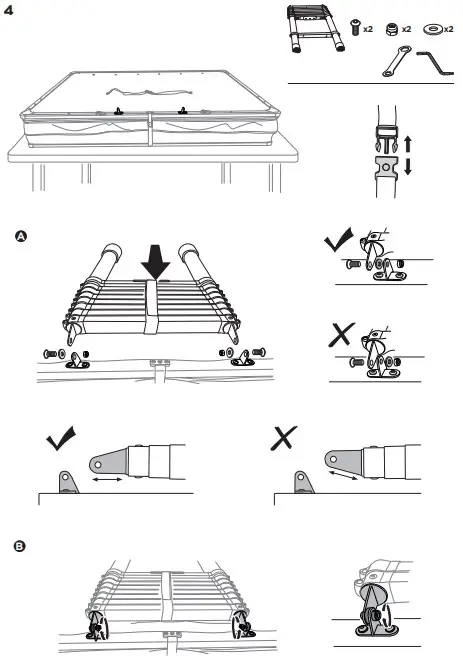

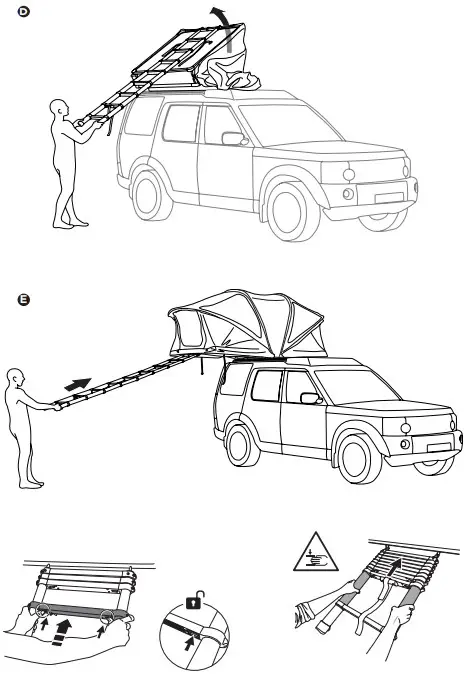

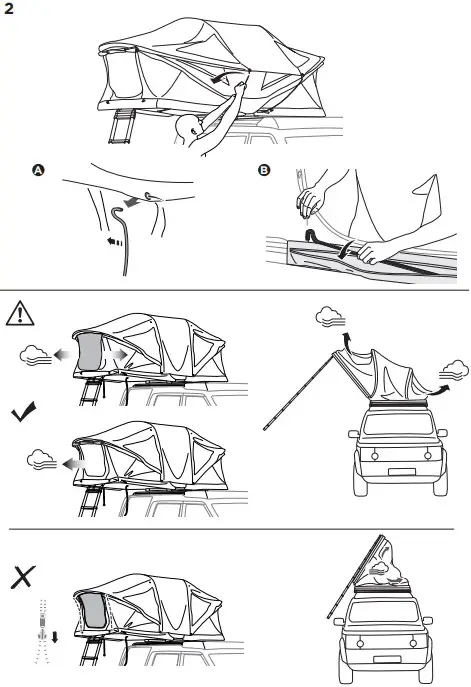

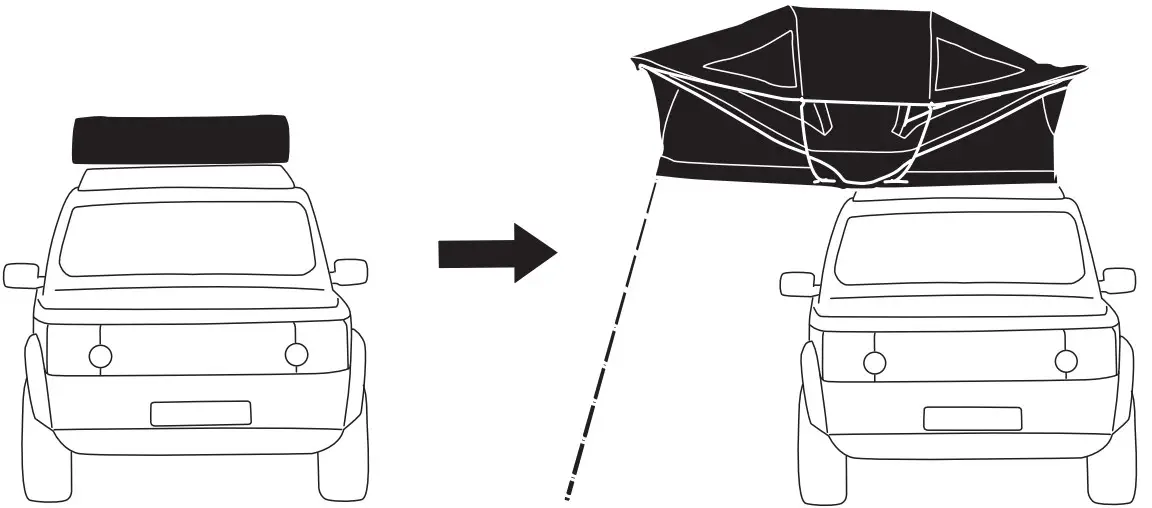

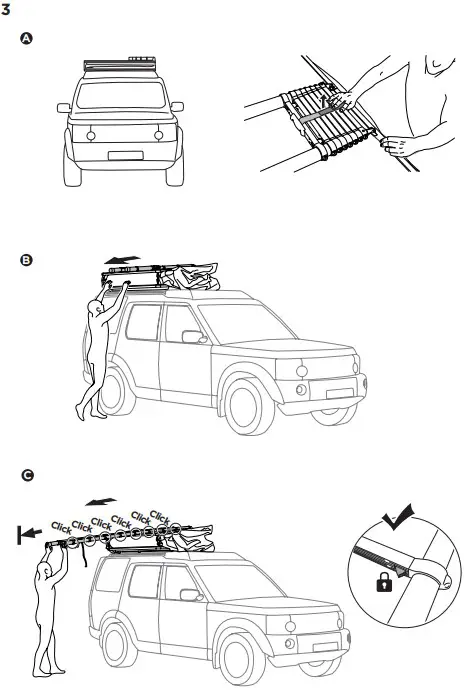

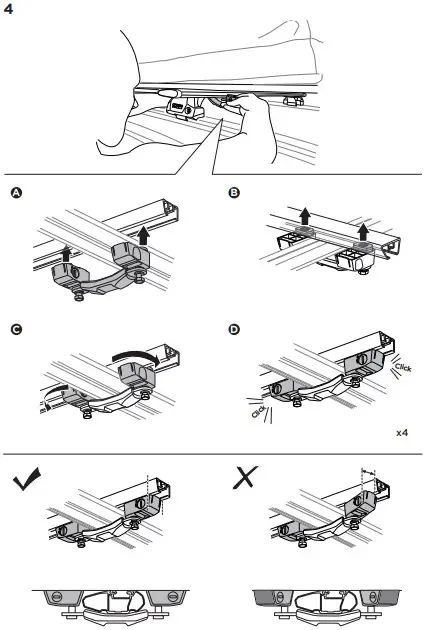

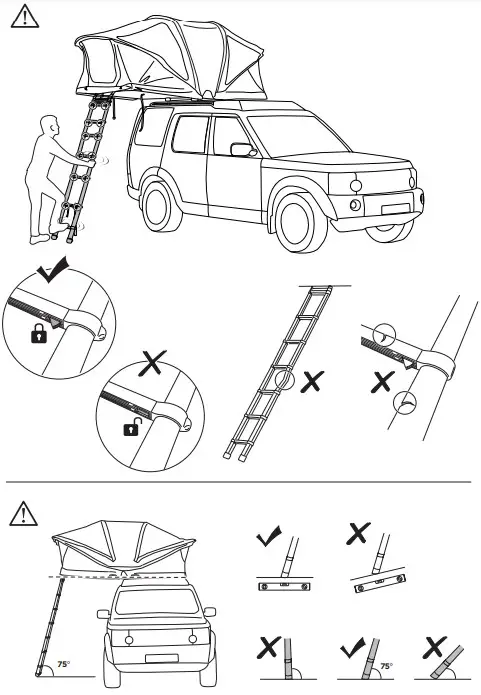

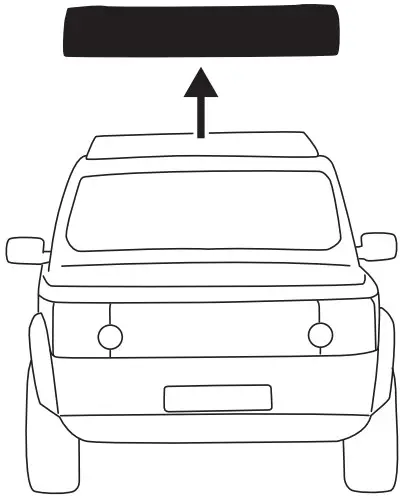

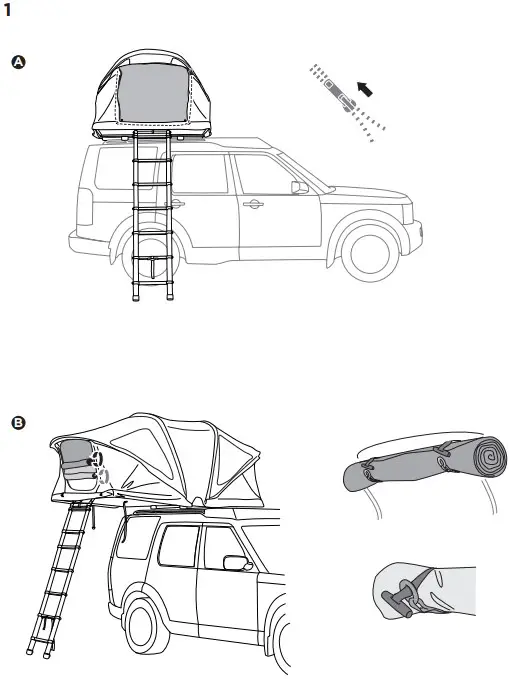

Instructions

Weight capacity of tent in use with people inside the tent (static weight) can exceed the dynamic (driving) weight capacity. The tent’s static weight capacity is 300 kg/ 600 lbs

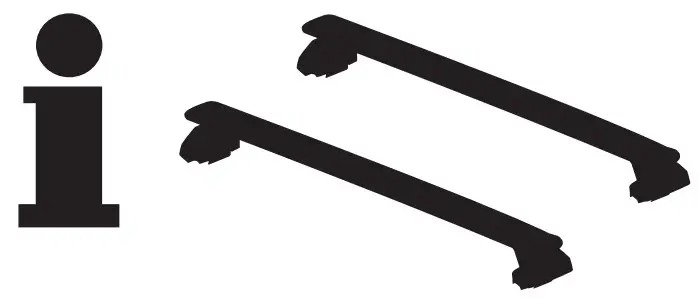

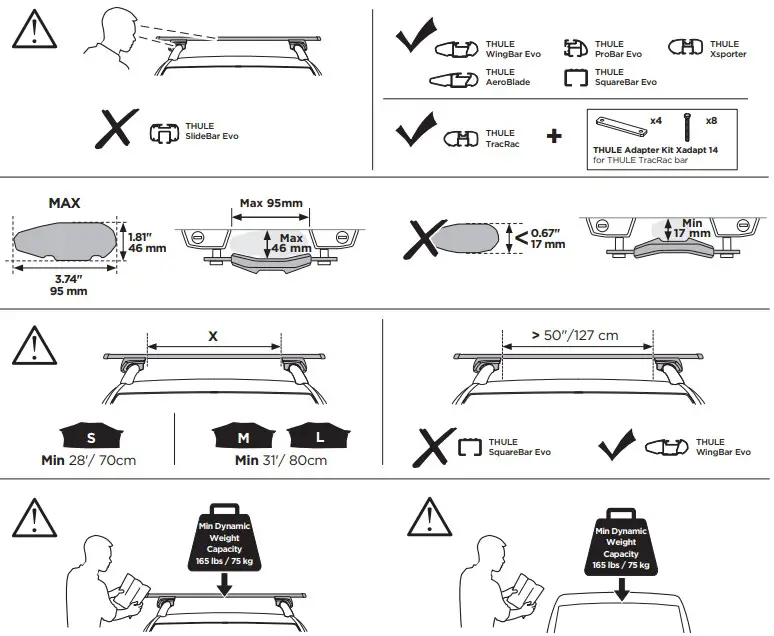

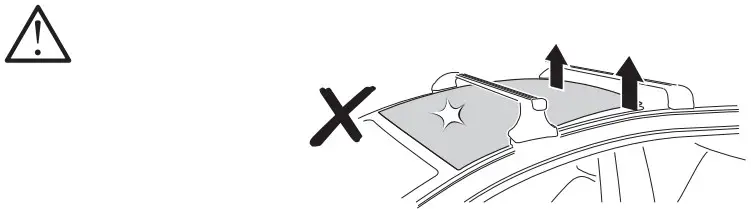

Recommended roof rack weight capacities can be found on Thule.com. Check your vehicle instruction booklet for information on recommended roof load. Thule only recommends Thule roof rack systems for Thule rooftop tents. Do not use Thule tents with a vehicle´s factory installed crossbars, they are often too flexible. For other brand roof rack applications check vehicle and roof rack owner’s manual for maximum weight capacity. Thule cannot guarantee any compatibility of other roof racks and/or their load capabilities.

DO NOT use Thule rooftop tents with vehicles with glass roofs.
Cars with sunroofs may be used but the opening function should not be used.

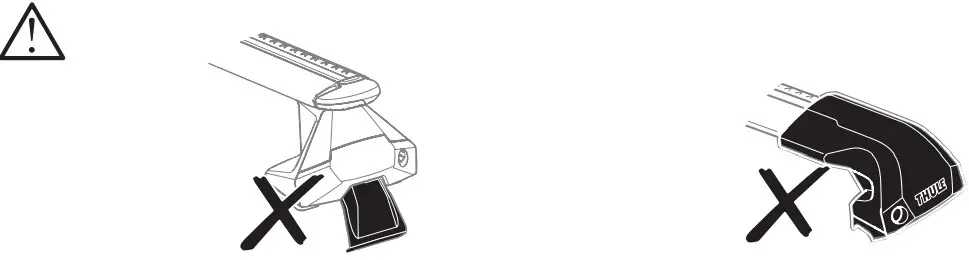

Do not use Thule Tents with any type of Thule Clamp or Thule Edge style roof racks as the high static weight may cause damage to your car´s roof

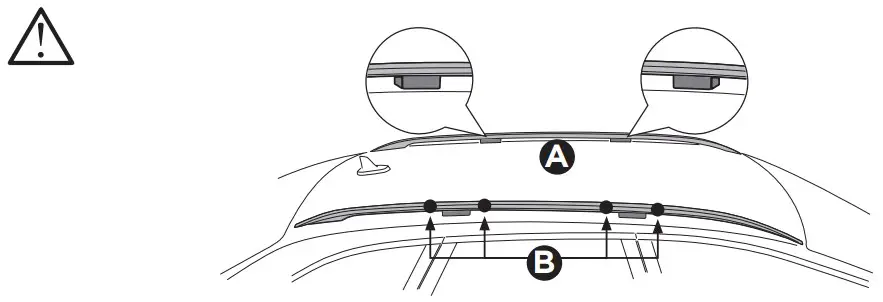

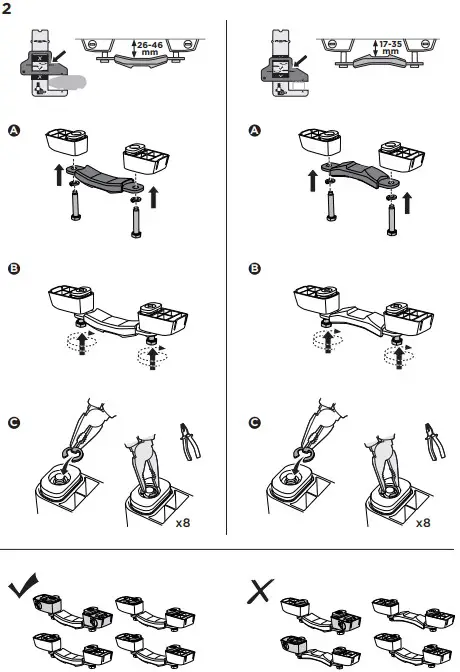

When mounting Thule rooftop tents to vehicles with raised side rails:
A) Make sure raised rails are structurally supported.
B) Make sure crossbars are positioned next to supports of raised rails
