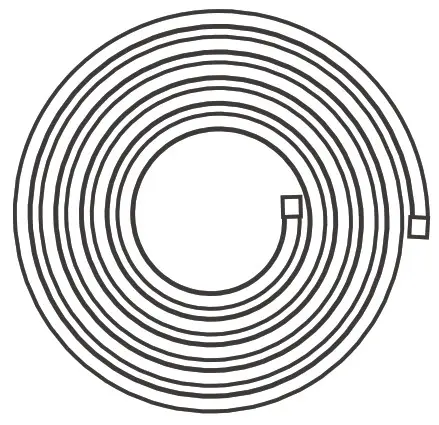

WiFi Smar LED RGB Ligh Strip
LBS L2/L2 Lite
User Manual V1.0
Operation instruction
- Clean the surface
- Tear the backing tape
- Adhere it to the surface
- Download the eWeLink App

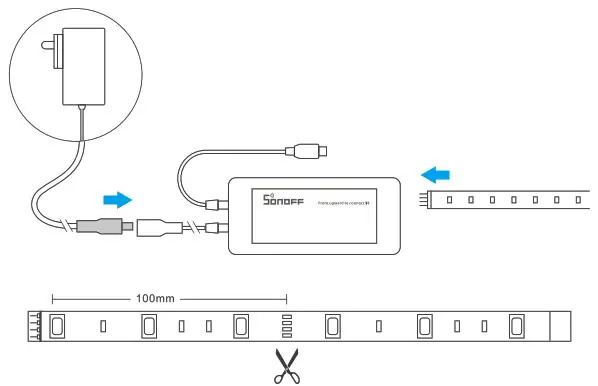

- Power on

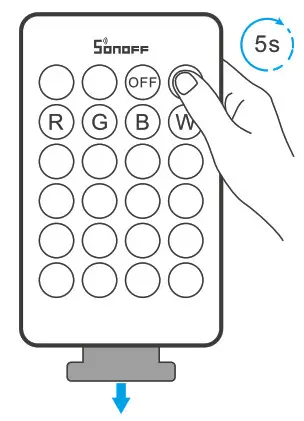

Cutable every 100mm - Pull out the insulation sheet, then long-press on the button for 5s until the light strip lashes”, which means it enters the Bluetooth Pairing mode.

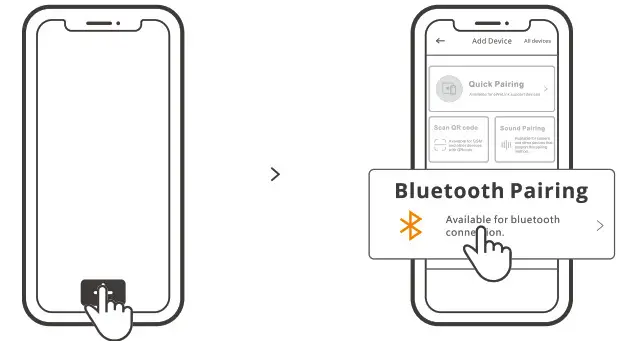

The device will exit the Bluetooth Pairing mode if not paired within 1min. If you want to enter this mode again, long-press the ‘on” button on the remote controller for 5s until the light strip lashes” and release. - Add the device
Tap “+” and select “Bluetooth Pairing”, then operate following the prompt on the App.
Specifications
Model: L1-2M, L1-5M, L1 Lite-5M-EU, L1 Lite-5M-US Light Strips
| Input Voltage | DC 12V | LED QTY | 30LEDs/m |
| Luminous Flux | ≥300Iumens/m | Life Expectancy | > 25000 hours |
| Beam Angle | L1: 140° L1 Lite: 120° | Operating Temperature | -15°C – 50°C |
| Working Humidity | ≤ 5..95% | Protect Range | L1: 1P65 L1 Lite: IP20 |
| Material | FPCB | ||
| Light Decay | Less than 3% after 1000 hours constant work | ||
Power Adapter
| Input | 100-240V AC 50/60Hz 0.6A Max | Output | DC 12V 2000mA |
| Protection | Anti-overvoltage, Anti-overload, Anti-overtemperature | ||
Wi-Fi Controller
| Input | DC 5-12V | Power. max | 36W |
| Remote Control | 24 Keys IR Remote Controller | Wi-Fi | IEEE 802.11 b 2.4GHz |
| Remote controller battery | 3V(CR2025) | Bluetooth | 5.0 BLE |
| Operating systems | Android & iOS | ||

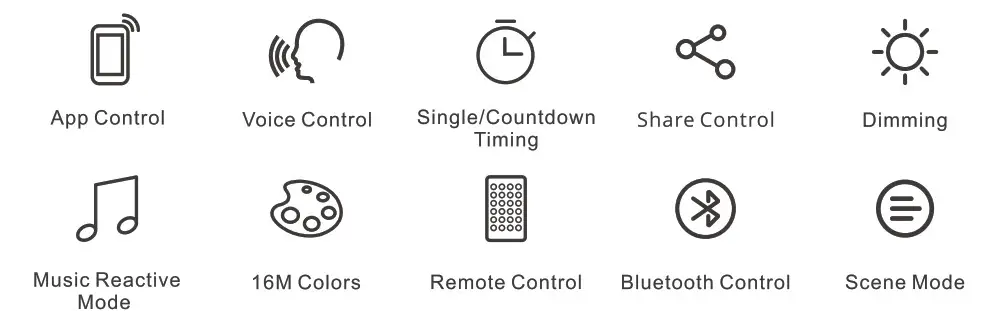

Features of the Smart LED Light Strip
- SMD5050 LED Beads; FPCB Circuit Board; Every 3 LED lights in one segment.
- Main Colors of the Light: Red/Blue/Green.
Wi-Fi control setting
Select the ‘Wi-Fi Settings’ on the “Device Settings” interface In the eWeLink App to add or change the network.
- When Wi-Fi is not available, the device will automatically switch into Bluetooth control (Ensure Bluetooth is enabled on your mobile phone).
Factory Reset
Deleting the device on the eWeLink app indicates you restore It to the factory setting.
Safety Warning
- Before using this product, please make sure that your voltage is appropriate for this product’s working voltage. Using this product with a voltage other than the one specified may damage the product and cause safety hazards.
- LED Light Sources are unchangeable, please don’t dismantle them.
- While the Light Strip is working, it will generate heat so please keep It in a cross-ventilation environment for heat dissipation.
FCC Warning
Changes or modifications not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type L1-2M, L1-5M, Li Lite-5M-US, L1 Lite-5M-EU are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://sonoff.tech/usermanuals
Shenzhen Sonoff Technologies Co., Ltd. 1001, BLDG8,
Lianhua Industrial Park, Shenzhen, GD, China
ZIP code: 518000 Website: sonoff.tech
