Turbosound 300 Watt 10″ Low Frequency Loudspeaker User Guide
Features
- 10″ high-power woofer for
- PA applications
- Continuous power: 300 Watts RMS
- Maximum power: 1,200 Watts Peak
- Impedance: 8 Ohms
- Frequency range: 53 Hz – 4 kHz
- SPL: 93 dB (1 W / 1 m)
- Rigid aluminum die-cast frame
- Mounting hole diameter: 245 mm (9.65″)
- Shipment weight: 5.1 kg (11.2 lbs) and Net weight: 4.5 kg (9.9 lbs)
- Overall diameter: 261 mm (10.28″)
- 3-Year Warranty Program*
- Designed and engineered in England

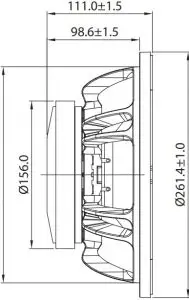

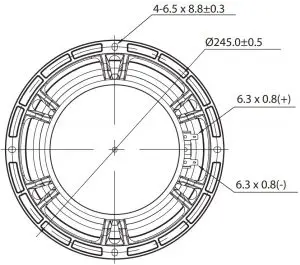

Dimensional Diagrams

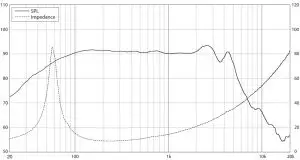

Frequency Charts
- Sound Pressure Level (dB)
- Frequency (Hz)
- Impedance (ohm)
| General Specification Loudspeaker diameter | 261 mm / 10″ | Thiele & Small Parameters Resonance frequency (Fs) | 53 Hz | |
| Impedance | 8 Ω | DC resistance (Re) | 7.8 Ω | |
| Continuous power rating1 | 300 W | Mechanical Q factor (Qms) | 7.45 | |
| Peak power rating2 | 1200 W | Electrical Q factor (Qes) | 0.44 | |
| Sensitivity | 93 dB (±3 dB, 1 W / 1 m) | Total Q factor (Qts) | 0.41 | |
| Frequency range | Fo ~4 kHz (-10 dB) | Mechanical moving mass (Mms) | 47.8 g | |
| Magnet size | 156 mm | Mechanical compliance (Cms) | 0.19 Mm/N | |
| Voice coil diameter | 65.5 mm / 2.5″ | Force factor (Bl) | 16.9 | |
| Bobbin material | Glass fiber SV | Equivalent acoustic volume (Vas) | 31.6 I | |
| Wire type | PISV wire | Maximum linear displacement (Xmax) | 3.4 Mm | |
| Winding height | 17 mm | Diaphragm area (Sd) | 346 Sq cm | |
| Layers | 2 | Voice coil inductance @ 1 kHz (Le) | 0.8 mH | |
| Cone body | Paper |
Notes to Specification
- Pink noise with 6 dB crest factor for 2 hours
- Peak power is defined as continuous power +6 dB
| Shipping Informationg | |
| Net weight | 4.5 kg / 9.9 lbs |
| Shipping weight | 5.1 kg (11.2 lbs) |
Application
This loudspeaker is exclusively meant for the reproduction of audio signals according to instructions and specifications given in this manual. We‘re not liable for any damage caused by unintended use.
