User Manual
Bluetooth Adapter
PRODUCT INTRODUCTION

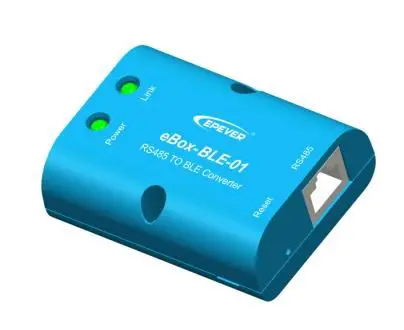

eBox-BLE-01—RS485 to Bluetooth Adapter
Dear user: Thanking you for selecting our product!
Product Introduction
eBox-BLE-01 is a kind of serial adapter which can make our company’s solar controller and inverter be with Bluetooth communication function, and carry out wireless monitoring, parameter settings, etc. for the system only by cooperating with a mobile phone APP. Plug and play, simple and convenient set, it has many excellent features.
Main features :
- Realize wireless monitoring function of solar controller and inverter
- Support mobile phone APP, plug and play, simple and convenient to set
- Use high performance, ultra-low power consumption Bluetooth dedicated chip
- Adopt Bluetooth 4.0 and BLE technology
- Fast communication, strong anti-interference ability
- No need for an external power supply
- Communication distance up to 10 m
- Master reset adapter

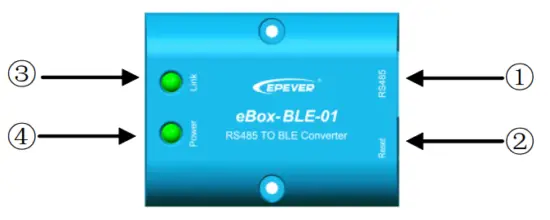

Product Features
- RS485 Interface(RJ45): Used for connecting the solar controller or inverter with RS485 as the communication bus
- Reset button: Master reset adapter
- Link indicator: Communication connection indicator
- Power indicator： Power indicator
Indicator Instructions
| Indicator | status | Instruction |
| Power indicator | Green on solid | Normal power-on |
| OFF | No power-on | |
| Link indicator | Green on solid | Bluetooth connected |
| OFF | Bluetooth not connected |

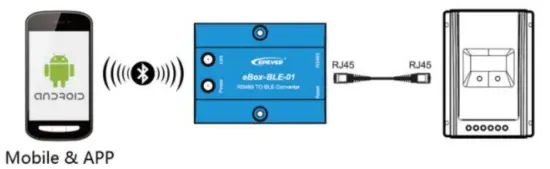

System Connection Diagram
NOTE: Standard network cable(Parallel cable) can achieve the connection!
Applicable Models
| Product series | Communication | Interface type |
| LS-B series | RS485 | RJ45 |
| VS-A series | ||
| VS-BN series | ||
| Tracer-A series | ||
| Tracer-BN series | ||
| SHI series | ||
| STI series | ||
| eTracer-AD series | 3.81-4P | |
| eTracer-BND series | ||
| iTracer-ND series |
Operation Instruction
For details, please refer to the user manual of the mobile phone APP [EPEVER (WIFI)] of this product!
Technical Specifications
Models/Item | eBox-BLE-01 |
| Input Voltage | 5VDC (Direct powered by RS485 port ) |
| Standby power consumption | 0.04W |
| Operation power consumption | 0.05W |
| Communication distance | –.c.10m |
| Port baud rate | 300bps-230400bps (Default115200) |
| Communication | RS485 to BLE |
| Interface type | RJ45 |
| Connecting cable | Standard network cable (Parallel cable) |

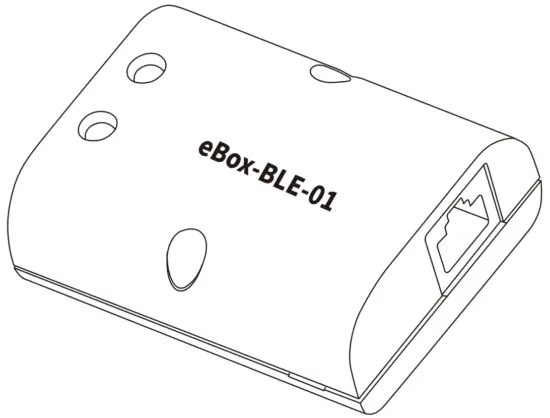

| Overall dimension | 51*67*24.5mm |
| Mounting dimension | 41.2mm |
| Mounting hole size | 03. 2rom |
| Working temperature | -20-70°C |
| Enclosure | IP30 |
| Net weight | 37g |
Any changes without prior notice! Version number： V1.0
