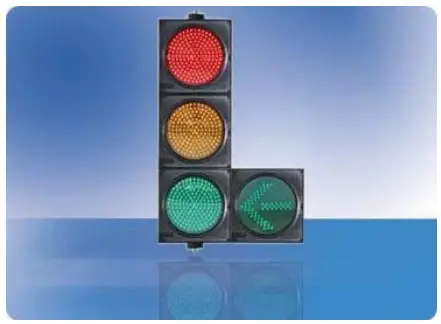

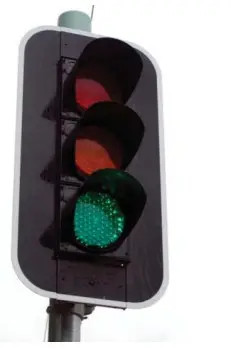

TP 300 Traffic Signal Light
User Manual
Website: www.ledandled.se
E-mail: [email protected]

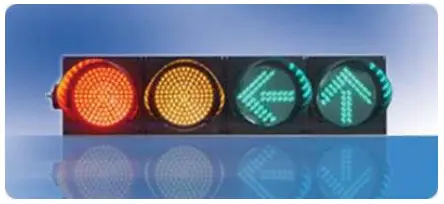

Key Features:
- Retrofit design & UV stabilized shell.
- Wide viewing angle.
- Even brightness & standard chromatogram.
- Less than 1% light loss with single LED failure.
- Up to 10 times longer lifetime than Incandescent.
- Compatible with most of traffic housing and controllers.
- 3-year warranty.

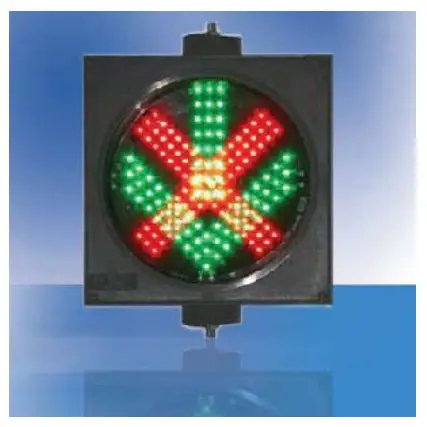

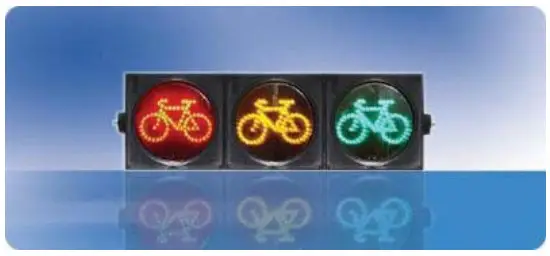

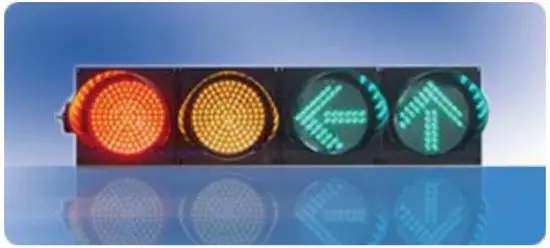

| Emission Color | LED Quantity | Luminous (cd) | Visual Angle | Power consumption | Operating Temp | Working Voltage | |
| L/R | Down | ||||||
| Red ball | 168 | 800 | 60 | 20 | ≤11 | -40∼+50 | 100-240VAC 50/60Hz |
| Yellow ball | 168 | 800 | 60 | 20 | ≤11 | ||
| Green ball | 168 | 800 | 60 | 20 | ≤10.5 | ||
| Red arrow | 65 | fl000/m2 | 60 | 20 | ≤8.5 | ||
| Yellow arrow | 65 | NI000/m2 | 60 | 20 | ≤8.5 | ||
| Green arrow | 65 | NI000/m2 | 60 | 20 | ≤8 | ||
| Redman | 80 | 4000/m2 | 60 | 20 | 9.5 | ||
| Green man | 78 | 4000/m2 | 60 | 20 | 9 | ||

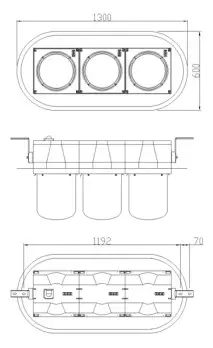

Vertical view
Back view

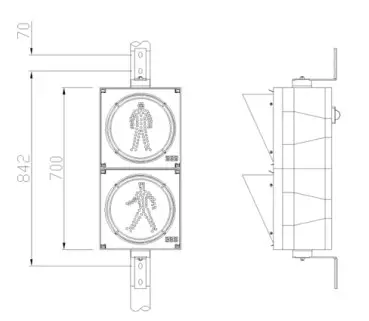

Front view of pedestrian lights
Side view of pedestrian lights

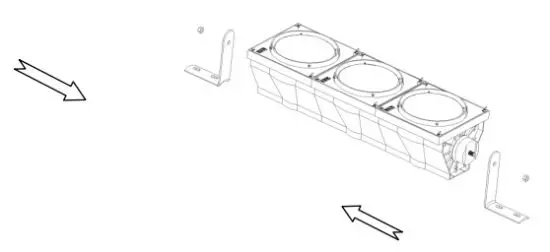

- Connect the L-shape brackets to the PC modules.
- Fasten them with screws.

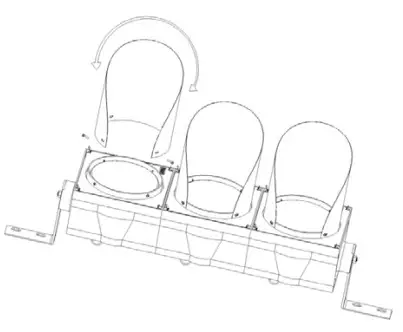

- Curve the sun visor and insert it in the slot.
- Fasten them with screws.

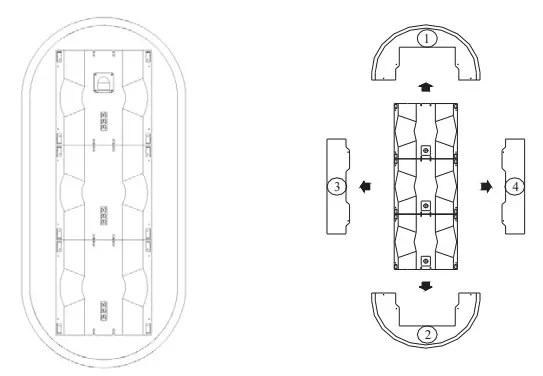

Connect the background panel to the light fixture and fasten them with screws. (Finished as the drawing on the right)

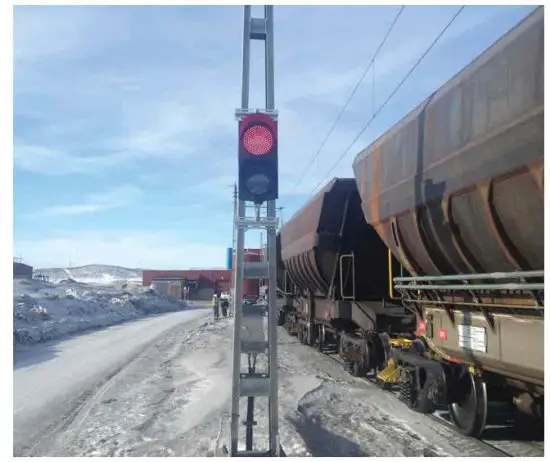

Connect the complete set to the lamp pole via mounting bracket and adjust the angle by the PC modules.

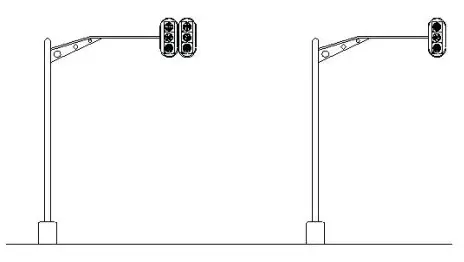

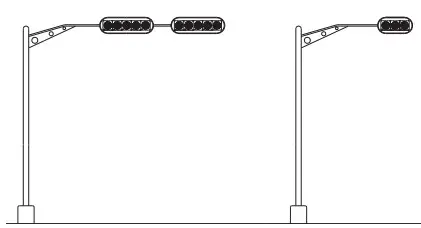

Vertical installation mode

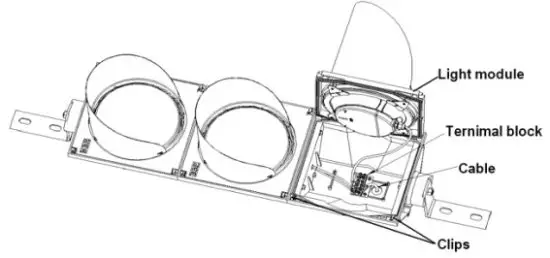

Horizontal installation mode
Apply the rubber wire (spec: 2*1.0 mm² VDE 60245IEC57) for our wiring via the hole beside the connection terminal.
Wiring procedure:
- Open the module by pushing the metal clips and finding the connection terminal.

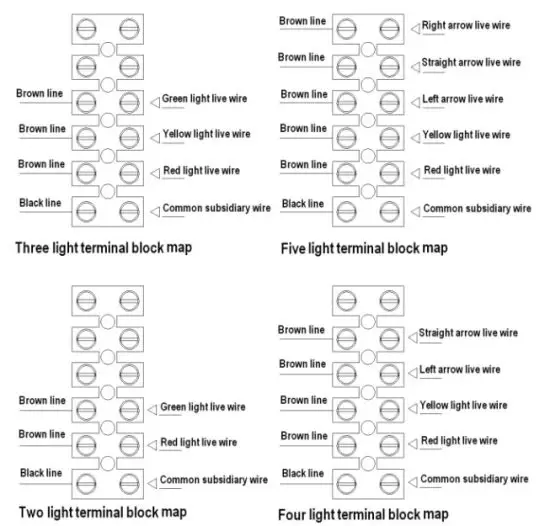

- Connect the outer wires to the terminals as follows.

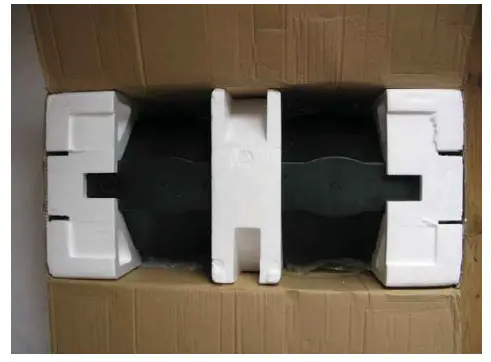

| Unit Packing: | 1 pc/carton |
| Outside Size(V3RYG): | 1240*420*270mm |
| Outside Size(A3RYG): | 1240*420*270mm |
| Outside Size(P3RG): | 900*420*280mm |
| N.W./G.W.(V3RYG): | 10.2/12kg |
| N.W./G.W.(A3RYG): | 10.0/12kg |
| N.W./G.W.(P3RG): | 6.8/8.5kg |
| Volume(m³) (V3RYG): | 0.14 |
| Volume(m³) (A3RYG): | 0.14 |
| Volume(m³) (P3RG): | 0.105 |
| Wrapper: | Carton, foam |
| IP Rating | IP55 |
| Working Humidity | 10% ~ 90%ORH |
Vehicle Signal Packing List
- User’s Manual
- Installation supports
- Vehicle flaps
- Decoration panel: 1 set (two rectangular pieces, two semi-circular pieces)
- Standard pieces for installing the panels:
(1) Tap screws Ø4×10, 11 (only 8 are needed)
(2) Screws, M4×8, 6 (only 4 are needed)
(3) Nuts, M4, 6 (only 4 are needed) - Standard pieces for installing the flaps:
Self-tapping screws Ø4×10, 14 (only 12 are needed)
Pedestrian Signal Packing List
- User’s Manual
- Installation supports
- Pedestrian signal flaps
- Standard accessories for installing the panels:
Self-tapping screws Ø4×10, 10 (only 8 are needed)
Maintenance: according to the quality of the traffic light source and application environment, please clean the light fixtures at least once every year.
